3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#162669) — 27 parça

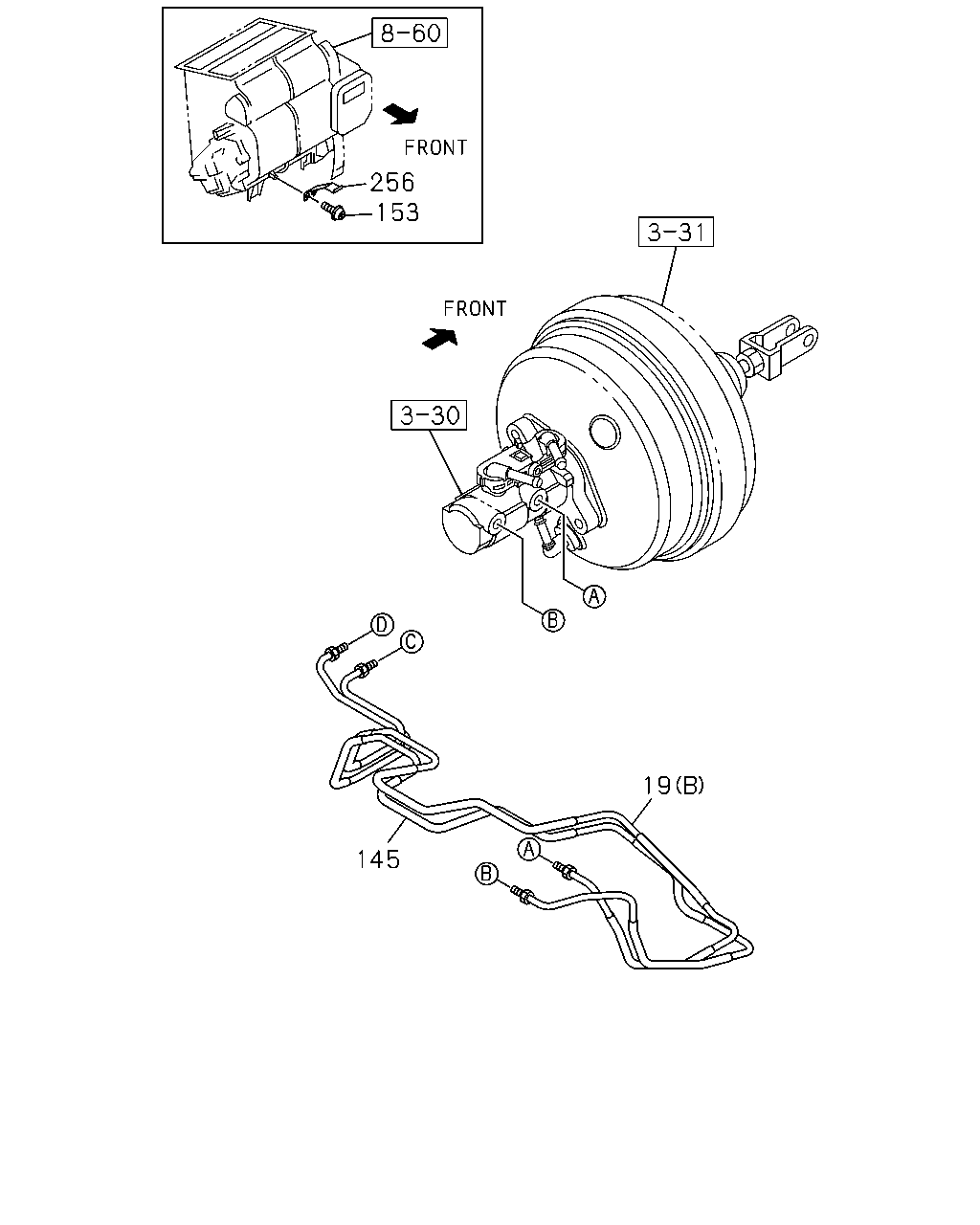

256 153 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	1506-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B) L=1274	8-98115-279-1	01	1	1506-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION L=1371	8-98115-269-1	01	1	1506-	●	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1506-	●	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98163-521-0	01	1	1506-	●	●

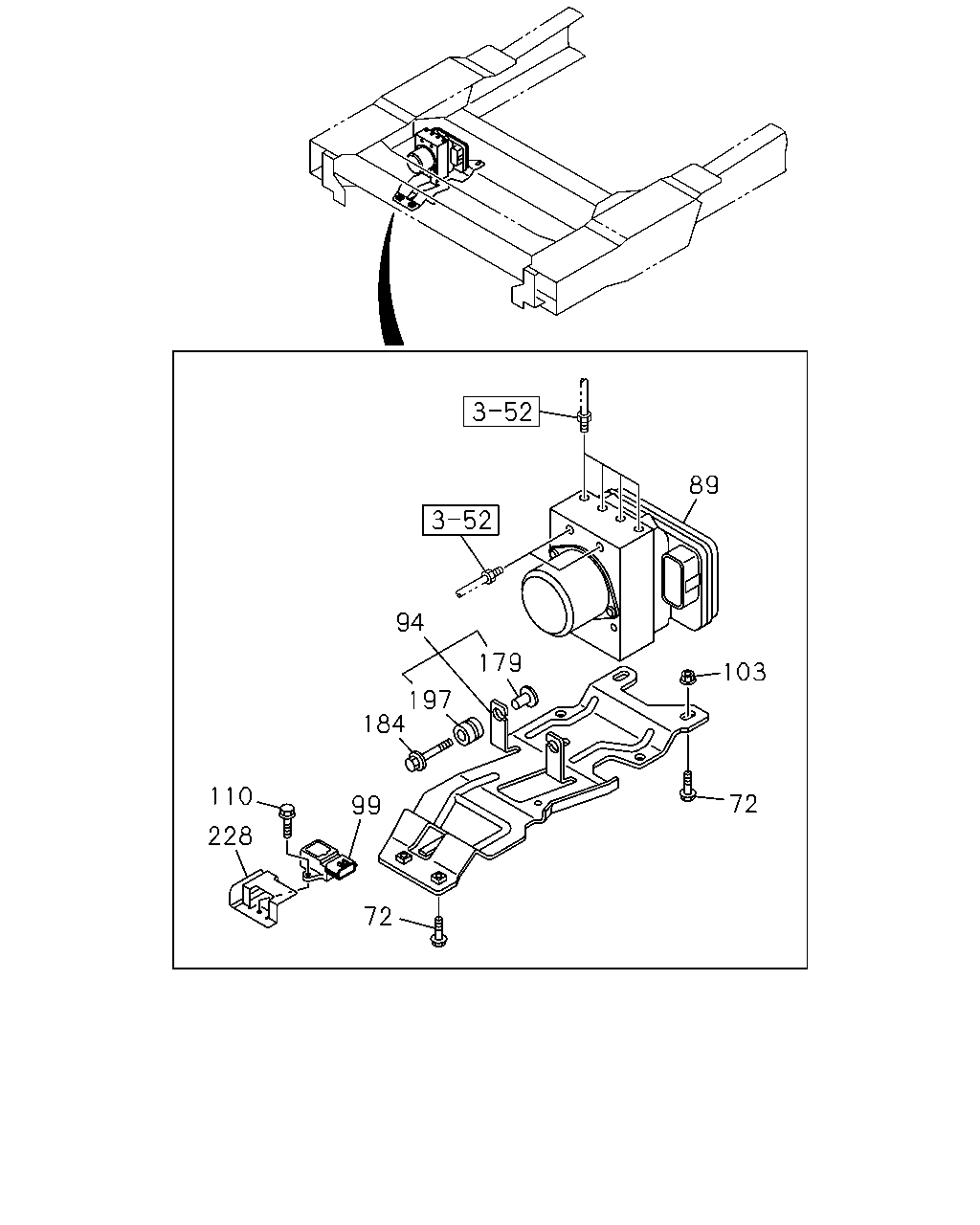

89 103 72 179 94 197 184 99 110 228 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1506-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98272-376-0	01	1	1506-	●	●
94	04.730 BRACKET; ABS CONT UNIT	8-98131-872-2	01	1	1506-	●	●
99	04.710 SENSOR; DECELERATION	8-97319-480-0	01	1	1506-	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRT INDEPENDENT SUSPENSIO N(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
110	04.730 BOLT; HYDRAULIC UNIT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1506-	●	●
179	04.685 SPACER; BRKT	8-98130-134-0	03	1	1506-	●	●
184	04.681 BOLT; CLIP M6X27 W/PL WASHER	8-98131-461-0	03	1	1506-	●	●
197	04.730 RUBBER; DAMPER	8-98130-133-0	03	1	1506-	●	●
228	04.730 COVER; ABS	8-98062-231-1	01	1	1506-	●	●

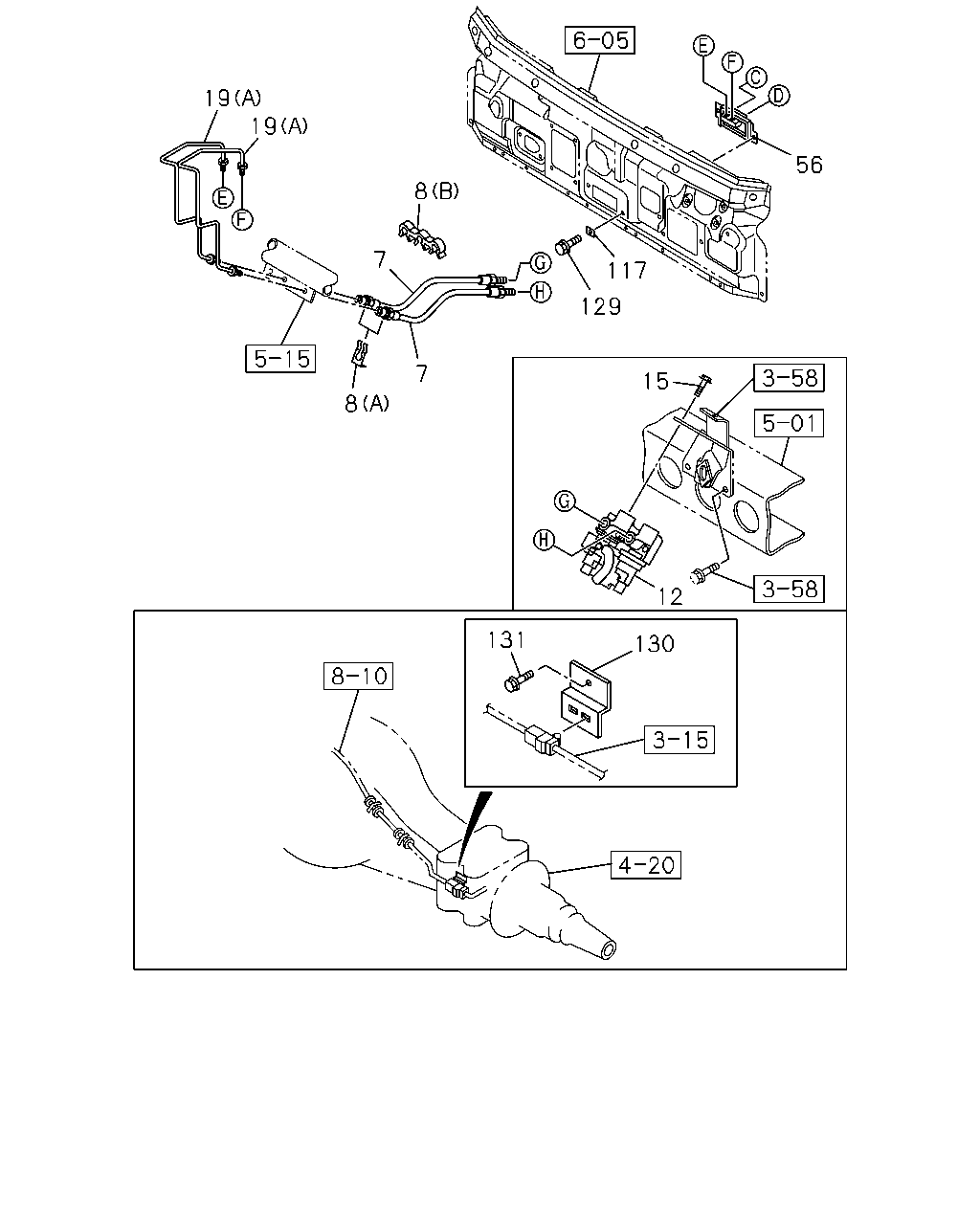

19 19 8 129 117 56 8 7 7 15 12 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	1506-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1506-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	1506-	●	●
12	04.690 VALVE ASM; HSA	8-98159-364-1	01	1	1506-	●	●
15	04.730 BOLT; HSA VALVE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98012-095-1	02	1	1506-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B) L=1274	8-98115-279-1	01	1	1506-	●	●
56	04.686 BRACKET; UNION,BRK	8-98154-264-1	01	1	1506-	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1506-	●	●
129	04.710 BOLT; BRKT 08.857 M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1506-	●	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	1506-	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-	●	●
