Sayfa 3-02 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶

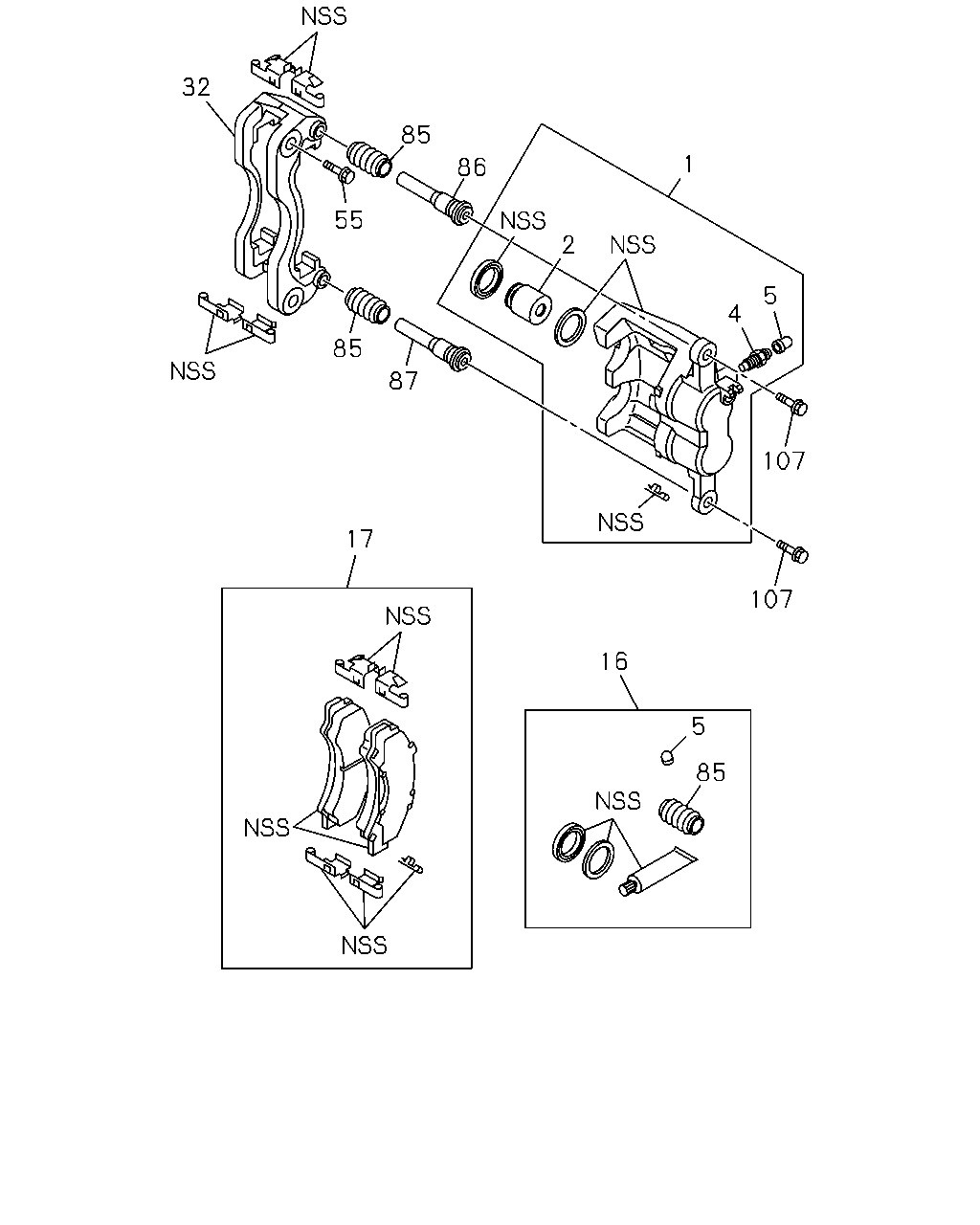

3-02 — FRONT DISC BRAKE CALIPER (#162660) — 26 parça

32 55 85 86 2 4 5 107 1 107 85 87 16 5 85 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(FF0)	8-98303-459-0	01	1	1506-1507	●	●
1	04.665 CALIPER; FRT DISC BRK	8-98303-459-0	01	1	1508-	●	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(FF0)	8-98303-460-0	01	1	1506-1507	●	●
1	04.665 CALIPER; FRT DISC BRK	8-98303-460-0	01	1	1508-	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97365-256-0	04	1	1506-1507	●	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT	8-97365-256-0	04	1	1508-	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98050-476-0	02	1	1506-1507	●	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT	8-98050-476-0	02	1	1508-	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98050-479-0	02	1	1506-1507	●	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT	8-98050-479-0	02	1	1508-	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98302-529-0	01	1	1506-1507	●	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT	8-98302-529-0	01	1	1508-	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98216-921-0	01	1	1506-1507	●	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT	8-98216-921-0	01	1	1508-	●	●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(FF0)	8-97365-266-0	02	1	1506-1507	●	●
32	04.665 SUPPORT; FRT DISC BRK	8-97365-266-0	02	1	1508-	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE	8-98033-656-0	04	1	1506-1507	●	●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK M16X48 FLANGE	8-98033-656-0	04	1	1508-	●	●
85	04.665 BOOT; PIN FRT INDEPENDENT SUSPENSION(FF0)	8-98120-354-0	04	1	1506-1507	●	●
85	04.665 BOOT; PIN	8-98120-354-0	04	1	1508-	●	●
86	04.665 PIN; GUIDE FRT INDEPENDENT SUSPENSION(FF0)	8-98047-530-0	02	1	1506-1507	●	●
86	04.665 PIN; GUIDE	8-98047-530-0	02	1	1508-	●	●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(FF0)	8-98047-532-0	02	1	1506-1507	●	●
87	04.665 PIN; LOCK	8-98047-532-0	02	1	1508-	●	●
107	04.665 BOLT; PIN FRT INDEPENDENT SUSPENSION(FF0)	8-97365-264-0	04	1	1506-1507	●	●
107	04.665 BOLT; PIN	8-97365-264-0	04	1	1508-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
