Isuzu WW
▶
BUSES
▶
LV
▶
11209 - LV434(RHD) EURO3/5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

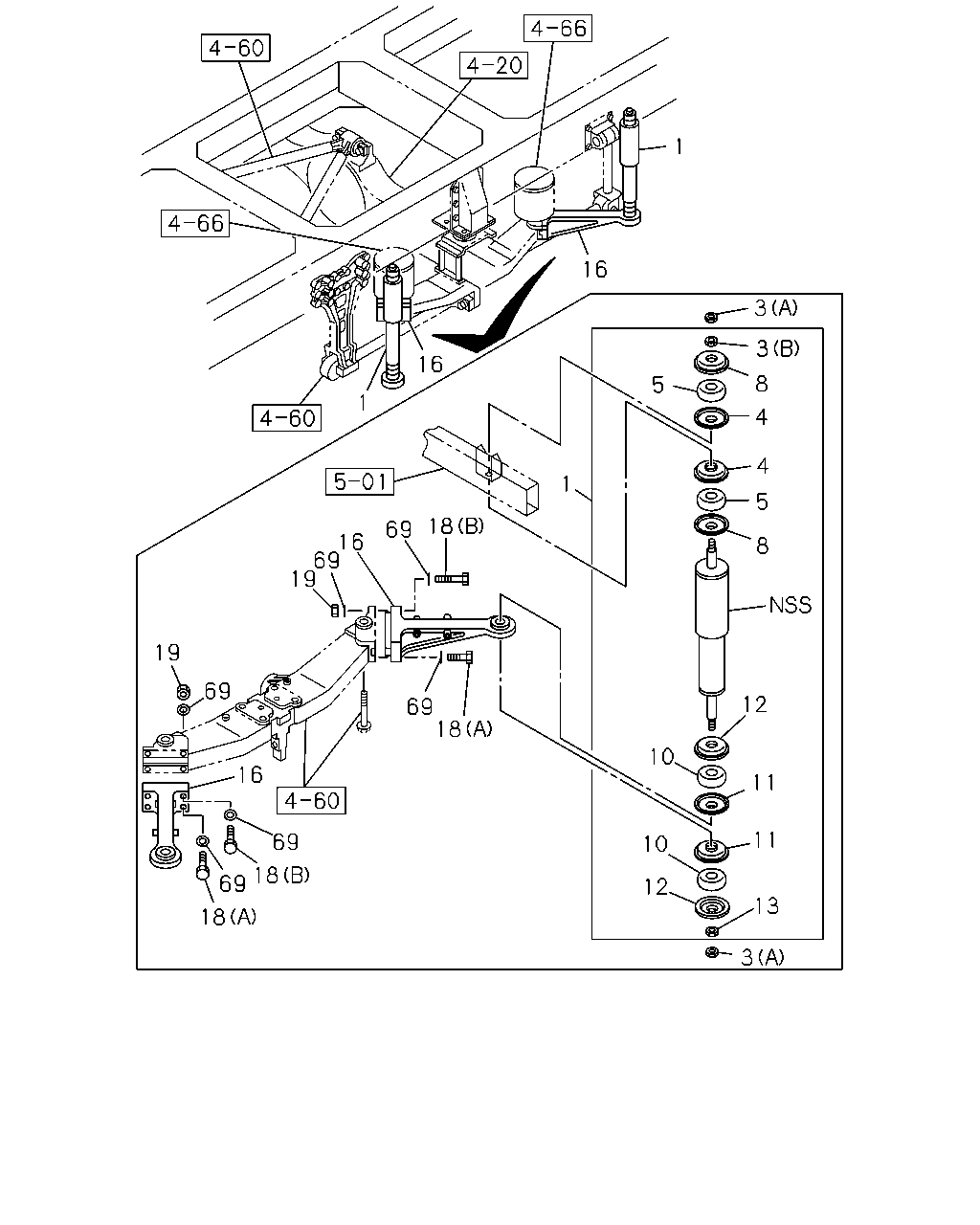

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#16266) — 15 parça
1
16
3
3
16
8
5
1
4
4
1
5
18
69
16
69
19
8
19
69
12
69
18
10
16
11
11
69
10
18
69
12
13
18
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-764-1
04
1
0907-
3
NUT; S/ABS
(A) M18
0-91111-518-0
08
1
0907-
3
NUT; S/ABS
(B) M18
9-99111-418-0
04
1
0907-
4
WASHER; CENTER,S/ABS
ID=24.4 OD=74 T=2.3
9-51631-045-0
08
1
0907-
5
BUSHING; RUBBER,S/ABS,UPR
9-51631-043-0
08
1
0907-
8
WASHER; S/ABS
ID=20.5 OD=74 T=6
9-51631-044-0
08
1
0907-
10
BUSHING; RUBBER,S/ABS
9-51631-043-0
08
1
0907-
11
WASHER; CENTER,LWR,RR S/ABS
ID=24.4 OD=74 T=2.3
9-51631-045-0
08
1
0907-
12
WASHER; S/ABS TO RR AXLE
ID=20.5 OD=74 T=6
9-51631-044-0
08
1
0907-
13
NUT; LWR,RR S/ABS
M18
9-99111-418-0
04
1
0907-
16
BRACKET; S/ABS,RR
1-52175-017-0
04
1
0907-
18
BOLT; S/ABS BRKT
(A) M18X78
1-09000-574-0
08
1
0907-
18
BOLT; S/ABS BRKT
(B) M18X75
8-98012-872-0
08
1
0907-
19
NUT; S/ABS BRKT
M18
0-91110-518-0
08
1
0907-
69
WASHER; PL
ID=18.5 OD=32 T=4
1-09503-255-0
24
1
0907-
