2-85 — POWER TAKE OFF CONTROL (#162659) — 94 parça

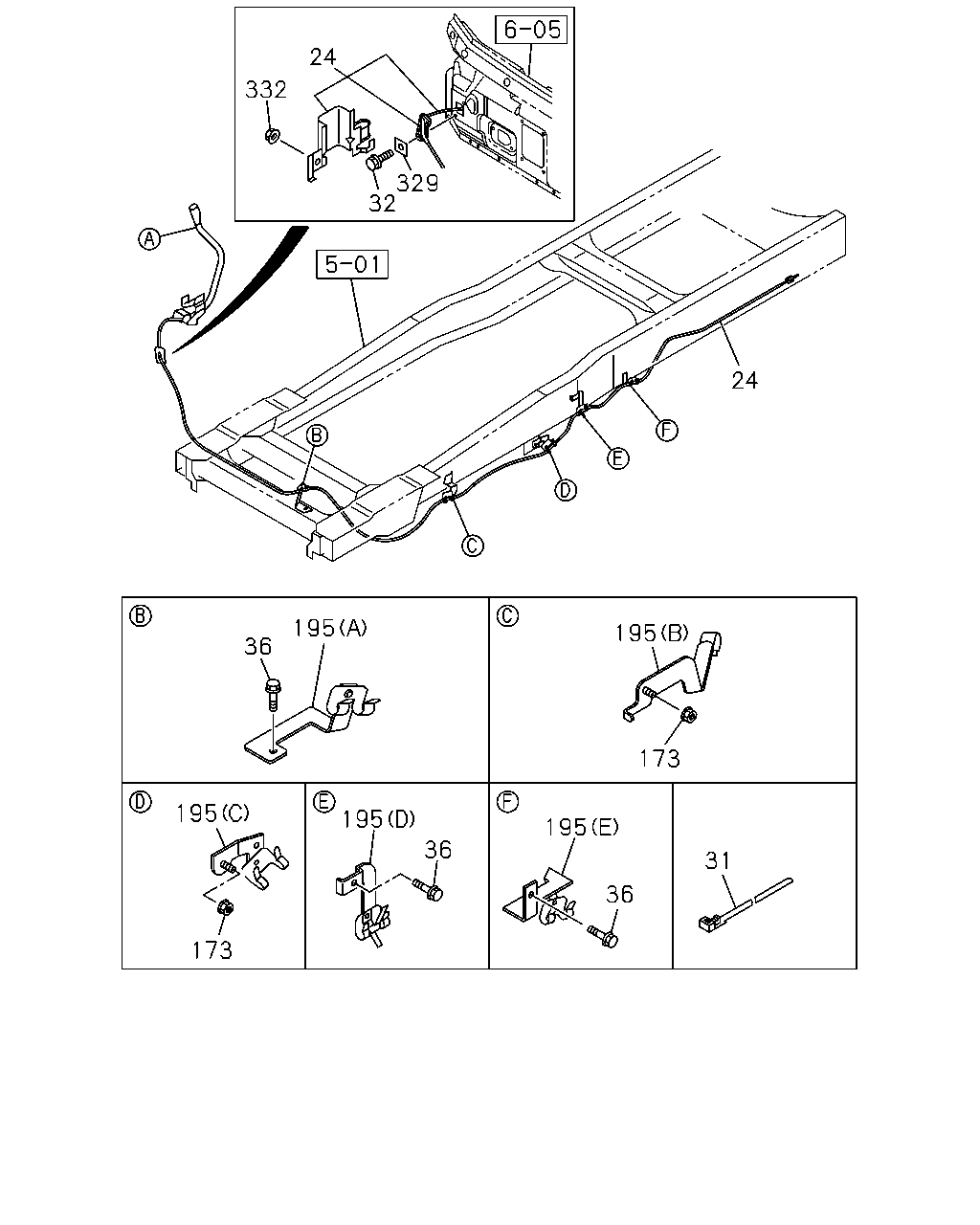

332 24 329 32 24 195 36 195 195 36 173 195 36 173 31 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT . FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3158	8-98223-291-0	01	1	1506-1507
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) L=3158	8-98328-258-1	01	1	1508-
24	04.439 CABLE; PTO CONT . FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3166	8-98223-333-1	01	1	1506-
31	04.439 CLIP; BAND,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) L=200	8-98081-183-0	01	1	1506-1507
31	04.439 CLIP; BAND,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=200	8-98081-183-0	01	1	1508-
31	04.439 CLIP; BAND,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) L=200	8-98081-183-0	01	1	1508-
31	04.439 CLIP; BAND,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 L=250	5-09707-030-1	01	1	1506-1507
31	04.439 CLIP; BAND,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 L=250	5-09707-030-1	01	1	1508-
32	04.439 BOLT; CLIP,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1506-1507
32	04.439 BOLT; CLIP,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) M6X16 FLANGE	0-28060-616-0	02	1	1508-
32	04.439 BOLT; CLIP,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) M6X16 FLANGE	0-28060-616-0	02	1	1508-
36	04.439 BOLT; PTO BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1506-1507
36	04.439 BOLT; PTO BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1508-
36	04.439 BOLT; PTO BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1508-
173	04.439 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507
173	04.439 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507
173	04.439 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
173	04.439 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
173	04.439 NUT; BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
173	04.439 NUT; BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (C)	8-98032-840-4	01	1	1506-1507
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98032-840-4	01	1	1508-
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98032-840-4	01	1	1508-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (D)	8-98032-841-2	01	1	1506-1507
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98032-841-2	01	1	1508-
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98032-841-2	01	1	1508-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (E)	8-98042-785-4	01	1	1506-1507
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (E)	8-98042-785-4	01	1	1508-
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (E)	8-98042-785-4	01	1	1508-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (A)	8-98154-322-0	01	1	1506-1507
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98154-322-0	01	1	1508-
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98154-322-0	01	1	1508-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (B)	8-98154-323-0	01	1	1506-1507
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98154-323-0	01	1	1508-
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98154-323-0	01	1	1508-
329	16.520 SEAL FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1506-1507
329	16.520 SEAL FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 08.845	8-97856-616-0	02	1	1508-
329	16.520 SEAL PTO T/M SIDE DIRECT PUMP(8KZ) 08.845	8-97856-616-0	02	1	1508-
332	04.439 NUT; PTO CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1507
332	04.439 NUT; PTO CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-
332	04.439 NUT; PTO CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-

15 24 16 222 225 287 222 121 287 190 330 96 258 260 259 262 74 219 80 300 261 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1506-
16	04.439 CLIP; CABLE,PTO FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1506-1507
16	04.439 CLIP; CABLE,PTO FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ)	8-98050-126-0	01	1	1508-
16	04.439 CLIP; CABLE,PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-98050-126-0	01	1	1508-
24	04.439 CABLE; PTO CONT . FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3158	8-98223-291-0	01	1	1506-1507
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) L=3158	8-98328-258-1	01	1	1508-
24	04.439 CABLE; PTO CONT . FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3166	8-98223-333-1	01	1	1506-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1506-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1506-
96	04.439 NUT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1506-1507
96	04.439 NUT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	01	1	1508-
96	04.439 NUT PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	01	1	1508-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	1506-
190	04.439 BOSS; LEVER,PTO FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1506-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1506-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98152-960-1	01	1	1506-
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	1506-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1506-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	1506-
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	1506-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1506-
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1506-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1506-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1506-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1506-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1506-

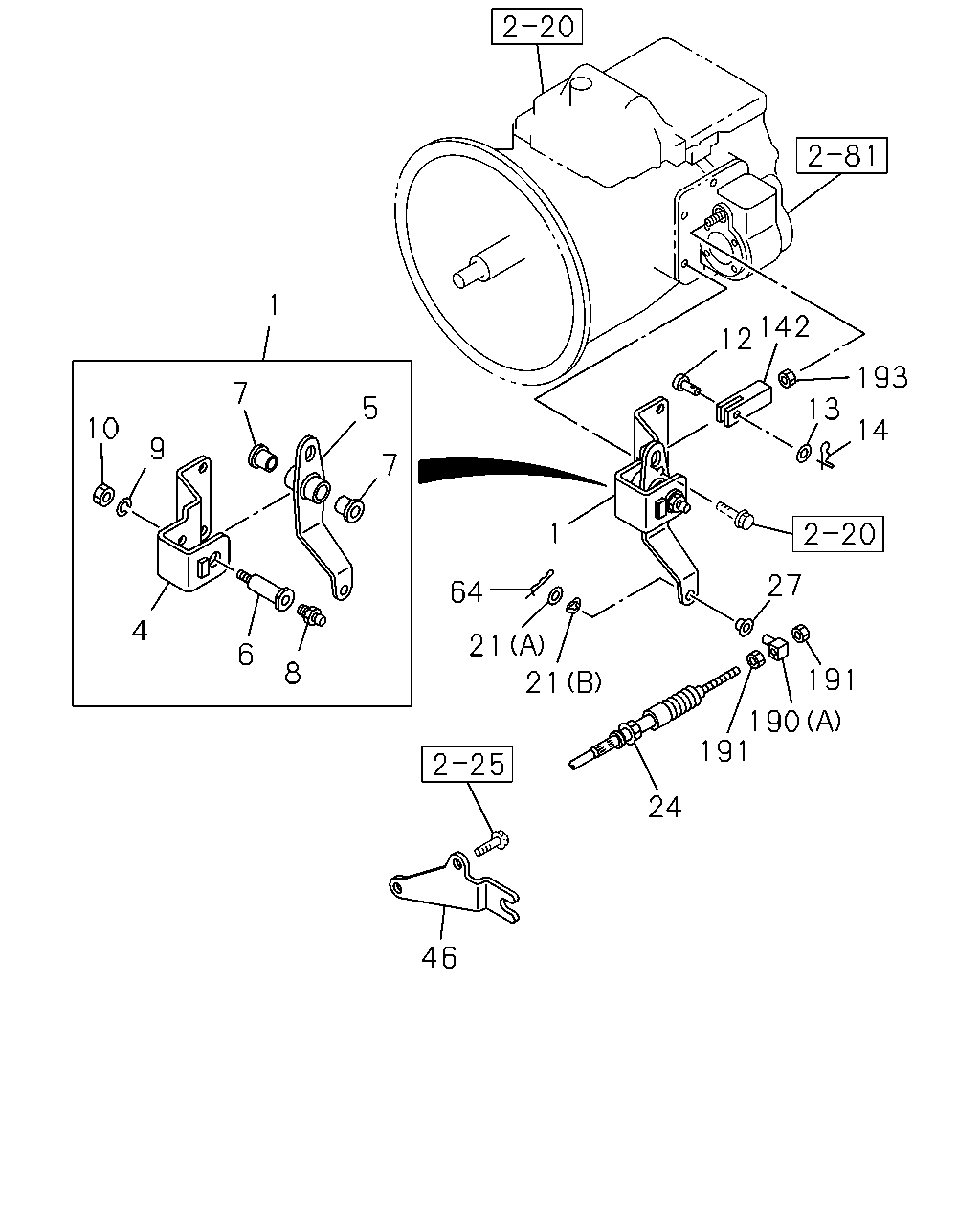

1 10 7 5 6 4 8 7 64 1 12 142 13 27 191 190 191 24 46 21 21 14 193 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1506-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1506-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1506-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1506-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1506-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1506-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1506-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1506-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1506-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1506-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1506-
21	04.439 WASHER; PL,CONT LEVER FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1506-
21	04.439 WASHER; PL,CONT LEVER FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1506-
24	04.439 CABLE; PTO CONT . FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3158	8-98223-291-0	01	1	1506-1507
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) L=3158	8-98328-258-1	01	1	1508-
24	04.439 CABLE; PTO CONT . FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3166	8-98223-333-1	01	1	1506-
27	04.439 BUSHING; LEVER,PTO FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.042	8-94367-367-0	01	1	1506-
46	04.439 BRACKET; PTO,TRANS SIDE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ)	8-98032-829-2	01	1	1506-
64	04.439 PIN; SNAP,CONT CABLE JOINT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	1506-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1506-
190	04.439 BOSS; LEVER,PTO FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-
191	04.439 NUT; BOSS FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	1506-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1506-
