4-60 — REAR SUSPENSION (#16265) — 73 parça

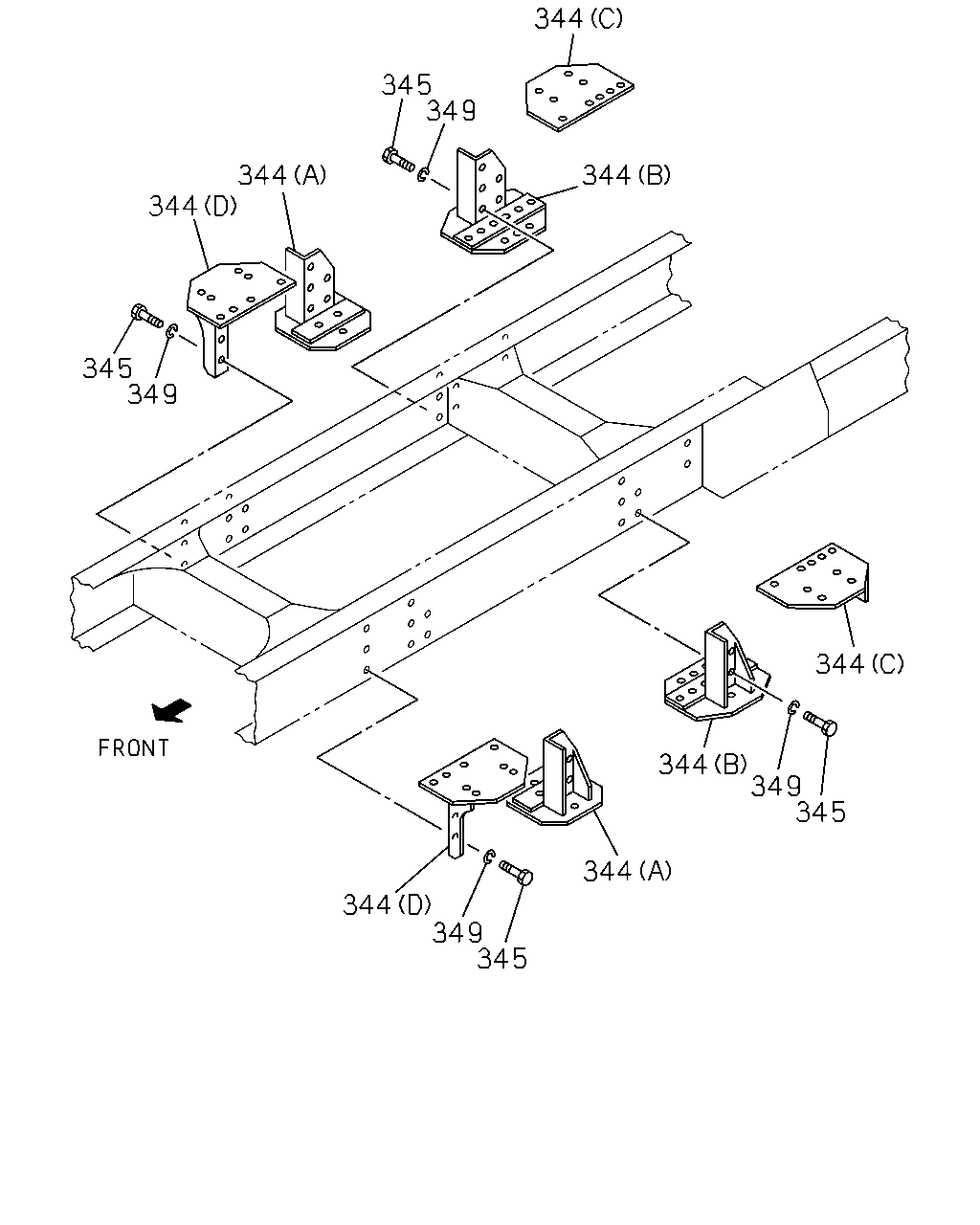

çizim 62905
344 345 349 344 344 344 345 349 344 344 349 345 344 344 349 345
BalonParca AdiParca NoAdetTipApplied Date
344 BRACKET; AIR SPR,UPR
(A) 		1-52171-196-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(A) 		1-52171-197-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(B) 		1-52171-198-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(B) 		1-52171-199-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(C) 		1-52171-202-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(C) 		1-52171-203-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(D) 		1-52171-215-1 01 1 0907-
344 BRACKET; AIR SPR,UPR
(D) 		1-52171-216-1 01 1 0907-
345 BOLT; BRKT
M14X40 		0-20951-440-0 30 1 0907-
349 WASHER; LK,AIR SPR
EURO3 SPECIFICATION(NT3) ID=15 		8-98010-627-1 30 1 0910-1201
349 WASHER; LK,AIR SPR
ID=15 		8-98010-627-1 30 1 1202-
349 WASHER; LK,AIR SPR
ID=15 		9-09651-069-0 30 1 0907-0909
349 WASHER; LK,AIR SPR
EURO5 SPECIFICATION(NT5) ID=15 		9-09651-069-0 30 1 0910-1201

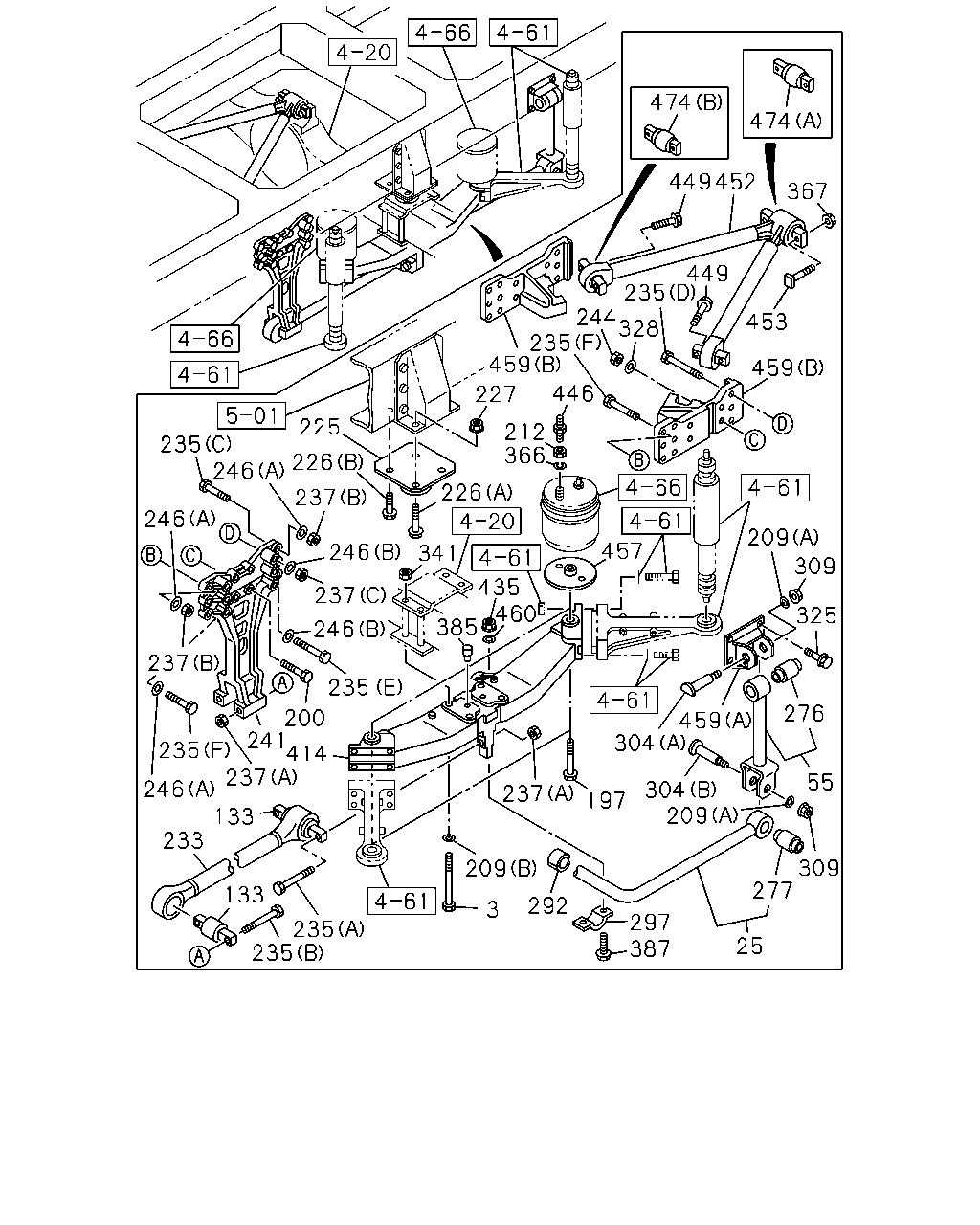

çizim 63003
474 474 367 449 235 244 328 235 459 227 453 459 446 225 212 366 235 246 226 226 237 246 209 457 309 237 237 435 460 385 325 246 235 276 200 241 235 414 237 459 304 55 246 133 304 209 237 197 233 309 277 209 133 292 3 297 387 235 235 25 341 246 449 452
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BEAM
M24X295 		1-09000-622-2 08 1 0907-
25 BAR ASM; STAB,RR SUSP 1-51771-183-0 01 1 0907-
55 ROD; STAB 1-51773-113-1 02 1 0907-
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0907-
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 0907-
197 BOLT
M16X110 FLANGE 		1-09044-100-1 04 1 0907-
200 BOLT; BRKT
M16X60 		0-10956-660-0 08 1 0907-
209 WASHER; PL
(B) ID=25 		1-09503-282-0 08 1 0907-
209 WASHER; PL
(A) ID=21 		9-09164-520-0 04 1 0907-
212 NUT
M20 		0-91111-520-0 04 1 0907-
225 RUBBER; CUSHION,RR SPR 1-51374-002-0 02 1 0907-
226 BOLT
(A) M12X30 FLANGE 		0-28661-230-0 04 1 0907-
226 BOLT
(B) M12X40 FLANGE 		0-28661-240-0 04 1 0907-
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0907-
233 ROD ASM; TORQUE,RR SUSP
L=685 		1-51511-751-0 02 1 0907-
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0907-
235 BOLT; TORQUE ROD
(C) M20X60 		1-09000-633-0 06 1 0907-
235 BOLT; TORQUE ROD
(E) M20X160 		1-09000-697-0 02 1 0907-
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-792-0 06 1 0907-
235 BOLT; TORQUE ROD
(D) M20X165 		8-98010-548-0 10 1 0907-
235 BOLT; TORQUE ROD
(A) M18X102 		8-98012-877-0 04 1 0907-
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 10 1 0907-
237 NUT; TORQUE ROD
(A) M18 SELF LOCK 		8-98010-391-0 08 1 0907-
237 NUT; TORQUE ROD
(C) M20 		8-98010-408-0 10 1 0907-
241 BRACKET; TORQUE ROD 1-53361-081-2 02 1 0907-
244 NUT; BRKT
M16 		0-91110-516-0 08 1 0907-
246 WASHER; TORQUE ROD
(B) ID=21 		8-98010-403-0 10 1 0907-
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 14 1 0907-
276 BUSHING; STAB ROD 1-51779-055-0 02 1 0907-
277 BUSHING; STAB,RR UPR 1-51779-055-0 02 1 0907-
292 BUSHING; RUBBER,STAB 1-51779-100-0 04 1 0907-
297 CAP; STAB BAR 1-52175-024-2 02 1 0907-
304 PIN; STAB ROD
(A) M20X106 		1-51361-028-2 02 1 0907-
304 PIN; STAB ROD
(B) M20X110 		1-51361-029-2 02 1 0907-
309 NUT; STAB ROD
M20 FLANGE 		8-98010-392-0 04 1 0907-
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28661-440-0 08 1 0907-
328 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 16 1 0907-
341 NUT; BEAM
M24 		0-91110-524-0 08 1 0907-
366 WASHER; LK
ID=20.2 		0-91510-520-0 04 1 0907-
367 NUT
M24 FLANGE 		8-98019-963-0 02 1 0907-
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 04 1 0907-
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28861-650-0 04 1 0907-
414 BEAM; AIR SPR 1-52170-104-0 01 1 0907-
414 BEAM; AIR SPR 1-52170-105-0 01 1 0907-
435 NUT; CAP
M16 		0-91110-516-0 04 1 0907-
446 CONNECTOR; AIR SPRING
M12 & PT1/4 STRAIGHT 		1-09650-074-1 04 1 0907-
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 04 1 0907-1102
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 04 1 1103-
452 ROD ASM; V 1-51510-858-0 01 1 0907-1309
452 ROD ASM; V 8-98239-075-0 01 1 1310-
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0907-
457 PLATE; AIR SPRING,UPR 1-52119-250-1 04 1 0907-
459 BRACKET; ROD
(A) 		1-51781-123-4 02 1 0907-
459 BRACKET; ROD
(B) 		1-53353-136-1 01 1 0907-
459 BRACKET; ROD
(B) 		1-53353-137-1 01 1 0907-
460 WASHER; CAP
ID=16.2 		1-09503-316-0 04 1 0907-
474 REPAIR KIT; V-ROD
(A) 		1-51519-173-0 01 1 0907-1309
474 REPAIR KIT; V-ROD
(A) 		8-98240-610-0 01 1 1310-
474 REPAIR KIT; V-ROD
(B) 		1-51519-174-0 02 1 0907-1309
474 REPAIR KIT; V-ROD
(B) 		8-98240-613-0 02 1 1310-
