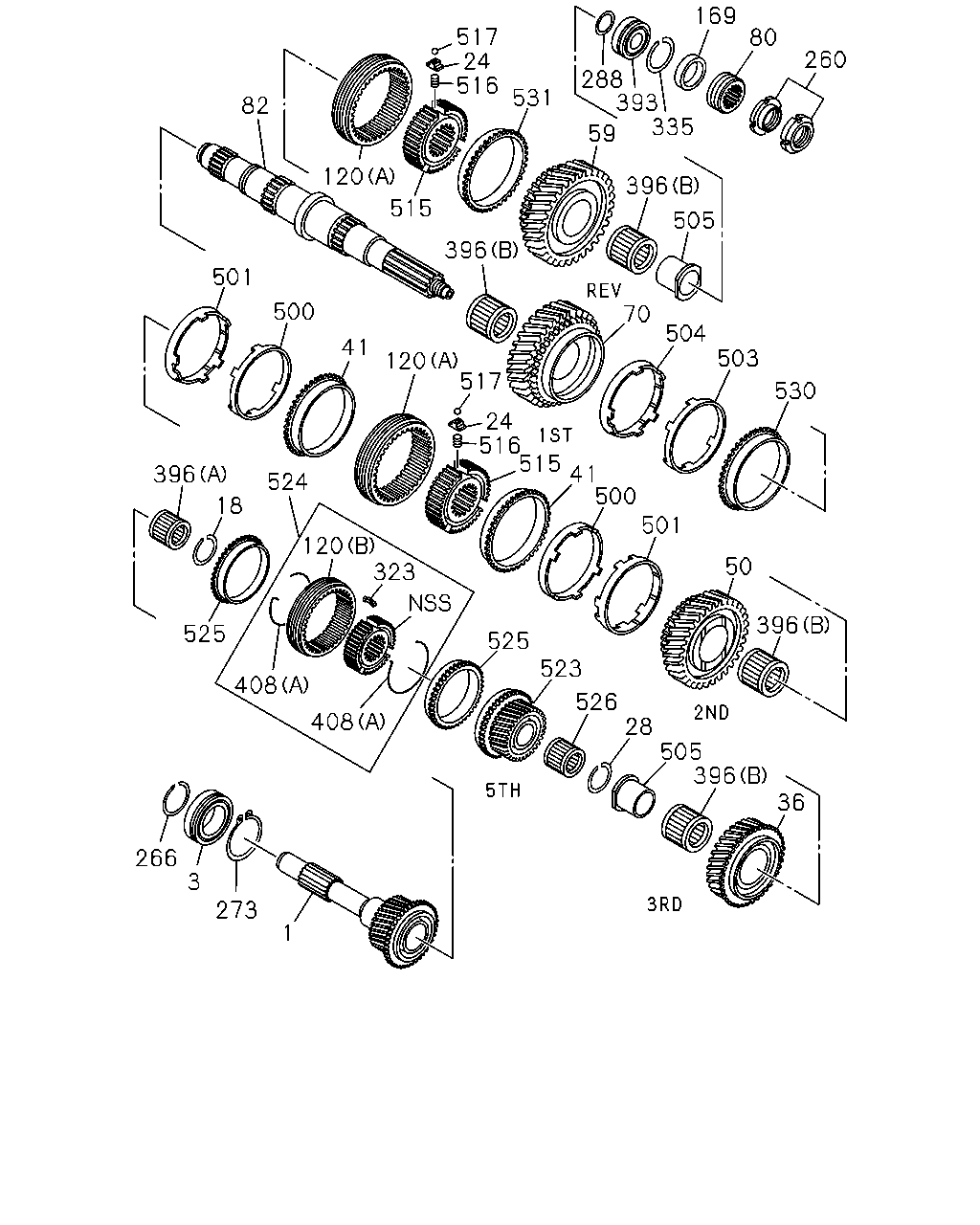

2-26 — MANUAL TRANSMISSION GEAR (#162649) — 67 parça

517 24 516 531 288 393 59 335 169 80 260 82 120 515 396 396 505 70 504 503 530 501 500 41 120 517 24 516 515 41 500 501 50 396 396 524 18 525 408 408 120 323 525 523 526 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1506-
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1506-
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1506-
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1506-
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1506-
36	04.415 GEAR; 3RD,MAINSHAFT Z=32	8-97241-235-0	01	1	1506-
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1506-
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1506-
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1506-
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1506-
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1506-
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97314-394-1	01	1	1506-
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1506-
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1506-
169	04.419 COLLAR; MAINSHAFT	8-97314-455-0	01	1	1506-
260	04.412 NUT; MAINSHAFT END	8-97314-121-1	01	1	1506-
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1506-
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1506-
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1506-
323	04.384 INSERT	8-94448-202-2	03	1	1506-
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1506-
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1506-
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1506-
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1506-
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1506-
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1506-
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1506-
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1506-
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1506-
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1506-
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1506-
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1506-
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97386-578-0	01	1	1506-
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1506-
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1506-
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1506-
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1506-
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1506-

132 314 135 511 507 93 325 507 108 510 408 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1506-
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1506-
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1506-
108	04.428 SHAFT; COUNTER Z=47-50-33-20	8-98031-863-0	01	1	1506-
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1506-
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1506-
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1506-
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1506-
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1506-
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1506-
408	04.384 SPRING (A)	8-97366-040-1	02	1	1506-
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1506-
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1506-
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1506-
