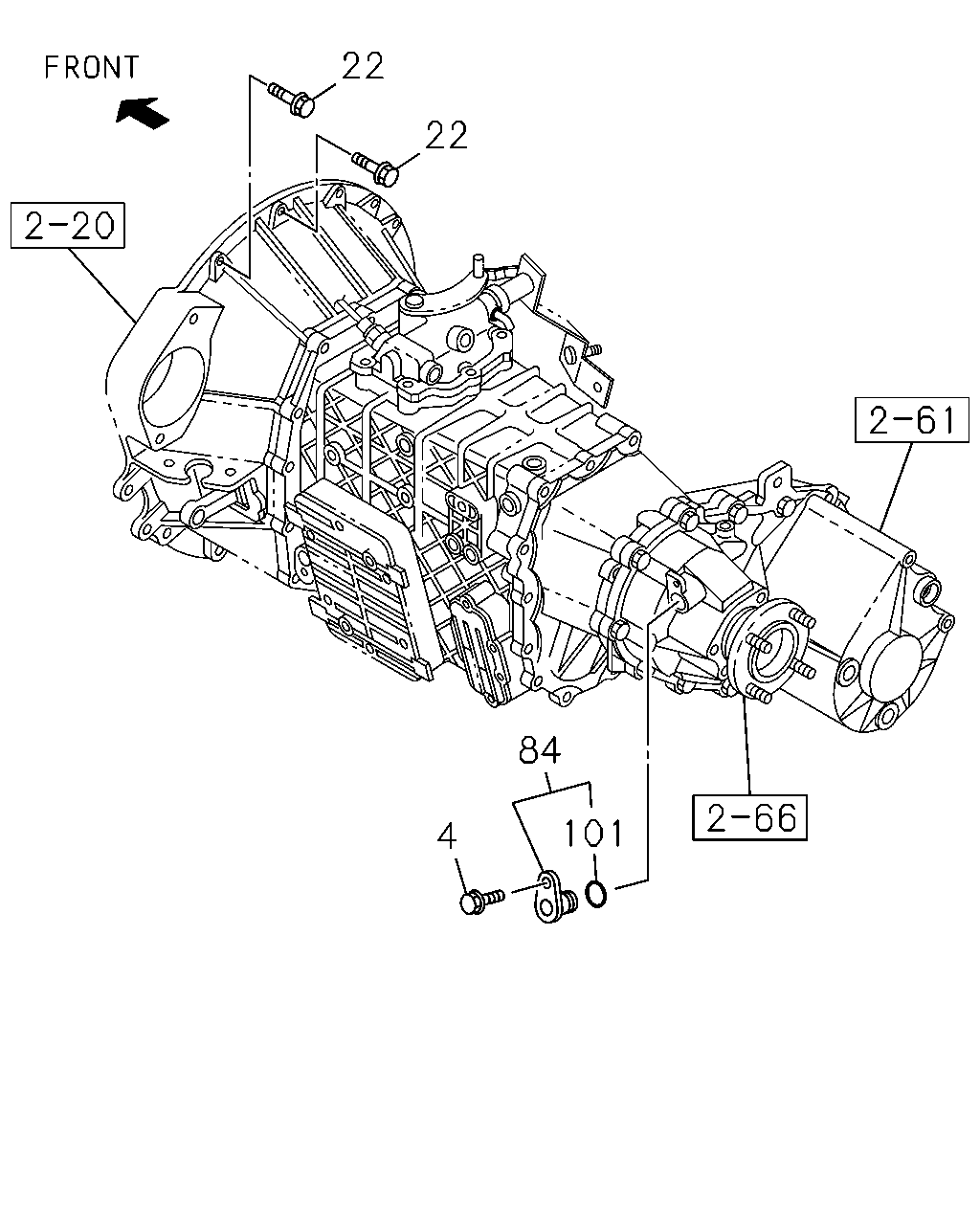

2-25 — SPEEDOMETER DRIVEN GEAR (#162648) — 24 parça

22 22 84 4 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.338 BOLT; RET,DRIVEN GEAR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1506-	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1506-1507	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1506-1507	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1506-1507	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 02.042 M10X50 FLANGE	0-28151-050-0	01	1	1508-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1506-1507	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1506-1507	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1506-1507	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1508-	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 00.683 M10X140 FLANGE	0-28156-014-0	01	1	1508-	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE	0-28151-030-0	03	1	1506-	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X30 FLANGE	0-28151-030-0	03	1	1506-	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1506-	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	1506-	●
22	00.685 BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1506-	●	●
22	00.685 BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 09.171 M10X120 FLANGE	0-28156-012-0	01	1	1506-	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	1506-	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.670 M10X35 FLANGE	0-28151-035-0	04	1	1506-	●	●
22	00.685 BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.683 M10X130 FLANGE	0-28156-013-0	01	1	1506-	●	●
84	04.104 CAP; BUSH,SPEEDOMETER GEAR	8-98035-151-1	01	1	1506-	●	●
101	04.338 GASKET; CAP 04.439	9-09561-324-0	01	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
