◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#162642) — 14 parça

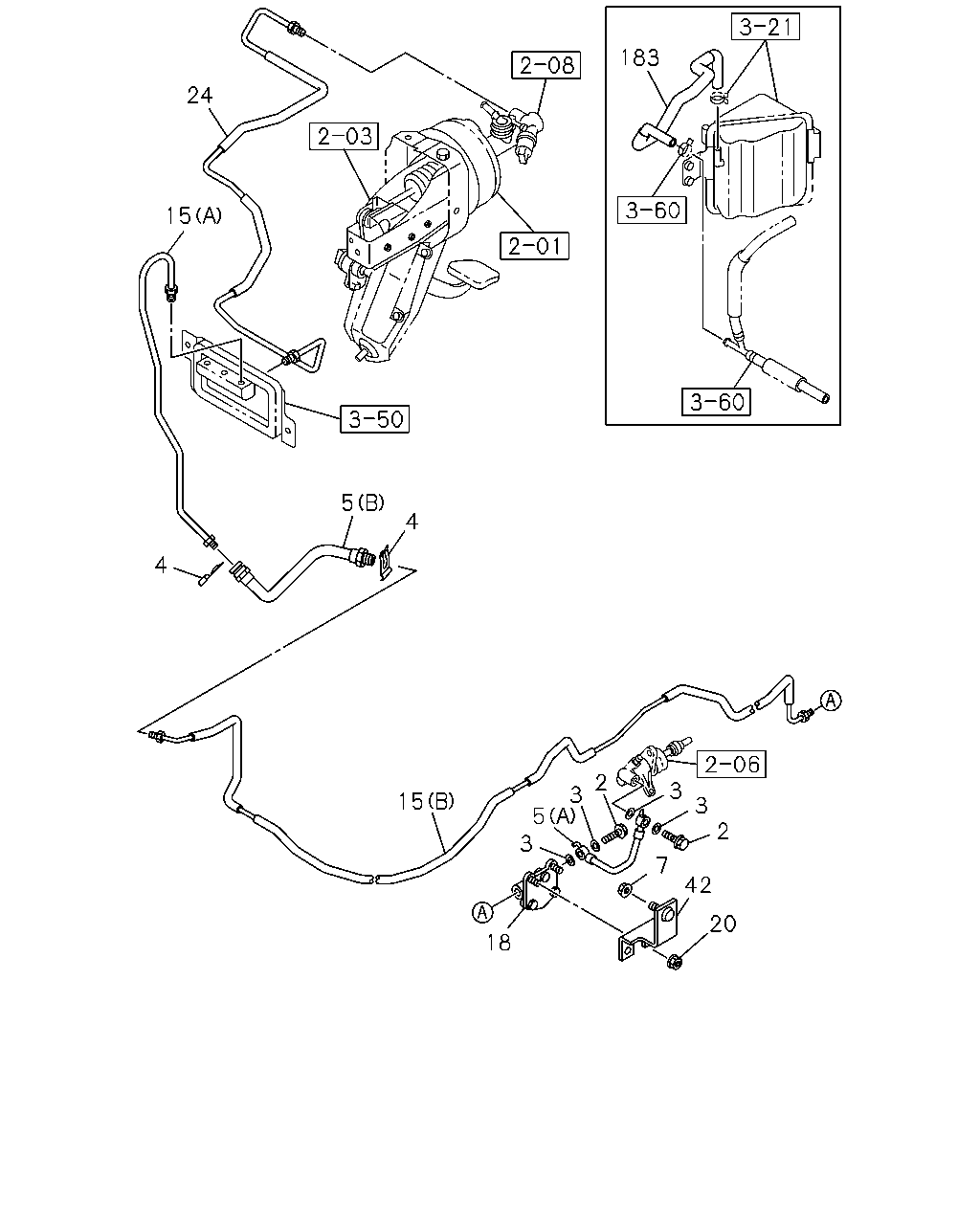

çizim 479718
24 15 5 4 4 15 3 3 5 18 2 3 3 2 7 42 20 183
BalonParca AdiParca NoAdetTipApplied Date
2 00.782 BOLT; EYE,SLAVE CYL
04.681 M10X22 		8-98014-005-0 02 1 1506-
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1506-
5 00.785 HOSE; FLEX,CLU PIPE
CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98083-229-2 01 1 1506-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1506-
5 00.785 HOSE; FLEX,CLU PIPE
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98081-052-2 01 1 1506-
7 00.785 NUT; FLEX HOSE,CLU CONT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97389-642-1 01 1 1506-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98106-595-0 01 1 1506-
18 00.830 DAMPER ASM; CLU OIL 8-98077-610-1 01 1 1506-
20 00.837 NUT; CLU OIL DAMPER
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION 8-97389-356-1 01 1 1506-
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-98050-401-0 01 1 1506-
183 00.785 HOSE; VAC,VAC TANK SIDE 8-98121-942-0 01 1 1506-
