Isuzu WW
▶
TRUCKS
▶
NLS
▶
51605 - NLS RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#162639) — 22 parça
Tümü
A - NMS5SE
B - NMS5WE
◀

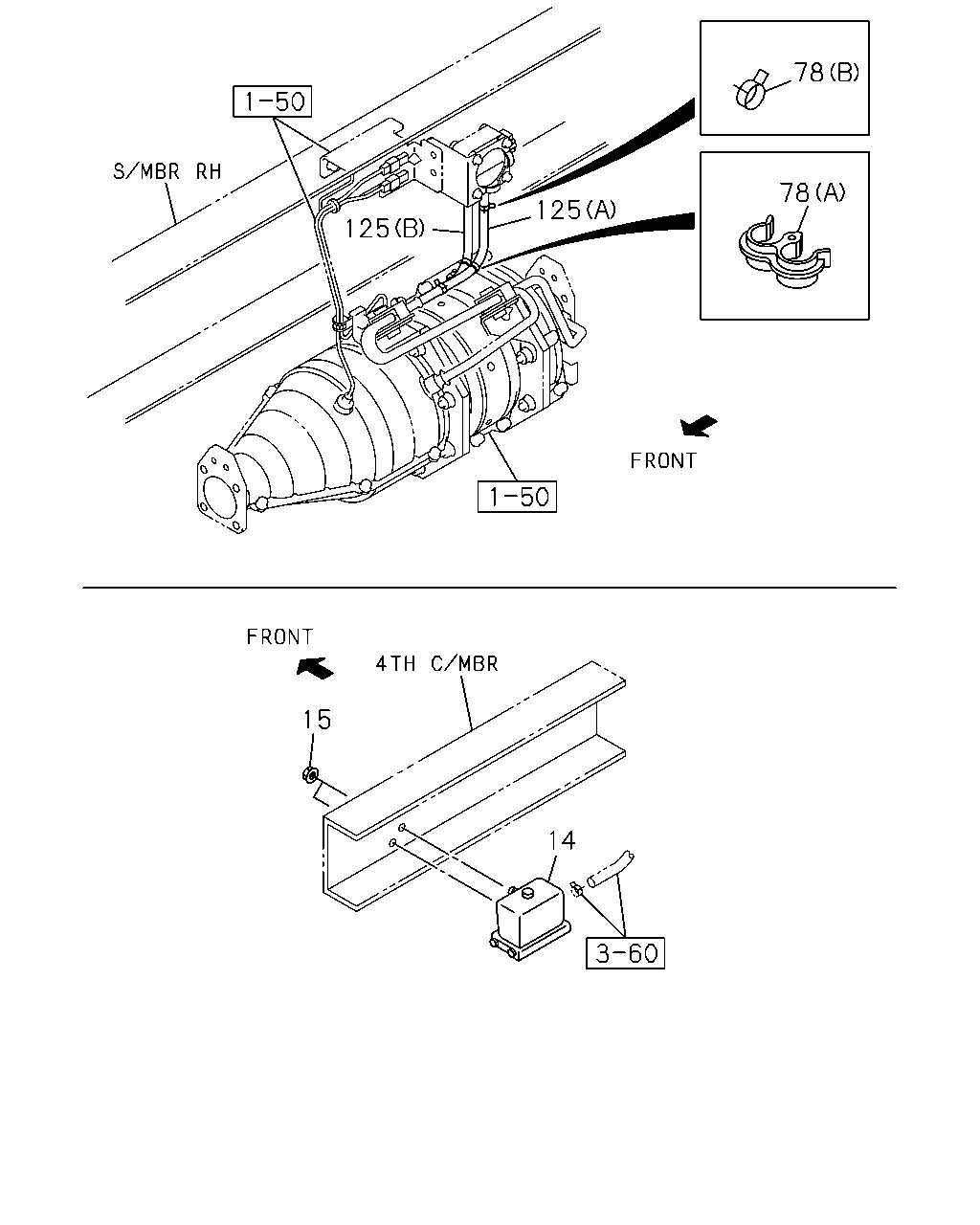

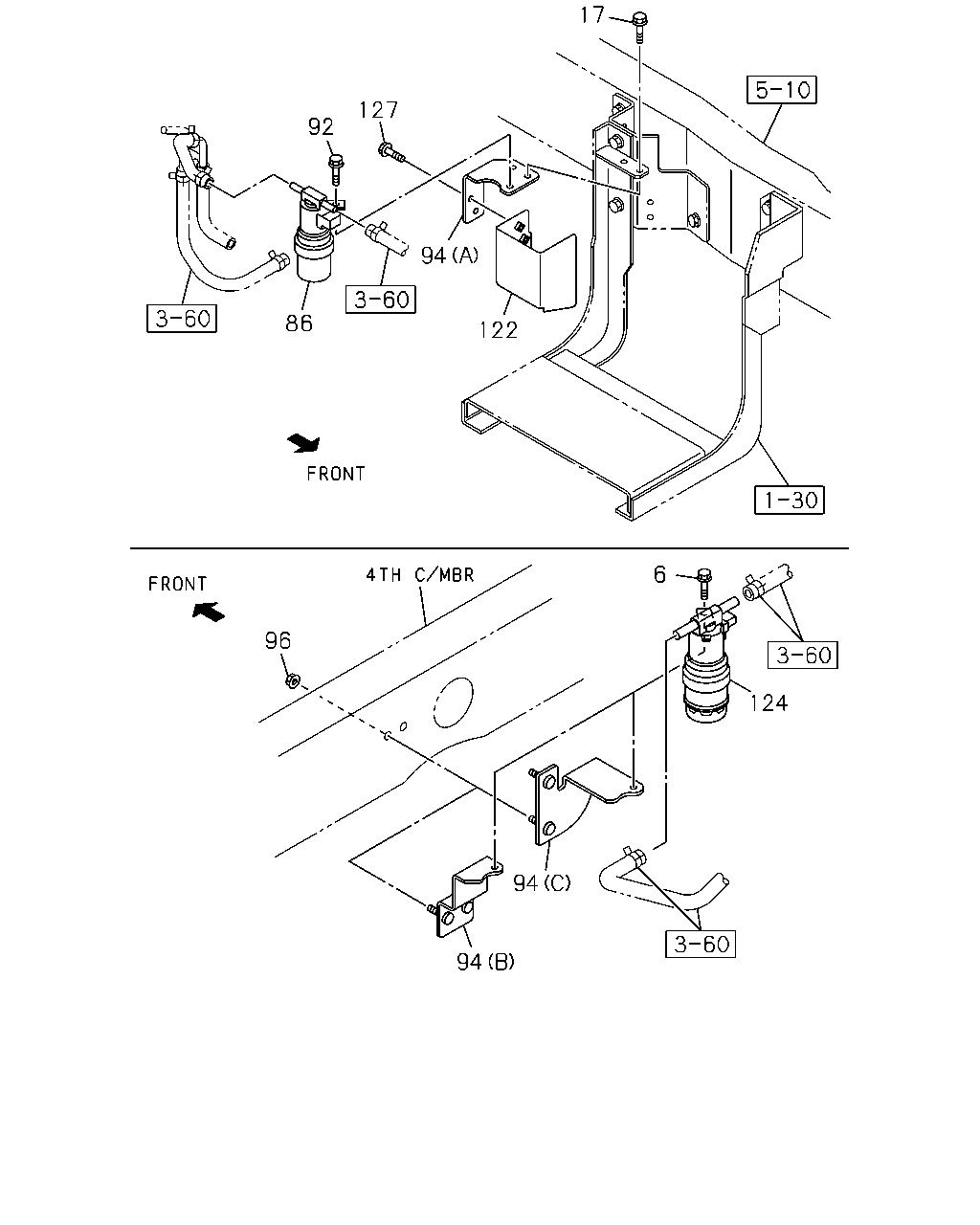

[156A] NO.2 (6 parça)
[156A] NO.3 (11 parça)
[156A] NO.1 (5 parça)
▶
78
78
125
125
14
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
03.634 FILTER; AIR,EXH BRAKE
8-97033-888-0
01
1
1506-
●
●
15
03.634 NUT; AIR FILTER
01.062 M8 FLANGE
0-91180-108-0
02
1
1506-
●
●
78
03.636 CLIP; HOSE
03.162 (A)
8-97173-119-0
01
1
1506-
●
●
78
03.636 CLIP; HOSE
03.162 (B) ID=13
8-97329-627-0
04
1
1506-
●
●
125
03.630 HOSE; DPD
(A) FRONT L=90
8-98029-399-0
01
1
1506-
●
●
125
03.630 HOSE; DPD
(B) REAR L=110
8-98029-400-0
01
1
1506-
●
●
17
127
92
86
94
122
6
124
94
94
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
03.632 BOLT; EXH BRAKE UNIT FIX
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1506-
●
●
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1506-
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
1506-
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
1506-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-98039-763-1
01
1
1506-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98211-757-1
01
1
1506-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-98039-764-1
01
1
1506-
●
96
03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE
0-91180-108-0
02
1
1506-
●
●
122
03.640 PROTECTOR; MAG VLV
8-98098-564-0
01
1
1506-
●
124
03.636 VALVE; MAG,DPD EXH THROTTLE
8-98043-344-0
01
1
1506-
●
●
127
04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1506-
●
5
5
1
10
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.632 BRAKE UNIT; EXH
(A)
8-98227-171-0
01
1
1506-
●
●
1
03.632 BRAKE UNIT; EXH
(B)
8-98258-268-0
01
1
1506-
●
●
5
03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64
8-97373-108-0
02
1
1506-
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1506-
●
●
10
03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
1506-
●
●
