Sayfa 1-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#162637) — 170 parça

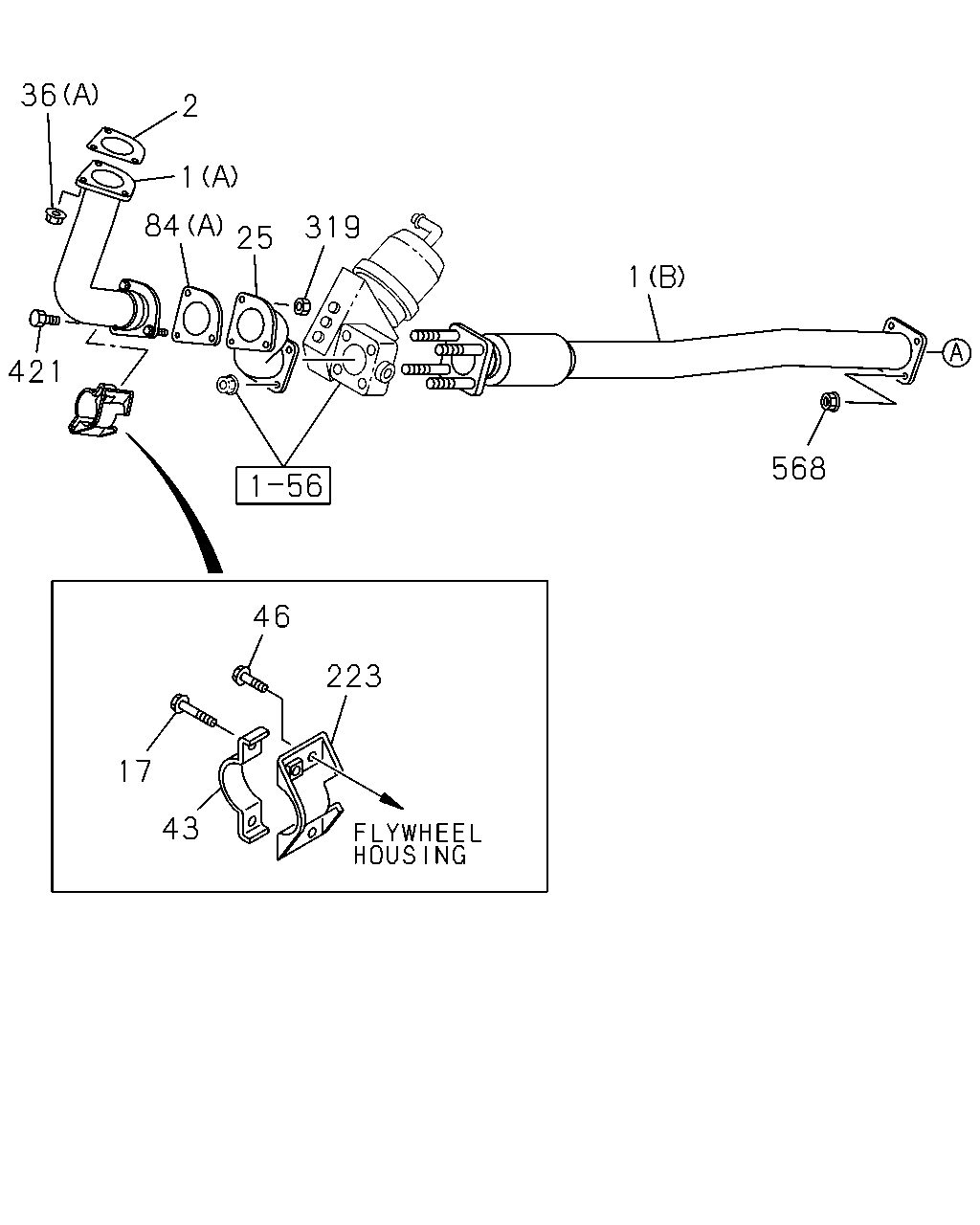

36 2 1 84 319 25 421 1 568 223 46 17 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (A)	8-98001-827-2	01	1	1506-	●	●
1	03.609 PIPE; EXH (B)	8-98084-410-1	01	1	1506-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	1506-	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98282-479-0	01	1	1506-	●	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1506-	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	1506-	●	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	1506-	●	●
84	03.611 GASKET; EXH PIPE (C) ID=64	8-97373-108-0	01	1	1506-		●
223	03.706 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1506-	●	●
319	03.602 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
421	03.706 BOLT; PIPE BRKT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	1506-	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-	●	●

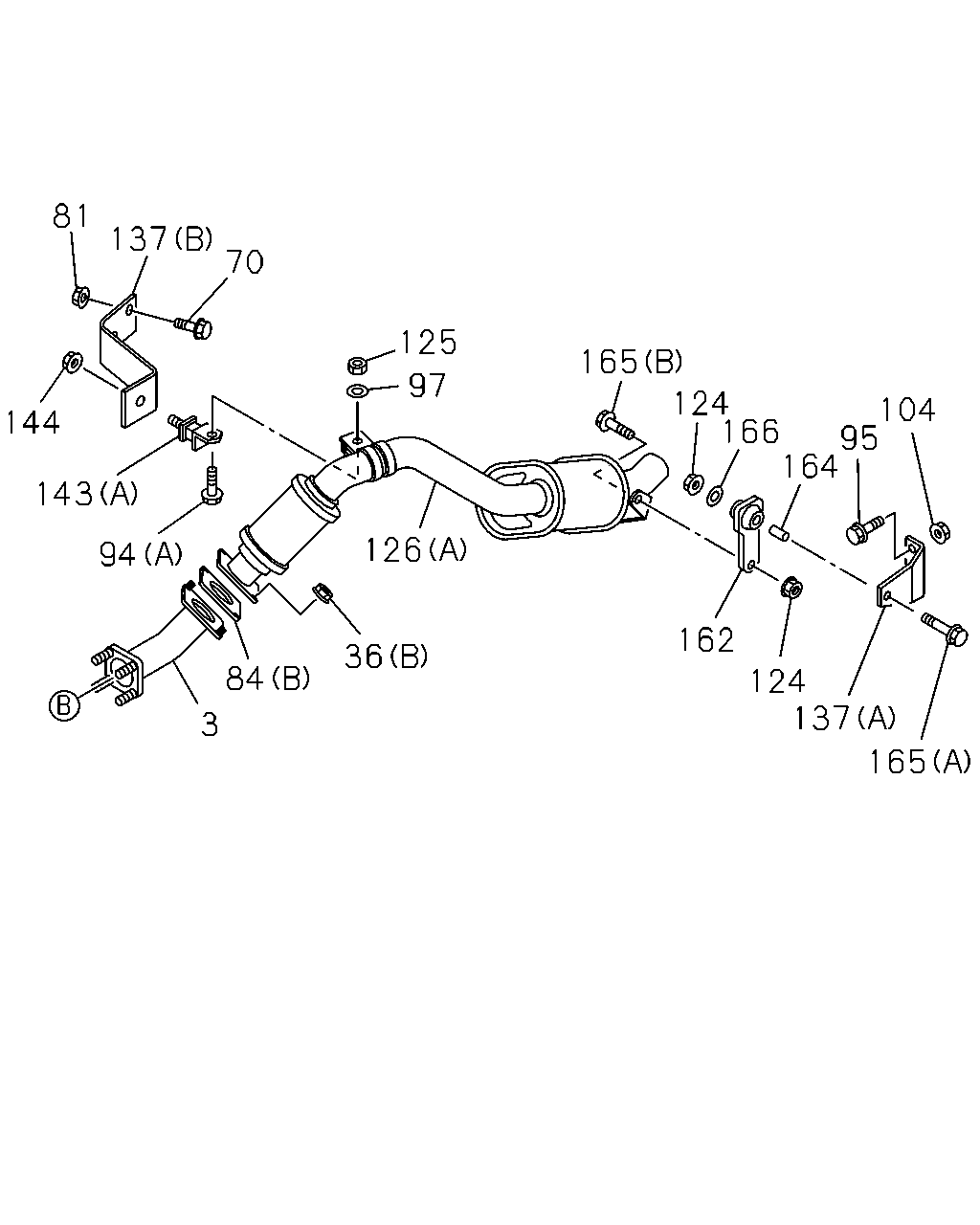

81 70 137 144 94 143 3 36 126 84 97 125 165 166 124 104 95 164 162 124 137 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER	8-98150-021-0	01	1	1506-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	1506-	●	●
84	03.611 GASKET; EXH PIPE (C) ID=64	8-97373-108-0	01	1	1506-		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-		●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-	●	●
126	03.705 PIPE; EXH,RR (A)	8-98254-817-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR (B)	8-98161-529-0	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE (A)	8-98001-908-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	1506-	●	●
137	03.706 BRACKET; TAIL PIPE (C)	8-98001-913-0	01	1	1506-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1506-		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-98032-150-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1506-		●
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1506-		●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER (C) M10X70 FLANGE	0-28051-070-0	01	1	1506-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●	●

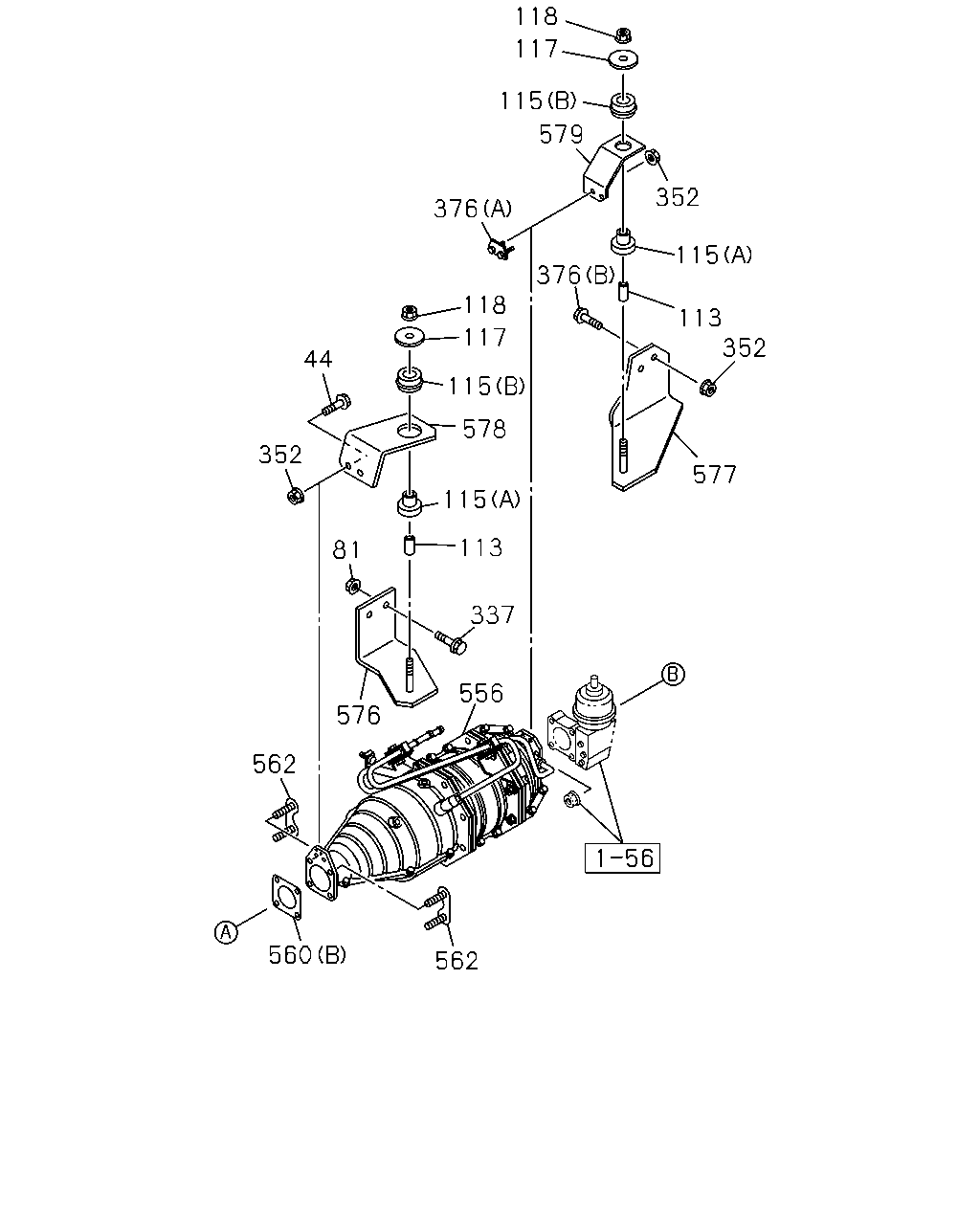

118 115 117 579 352 115 113 352 577 562 560 562 556 576 337 113 115 578 115 117 118 376 376 44 352 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1506-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1506-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1506-	●	●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-	●	●
376	03.708 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
376	03.708 BOLT; BRKT 03.690 (A)	8-98005-985-0	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	1506-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	1506-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98124-720-0	01	1	1506-	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98072-139-0	01	1	1506-		●
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	1506-	●	●
579	03.704 BRACKET; DPD RR	8-98124-719-0	01	1	1506-	●
579	03.704 BRACKET; DPD RR	8-98168-530-1	01	1	1506-		●

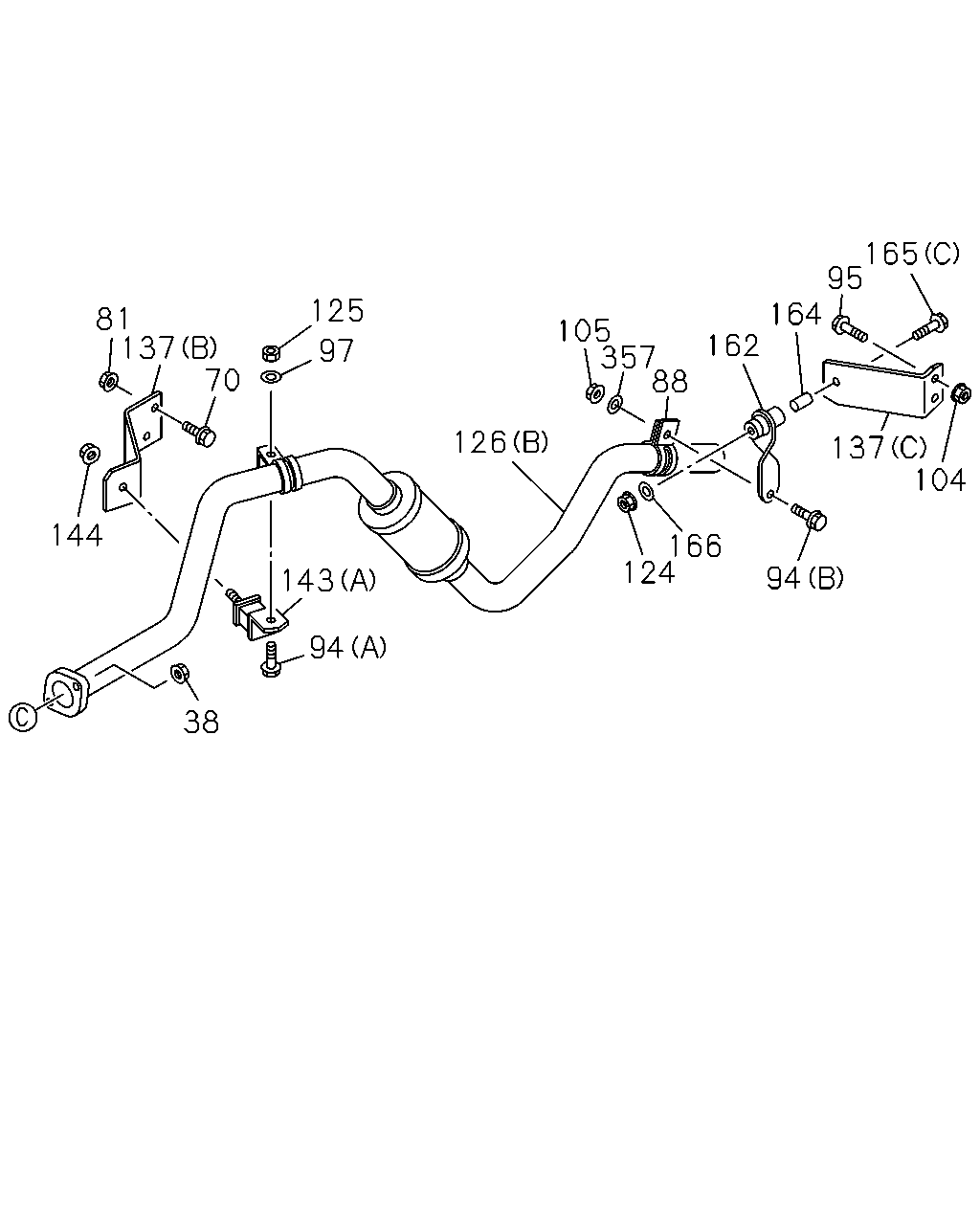

165 95 164 162 137 94 104 166 124 126 357 105 125 97 70 137 81 144 143 94 38 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1506-		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-		●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-	●	●
126	03.705 PIPE; EXH,RR (A)	8-98254-817-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR (B)	8-98161-529-0	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE (A)	8-98001-908-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-98001-897-1	01	1	1506-	●	●
137	03.706 BRACKET; TAIL PIPE (C)	8-98001-913-0	01	1	1506-		●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1506-		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-98032-150-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1506-		●
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1506-		●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER (C) M10X70 FLANGE	0-28051-070-0	01	1	1506-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-		●

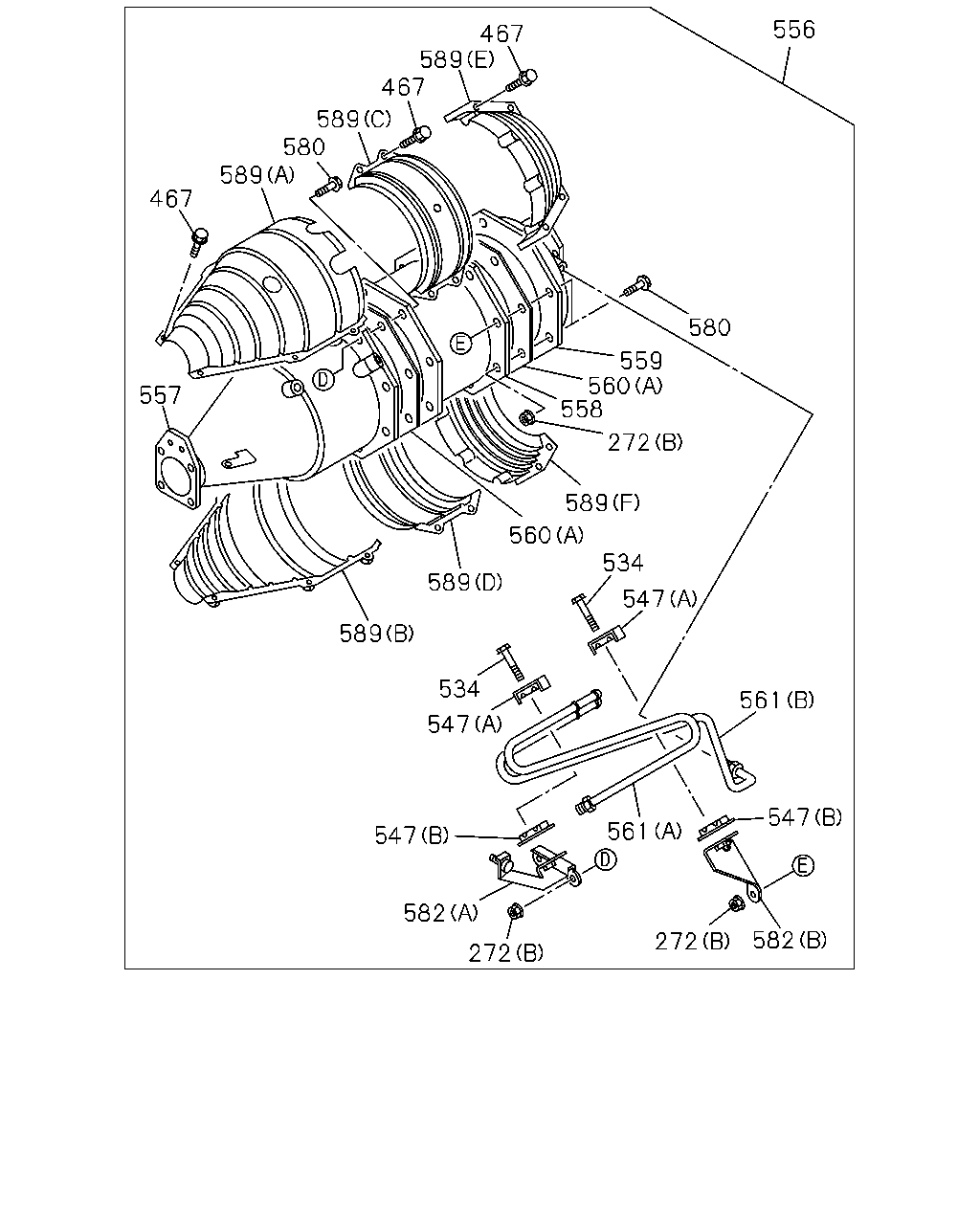

467 589 467 589 580 589 467 556 580 559 560 558 589 560 589 589 534 547 547 561 582 272 582 272 547 561 547 534 272 557

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1506-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1506-	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1506-	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1506-	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (A)	8-98084-600-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (B)	8-98084-601-0	01	1	1506-	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1506-	●	●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	1506-	●	●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	1506-	●	●

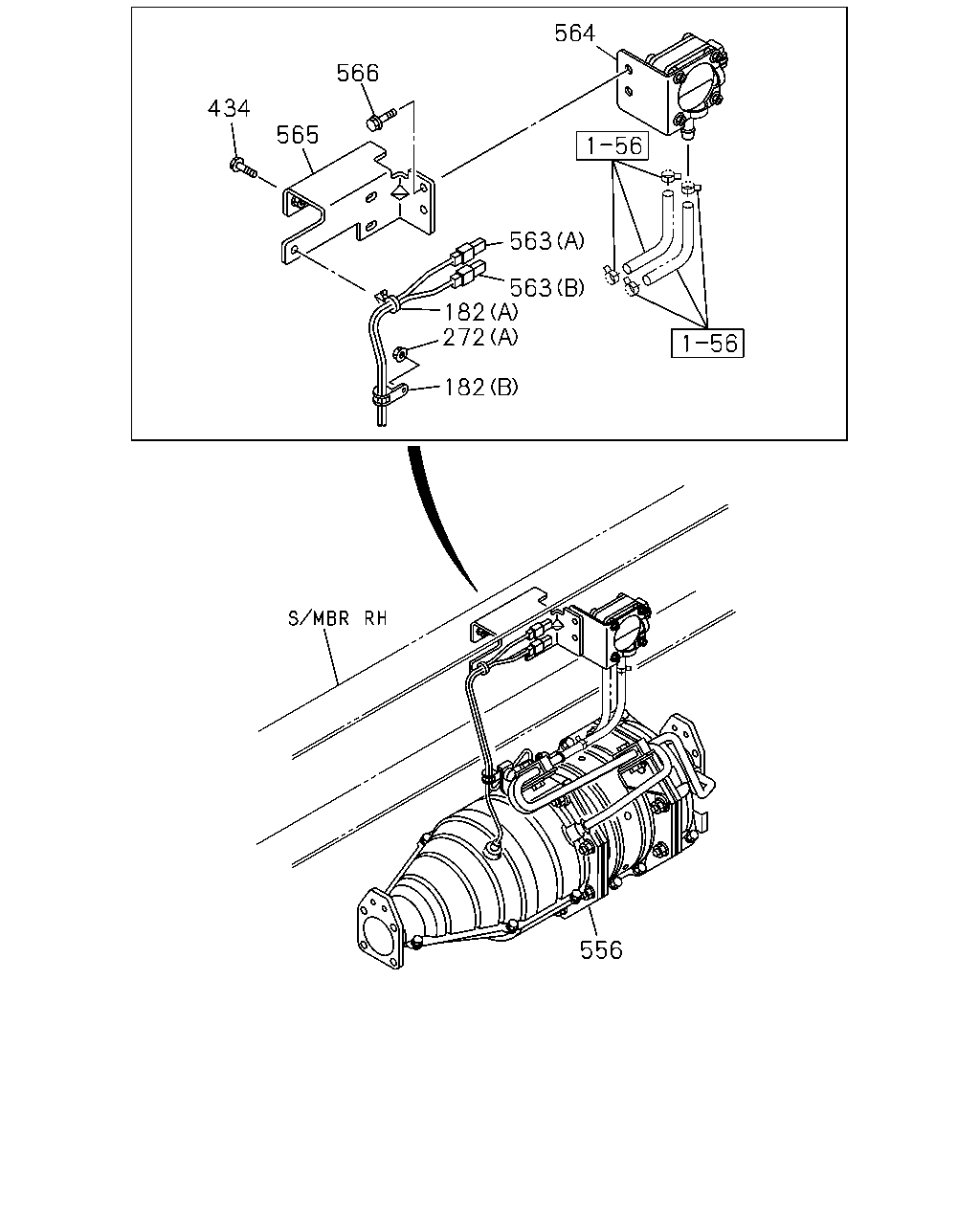

564 566 565 434 563 563 182 272 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	1506-	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A) FRONT	8-98004-329-0	01	1	1506-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B) CENTER	8-98004-330-0	01	1	1506-	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	1506-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98063-129-0	01	1	1506-	●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●

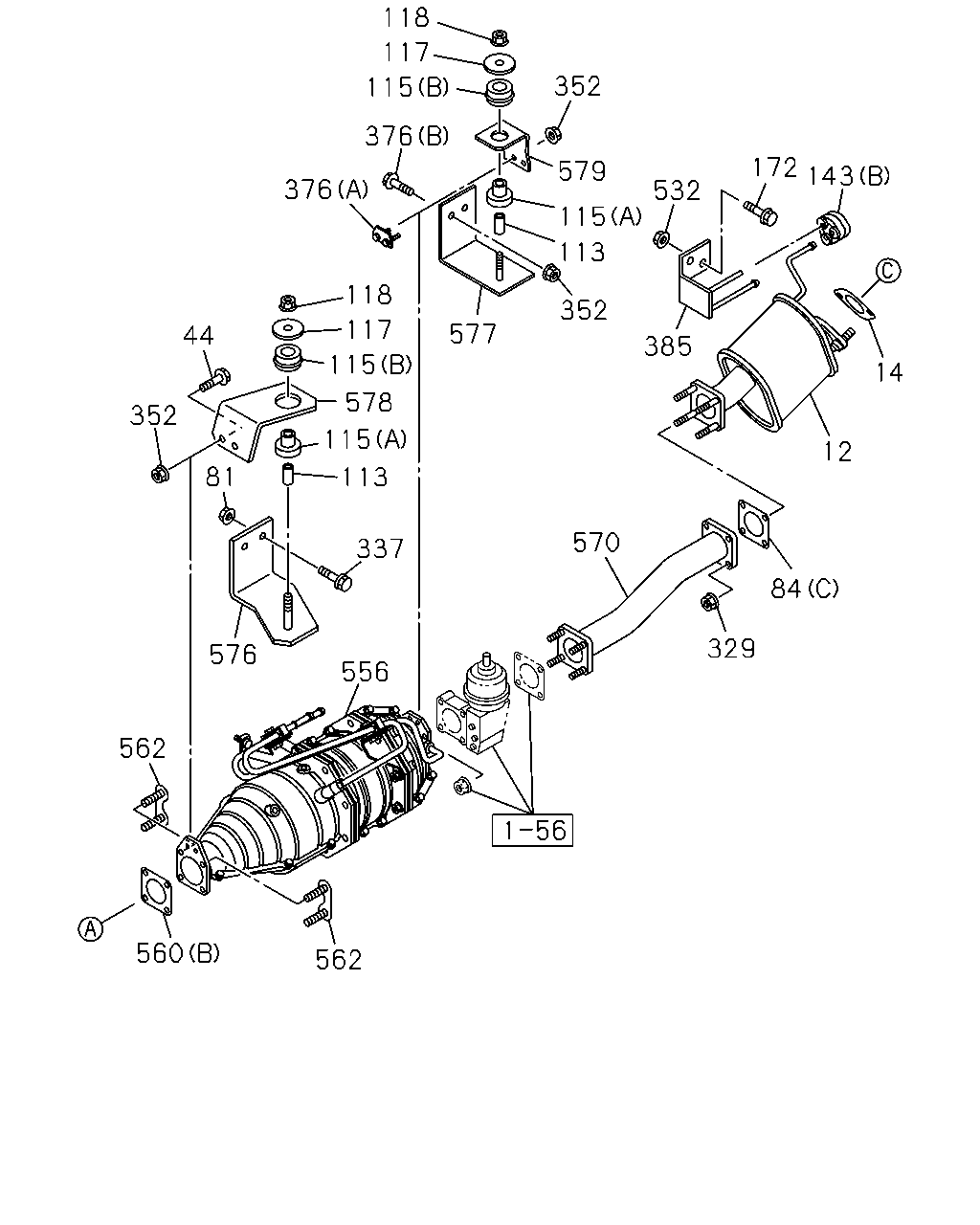

118 376 115 117 376 118 115 117 578 113 115 337 556 576 352 44 81 562 560 562 570 329 84 12 14 143 172 532 385 352 113 115 579 352 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-98254-781-0	01	1	1506-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	1506-		●
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●
81	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
84	03.611 GASKET; EXH PIPE (B) ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE (A)	8-97384-590-0	01	1	1506-	●	●
84	03.611 GASKET; EXH PIPE (C) ID=64	8-97373-108-0	01	1	1506-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1506-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1506-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1506-	●	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-97080-694-0	01	1	1506-		●
172	03.708 BOLT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
329	03.613 NUT; EXH PIPE TO PIPE 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-		●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-	●	●
376	03.708 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
376	03.708 BOLT; BRKT 03.690 (A)	8-98005-985-0	01	1	1506-	●	●
385	03.704 BRACKET; SILENCER MTG	8-98051-655-0	01	1	1506-		●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	1506-	●	●
570	03.704 ADAPTER; EXH PIPE	8-98168-531-0	01	1	1506-		●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98090-391-0	01	1	1506-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98124-720-0	01	1	1506-	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98072-139-0	01	1	1506-		●
578	03.706 BRACKET; DPD FRT	8-98084-412-0	01	1	1506-	●	●
579	03.704 BRACKET; DPD RR	8-98124-719-0	01	1	1506-	●
579	03.704 BRACKET; DPD RR	8-98168-530-1	01	1	1506-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
