Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#162636) — 166 parça

627 313 629 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL	8-98141-558-0	01	1	1506-	●	●
627	03.162 BOLT; FUEL CLR 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1506-	●	●
628	03.162 NUT; FUEL CLR 01.062 M6 FLANGE	0-91180-106-0	04	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR (A)	8-98142-068-1	01	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR (B)	8-98142-069-1	01	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR (C)	8-98146-892-0	02	1	1506-	●	●
639	03.162 BOLT; BRKT,FUEL CLR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1506-	●	●

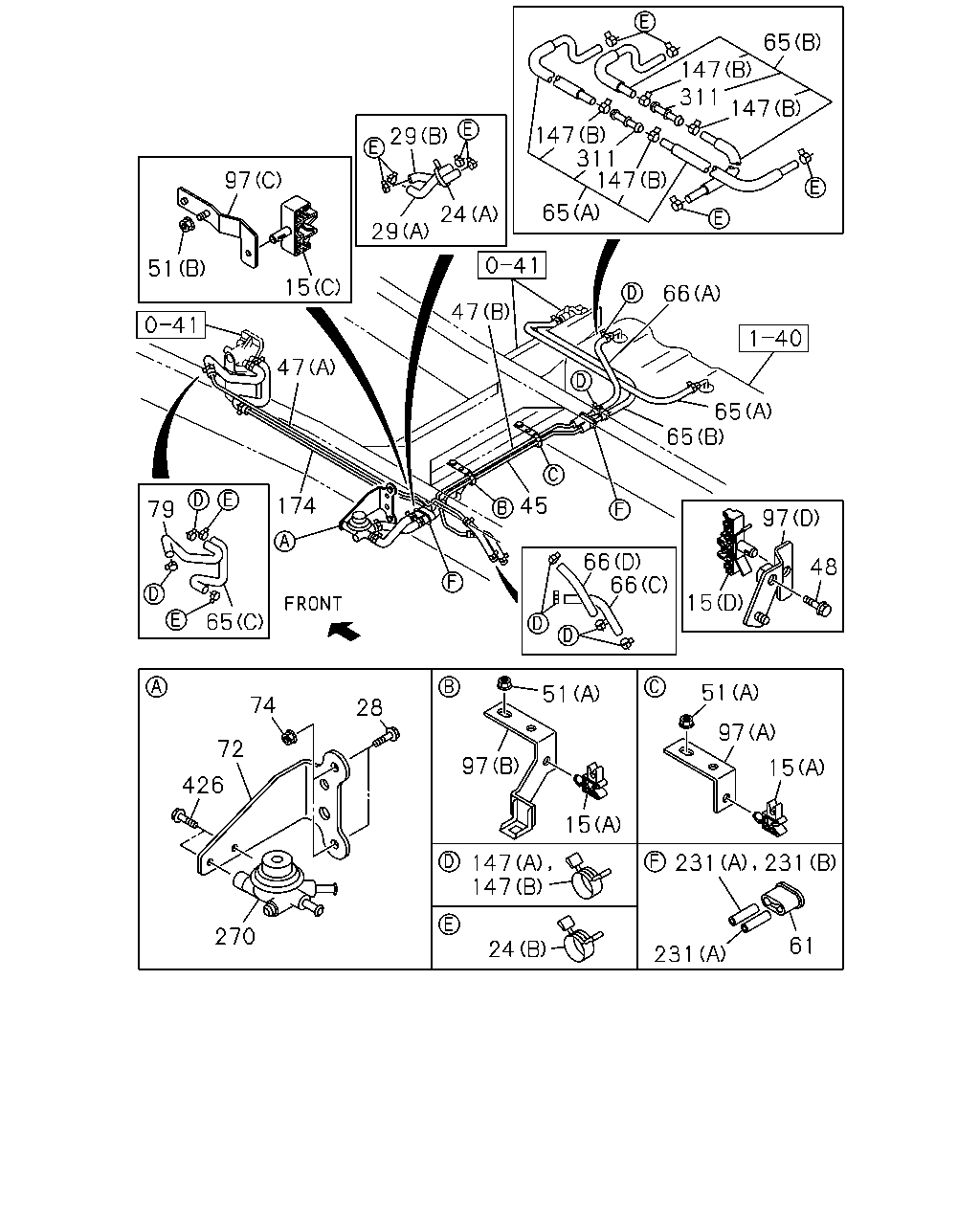

97 15 51 47 174 79 65 74 72 426 28 270 24 147 147 97 15 51 66 66 45 47 29 29 24 147 311 147 147 65 147 311 65 66 65 65 97 48 15 51 97 15 231 231 231 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=12 & 6.35	8-97215-437-0	02	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (A) ID=12 & 6.35	8-97215-437-0	02	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	1506-		●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1506-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	10	1	1506-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1506-		●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
29	03.163 HOSE; FUEL (A) L=200	8-98133-838-0	01	1	1506-	●
29	03.163 HOSE; FUEL (B)	8-98175-084-0	01	1	1506-	●
29	03.163 HOSE; FUEL (E)	8-98138-300-0	01	1	1506-		●
29	03.163 HOSE; FUEL (D)	8-98139-112-1	01	1	1506-		●
29	03.163 HOSE; FUEL (C)	8-98139-113-1	01	1	1506-		●
45	03.163 PIPE; FUEL,DELIVERY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-579-3	01	1	1506-1507	●	●
45	03.163 PIPE; FUEL,DELIVERY FRT INDEPENDENT SUSPENSION(FF0)	8-97389-579-3	01	1	1506-1507	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1508-	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1508-	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) L=984	8-98137-015-0	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (B) L=984	8-98137-015-0	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1508-	●	●
48	03.162 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1507	●	●
48	03.162 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1507	●	●
48	03.162 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1508-	●	●
51	03.162 NUT; CLIP,PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.787 (A) M10	0-91111-510-0	02	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE FRT INDEPENDENT SUSPENSION(FF0) 00.787 (A) M10	0-91111-510-0	02	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1508-	●	●
51	03.162 NUT; CLIP,PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE FRT INDEPENDENT SUSPENSION(FF0) (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
61	03.162 GROMMET; PIPE TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-801-0	02	1	1506-1507	●	●
61	03.162 GROMMET; PIPE TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98038-801-0	02	1	1506-1507	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1508-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98175-082-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98175-083-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98175-081-0	01	1	1506-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-98175-085-1	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=960	8-98133-498-0	01	1	1506-		●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	1506-	●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1506-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98002-076-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98002-076-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	1508-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98039-930-0	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98039-930-0	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	1508-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98064-442-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98064-442-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1508-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.686 (D)	8-98136-287-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) 04.686 (D)	8-98136-287-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP 04.686 (D)	8-98136-287-1	01	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1506-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1506-		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1506-1507	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1506-1507	●	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1508-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) OD=17 L=50	8-94157-054-1	01	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (B) OD=17 L=50	8-94157-054-1	01	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1508-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) OD=16.5 L=50	8-97214-235-0	03	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (A) OD=16.5 L=50	8-97214-235-0	03	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1508-	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1506-	●	●
311	03.163 JOINT; HOSE	8-97353-668-0	02	1	1506-	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1506-		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●

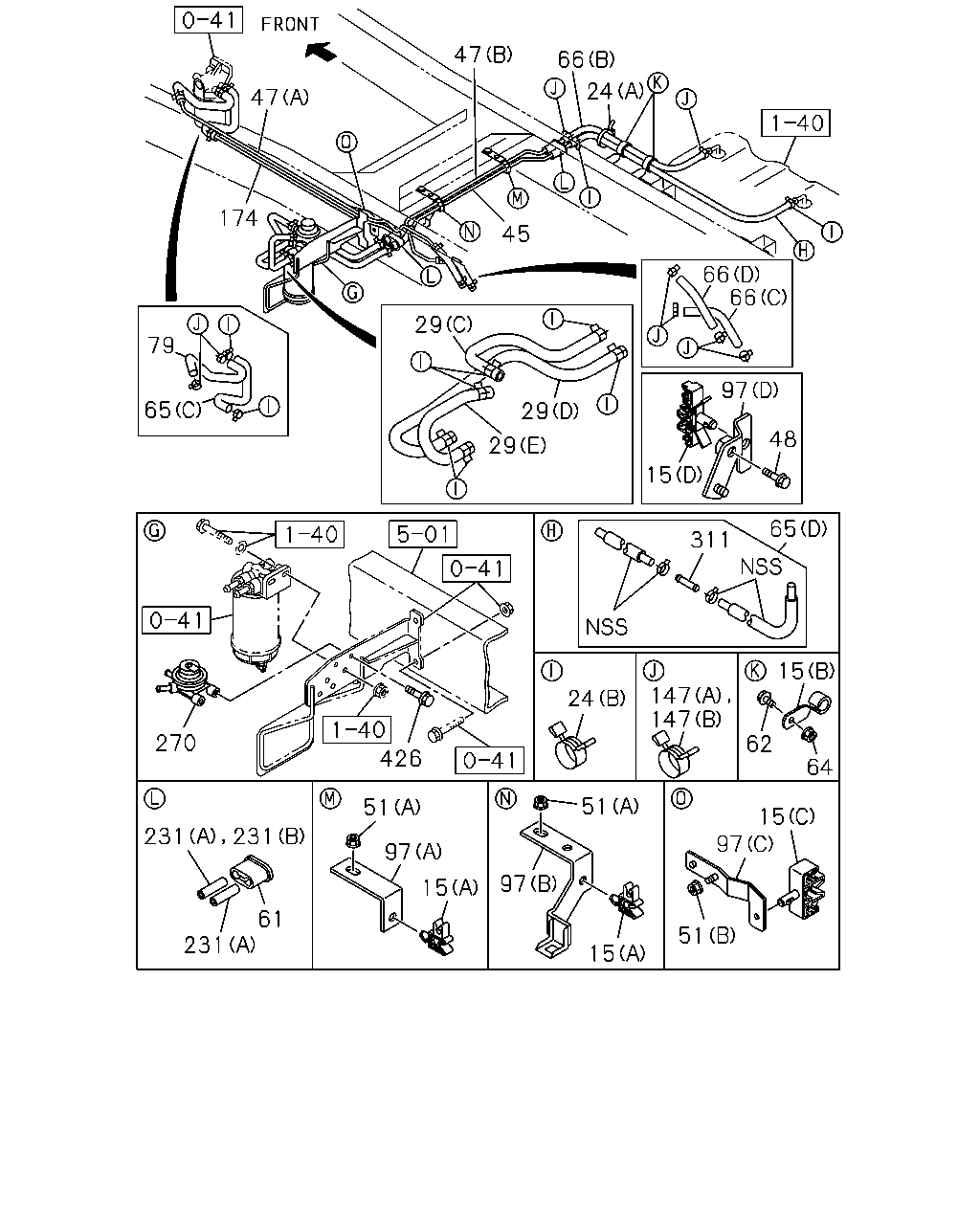

47 174 79 65 29 29 29 47 45 66 24 66 66 97 48 15 311 65 270 426 231 231 61 231 51 97 15 51 97 15 51 97 15 64 62 15 147 147 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=12 & 6.35	8-97215-437-0	02	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (A) ID=12 & 6.35	8-97215-437-0	02	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) 04.686 (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE 04.686 (C) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1506-1507	●	●
15	03.162 CLIP; FUEL PIPE (D) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1508-	●	●
15	03.162 CLIP; FUEL PIPE 02.559 (B) ID=28 L=60	1-09700-585-1	02	1	1506-		●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	1506-	●	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	10	1	1506-	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	1506-		●
29	03.163 HOSE; FUEL (A) L=200	8-98133-838-0	01	1	1506-	●
29	03.163 HOSE; FUEL (B)	8-98175-084-0	01	1	1506-	●
29	03.163 HOSE; FUEL (E)	8-98138-300-0	01	1	1506-		●
29	03.163 HOSE; FUEL (D)	8-98139-112-1	01	1	1506-		●
29	03.163 HOSE; FUEL (C)	8-98139-113-1	01	1	1506-		●
45	03.163 PIPE; FUEL,DELIVERY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-579-3	01	1	1506-1507	●	●
45	03.163 PIPE; FUEL,DELIVERY FRT INDEPENDENT SUSPENSION(FF0)	8-97389-579-3	01	1	1506-1507	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1508-	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A) L=971	8-98137-013-2	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1508-	●	●
47	03.163 PIPE; FUEL,RETURN AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) L=984	8-98137-015-0	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (B) L=984	8-98137-015-0	01	1	1506-1507	●	●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1508-	●	●
48	03.162 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1507	●	●
48	03.162 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-1507	●	●
48	03.162 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1508-	●	●
51	03.162 NUT; CLIP,PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.787 (A) M10	0-91111-510-0	02	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE FRT INDEPENDENT SUSPENSION(FF0) 00.787 (A) M10	0-91111-510-0	02	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1508-	●	●
51	03.162 NUT; CLIP,PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE FRT INDEPENDENT SUSPENSION(FF0) (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
61	03.162 GROMMET; PIPE TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-801-0	02	1	1506-1507	●	●
61	03.162 GROMMET; PIPE TO FRAME FRT INDEPENDENT SUSPENSION(FF0)	8-98038-801-0	02	1	1506-1507	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1508-	●	●
62	03.162 BOLT; CLIP FIX 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-		●
64	03.162 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98175-082-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98175-083-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98175-081-0	01	1	1506-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-98175-085-1	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (D) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=960	8-98133-498-0	01	1	1506-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1506-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98002-076-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98002-076-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP (A)	8-98002-076-1	01	1	1508-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98039-930-0	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98039-930-0	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-930-0	01	1	1508-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98064-442-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98064-442-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1508-	●	●
97	03.162 BRACKET; CLIP AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.686 (D)	8-98136-287-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP FRT INDEPENDENT SUSPENSION(FF0) 04.686 (D)	8-98136-287-1	01	1	1506-1507	●	●
97	03.162 BRACKET; CLIP 04.686 (D)	8-98136-287-1	01	1	1508-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1506-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	02	1	1506-		●
174	03.163 PIPE; FUEL,FEED,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1506-1507	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1506-1507	●	●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1508-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) OD=17 L=50	8-94157-054-1	01	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (B) OD=17 L=50	8-94157-054-1	01	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1508-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) OD=16.5 L=50	8-97214-235-0	03	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE FRT INDEPENDENT SUSPENSION(FF0) (A) OD=16.5 L=50	8-97214-235-0	03	1	1506-1507	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1508-	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1506-	●	●
311	03.163 JOINT; HOSE	8-97353-668-0	02	1	1506-	●
311	03.163 JOINT; HOSE	8-97353-668-0	01	1	1506-		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
