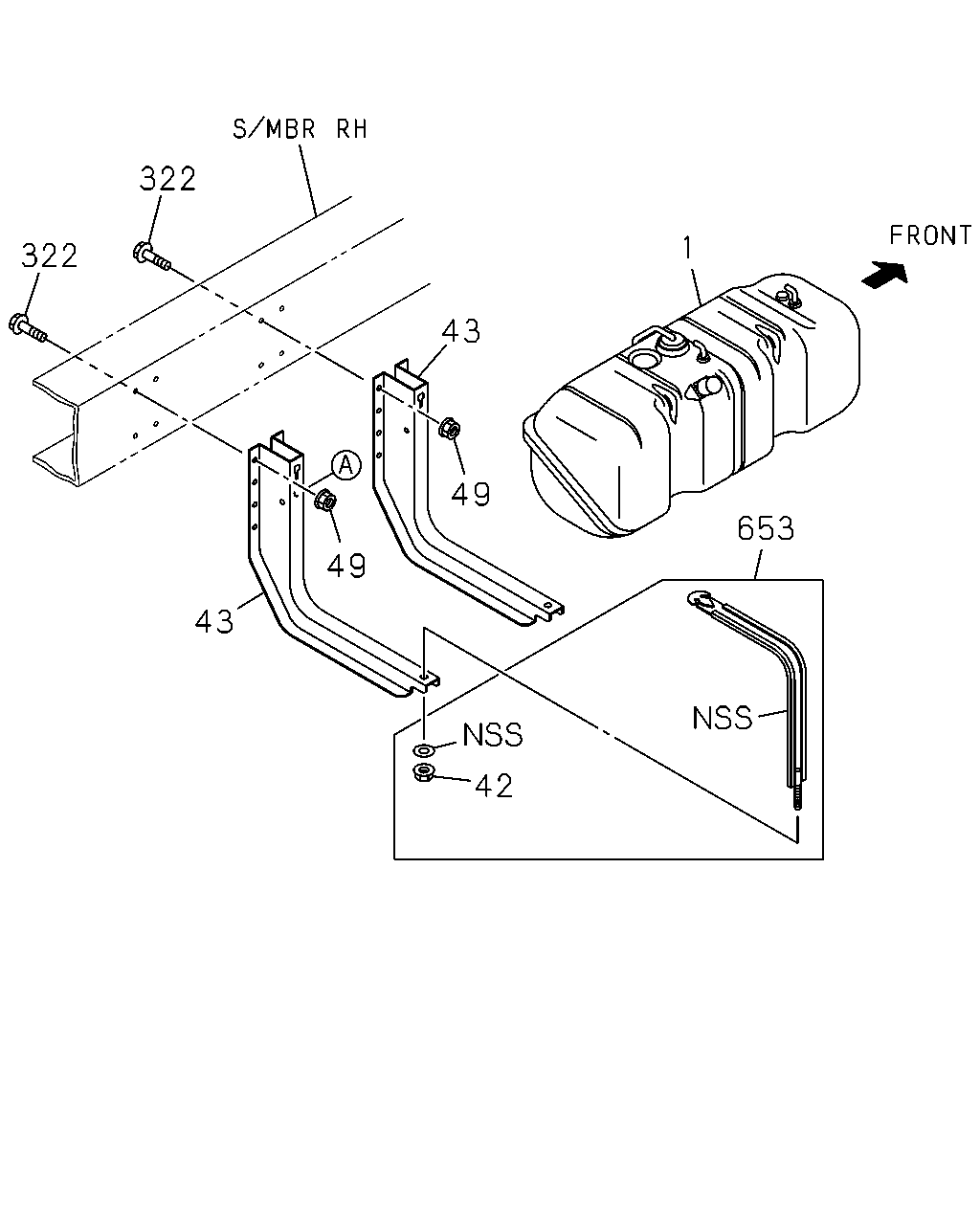

1-40 — FUEL TANK (#162635) — 22 parça

1 653 43 49 49 43 42 322 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1506-	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1506-	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-056-1	01	1	1506-	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97384-081-1	01	1	1506-	●	●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1506-	●	●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1506-	●	●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1506-	●	●

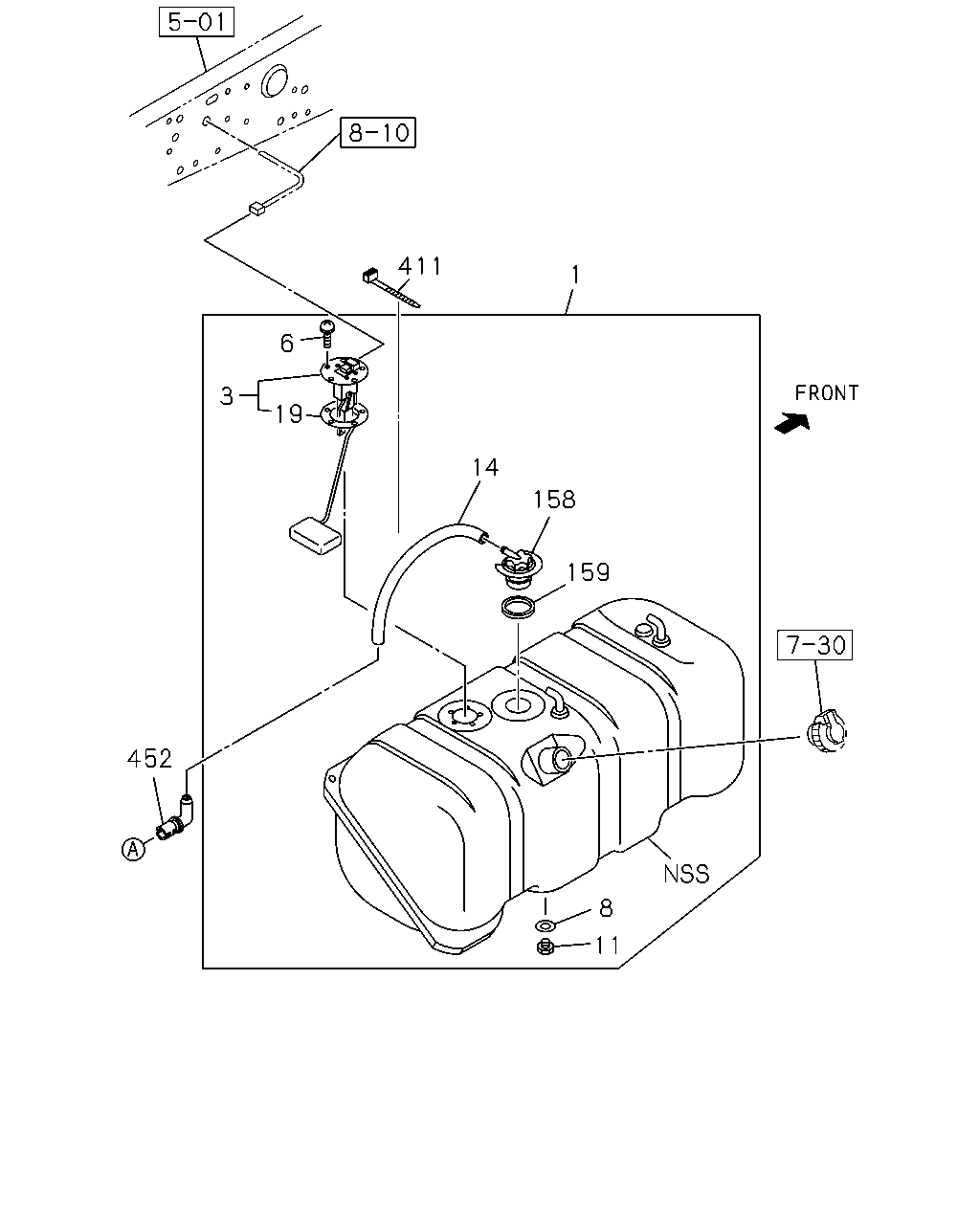

1 411 6 3 19 14 158 159 8 11 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1506-	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	1506-	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1506-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1506-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1506-	●	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1506-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1506-	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1506-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 L=140	5-09707-031-1	02	1	1506-	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1506-	●	●

300 300 302 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
300	03.162 BOLT; BRKT TO BODY 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
300	03.162 BOLT; BRKT TO BODY 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1506-	●	●
302	03.162 WASHER; PL,SEDIMENTER 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1506-	●	●
303	03.162 NUT; SEDIMENTER BRKT M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
