1-31 — AIR DUCT (#162633) — 153 parça

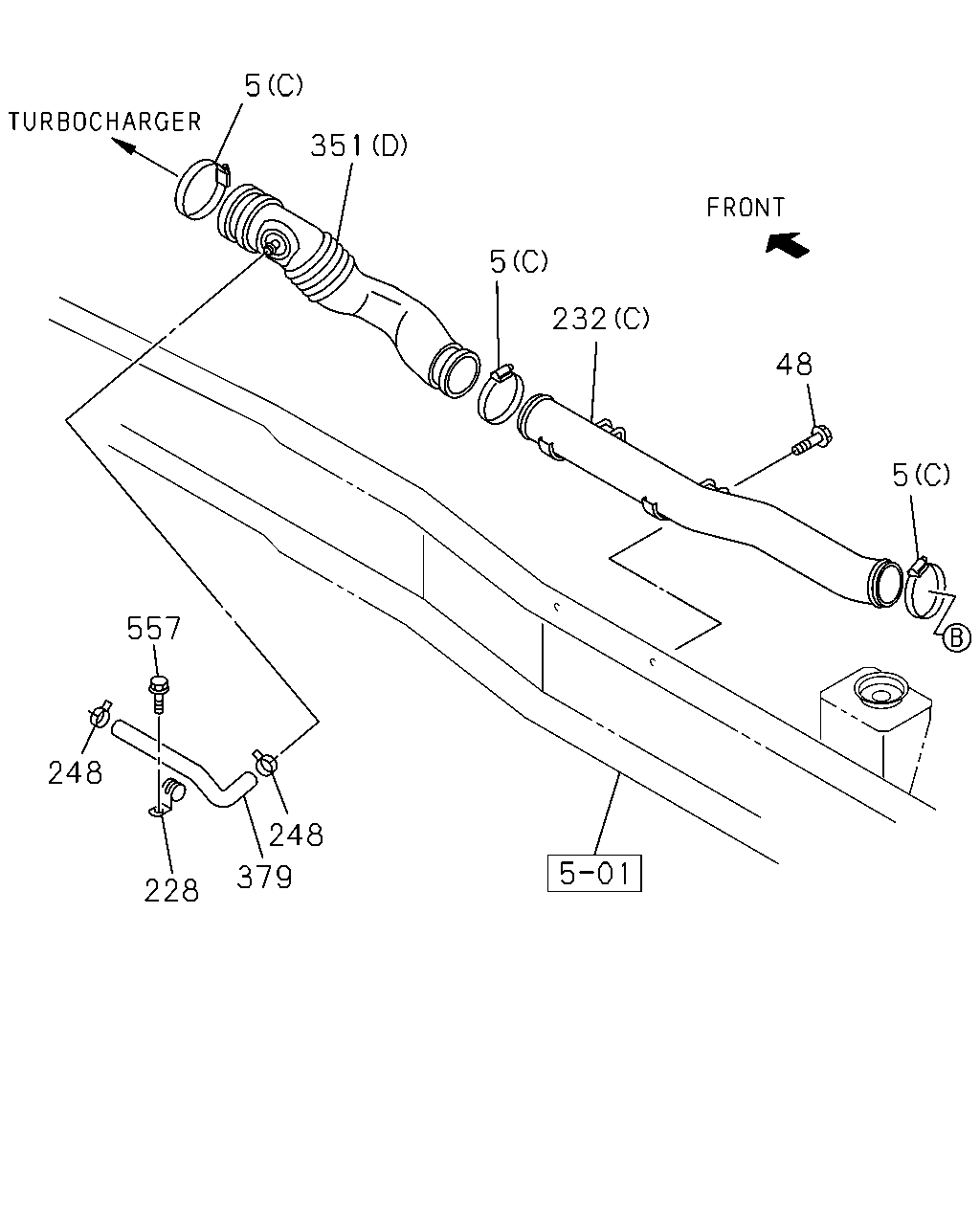

çizim 479329
5 557 248 228 248 379 5 48 232 5 351
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 02 1 1506- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1506- ●
48 03.417 BOLT; AIR DUCT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506- ●
228 03.278 CLIP; PCV HOSE
ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(A) 		8-98077-531-1 01 1 1506- ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1506- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1506- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1506- ●
379 03.675 HOSE; RUBBER 8-98156-950-0 01 1 1506- ● ●
557 03.403 BOLT; HOSE CLIP
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●

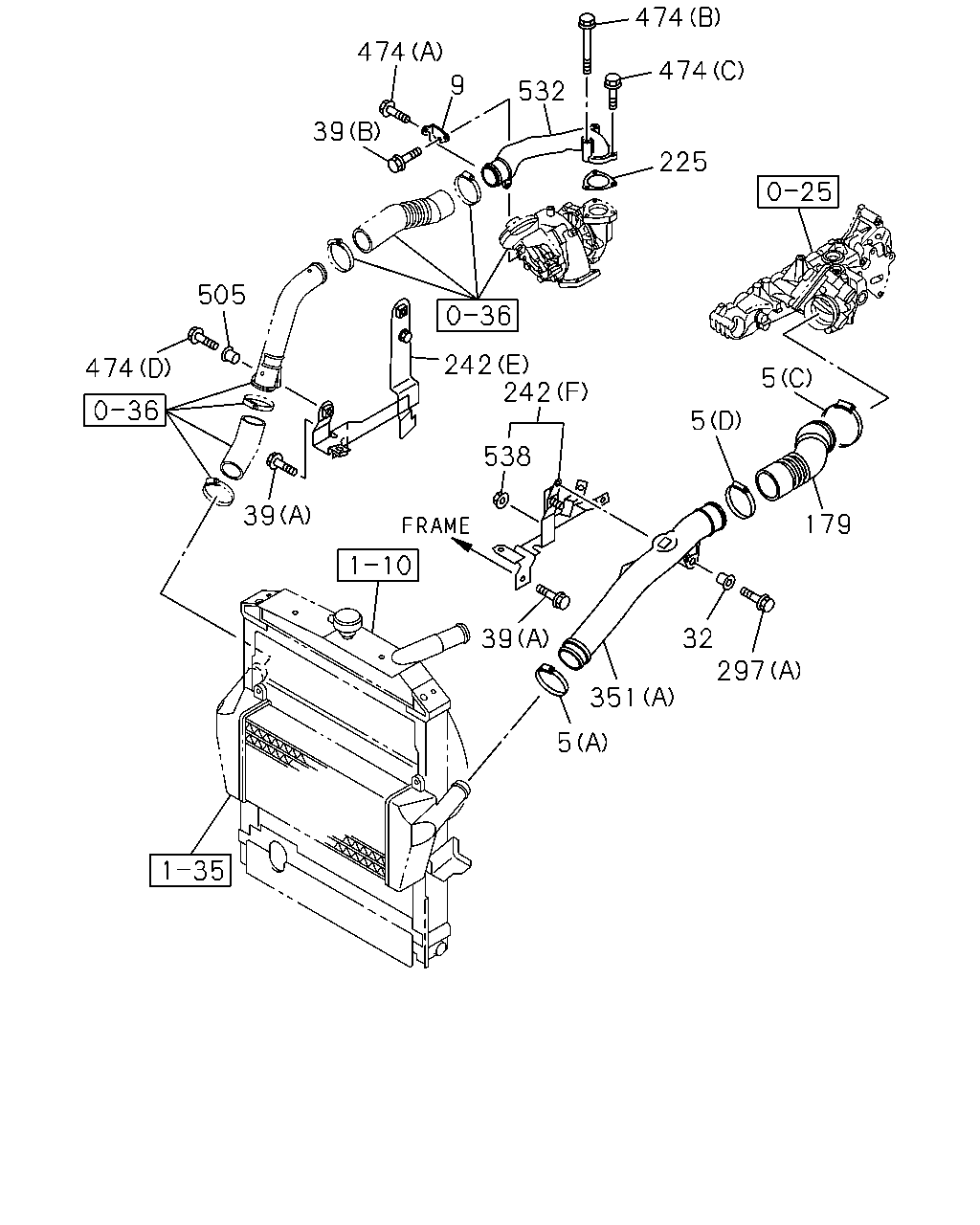

çizim 479360
538 242 39 474 505 39 351 5 32 297 179 5 242 5 225 474 474 532 474 39 9
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 02 1 1506- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1506- ●
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 1506- ● ●
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 1506- ● ●
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 1506- ● ●
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1506- ● ●
179 03.417 HOSE; AIR INT 8-98050-917-2 01 1 1506- ● ●
225 03.417 GASKET; AIR PIPE
03.270 ID=47 		8-97202-328-1 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1506- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 1506- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1506- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1506- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1506- ●
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 1506- ● ●
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1506- ● ●
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1506- ● ●
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 1506- ● ●
505 03.406 RUBBER; MTG
03.265 OD=23 		8-97105-689-6 01 1 1506- ● ●
532 03.417 PIPE; INTAKE 8-98237-771-1 01 1 1506- ● ●
538 03.417 NUT; PLATE,AIR DUCT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ●

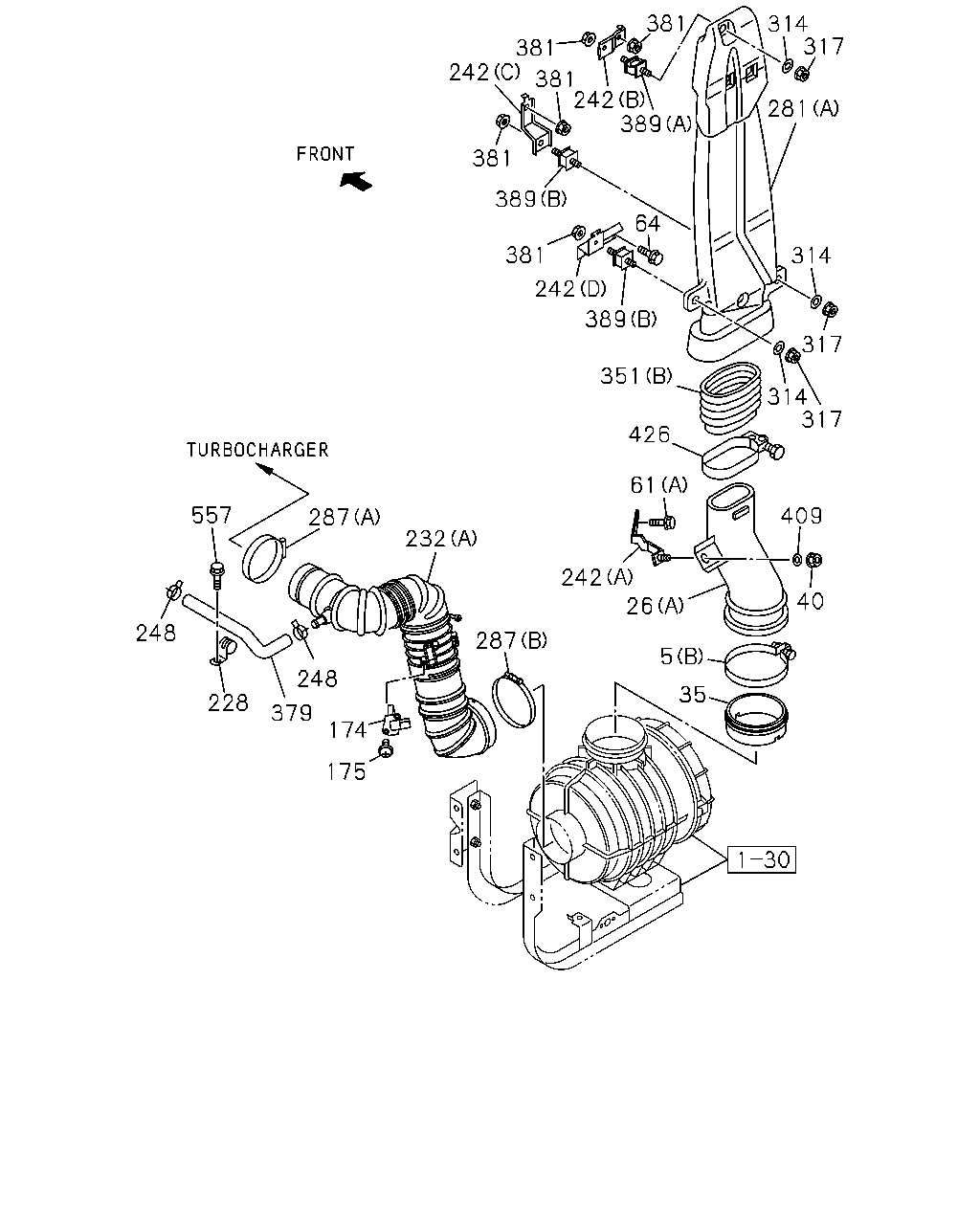

çizim 479853
287 557 248 228 379 174 248 175 232 287 242 26 5 35 40 409 317 314 61 426 351 389 242 381 389 381 242 381 242 381 389 381 314 281 317 64 314 317
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 02 1 1506- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1506- ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 1506- ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 1506- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1506- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ●
228 03.278 CLIP; PCV HOSE
ID=24.5 H=29 L=25 		8-98120-913-0 01 1 1506- ● ●
232 03.417 HOSE; CONN
(A) 		8-98077-531-1 01 1 1506- ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1506- ●
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 1506- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
(A) 		8-97369-706-0 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT
(B) 		8-98061-757-2 01 1 1506- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1506- ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 1506- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1506- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1506- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1506- ●
379 03.675 HOSE; RUBBER 8-98156-950-0 01 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ●
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 1506- ●
557 03.403 BOLT; HOSE CLIP
03.671 M6X10 FLANGE 		0-28050-610-0 01 1 1506- ● ●

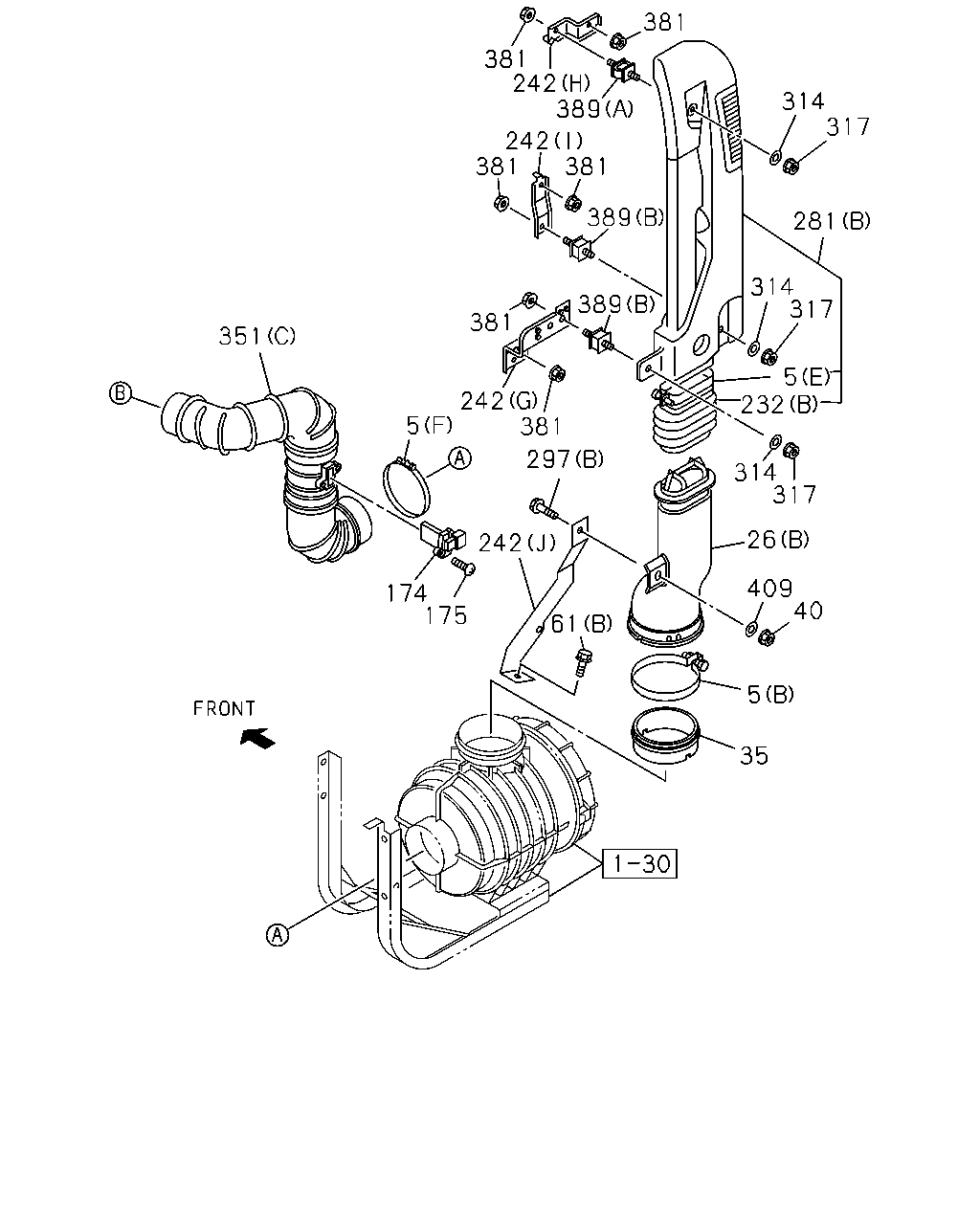

çizim 480008
351 5 174 175 242 61 5 35 40 409 317 26 314 232 5 317 314 281 317 314 381 242 381 381 242 389 389 381 389 242 381 381 297
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ● ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 02 1 1506- ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 1506- ●
5 03.407 CLIP; AIR DUCT
(E) D=101.6 		9-09915-502-1 01 1 1506- ●
26 03.417 DUCT; AIR INT
(A) 		8-98023-339-0 01 1 1506- ●
26 03.417 DUCT; AIR INT
(B) 		8-98023-340-0 01 1 1506- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1506- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ●
174 03.682 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1506- ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1506- ● ●
232 03.417 HOSE; CONN
(A) 		8-98077-531-1 01 1 1506- ●
232 03.417 HOSE; CONN
(C) 		8-98108-234-0 01 1 1506- ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-3 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98108-313-1 01 1 1506- ● ●
242 03.417 BRACKET; AIR DUCT
(I) 		8-98055-243-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1506- ●
242 03.417 BRACKET; AIR DUCT
(J) 		8-98066-918-1 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT
(A) 		8-97369-706-0 01 1 1506- ●
281 03.417 DUCT; AIR,VERTICAL INT
(B) 		8-98061-757-2 01 1 1506- ●
297 03.417 BOLT; DUCT
01.060 (A) M8X35 FLANGE 		0-28650-835-0 01 1 1506- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1506- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1506- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ●
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 1506- ●
351 03.407 DUCT; AIR
(A) 		8-98067-268-0 01 1 1506- ● ●
351 03.407 DUCT; AIR
(C) 		8-98023-342-2 01 1 1506- ●
351 03.407 DUCT; AIR
(D) 		8-98153-145-0 01 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1506- ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1506- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1506- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1506- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
