0-66 — GENERATOR (#162628) — 19 parça

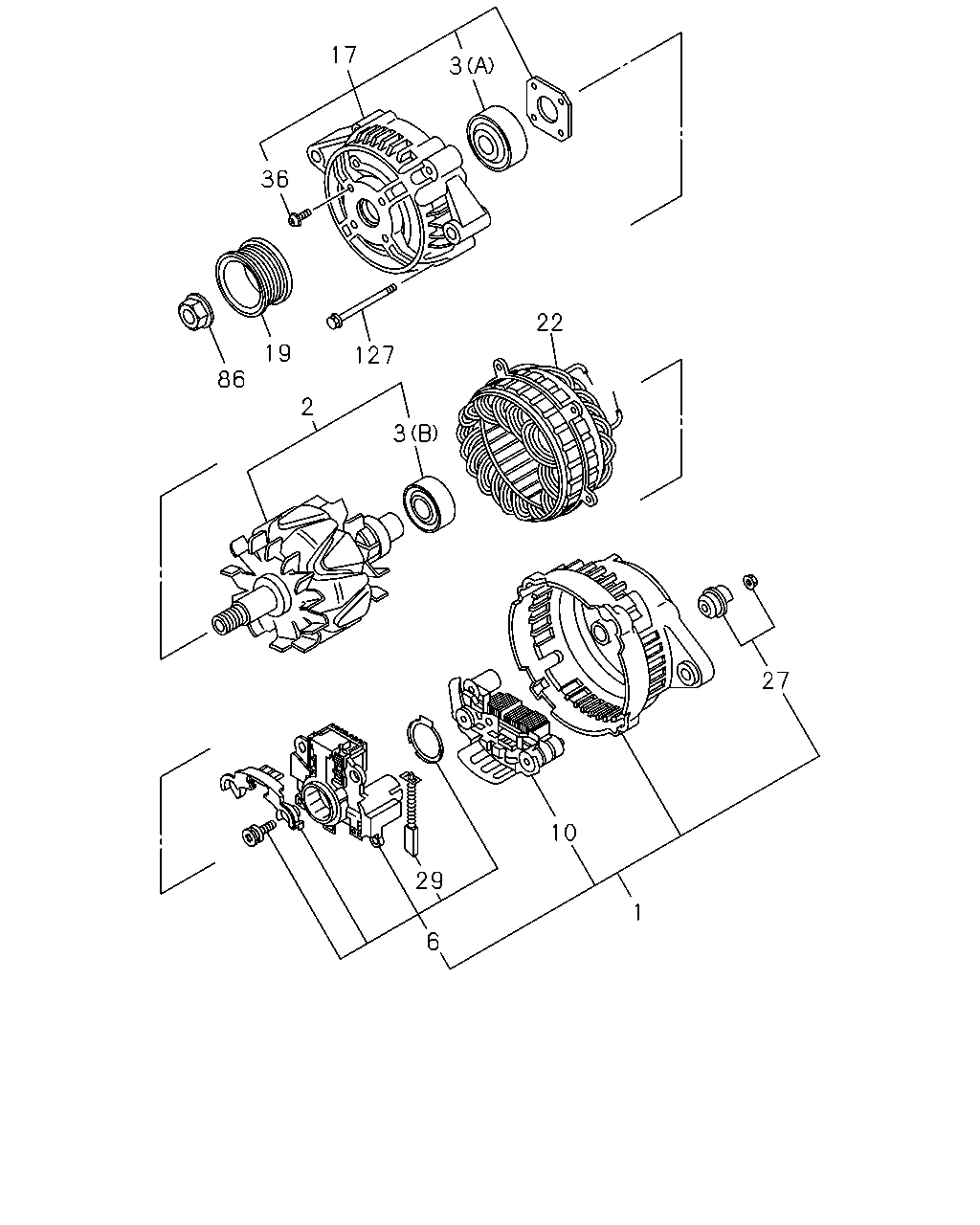

çizim 479295
22 27 3 17 36 127 19 2 86 3 1 10 29 6
BalonParca AdiParca NoAdetTipApplied Date
1 02.297 COVER ASM; RR,GEN
ASM PART: A = 8-98251-635-1, 98251635 		8-98273-821-0 01 1 -
1 02.297 COVER ASM; RR,GEN
ASM PART: B = 8-98268-791-0, 98268791 		8-98278-929-0 01 1 -
2 02.279 ROTOR; GEN
ASM PART: A = 8-98251-635-1, 98251635 		8-98273-816-0 01 1 -
2 02.279 ROTOR; GEN
ASM PART: B = 8-98268-791-0, 98268791 		8-98278-914-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-98273-814-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-98273-817-0 01 1 -
6 02.500 REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-98273-825-0 01 1 -
10 02.319 RECTIFIER; GEN
ASM PART: A = 8-98251-635-1, 98251635 		8-98273-823-0 01 1 -
10 02.319 RECTIFIER; GEN
ASM PART: B = 8-98268-791-0, 98268791 		8-98278-931-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: B = 8-98268-791-0, 98268791 		8-98273-812-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-98251-635-1, 98251635 		8-98273-813-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-98273-829-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: A = 8-98251-635-1, 98251635 		8-98273-819-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: B = 8-98268-791-0, 98268791 		8-98278-915-0 01 1 -
27 02.291 NUT; RECTIFIER,GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-98273-824-0 01 1 -
29 02.285 BRUSH; GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-98273-826-0 01 1 -
36 02.277 SCREW; FRT COVER
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-97178-136-0 01 1 -
86 02.280 NUT SET; PULLEY,GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-97145-327-0 01 1 -
127 02.277 BOLT SET; GEN
ASM PART: A = 8-98251-635-1, 98251635, B = 8-98268-791-0, 98268791 		8-97145-328-0 01 1 -
