◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11209 - LV434(RHD) EURO3/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#16262) — 74 parça
çizim 62710
62 65 68 68 65 211 68 68 211
BalonParca AdiParca NoAdetTipApplied Date
62 ABSORBER ASM; SHOCK,FRT 1-51630-782-0 04 1 0907-
65 WASHER; S/ABS
(A) ID=33 		9-51631-030-0 04 1 0907-
65 WASHER; S/ABS
(B) ID=25 		9-51631-031-0 04 1 0907-
68 BUSHING; S/ABS 1-51631-122-0 16 1 0907-
211 WASHER; BRKT,SHOCK
(A) ID=33 		9-51631-030-0 04 1 0907-
211 WASHER; BRKT,SHOCK
(B) ID=25 		9-51631-031-0 04 1 0907-

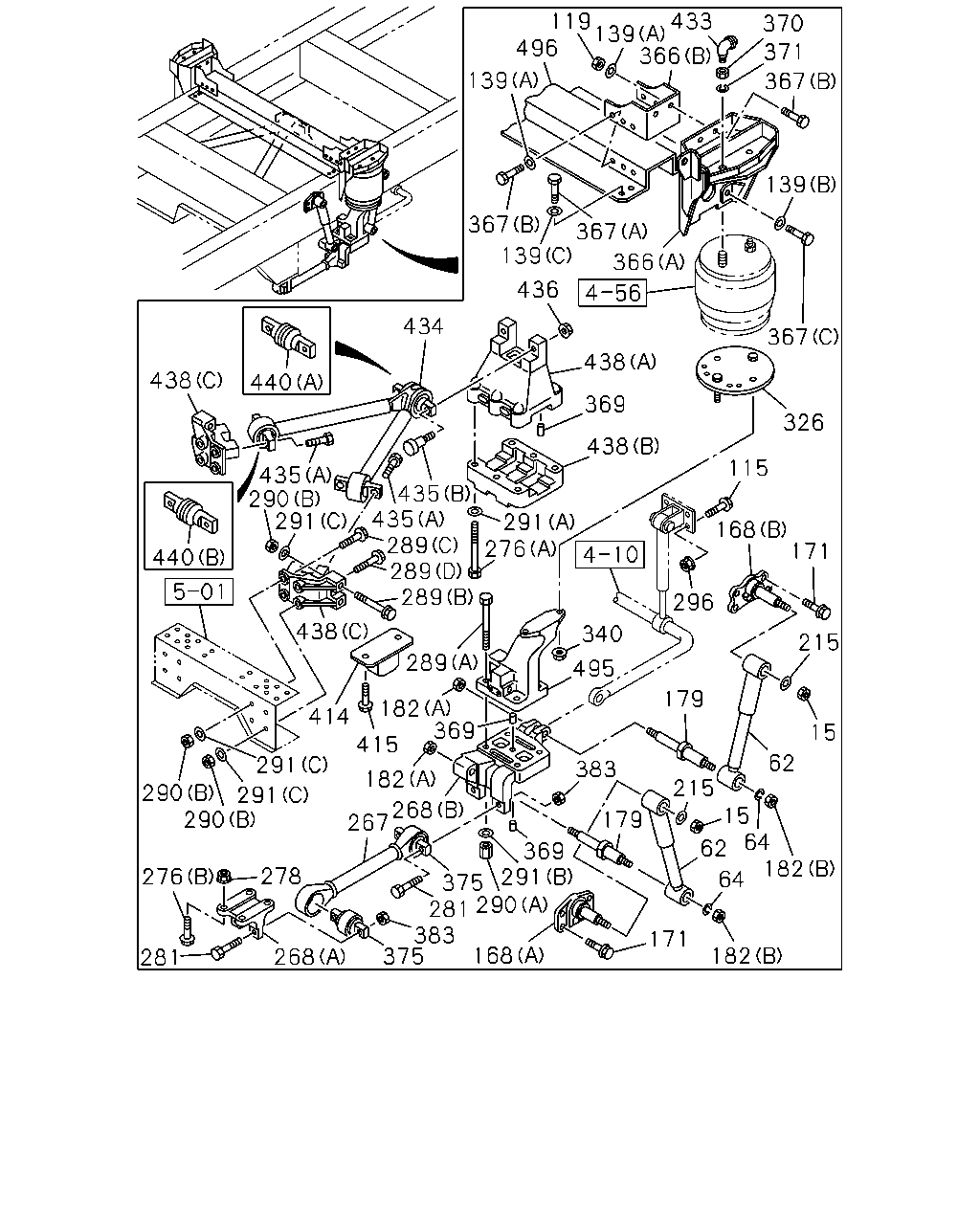

çizim 102320
119 433 139 496 366 370 371 139 367 139 367 367 139 366 436 367 434 438 438 440 369 326 438 115 435 290 291 435 435 289 289 289 291 276 168 171 440 296 438 340 495 215 289 182 369 179 414 15 415 62 291 268 267 383 182 215 62 290 291 290 179 15 64 182 369 291 375 290 281 383 375 278 276 64 171 168 182 268 281
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M24 		0-91110-524-0 04 1 0907-
62 ABSORBER ASM; SHOCK,FRT 1-51630-782-0 04 1 0907-
64 WASHER; S/ABS,LWR
ID=24.5 		0-91510-624-0 04 1 0907-
115 BOLT; SUPPORT BRKT TO BODY
M14X40 FLANGE 		0-28661-440-0 08 1 0907-
119 NUT; BRKT
M16 		0-91110-516-0 04 1 0907-
139 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 16 1 0907-
139 WASHER; PL,BRKT
(C) ID=15 		8-98010-627-1 08 1 0907-
139 WASHER; PL,BRKT
(B) ID=21 		9-09164-520-0 12 1 0907-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51682-112-2 02 1 0907-1306
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98229-822-0 02 1 1307-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51682-148-1 02 1 0907-
171 BOLT; S/ABS BRKT
M14X50 FLANGE 		0-28861-450-0 16 1 0907-
179 PIN 1-51682-135-0 04 1 0907-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 04 1 0907-
182 NUT; S/ABS LWR
(A) M18 SELF LOCK 		8-98010-391-0 04 1 0907-
215 WASHER; S/ABS,UPR,OUTER
ID=24.5 		0-91510-624-0 04 1 0907-
267 ROD; TORQUE,FRT SUSP
L=545 		1-51511-658-0 02 1 0907-
268 BRACKET; TORQUE ROD
(A) 		1-53363-099-1 02 1 0907-
268 BRACKET; TORQUE ROD
(B) 		1-53363-107-2 01 1 0907-
268 BRACKET; TORQUE ROD
(B) 		1-53363-108-2 01 1 0907-
276 BOLT; BRKT
(B) M16X60 FLANGE 		0-28861-660-0 08 1 0907-
276 BOLT; BRKT
(A) M20X165 		8-98010-548-0 06 1 0907-
278 NUT; BRKT
M16 		0-91110-516-0 06 1 0907-
281 BOLT; TORQUE ROD
M18X102 		8-98012-877-0 08 1 0907-
289 BOLT; BRKT
(B) M16X100 		0-10956-600-0 04 1 0907-
289 BOLT; BRKT
(C) M16X60 		0-10956-660-0 04 1 0907-
289 BOLT; BRKT
(D) M16X70 		0-10956-670-0 04 1 0907-
289 BOLT; BRKT
(A) M22X155 		9-09801-290-1 08 1 0907-
290 NUT; LK,BRKT
(B) M16 		0-91110-516-0 12 1 0907-
290 NUT; LK,BRKT
(A) M22 		0-91112-822-0 08 1 0907-1206
290 NUT; LK,BRKT
(A) M22 		8-98179-318-0 08 1 1207-
291 WASHER; PL,BRKT
(B) ID=23 		0-91614-522-0 08 1 0907-
291 WASHER; PL,BRKT
(C) ID=16.2 		1-09503-316-0 24 1 0907-
291 WASHER; PL,BRKT
(A) ID=21 		9-09164-520-0 06 1 0907-
296 NUT; SUPPORT,STABILIZER
M14 FLANGE 		0-91180-214-0 08 1 0907-
326 PLATE; AIR SPR 1-52119-249-0 02 1 0907-
340 NUT; FIX
M12 FLANGE 		0-91180-212-0 04 1 0907-
366 BRACKET; UPR,AIR SPR
(B) 		1-52171-249-0 02 1 0907-
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-307-0 01 1 0907-
366 BRACKET; UPR,AIR SPR
(A) 		1-52171-308-0 01 1 0907-
367 BOLT; BRKT,AIR SPR
(A) M14X40 		0-20951-440-0 08 1 0907-
367 BOLT; BRKT,AIR SPR
(B) M16X50 		0-20951-650-0 16 1 0907-
367 BOLT; BRKT,AIR SPR
(C) M20X50 		9-92062-050-0 12 1 0907-
369 PIN; KNOCK,BRKT 1-52179-036-2 02 1 0907-
369 PIN; KNOCK,BRKT 1-52179-036-2 04 1 0907-
370 NUT; AIR SPR
M20 		0-91111-520-0 02 1 0907-
371 WASHER; LK,AIR SPR
ID=20.2 		0-91510-520-0 02 1 0907-
375 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0907-
375 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 04 1 0907-
383 NUT; TORQUE ROD
M18 SELF LOCK 		8-98010-391-0 08 1 0907-
414 RUBBER; BUFFER 1-53366-182-0 02 1 0907-
415 BOLT; RUBBER
M12X35 FLANGE 		0-28661-235-0 04 1 0907-
433 CONNECTOR; AIR SPRING
DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0907-
434 ROD ASM; V 1-51510-769-1 01 1 0907-1309
434 ROD ASM; V 8-98239-064-0 01 1 1310-
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98010-540-0 04 1 0907-1102
435 BOLT; V-ROD
(A) M18X70 FLANGE 		8-98183-506-0 04 1 1103-
435 BOLT; V-ROD
(B) M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0907-
436 NUT; V-ROD
M24 FLANGE 		8-98019-963-0 02 1 0907-
438 BRACKET; V-ROD
(C) 		1-53353-117-1 02 1 0907-
438 BRACKET; V-ROD
(A) 		1-53363-109-0 01 1 0907-
438 BRACKET; V-ROD
(B) 		1-53363-110-0 01 1 0907-
440 REPAIR KIT; V-ROD
(A) 		1-51519-159-1 01 1 0907-1309
440 REPAIR KIT; V-ROD
(A) 		8-98240-108-0 01 1 1310-
440 REPAIR KIT; V-ROD
(B) 		1-51519-160-2 02 1 0907-1309
440 REPAIR KIT; V-ROD
(B) 		8-98240-109-0 02 1 1310-
495 BRACKET; AIR SPR 1-53363-111-0 02 1 0907-
496 CROSSMEMBER 1-53456-473-0 01 1 0907-
