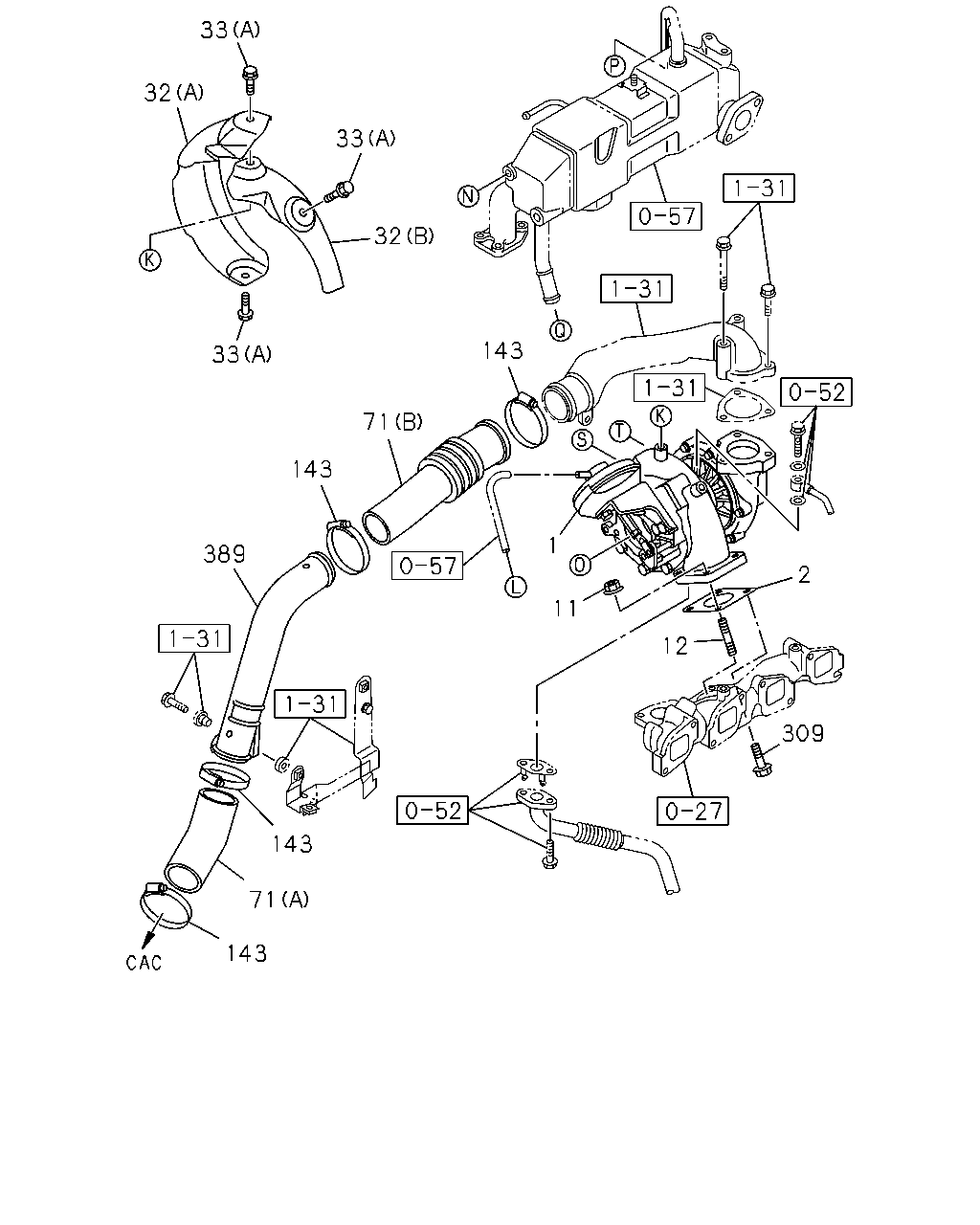

0-36 — TURBOCHARGER SYSTEM (#162618) — 49 parça

2 309 12 11 1 71 143 389 143 71 143 143 32 33 33 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.342 TURBOCHARGER ASM	8-98083-041-2	01	1	1506-
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	1506-
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1506-
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1506-
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1506-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1506-
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (B)	8-98050-919-0	01	1	1506-
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET ID=60-65	8-98096-418-0	04	1	1506-
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1506-
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-997-1	01	1	1506-

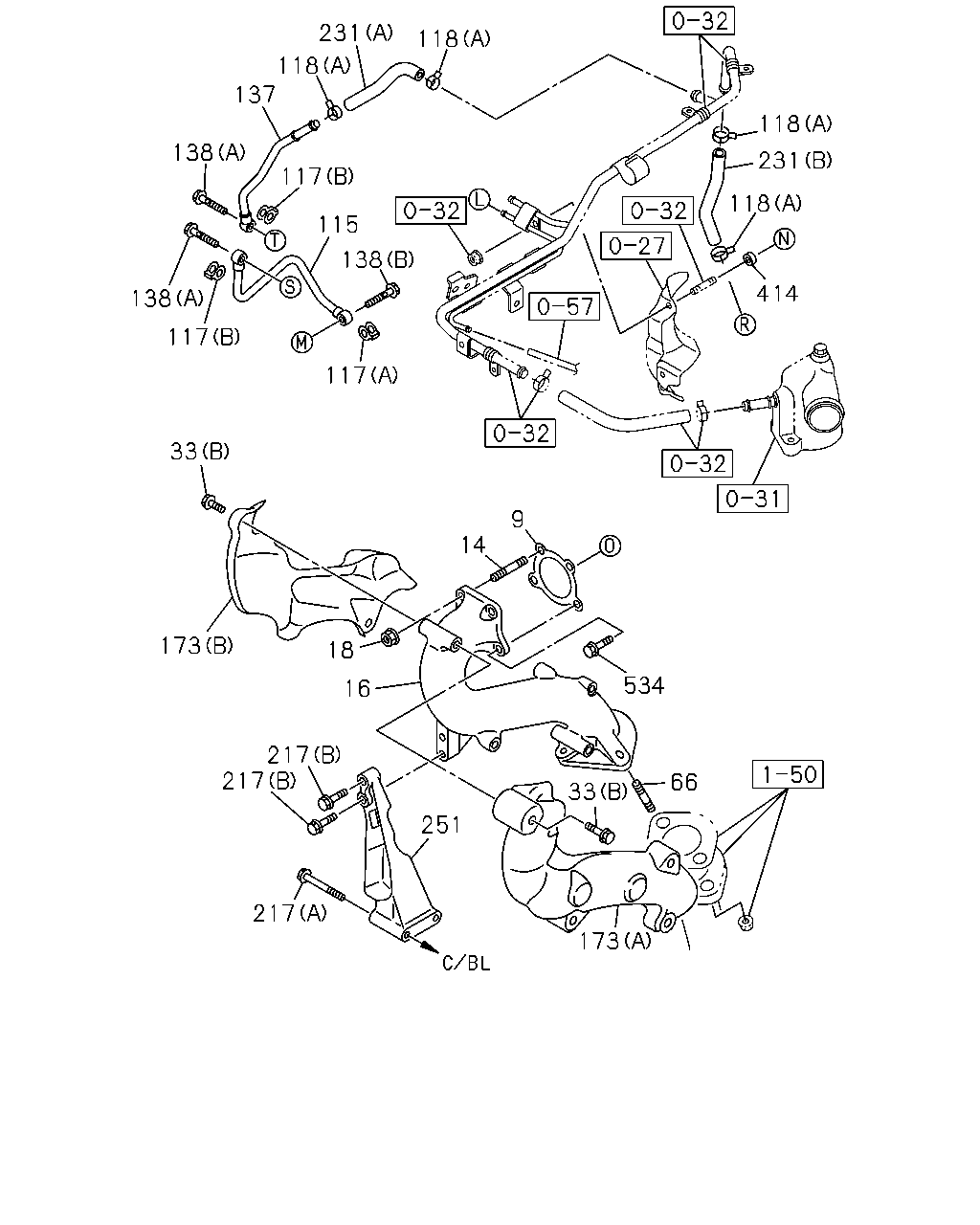

231 118 137 117 115 117 138 117 138 33 173 18 16 14 9 534 66 33 251 217 217 217 173 414 118 231 118 118 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	1506-
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1506-
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1506-
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1506-
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1506-
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1506-
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1506-
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98083-025-1	01	1	1506-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1506-
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=14.2 OD=20.0	8-98113-762-0	01	1	1506-
118	03.342 CLIP; WATER HOSE 01.166 (C) ID=20.8	8-94125-862-1	02	1	1506-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1506-
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1506-
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98074-761-0	01	1	1506-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (A) M12X24 EYE-BOLT	1-09675-081-0	02	1	1506-
138	03.342 BOLT; EYE,WATER PIPE 01.531 (B) M14X33 FLANGE	1-09675-088-0	01	1	1506-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1506-
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1506-
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1506-
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1506-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (A)	8-98075-182-1	01	1	1506-
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT (B)	8-98120-394-1	01	1	1506-
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1506-
414	03.602 SPACER	8-98143-884-0	01	1	1506-
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1506-

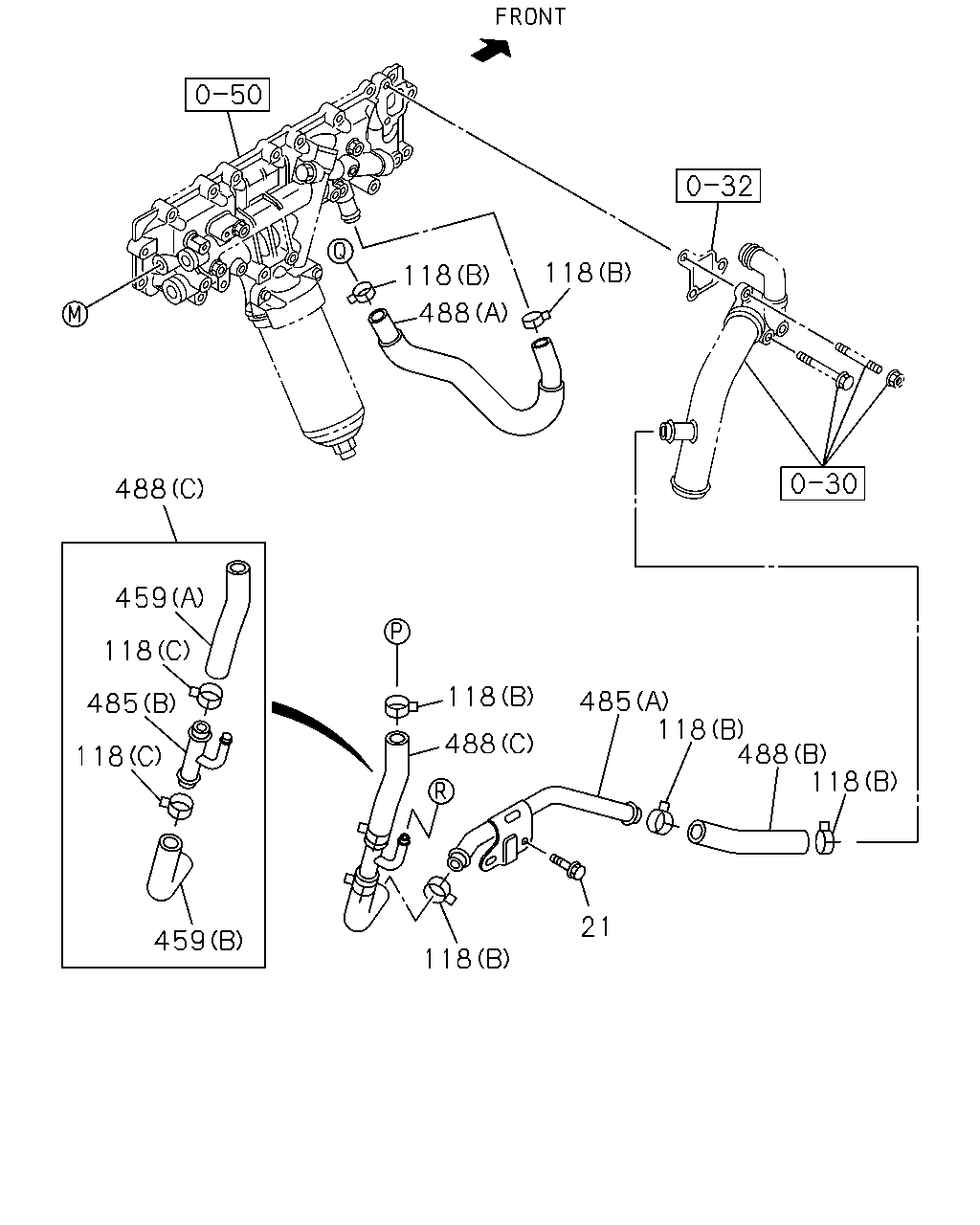

118 118 488 488 459 118 485 118 459 118 488 485 118 488 118 21 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	03.358 BOLT; PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1506-
118	03.342 CLIP; WATER HOSE 01.166 (C) ID=20.8	8-94125-862-1	02	1	1506-
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1506-
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1506-
459	03.341 HOSE; WATER (A)	8-98107-347-0	01	1	1506-
459	03.341 HOSE; WATER (B)	8-98108-321-0	01	1	1506-
485	01.097 PIPE; WATER EGR (A)	8-98082-424-1	01	1	1506-
485	01.097 PIPE; WATER EGR (B)	8-98107-346-0	01	1	1506-
488	03.163 HOSE; RUBBER (B) L=90 SERVICED BY L=3000	0-03666-300-0	01	1	1506-
488	03.163 HOSE; RUBBER (A)	8-98075-184-0	01	1	1506-
488	03.163 HOSE; RUBBER (C)	8-98082-221-0	01	1	1506-
