Isuzu WW
▶
TRUCKS
▶
NLS
▶
51605 - NLS RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

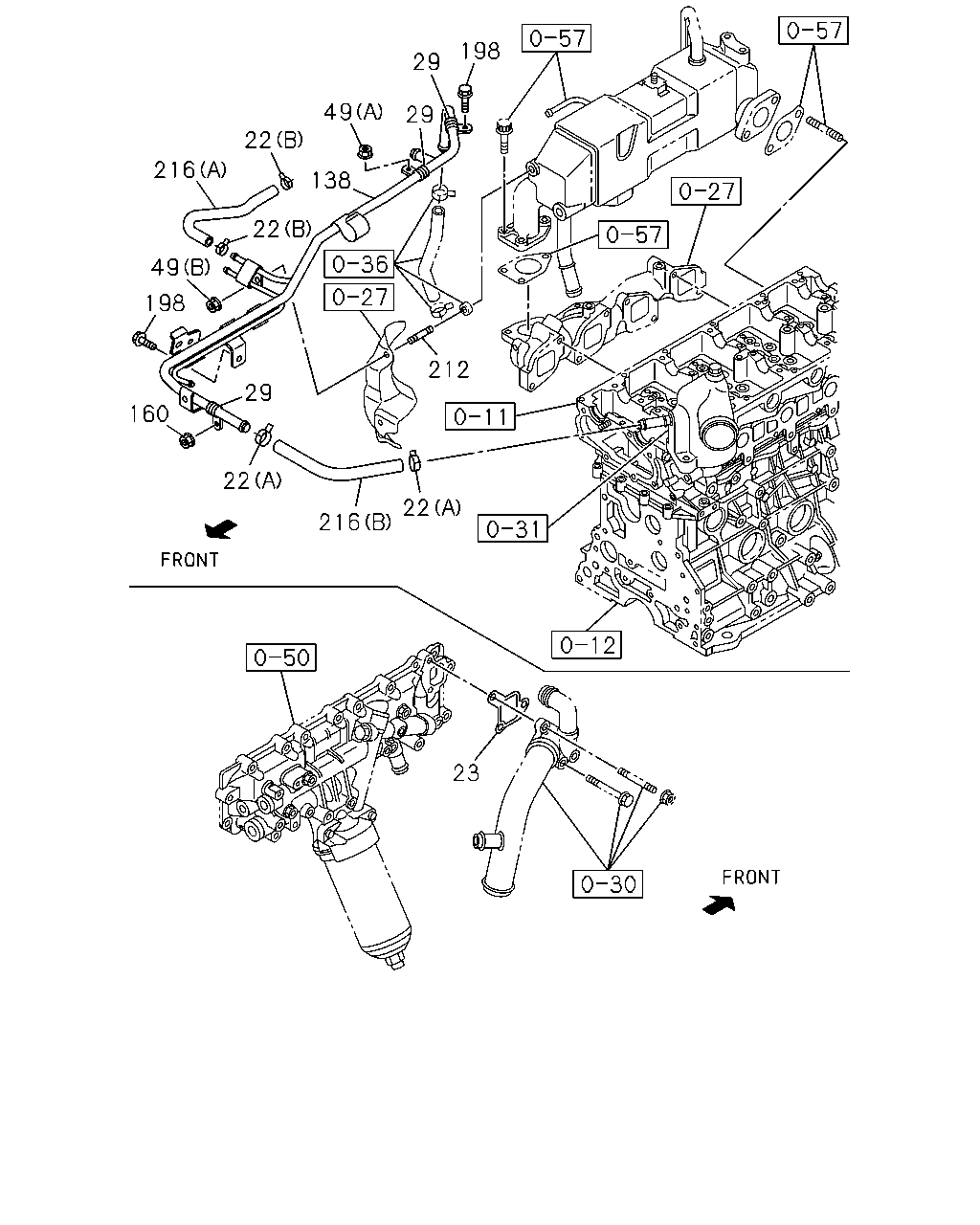

0-32 — WATER PIPING; ENGINE
(#162616) — 12 parça
198
29
29
49
22
138
22
216
49
198
29
160
22
216
22
212
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
01.153 CLIP; WATER HOSE
(A) ID=12.8
8-94367-943-0
02
1
1506-
22
01.153 CLIP; WATER HOSE
(B) ID=11
8-97375-639-0
02
1
1506-
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98075-127-0
01
1
1506-
29
01.166 CLIP; PIPE
01.251
8-98120-917-0
03
1
1506-
49
01.153 NUT; WATER PIPE
01.540 (A) M6 FLANGE
0-91180-206-0
01
1
1506-
49
01.153 NUT; WATER PIPE
03.613 (B) M8 FLANGE
8-97161-607-0
01
1
1506-
138
01.251 PIPE; WATER
8-98131-462-4
01
1
1506-
160
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
1506-
198
01.242 BOLT; PIPE
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1506-
212
01.153 STUD; PIPE
03.601 M8X25 L=36
8-97378-062-0
01
1
1506-
216
01.240 HOSE; WATER
(A)
8-98074-982-0
01
1
1506-
216
01.240 HOSE; WATER
03.342 (B)
8-98113-336-0
01
1
1506-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
