◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLS ▶ 51605 - NLS RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#162615) — 8 parça

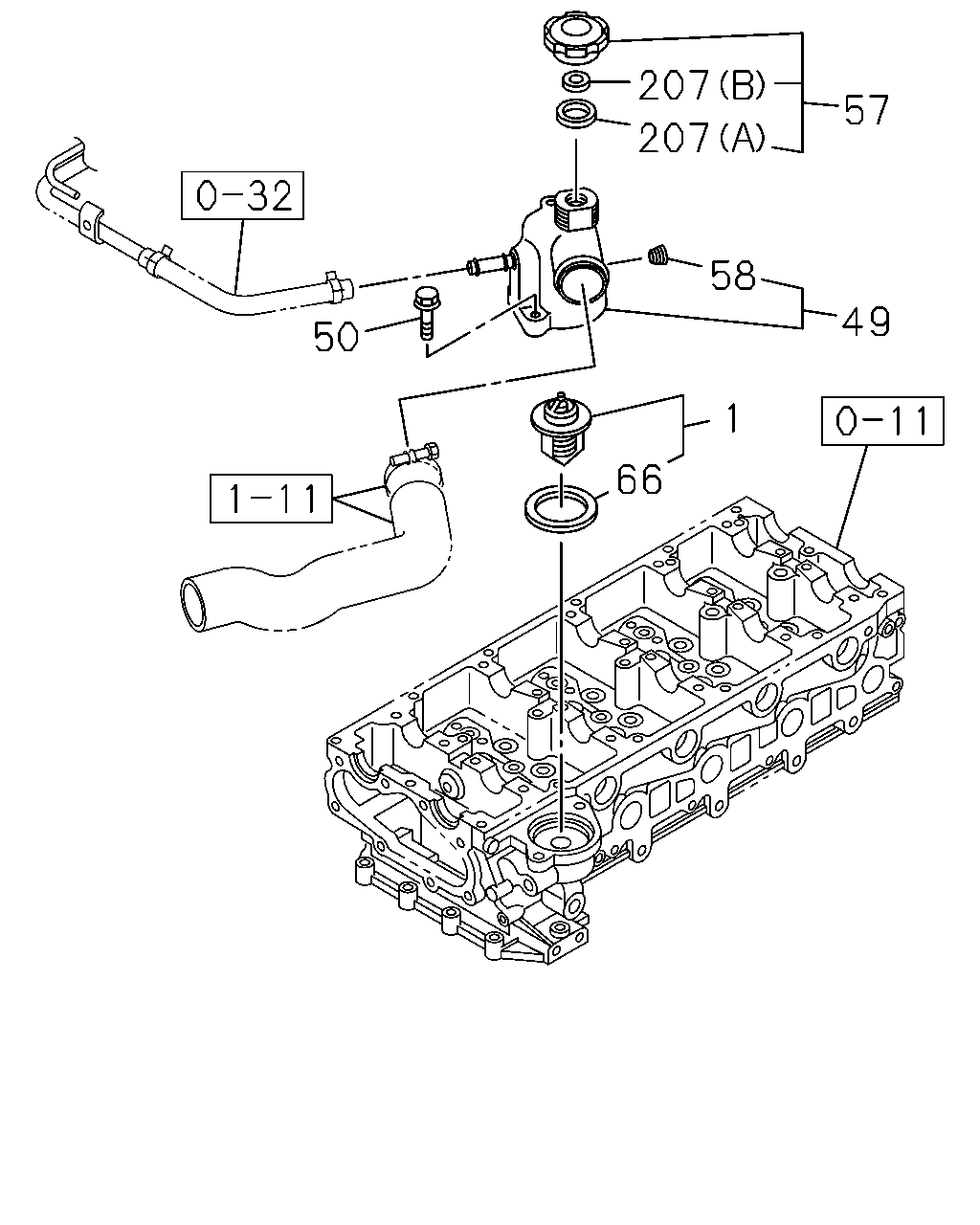

çizim 479140
207 207 57 49 58 1 66 50
BalonParca AdiParca NoAdetTipApplied Date
1 01.246 THERMOSTAT
82 CELSIUS 		8-98284-133-0 01 1 1506-
49 01.153 PIPE; WATER OUTLET 8-98131-421-0 01 1 1506-
50 01.252 BOLT; OUTLET PIPE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1506-
57 01.252 CAP 8-97146-740-1 01 1 1506-
58 00.073 PLUG; WATER OUTLET PIPE
01.837 PT1/8 		8-97369-552-1 02 1 1506-
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1506-
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97146-739-0 01 1 1506-
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97146-741-0 01 1 1506-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
