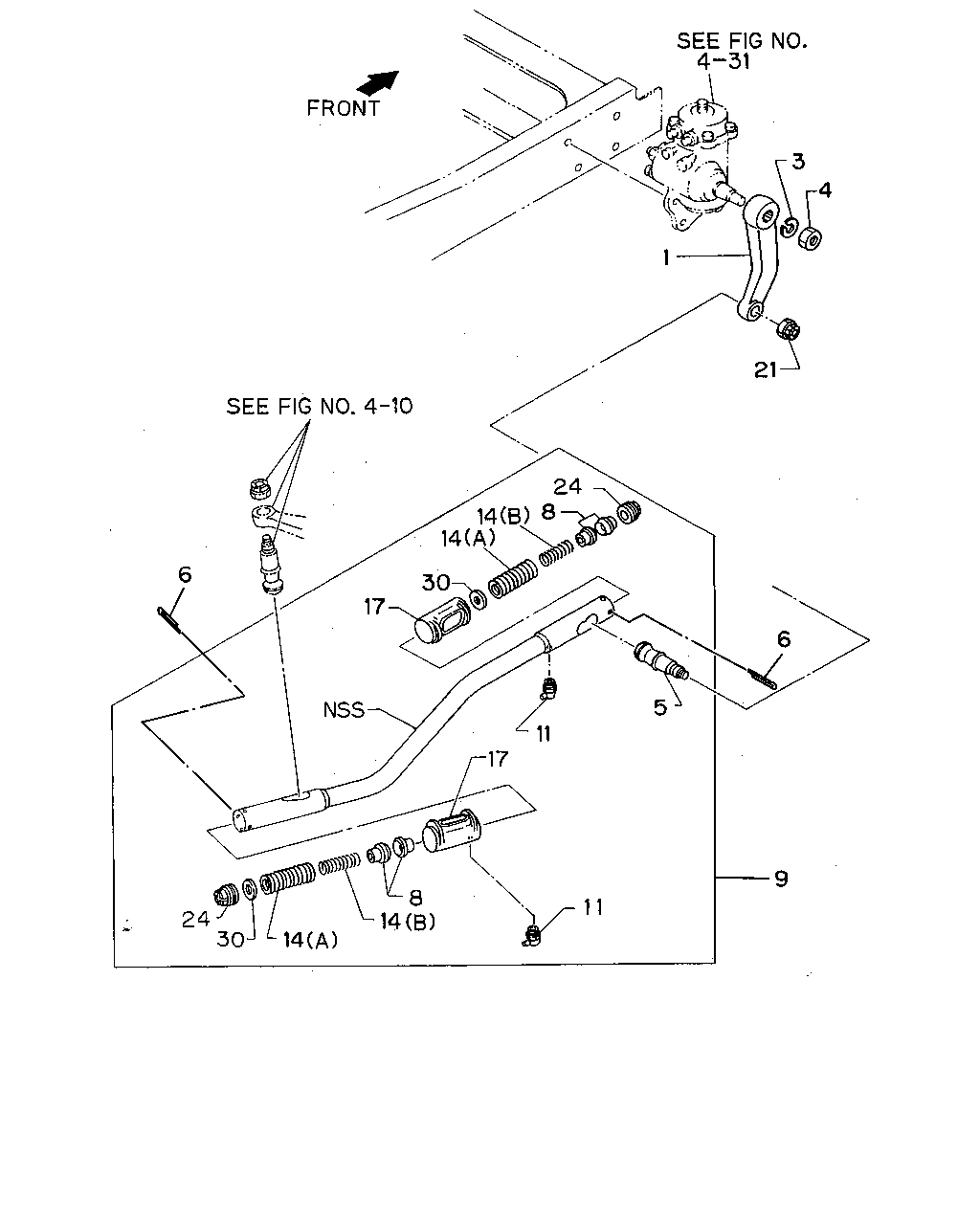

4-33 — STEERING LINKAGE (#1626) — 23 parça
çizim 94307
1 21 4 3 24 8 14 14 30 17 6 24 30 14 14 8 11 17 11 5 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 ARM; PITMAN,STRG 1-44341-354-1 01 1 9207- ● ●
1 ARM; PITMAN,STRG 1-44341-336-0 01 1 9207- ● ● ●
3 WASHER; LK,PITMAN ARM
ID=30.5 		1-09500-026-0 01 1 9207- ● ● ● ● ●
4 NUT; PITMAN ARM
M30 		1-09400-050-0 01 1 9207- ● ● ● ● ●
5 BALL; JOINT,DRAG LINK 1-44361-089-0 01 1 9207- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-060-0 01 1 9207- ● ● ●
6 PIN; SPLIT,ADJ SCREW 9-08114-055-0 02 1 9207- ● ●
6 PIN; SPLIT,ADJ SCREW 9-08115-065-0 02 1 9207- ● ● ●
8 SEAT; SPR,ROD END
OD=28 		1-44371-002-1 04 1 9207- ● ●
8 SEAT; SPR,ROD END
OD=36 		9-09881-340-0 04 1 9207- ● ● ●
9 LINK; DRAG 1-44350-822-0 01 1 9207- ● ●
9 LINK; DRAG 1-44350-743-0 01 1 9207- ● ● ●
11 NIPPLE; GREASE,DRAG LINK
PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9207- ● ● ● ● ●
14 SPRING; COIL,DRAG LINK
(A) 		1-09580-409-0 02 1 9207- ● ●
14 SPRING; COIL,DRAG LINK
(B) 		1-09580-410-0 02 1 9207- ● ●
14 SPRING; COIL,DRAG LINK
(A) 		9-09940-639-1 02 1 9207- ● ● ●
17 GUARD; MUD,DRAG LINK 1-44365-007-0 02 1 9207- ● ●
17 GUARD; MUD,DRAG LINK 1-44365-020-0 02 1 9207- ● ● ●
21 NUT; LK,JOINT BALL 1-09449-014-0 01 1 9207- ● ●
21 NUT; LK,JOINT BALL
M24 		9-09844-669-2 01 1 9207- ● ● ●
24 PLUG; ADJ,DRAG LINK 1-44375-021-1 02 1 9207- ● ●
24 PLUG; ADJ,DRAG LINK 9-44375-021-0 02 1 9207- ● ● ●
30 SPACER; DRAG LINK 1-44379-008-0 02 1 9207- ● ●
