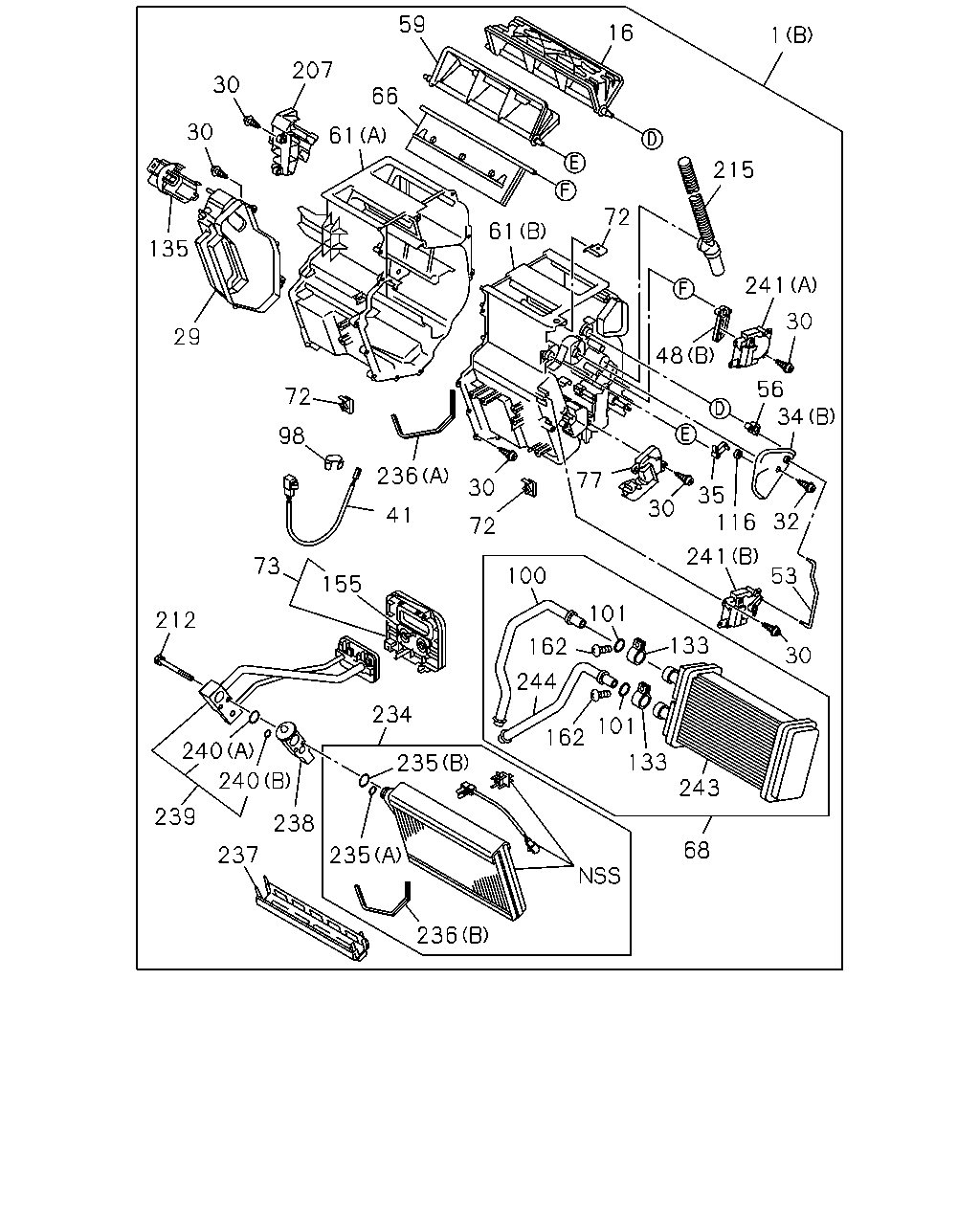

8-60 — HEATER UNIT; FRONT (#162594) — 97 parça

59 207 30 30 135 29 72 98 236 41 72 155 73 212 240 240 239 237 235 238 236 235 234 100 30 61 77 162 244 162 133 243 68 101 101 30 133 241 35 53 30 116 32 34 56 241 48 72 215 1 16 66 61 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1506-	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	1506-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1506-	●	●
29	08.857 COVER; HTR UNIT	8-98074-119-0	01	1	1506-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1506-	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	1506-	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1506-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-389-0	01	1	1506-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1506-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	1506-	●	●
41	08.852 THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	1506-	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-391-0	01	1	1506-	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1506-	●	●
53	08.866 ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	1506-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	1506-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1506-	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1506-	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-376-0	01	1	1506-	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	1506-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1506-	●	●
68	08.854 CORE; HTR UNIT	8-98047-380-0	01	1	1506-	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1506-	●	●
73	08.845 PLATE; HTR UNIT	8-98074-118-0	01	1	1506-	●	●
77	08.857 COVER; HTR CASE	8-98047-414-0	01	1	1506-	●	●
98	08.854 CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	1506-	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-528-0	01	1	1506-	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1506-	●	●
116	08.854 BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	1506-	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1506-	●	●
135	08.854 COVER; HTR	8-98047-384-0	01	1	1506-	●	●
155	09.260 GROMMET; HTR UNIT	8-98047-431-0	01	1	1506-	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1506-	●	●
207	08.845 CLAMP; HTR UNIT	8-98047-379-0	01	1	1506-	●	●
212	09.262 BOLT; HTR UNIT M5X61	8-98047-415-0	02	1	1506-	●	●
215	08.854 DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	1506-	●	●
234	08.854 EVAPORATOR ASM; HEATER	8-98074-116-1	01	1	1506-	●	●
235	08.845 GASKET; EVAPORATOR 09.260 (A) ID=11.7	8-97095-907-0	01	1	1506-	●	●
235	08.845 GASKET; EVAPORATOR 09.225 (B) ID=14.5	8-97095-908-0	01	1	1506-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98047-382-0	01	1	1506-	●	●
238	08.845 VALVE; EXPANSION	8-98047-383-0	01	1	1506-	●	●
239	08.846 TUBE ASM; HEATER	8-98074-115-0	01	1	1506-	●	●
240	08.845 GASKET; HEATER 09.225 (B) ID=7.4	8-97095-906-0	01	1	1506-	●	●
240	08.845 GASKET; HEATER 09.225 (A) ID=14.5	8-97095-908-0	01	1	1506-	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	1506-	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	1506-	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1506-	●	●
244	08.854 PIPE; INLET	8-98048-510-0	01	1	1506-	●	●

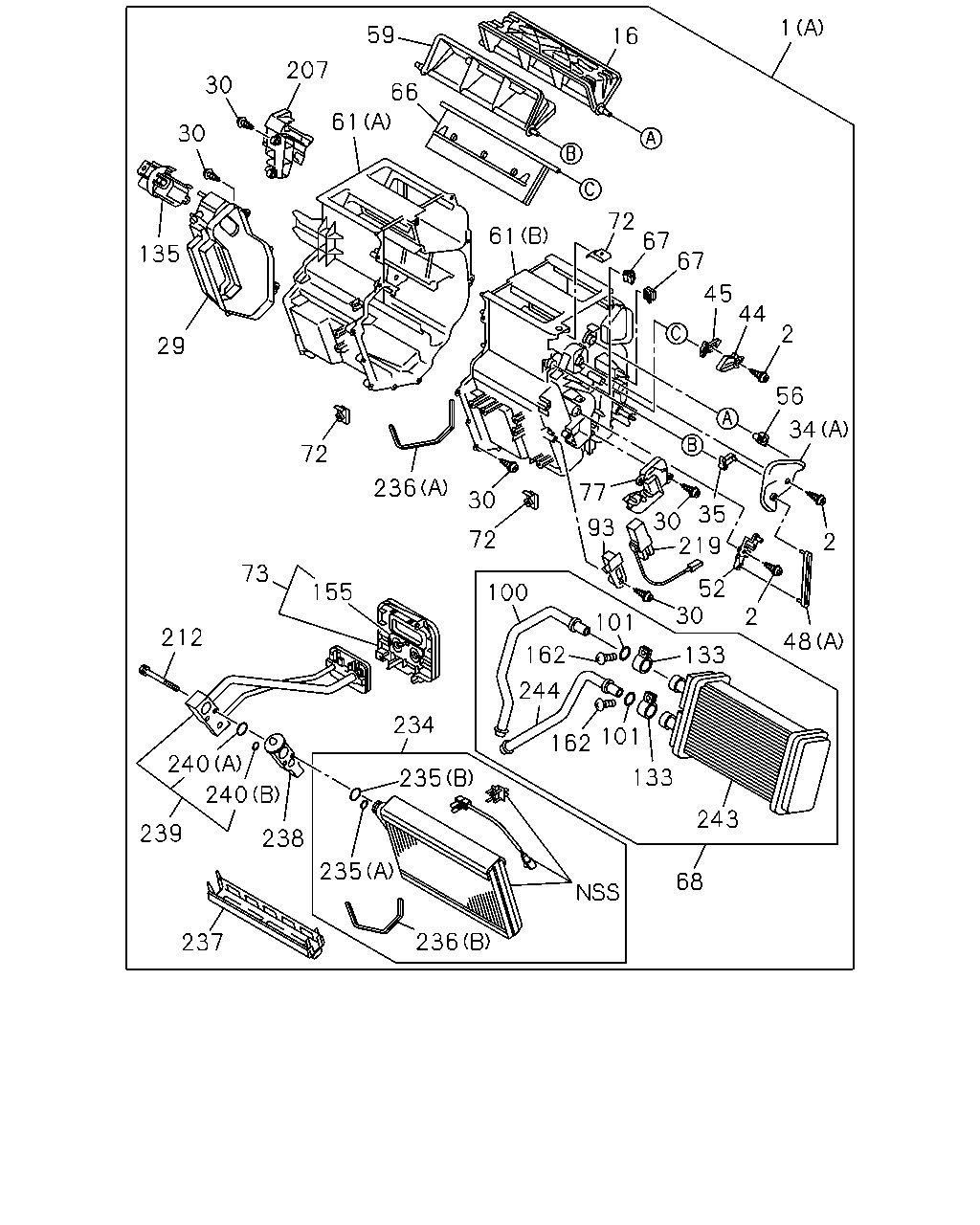

59 16 1 66 61 207 30 30 135 29 72 73 236 155 212 240 240 239 238 237 235 236 235 234 68 133 243 162 244 100 162 30 72 61 72 67 67 45 56 44 34 2 2 35 30 219 77 52 93 2 48 30 101 133 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1506-	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	1506-	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1506-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1506-	●	●
29	08.857 COVER; HTR UNIT	8-98074-119-0	01	1	1506-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1506-	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	1506-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-389-0	01	1	1506-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1506-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	1506-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1506-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1506-	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-391-0	01	1	1506-	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1506-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1506-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	1506-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1506-	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1506-	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-376-0	01	1	1506-	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	1506-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1506-	●	●
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1506-	●	●
68	08.854 CORE; HTR UNIT	8-98047-380-0	01	1	1506-	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1506-	●	●
73	08.845 PLATE; HTR UNIT	8-98074-118-0	01	1	1506-	●	●
77	08.857 COVER; HTR CASE	8-98047-414-0	01	1	1506-	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1506-	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-528-0	01	1	1506-	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1506-	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1506-	●	●
135	08.854 COVER; HTR	8-98047-384-0	01	1	1506-	●	●
155	09.260 GROMMET; HTR UNIT	8-98047-431-0	01	1	1506-	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1506-	●	●
207	08.845 CLAMP; HTR UNIT	8-98047-379-0	01	1	1506-	●	●
212	09.262 BOLT; HTR UNIT M5X61	8-98047-415-0	02	1	1506-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1506-	●	●
234	08.854 EVAPORATOR ASM; HEATER	8-98074-116-1	01	1	1506-	●	●
235	08.845 GASKET; EVAPORATOR 09.260 (A) ID=11.7	8-97095-907-0	01	1	1506-	●	●
235	08.845 GASKET; EVAPORATOR 09.225 (B) ID=14.5	8-97095-908-0	01	1	1506-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-	●	●
237	08.855 INSULATOR; EVAPORATOR	8-98047-382-0	01	1	1506-	●	●
238	08.845 VALVE; EXPANSION	8-98047-383-0	01	1	1506-	●	●
239	08.846 TUBE ASM; HEATER	8-98074-115-0	01	1	1506-	●	●
240	08.845 GASKET; HEATER 09.225 (B) ID=7.4	8-97095-906-0	01	1	1506-	●	●
240	08.845 GASKET; HEATER 09.225 (A) ID=14.5	8-97095-908-0	01	1	1506-	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1506-	●	●
244	08.854 PIPE; INLET	8-98048-510-0	01	1	1506-	●	●
