◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#162593) — 34 parça

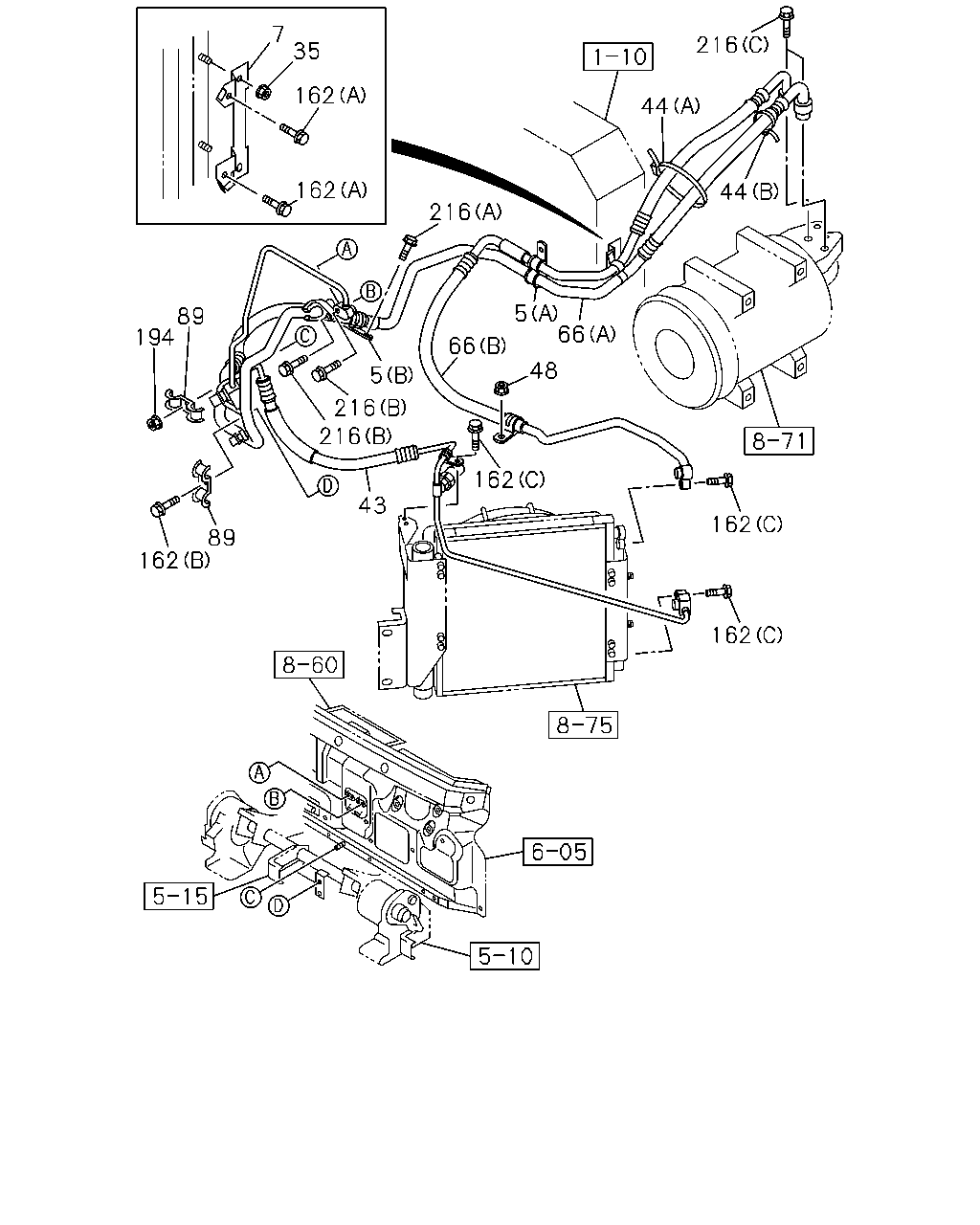

çizim 480889
7 162 162 35 44 194 89 162 43 216 162 162 48 66 5 216 216 216 44 162 89 5 66
BalonParca AdiParca NoAdetTipApplied Date A B
5 09.242 CLIP; FLEX HOSE,A/C
(B) 		8-98038-798-0 01 1 1506- ● ●
5 09.242 CLIP; FLEX HOSE,A/C
(A) 		8-98052-857-0 01 1 1506- ● ●
7 09.242 BRACKET; FLEX HOSE,A/C 8-97388-130-1 01 1 1506- ● ●
35 09.242 NUT; FLEX HOSE,A/C
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR 8-98177-563-0 01 1 1506- ● ●
44 09.242 CLIP; FLEX HOSE
02.559 (A) L=250 		5-09707-030-1 01 1 1506- ● ●
44 09.242 CLIP; FLEX HOSE
03.162 (B) L=140 		5-09707-031-1 01 1 1506- ● ●
48 09.242 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 1506- ● ●
66 09.225 HOSE; FLEX,A/C
(A) LOW PRESSURE 		8-98248-636-0 01 1 1506- ● ●
66 09.225 HOSE; FLEX,A/C
(B) HIGH PRESSURE 		8-98248-640-0 01 1 1506- ● ●
89 09.242 BRACKET; A/C PIPE 8-98151-264-0 02 1 1506- ● ●
162 09.173 BOLT; FLEX HOSE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 03 1 1506- ● ●
162 09.173 BOLT; FLEX HOSE
03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 1506- ● ●
162 09.173 BOLT; FLEX HOSE
00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1506- ● ●
162 09.173 BOLT; FLEX HOSE
00.685 (C) M6X25 FLANGE 		0-28650-625-0 02 1 1506- ● ●
194 09.242 NUT; HOSE
01.062 M6 FLANGE 		0-91180-106-0 01 1 1506- ● ●
216 09.173 BOLT; HOSE FIX
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1506- ● ●
216 09.173 BOLT; HOSE FIX
03.680 (B) M6X30 FLANGE 		0-28650-630-0 02 1 1506- ● ●
216 09.173 BOLT; HOSE FIX
06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
çizim 480911
43 147 148 50 202 50 67 67 49 67 49 49 66 66 148 147 67
BalonParca AdiParca NoAdetTipApplied Date A B
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR 8-98177-563-0 01 1 1506- ● ●
49 09.242 CLAMP; FLEX HOSE
(A) 		1-83574-249-0 01 1 1506- ● ●
49 09.242 CLAMP; FLEX HOSE
(C) 		8-98257-461-0 01 1 1506- ● ●
49 09.242 CLAMP; FLEX HOSE
(B) 		8-98257-462-0 01 1 1506- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
ID=7.5 		1-83539-316-0 02 1 1506- ● ●
66 09.225 HOSE; FLEX,A/C
(A) LOW PRESSURE 		8-98248-636-0 01 1 1506- ● ●
66 09.225 HOSE; FLEX,A/C
(B) HIGH PRESSURE 		8-98248-640-0 01 1 1506- ● ●
67 09.260 GASKET; FLEX HOSE
(A) ID=11.7 		8-97095-907-0 02 1 1506- ● ●
67 09.260 GASKET; FLEX HOSE
09.225 (B) ID=14.5 		8-97095-908-0 01 1 1506- ● ●
67 09.260 GASKET; FLEX HOSE
(C) ID=17.6 		8-98036-895-0 01 1 1506- ● ●
147 09.242 CAP; FLEX HOSE
(B) CAP MARK L 		1-83539-331-0 01 1 1506- ● ●
147 09.242 CAP; FLEX HOSE
(A) CAP MARK H 		8-97095-911-0 01 1 1506- ● ●
148 09.262 VALVE; FLEX HOSE
(B) 		8-97095-909-0 01 1 1506- ● ●
148 09.262 VALVE; FLEX HOSE
(A) 		8-98031-629-0 01 1 1506- ● ●
202 09.275 SWITCH; PRESSURE 1-83564-392-1 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
