◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#162592) — 14 parça

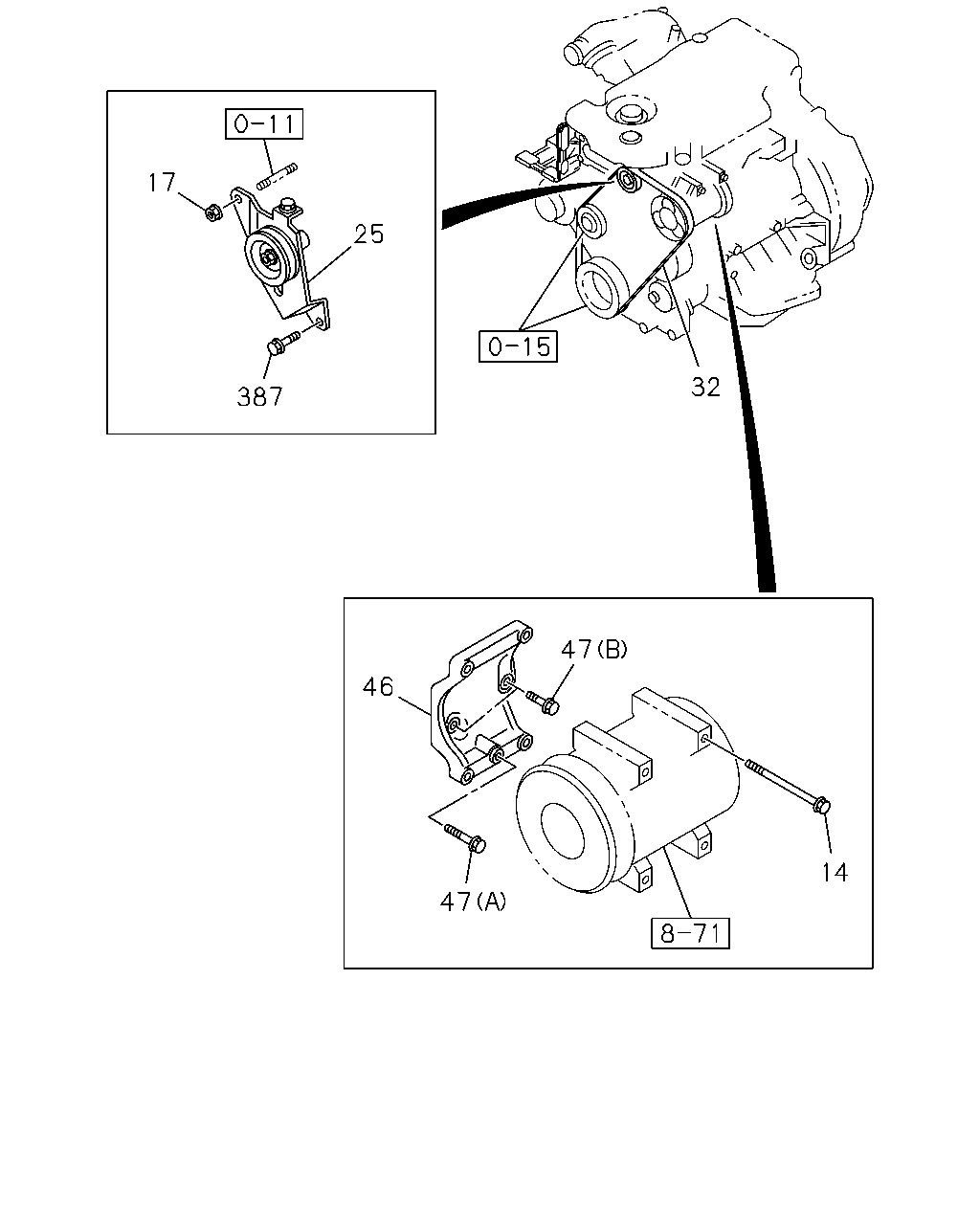

çizim 480865
17 387 25 32 47 46 47 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 09.171 BOLT; CMPR
00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1506- ● ●
17 09.171 NUT; CMPR
01.540 M8 FLANGE 		0-91180-208-0 01 1 1506- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
1-GROOVE 		8-98114-437-0 01 1 1506- ● ●
32 01.066 BELT; A/C CMPR
L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1506- ● ●
32 01.066 BELT; A/C CMPR
BEST VALUE PARTS 		5-87610-103-0 01 1 1506- ● ●
46 09.171 BRACKET; CMPR
09.242 		8-98037-322-0 01 1 1506- ● ●
47 09.173 BOLT; BRKT TO BODY
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1506- ● ●
47 09.173 BOLT; BRKT TO BODY
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
387 09.190 BOLT; TENSIONER FIX
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1506- ● ●

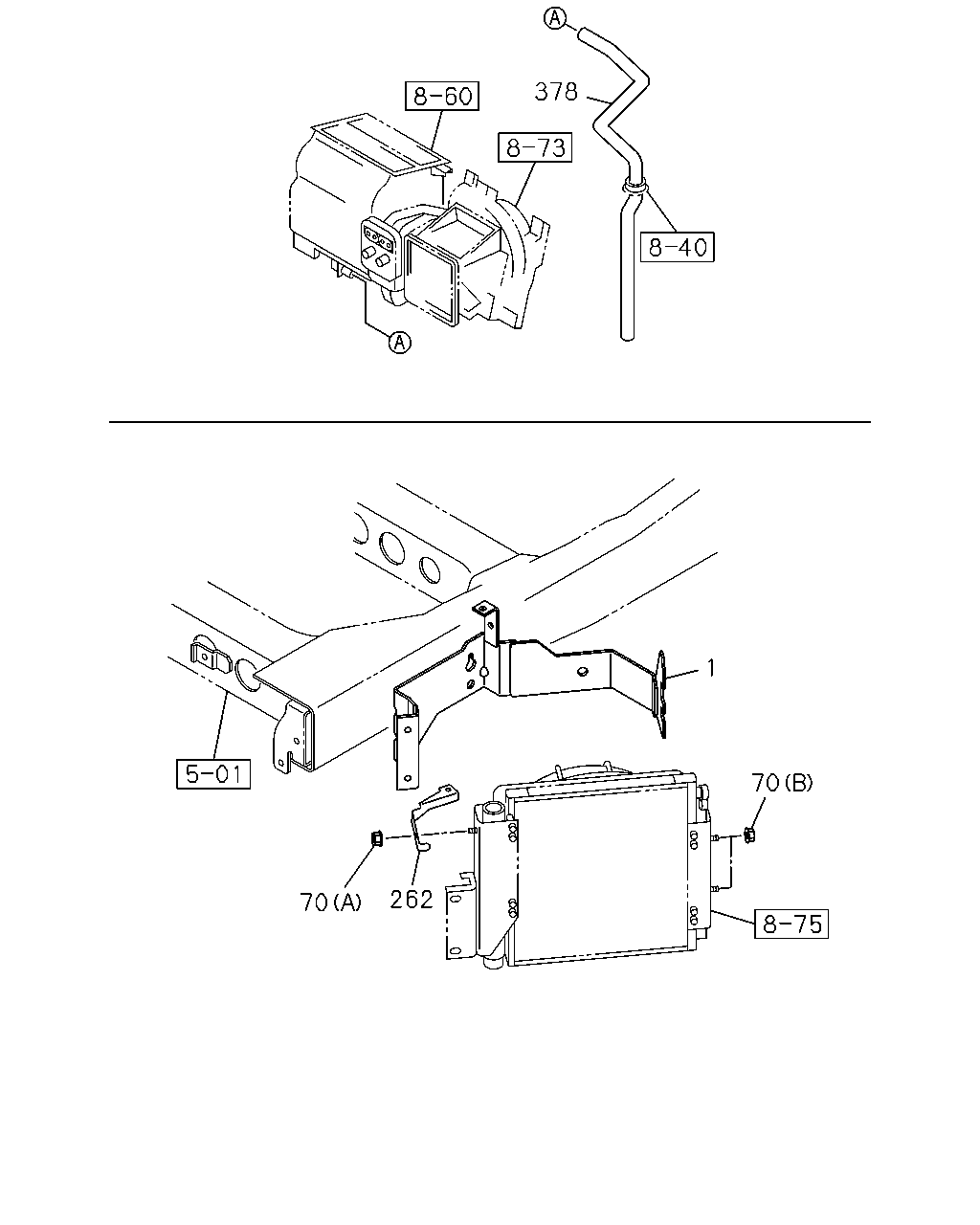

çizim 480874
378 70 262 70 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.242 BRACKET; A/C 8-98146-843-0 01 1 1506- ● ●
70 09.190 NUT; EVAP,A/C
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1506- ● ●
70 09.190 NUT; EVAP,A/C
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1506- ● ●
262 09.190 BRACKET; CONDENSER 8-98174-735-0 01 1 1506- ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR 8-98001-241-2 01 1 1506- ● ●
