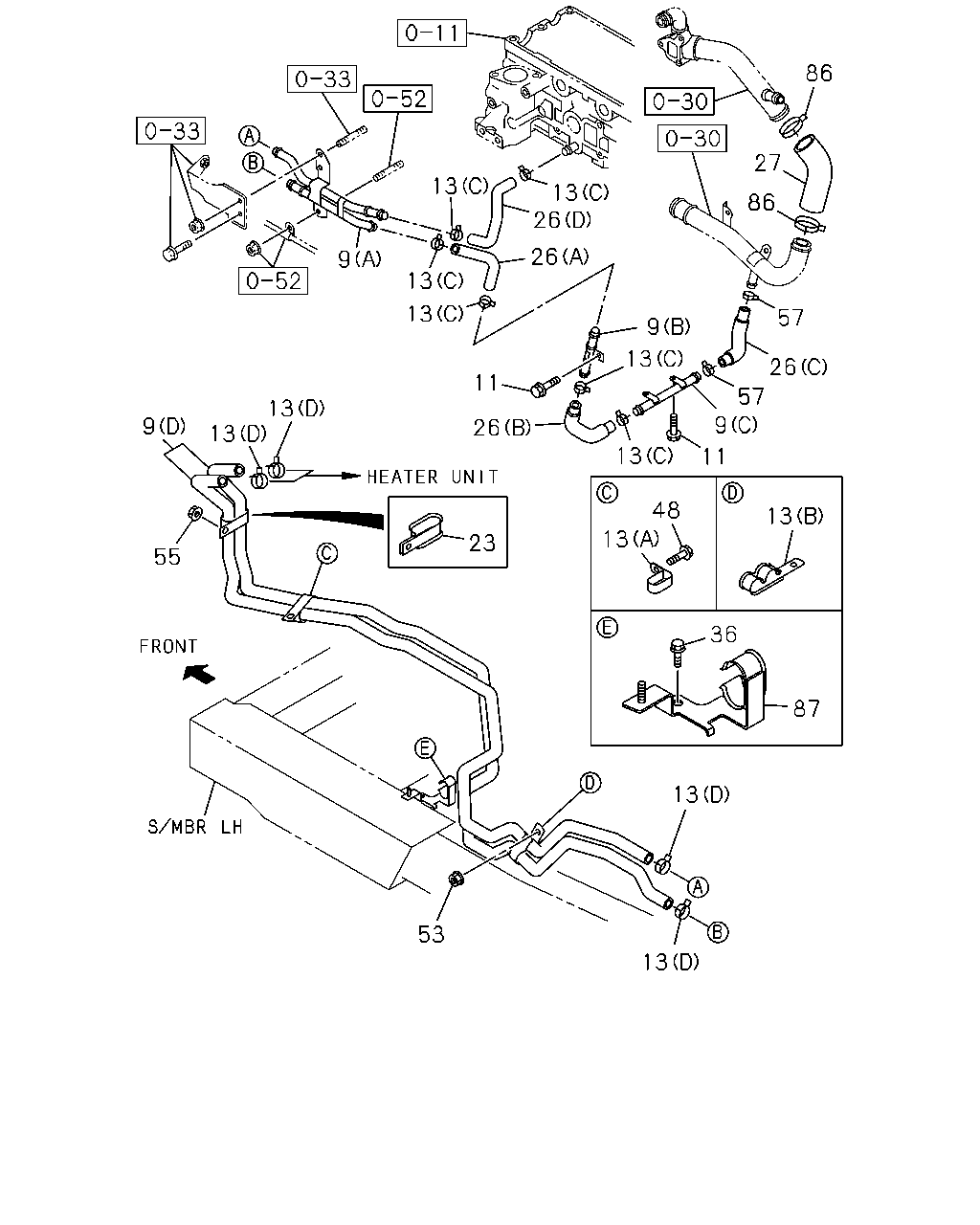

8-45 — HEATER PIPING (#162591) — 41 parça

9 26 13 13 103 13 103 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR (D)	8-98180-418-2	01	1	1506-	●	●
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	1506-	●	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1506-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1506-	●	●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1506-	●	●
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1506-	●	●
26	08.846 HOSE; HTR (E)	8-98085-567-2	01	1	1506-	●	●
26	08.846 HOSE; HTR (F)	8-98085-568-2	01	1	1506-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1506-	●	●
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	1506-	●	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1506-	●	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1506-	●	●
103	08.866 CONNECTOR; HOSE	9-09703-048-0	02	1	1506-	●	●

9 13 13 13 13 26 26 86 27 86 9 13 13 57 26 57 9 11 26 11 13 13 9 55 23 53 48 13 36 13 87 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	08.846 PIPE; HTR (D)	8-98180-418-2	01	1	1506-	●	●
9	08.846 PIPE; HTR (B)	8-97381-481-3	01	1	1506-	●	●
9	08.846 PIPE; HTR (C)	8-97383-035-1	01	1	1506-	●	●
9	08.846 PIPE; HTR (A)	8-98028-829-1	01	1	1506-	●	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 03.278 (D) ID=22	8-97359-141-0	04	1	1506-	●	●
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	1506-	●	●
13	08.846 CLIP; HTR HOSE (B)	8-98040-023-0	01	1	1506-	●	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	06	1	1506-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR B=18	8-98166-023-0	01	1	1506-	●	●
26	08.846 HOSE; HTR (E)	8-98085-567-2	01	1	1506-	●	●
26	08.846 HOSE; HTR (F)	8-98085-568-2	01	1	1506-	●	●
26	08.846 HOSE; HTR (D)	8-97383-048-1	01	1	1506-	●	●
26	08.846 HOSE; HTR (B)	8-98000-099-1	01	1	1506-	●	●
26	08.846 HOSE; HTR (C)	8-98000-101-2	01	1	1506-	●	●
26	08.846 HOSE; HTR (A)	8-98143-868-0	01	1	1506-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-98106-016-0	01	1	1506-	●	●
36	08.846 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1506-	●	●
53	08.845 NUT; HOSE CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1506-	●	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1506-	●	●
87	08.846 BRACKET; HTR HOSE CLIP	8-98129-978-1	01	1	1506-	●	●
