◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#162589) — 27 parça

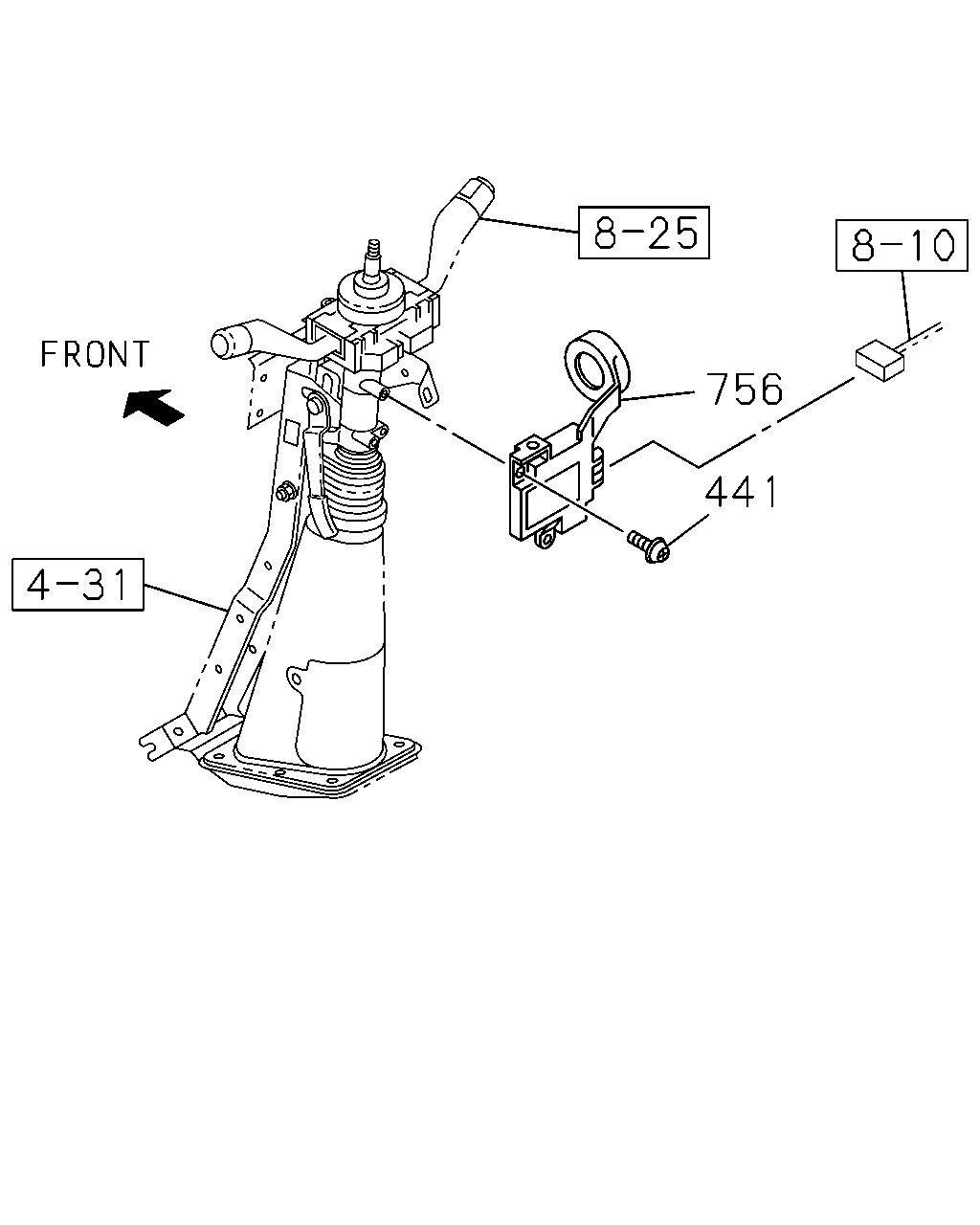

çizim 479671
441 756
BalonParca AdiParca NoAdetTipApplied Date A B
441 02.575 SCREW; CONT UNIT
09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1506- ● ●
756 16.263 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1506- ● ●

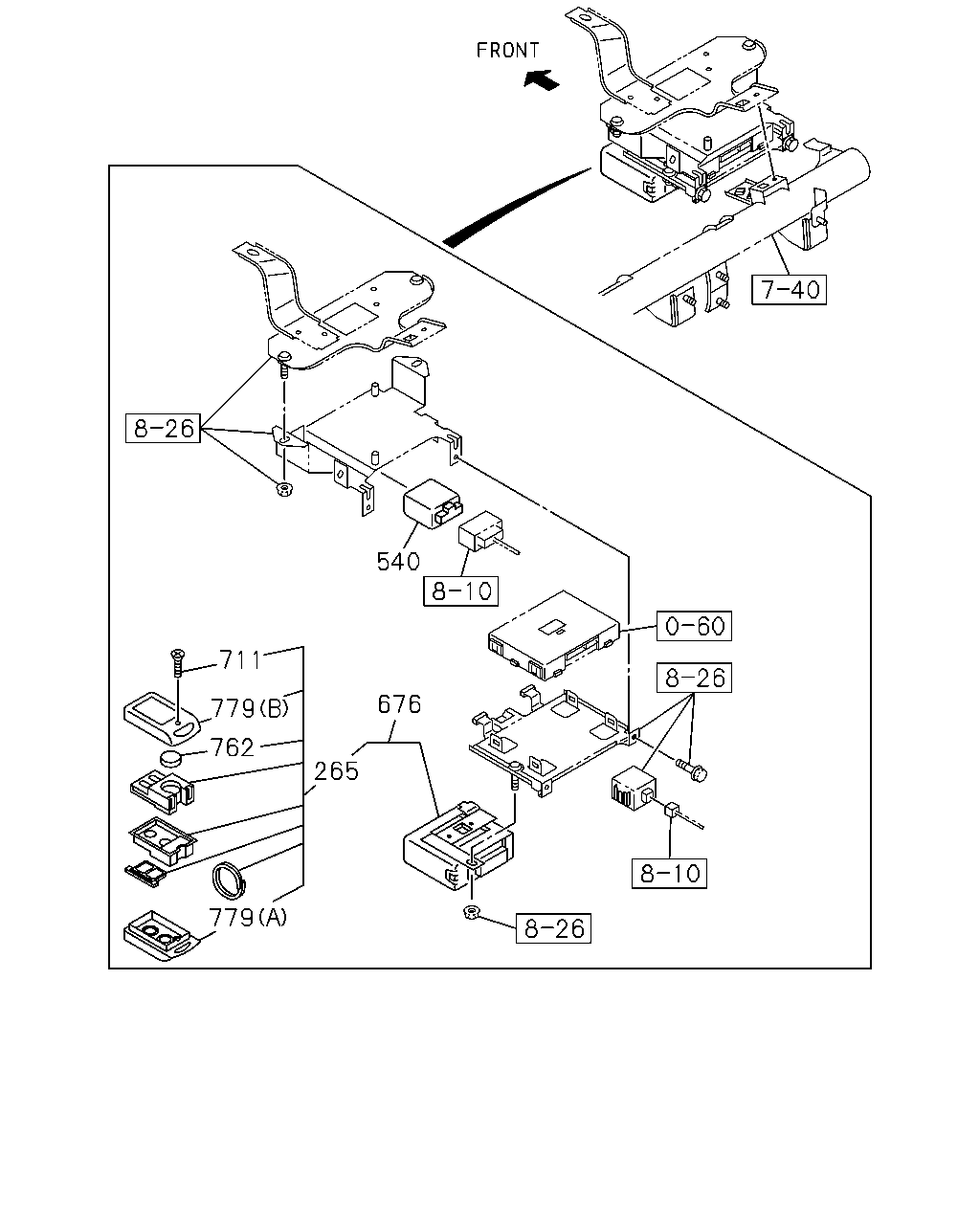

çizim 480662
540 711 779 762 265 676 779
BalonParca AdiParca NoAdetTipApplied Date A B
265 02.440 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1506- ● ●
540 16.067 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1506- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
NEW ZEALAND COUNTRY(CX6) 		8-98218-233-0 01 1 1506- ● ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98216-693-2 01 1 1506- ● ●
711 02.510 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1506- ● ●
762 02.559 BATTERY 8-98078-061-0 02 1 1506- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (A) 		8-98218-240-0 02 1 1506- ● ●
779 04.115 COVER; TRANSMITTER
02.510 (B) 		8-98218-243-0 02 1 1506- ● ●

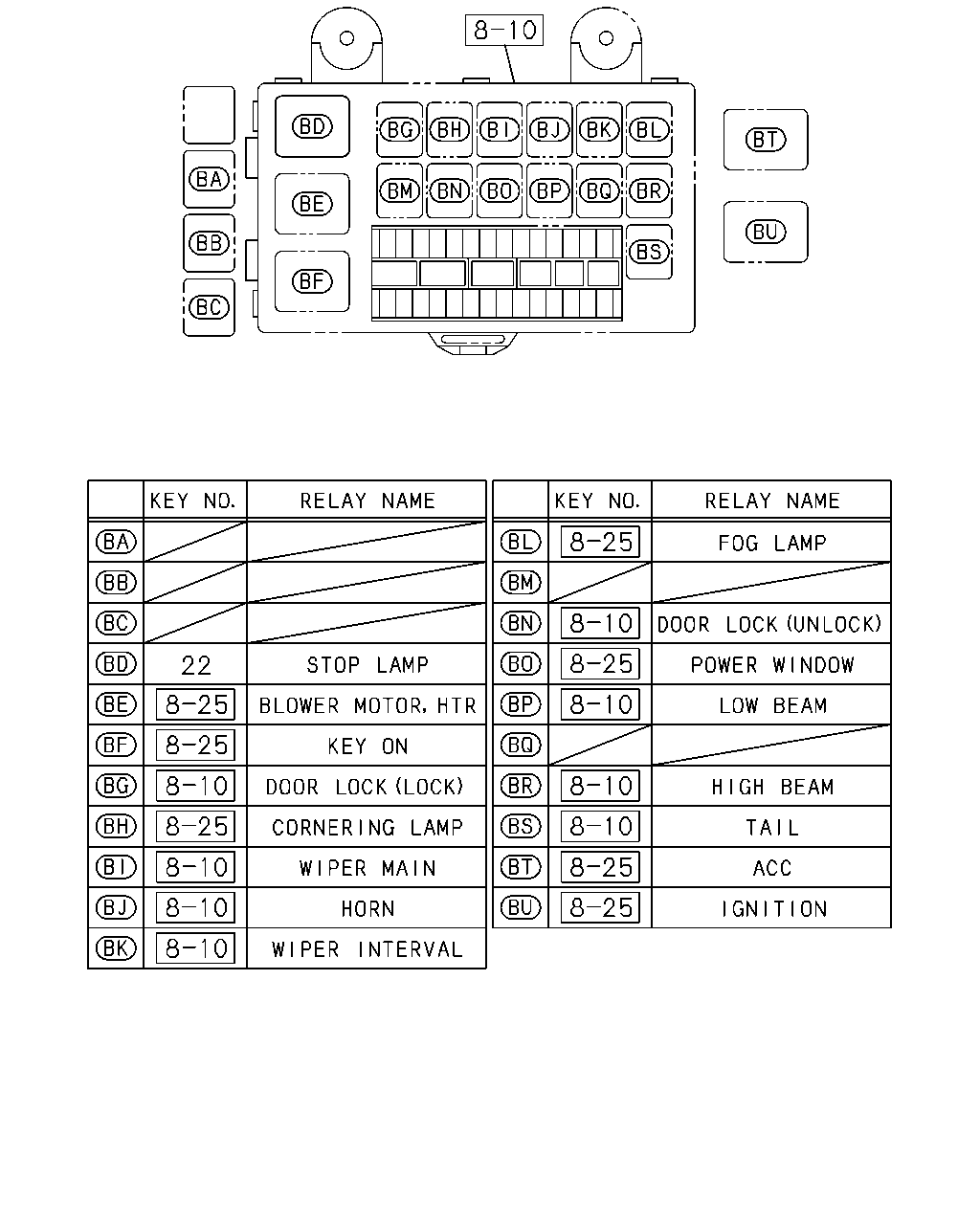

çizim 480863
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ●

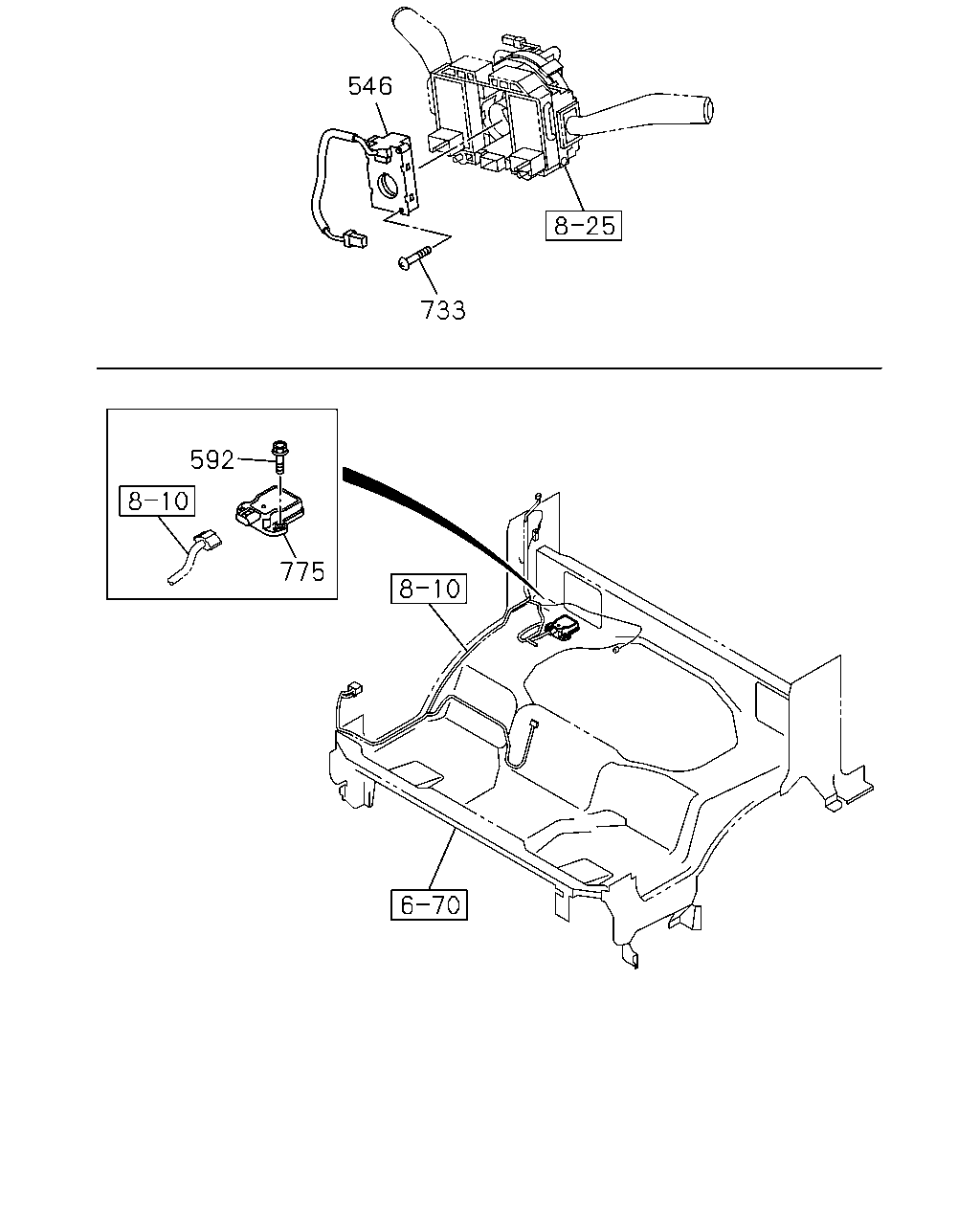

çizim 480899
546 733 592 775
BalonParca AdiParca NoAdetTipApplied Date A B
546 01.150 SENSOR; STEERING POSITION
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98187-727-1 01 1 1506- ● ●
592 02.490 BOLT; SENSOR
EXC. NEW ZEALAND COUNTRY(CX6) 06.870 M6X18 W/PL WASHER 		8-97105-796-1 02 1 1506- ● ●
733 00.010 SCREW; SENSOR
EXC. NEW ZEALAND COUNTRY(CX6) M3X25 TAPPING 		0-71240-325-0 03 1 1506- ● ●
775 01.150 SENSOR ASM; YAW RATE
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98206-892-0 01 1 1506- ● ●

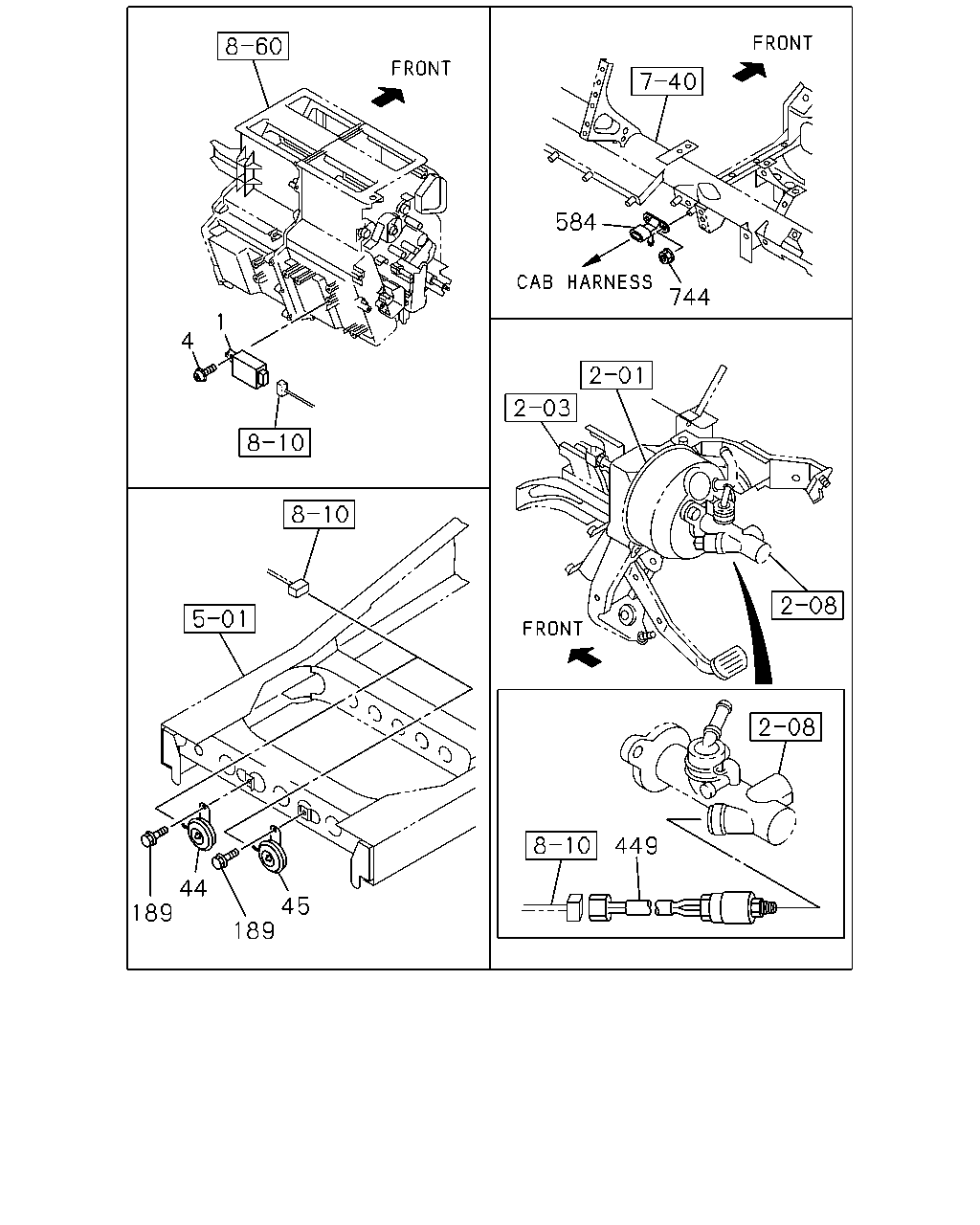

çizim 480942
44 45 189 189 584 744 449 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98025-533-1 01 1 1506- ● ●
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506- ● ●
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 1506- ● ●
45 02.810 HORN; LOW NOTE 8-98022-023-0 01 1 1506- ● ●
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1506- ● ●
189 02.812 BOLT; HORN
EXC. DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1506- ● ●
449 08.083 SWITCH; OIL PRESS,CLUTCH
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98072-042-1 01 1 1506- ●
449 08.083 SWITCH; OIL PRESS,CLUTCH
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98072-042-1 01 1 1506- ●
584 02.440 SENSOR; PRESSURE
03.331 		8-98020-514-0 01 1 1506- ● ●
744 09.277 NUT; SENSOR
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506- ● ●
çizim 480970
666 531
BalonParca AdiParca NoAdetTipApplied Date A B
531 02.769 RELAY; MAIN
02.485 24V 30A MITSUBA 		8-98259-779-0 01 1 1506- ● ●
666 02.173 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1506- ● ●
