◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#162586) — 60 parça
çizim 480180
30 29
BalonParca AdiParca NoAdetTipApplied Date A B
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1506- ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 1506- ● ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 02 1 1506- ● ●

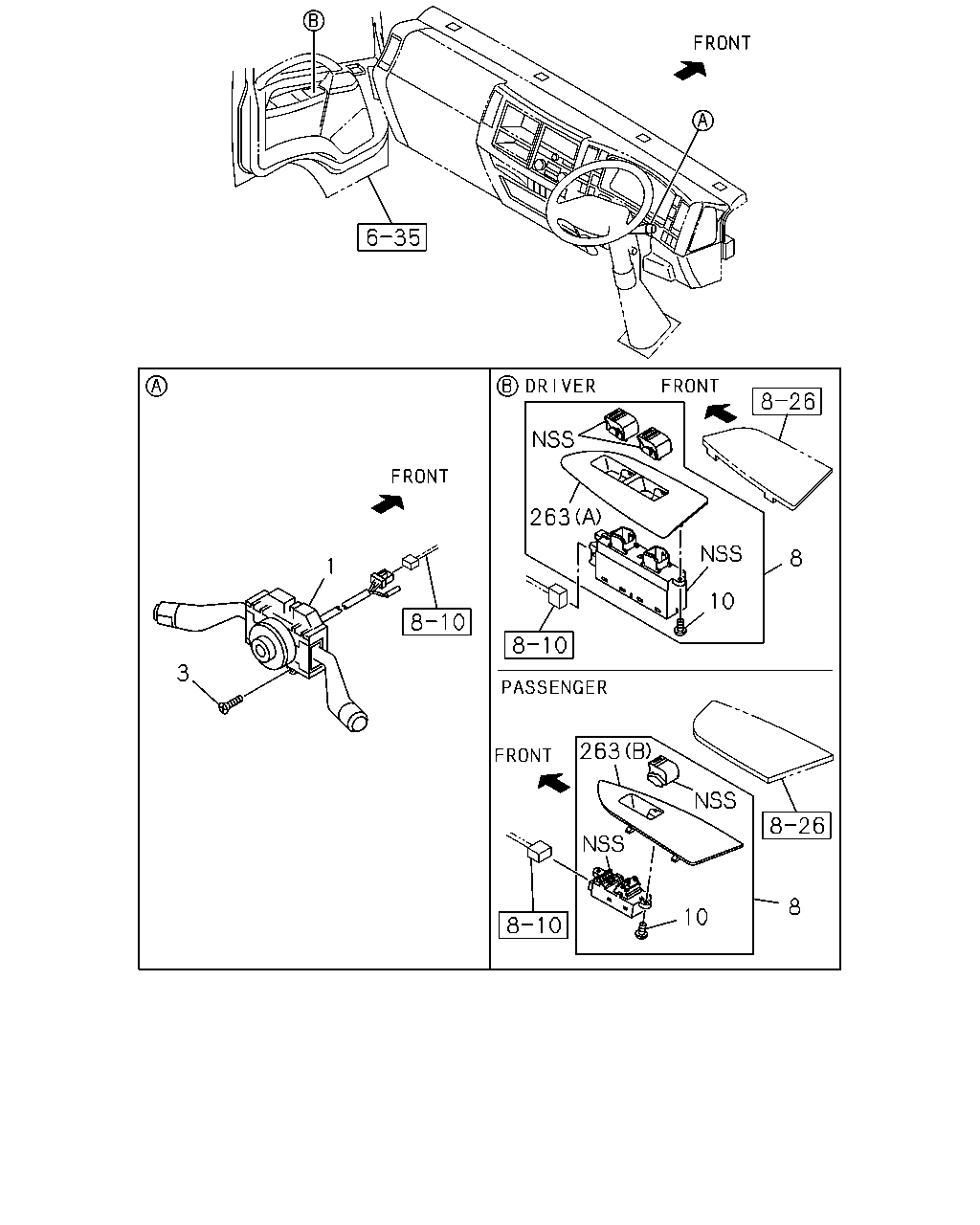

çizim 480422
3 1 263 10 8 10 8 263
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-725-0 01 1 1506- ● ●
3 02.897 SCREW; COMB SW
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1506- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98227-828-0 01 1 1506-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98298-754-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98227-829-0 01 1 1506-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98316-423-0 01 1 1510- ● ●
10 03.885 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 1506- ● ●
263 16.081 COVER; SW
(A) 		8-98153-836-0 01 1 1506- ● ●
263 16.081 COVER; SW
(B) 		8-98153-841-0 01 1 1506- ● ●

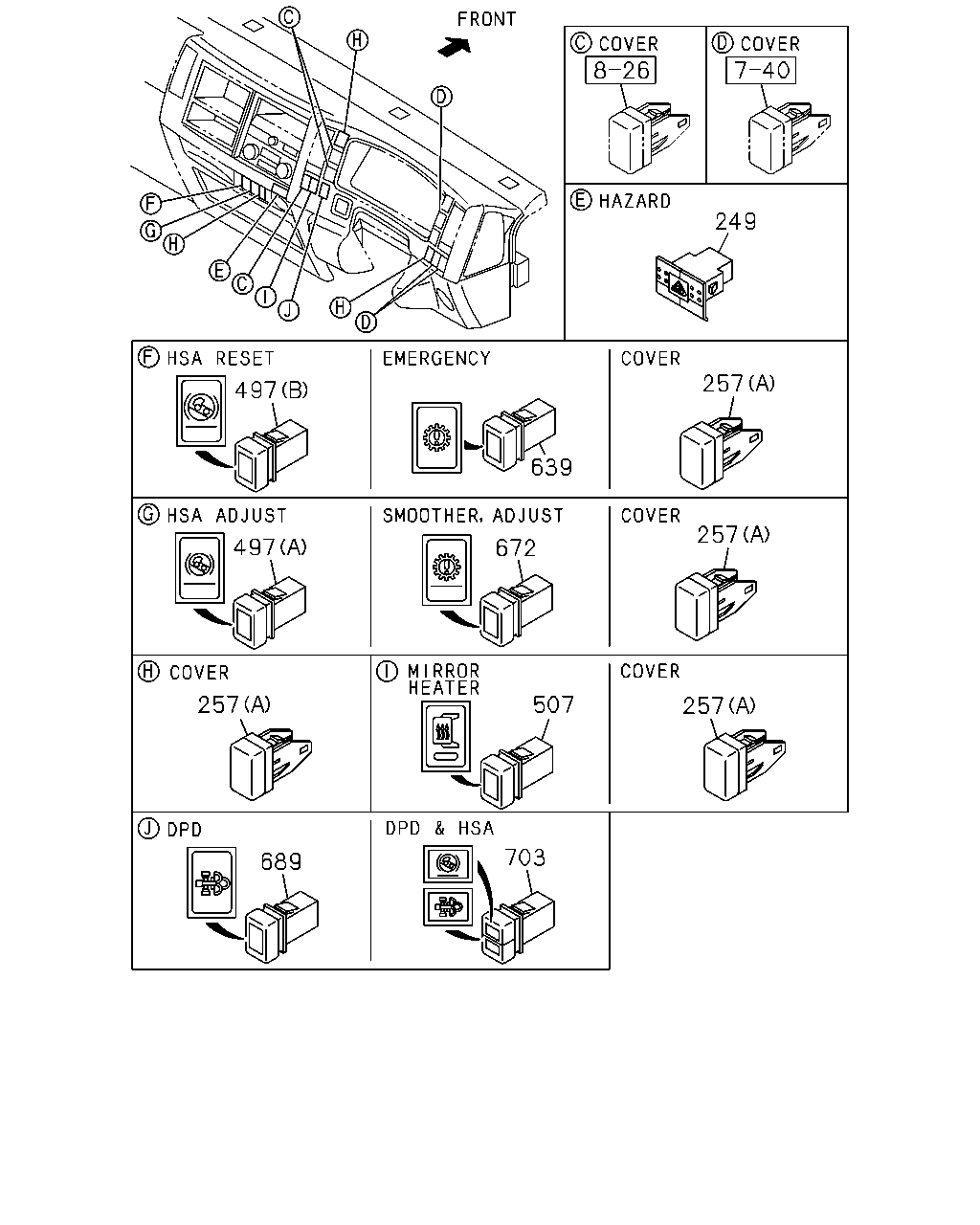

çizim 480482
249 497 639 257 497 672 257 257 507 257 689 703
BalonParca AdiParca NoAdetTipApplied Date A B
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ●
257 16.081 COVER; HOLE,SW
EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1506- ●
497 04.439 SWITCH; HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) RESET 		8-98119-946-0 01 1 1506- ●
497 04.439 SWITCH; HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 1506- ●
497 04.439 SWITCH; HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ADJUST 		8-98119-947-1 01 1 1506- ●
497 04.439 SWITCH; HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 1506- ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1506- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1506- ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1506- ●
689 02.780 SWITCH; DPD
EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 1506- ● ●
703 02.780 SWITCH; DPD & HSA
HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 1506- ● ●

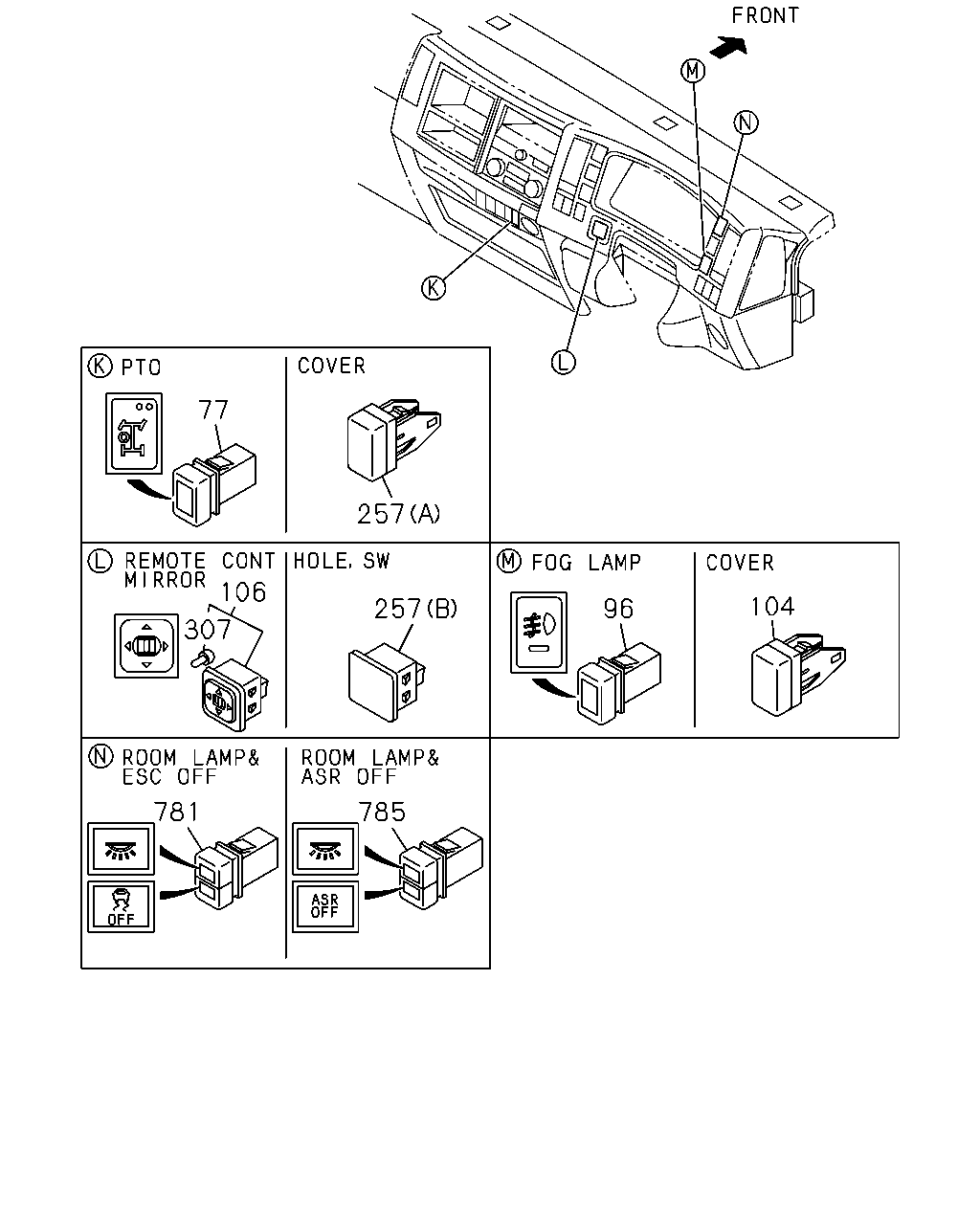

çizim 480485
77 307 106 257 781 785 96 104 257
BalonParca AdiParca NoAdetTipApplied Date A B
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1506- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1506- ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1506- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ●
257 16.081 COVER; HOLE,SW
EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) 		8-98025-954-1 02 1 1506- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1506- ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98025-954-1 01 1 1506- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-98025-954-1 01 1 1506- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1506- ● ●
781 03.883 SWITCH; ESC OFF & ROOM LAMP
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98190-385-1 01 1 1506- ● ●
785 03.883 SWITCH; ASR OFF & ROOM LAMP
NEW ZEALAND COUNTRY(CX6) 		8-98286-332-1 01 1 1506- ● ●

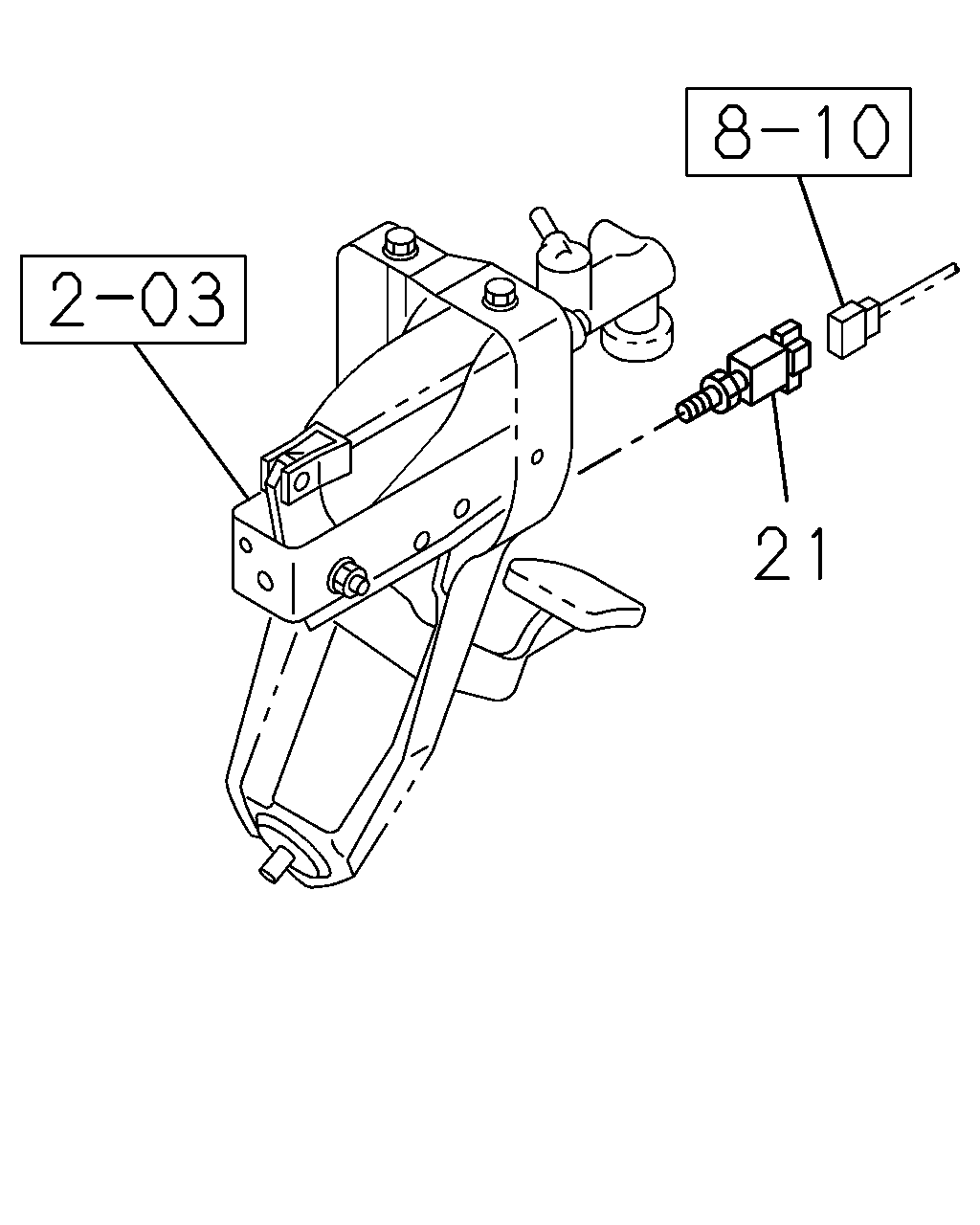

çizim 480513
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 02.575 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97358-248-0 01 1 1506- ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1506- ●
çizim 480757
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B
151 09.277 RELAY; HTR & A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ●
154 09.277 RELAY; CONDENSER FAN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1506- ●

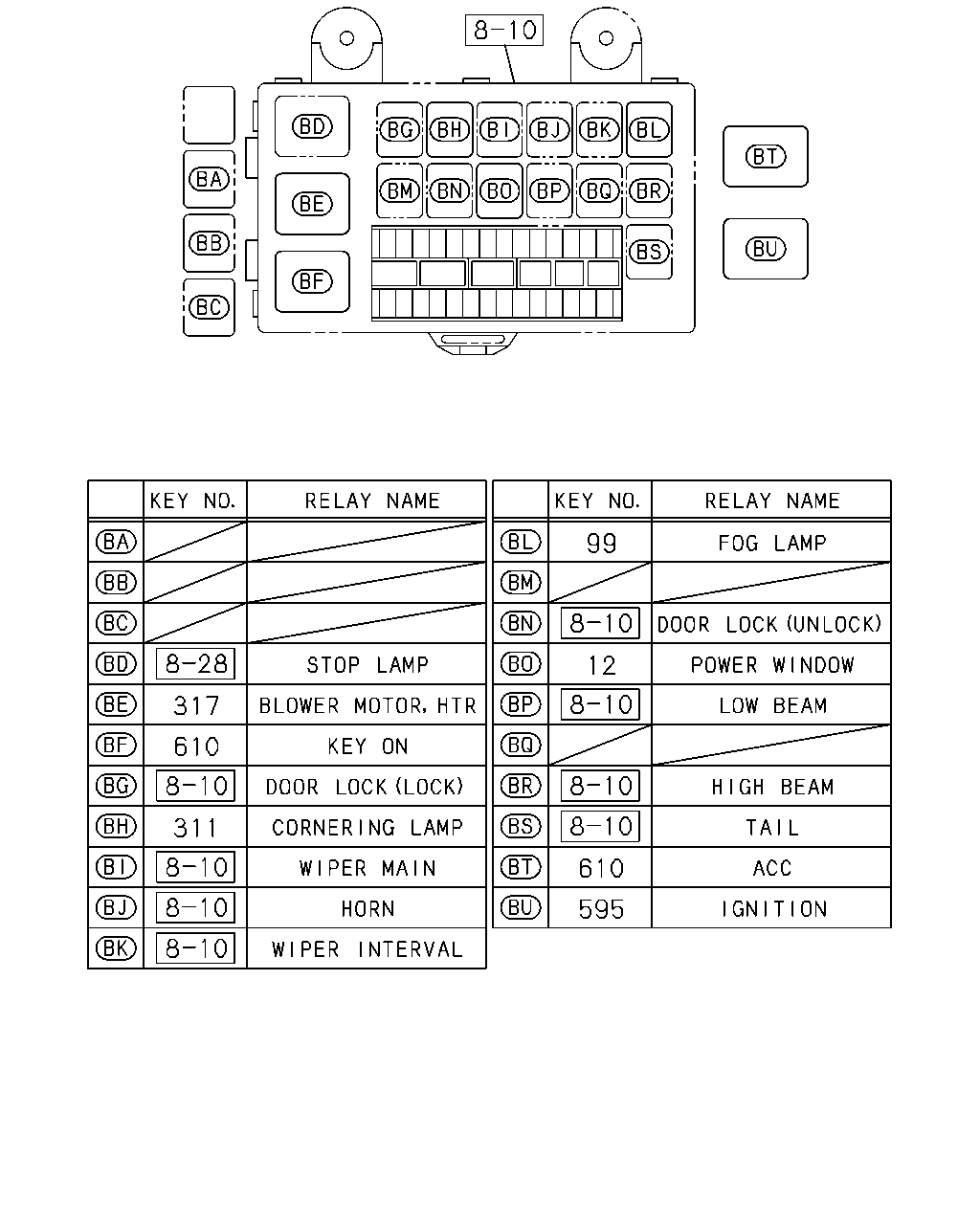

çizim 480812
311 610 12 99 610 317 595
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
311 02.596 RELAY; CORNERING LAMP
CORNERING LAMP<T87> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1506- ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1506- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 02 1 1506- ● ●
