◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#162585) — 28 parça

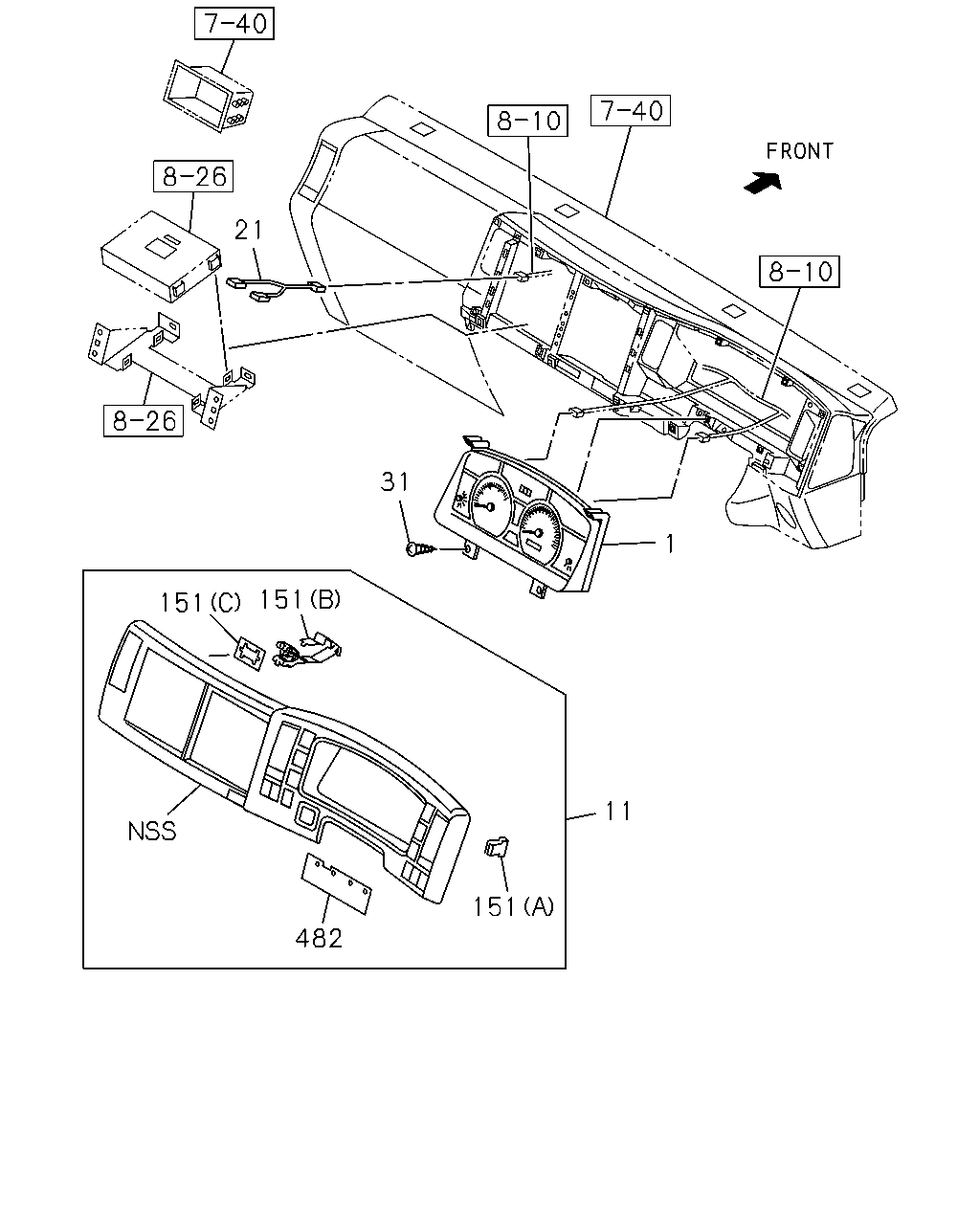

çizim 480043
21 31 151 151 482 151 11 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-993-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-985-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY(CX6) 		8-98275-985-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98275-995-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98275-988-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98275-988-1 01 1 1506- ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1506- ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD(8PG) 		8-98204-881-1 01 1 1506- ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1506- ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1506- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1506- ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1506- ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1506- ● ●
çizim 480724
1 110 81 480 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98275-993-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98275-985-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
NEW ZEALAND COUNTRY(CX6) 		8-98275-985-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98275-995-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98275-988-1 01 1 1506- ●
1 09.735 METER COMPL; CLUSTER
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98275-988-1 01 1 1506- ●
2 09.735 PANEL; CLUSTER 8-98054-638-0 01 1 1506- ● ●
81 09.735 METER SUB ASM
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-223-0 01 1 1506- ●
81 09.735 METER SUB ASM
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98288-215-0 01 1 1506- ●
81 09.735 METER SUB ASM
NEW ZEALAND COUNTRY(CX6) 		8-98288-215-0 01 1 1506- ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98288-225-0 01 1 1506- ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98288-218-0 01 1 1506- ●
81 09.735 METER SUB ASM
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98288-218-0 01 1 1506- ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1506- ● ●
480 09.748 COVER; METER 8-98151-362-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
