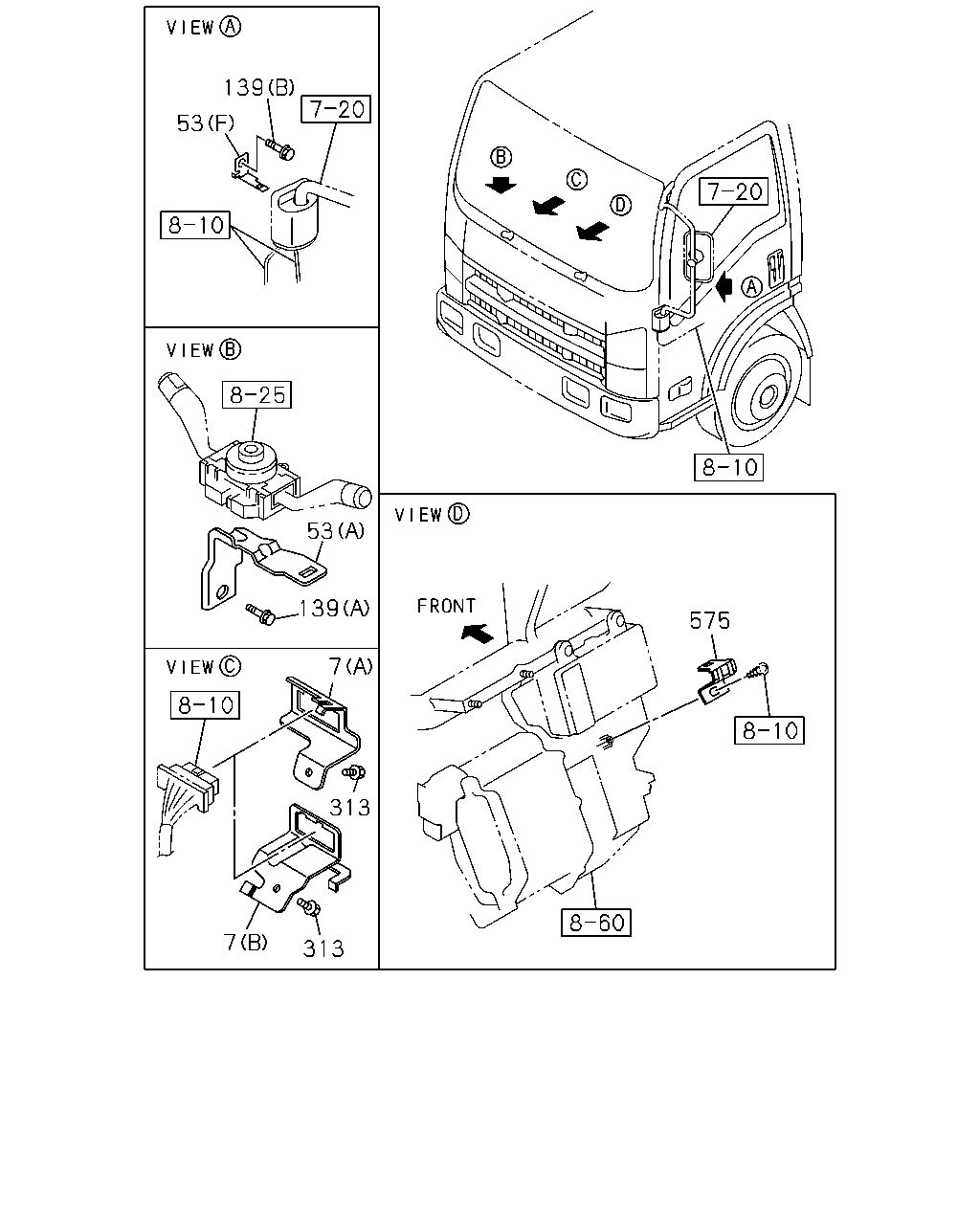

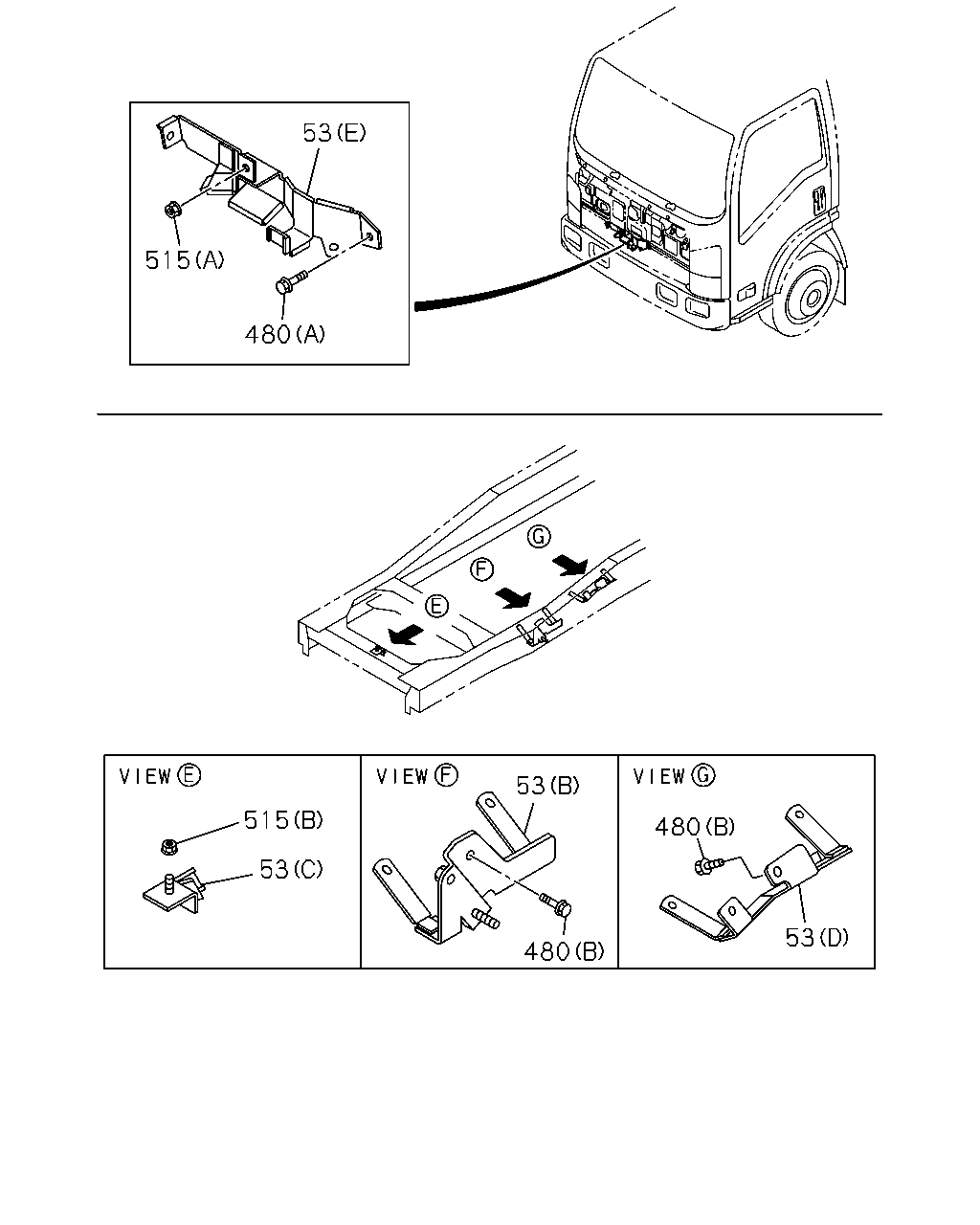

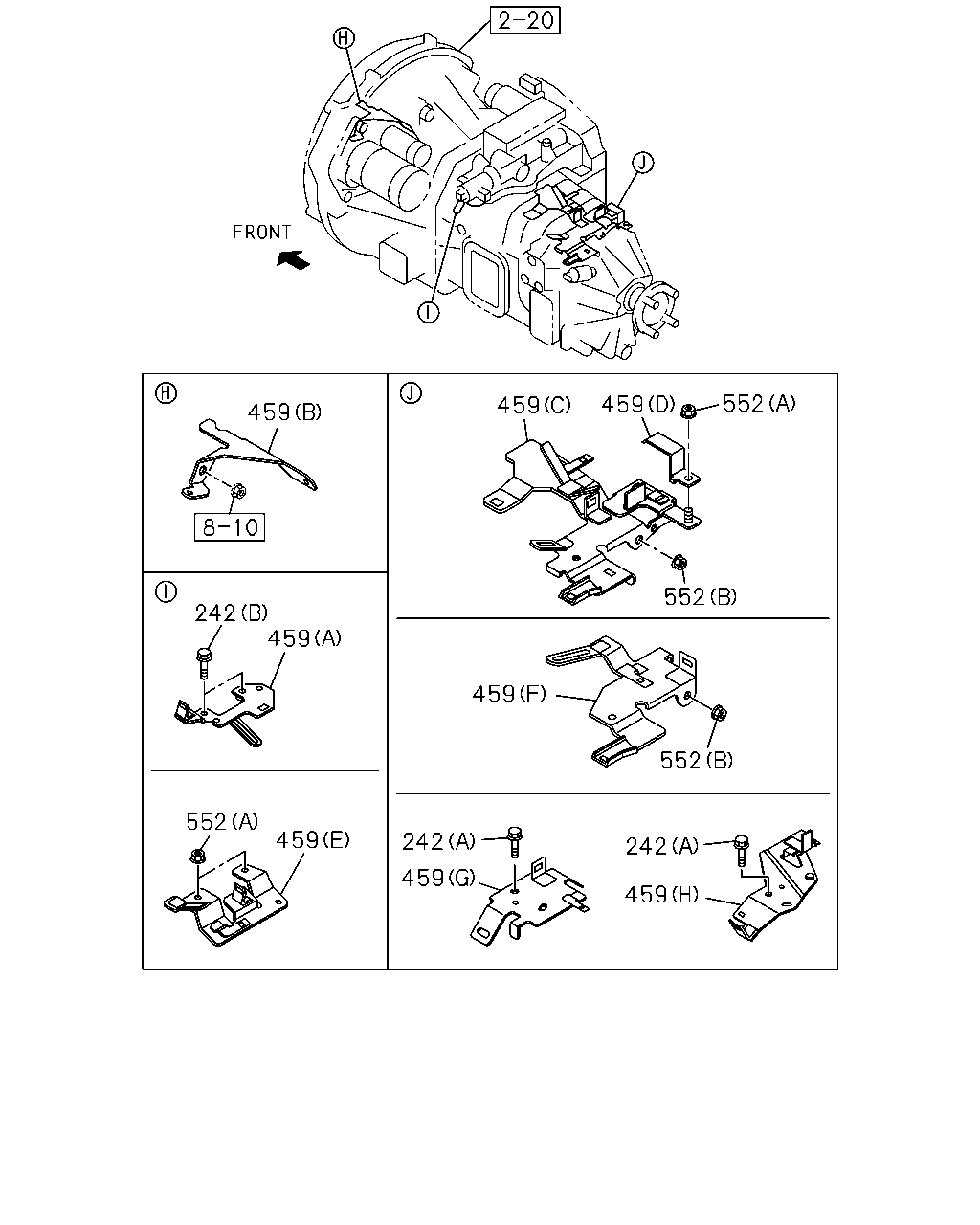

8-15 — FIXING PARTS; WIRING HARNESS (#162584) — 133 parça

16 16 16 16 16 22 16 504 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (H) ID=7-10	8-94472-578-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (G) L=250	5-09707-030-1	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (H) ID=6.8	8-97134-154-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-	●
48	02.559 CLIP; FRAME HARNESS (C) ID=20	8-94241-972-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 9	8-97371-947-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	1506-	●	●
504	02.559 PROTECTOR; HARNESS	8-98208-886-0	01	1	1506-	●	●

53 139 53 139 7 313 7 313 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98114-514-0	01	1	1506-	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	1506-	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	1506-		●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-2	02	1	1506-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1506-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1506-	●	●

515 53 480 515 53 53 480 53 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (F)	8-98039-277-2	02	1	1506-	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1506-	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1506-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1506-	●	●

459 242 459 552 459 242 459 242 459 552 459 552 552 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2) WITH PARKING POSITION(8PR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1506-	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2) WITH PARKING POSITION(8PR) (G)	8-98219-814-1	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS SMOOTHER-EX(TYPE2) WITH PARKING POSITION(8PR) (H)	8-98255-649-3	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1506-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1506-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1506-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1506-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1506-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98020-227-3	01	1	1508-	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98196-974-0	01	1	1506-1507	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-98196-974-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1507	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●

313 480 481 38 516 242 139 139 480 480 242 529 377 377 386 386 24 515 577 294 469 515 524 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1506-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
242	02.483 BOLT; BRKT,HARNESS SMOOTHER-EX(TYPE2) WITH PARKING POSITION(8PR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1508-	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1506-	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1506-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1506-	●	●
377	02.559 BOLT; CAB EARTH (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1506-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1506-1506	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1506-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1506-	●	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1506-	●	●
480	02.483 BOLT; BRKT 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
481	13.090 BOLT; CABLE HARNESS REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1506-1507	●	●
481	13.090 BOLT; CABLE HARNESS WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1506-1507	●
481	13.090 BOLT; CABLE HARNESS SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1506-1507		●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1508-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1506-	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●
524	02.559 NUT; HARNESS REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
524	02.559 NUT; HARNESS WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
524	02.559 NUT; HARNESS SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507		●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1506-	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1506-1507		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●	●
552	02.483 NUT; BRKT,HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1506-1507	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1508-	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●

22 22 16 22 22 22 48 48 22 48 22 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> (H) ID=7-10	8-94472-578-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (G) L=250	5-09707-030-1	01	1	1506-	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1506-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1506-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	07	1	1506-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (H) ID=6.8	8-97134-154-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1506-	●	●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1506-	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	1506-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1506-	●
48	02.559 CLIP; FRAME HARNESS (C) ID=20	8-94241-972-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (A) T=4.5 & 9	8-97371-947-0	01	1	1506-	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	1506-	●	●
