8-10 — WIRING HARNESS AND FUSE (#162583) — 116 parça

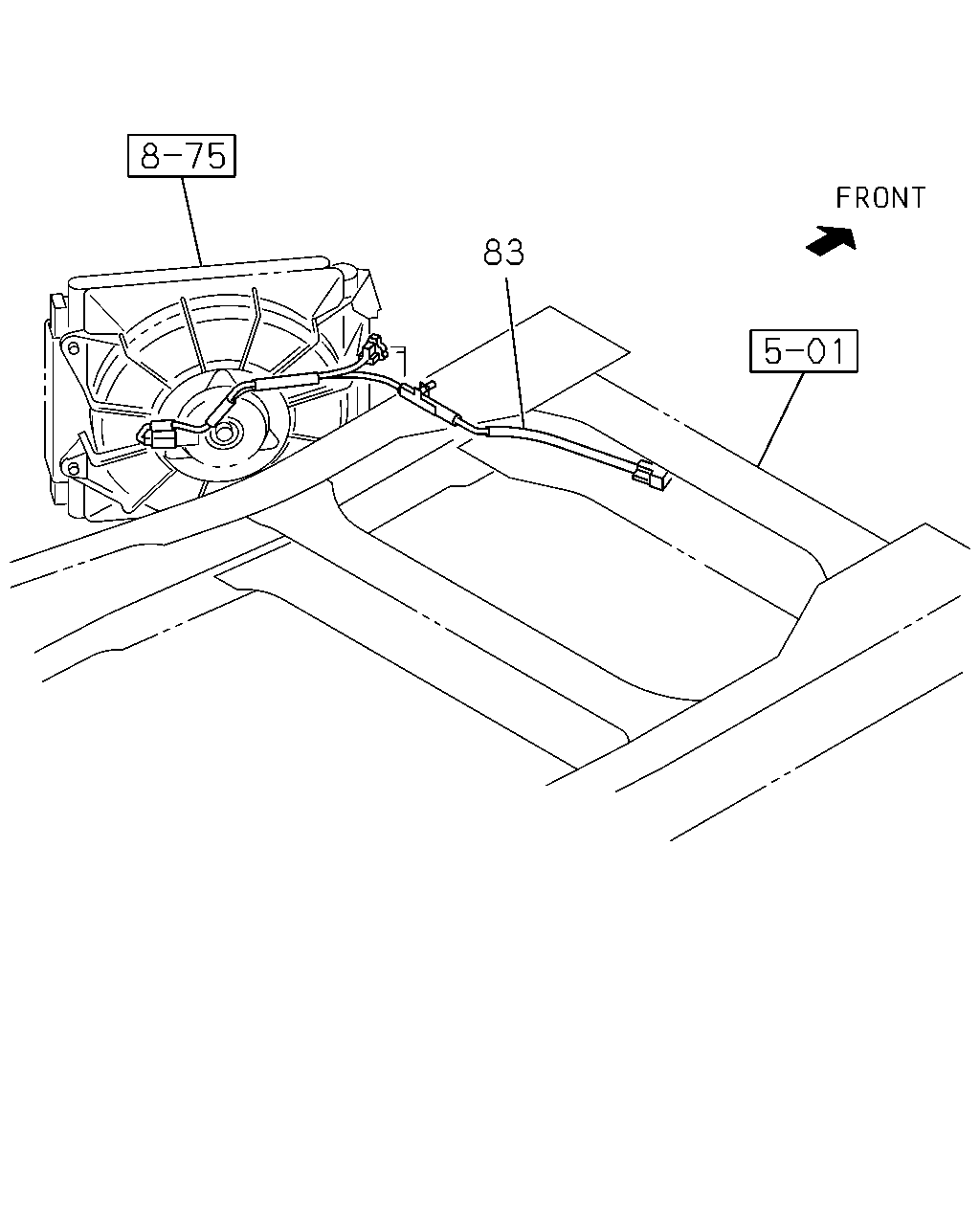

çizim 479713
83
BalonParca AdiParca NoAdetTipApplied Date A B
83 02.480 HARNESS; AIR CONDITIONER 8-98140-333-2 01 1 1506- ● ●

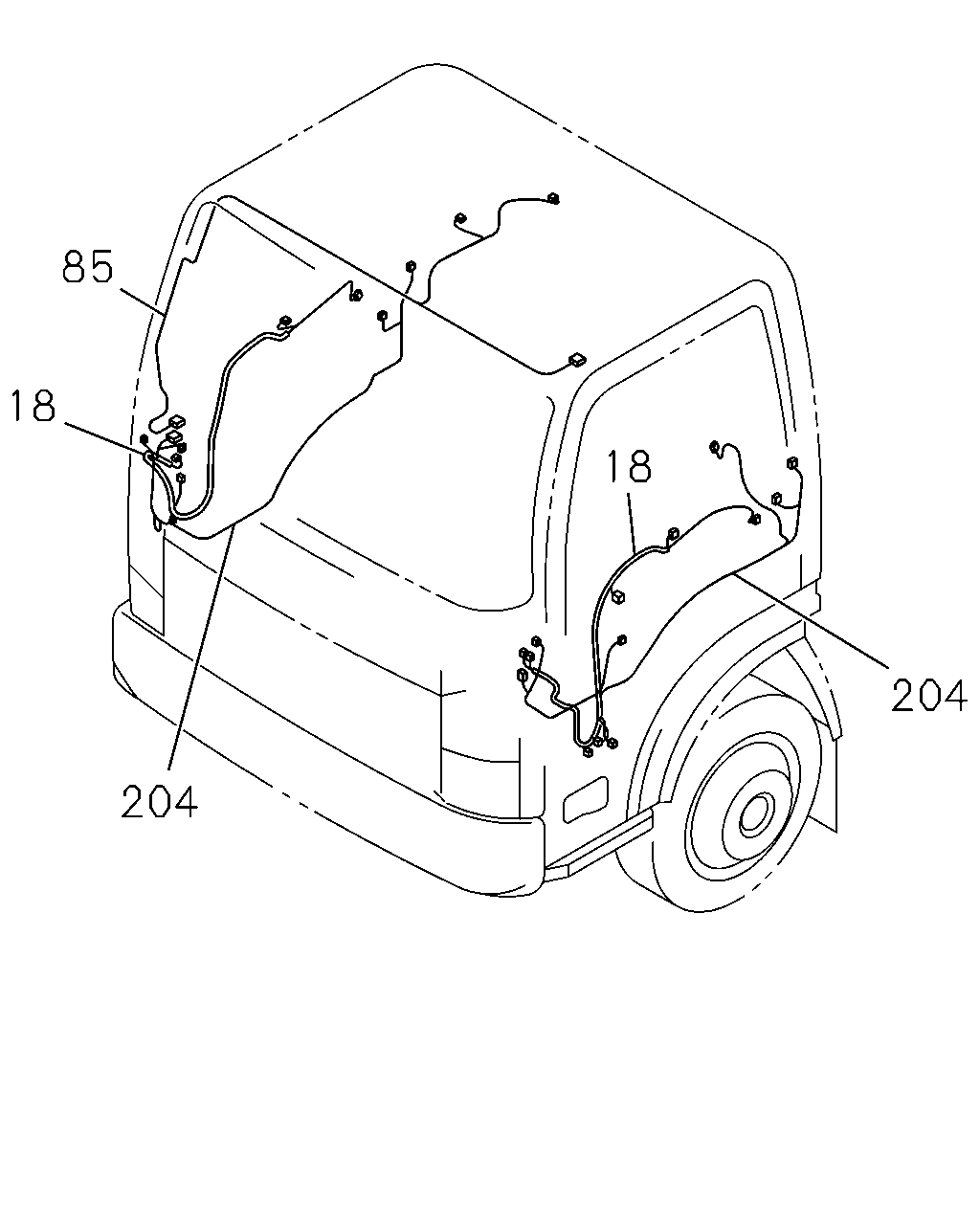

çizim 479837
85 18 204 18 204
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98077-590-2 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> CORNERING LAMP<T87> 		8-98286-563-0 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98071-078-2 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> 		8-98286-568-0 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98046-746-5 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-562-0 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-076-2 01 1 1506- ● ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-565-0 01 1 1506- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98049-964-3 01 1 1506- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98240-903-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98240-901-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) 		8-98240-901-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98207-507-1 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98207-505-1 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98207-505-1 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> 		8-98257-335-0 01 1 1506- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. MANUAL TILT CAB<RWZ> 		8-98287-850-0 01 1 1506- ● ●
204 02.559 HARNESS; CABLE,FLOOR
MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98047-164-4 01 1 1506- ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, MANUAL TILT CAB<RWZ> 		8-98070-807-3 01 1 1506- ● ●

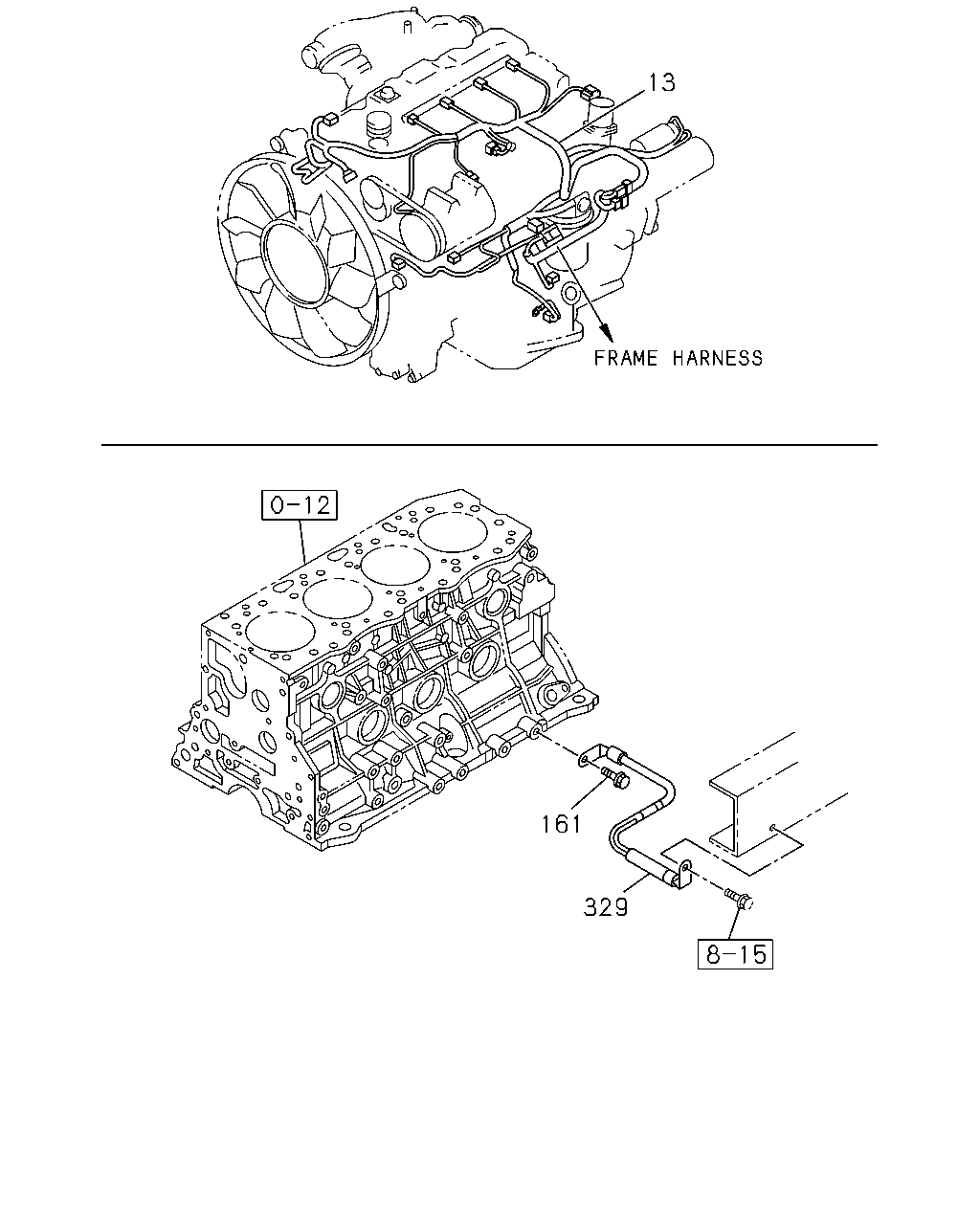

çizim 479986
13 161 329
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG 8-98244-735-0 01 1 1506- ● ●
161 02.559 BOLT; GROUND,HARNESS
02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1506- ● ●
329 02.480 CABLE; ENG TO FRAME 8-98039-854-1 01 1 1506- ● ●

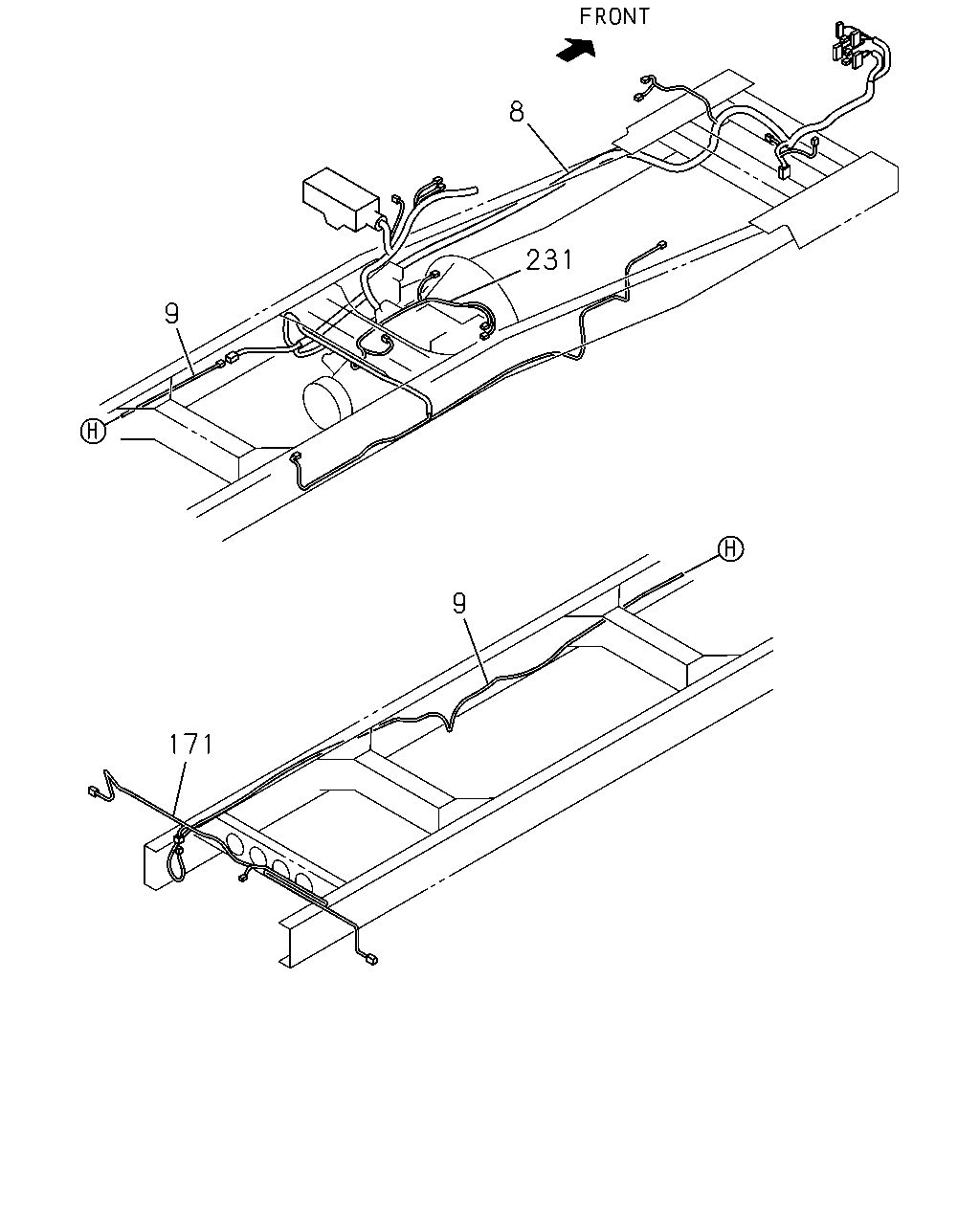

çizim 480058
9 231 171 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98295-901-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98295-898-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98295-898-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
H.S.A SYSTEM<6EP> NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98295-900-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
H.S.A SYSTEM<6EP> NEW ZEALAND COUNTRY(CX6) 		8-98295-900-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98295-899-0 01 1 1506- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2400MM(24W) 		8-98048-414-2 01 1 1506- ●
9 02.480 HARNESS; FRAME,RR 8-98048-414-2 01 1 1506- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98048-424-1 01 1 1506- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1506- ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-598-1 01 1 1506- ●
çizim 480453
441
BalonParca AdiParca NoAdetTipApplied Date A B
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98080-696-1 01 1 1506- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97308-213-3 01 1 1506- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97308-220-4 01 1 1506- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97308-214-4 01 1 1506- ●

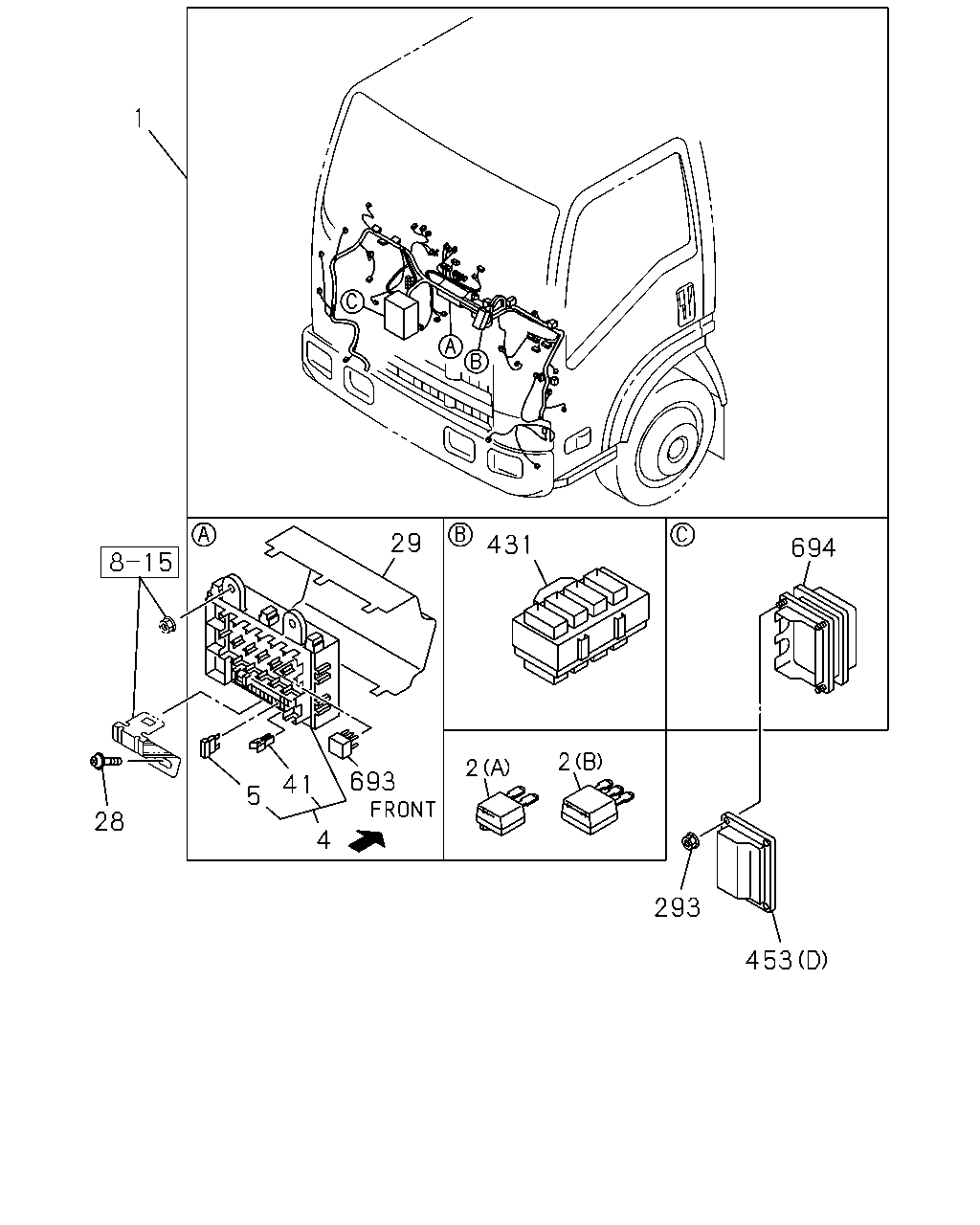

çizim 480475
431 694 293 453 2 2 693 4 41 5 28 29 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-870-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-871-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-856-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-856-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-858-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-857-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-857-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-859-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98285-868-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) AIR CONDITIONER MANUAL CONT(C60) 		8-98285-868-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98285-869-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) FULLAUTO AIR CONDITIONER(C68) 		8-98285-869-2 01 1 1506- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 05 1 1506- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 02 1 1506- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1506- ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1506- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1506- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1506- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506- ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1506- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1506- ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1506- ● ●
431 02.530 CONNECTOR; JOINT 8-98046-205-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1506- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1506- ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1506- ● ●

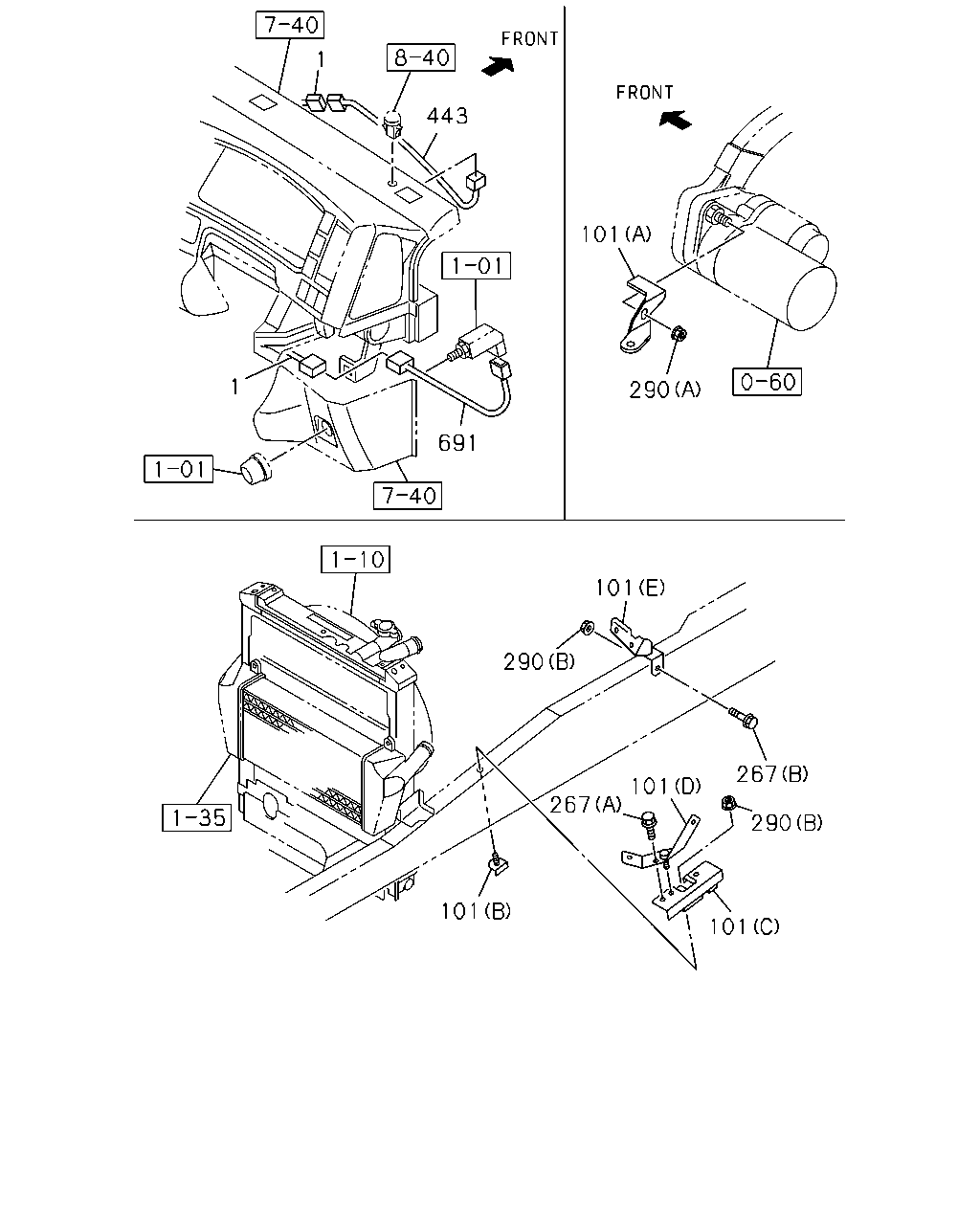

çizim 480478
443 1 691 1 101 290 290 101 267 267 101 290 101 101
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-870-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-871-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-856-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-856-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-858-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-857-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98285-857-2 01 1 1506- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98285-859-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98285-868-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) AIR CONDITIONER MANUAL CONT(C60) 		8-98285-868-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98285-869-2 01 1 1506- ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> NEW ZEALAND COUNTRY(CX6) FULLAUTO AIR CONDITIONER(C68) 		8-98285-869-2 01 1 1506- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A) 		8-98030-725-1 01 1 1506- ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (A) 		8-98030-725-1 01 1 1506- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(C) 		8-98078-070-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98078-071-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98093-465-1 01 1 1506- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(E) 		8-98217-757-0 01 1 1506- ● ●
267 02.483 BOLT; BRKT
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1506- ● ●
267 02.483 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
290 02.483 NUT; BRKT
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 1506- ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
443 02.480 HARNESS; EXT,A/C
FULLAUTO AIR CONDITIONER(C68) 		8-98029-830-0 01 1 1506- ● ●
691 02.480 HARNESS; IDLE CONT
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> 		8-98049-014-2 01 1 1506- ● ●

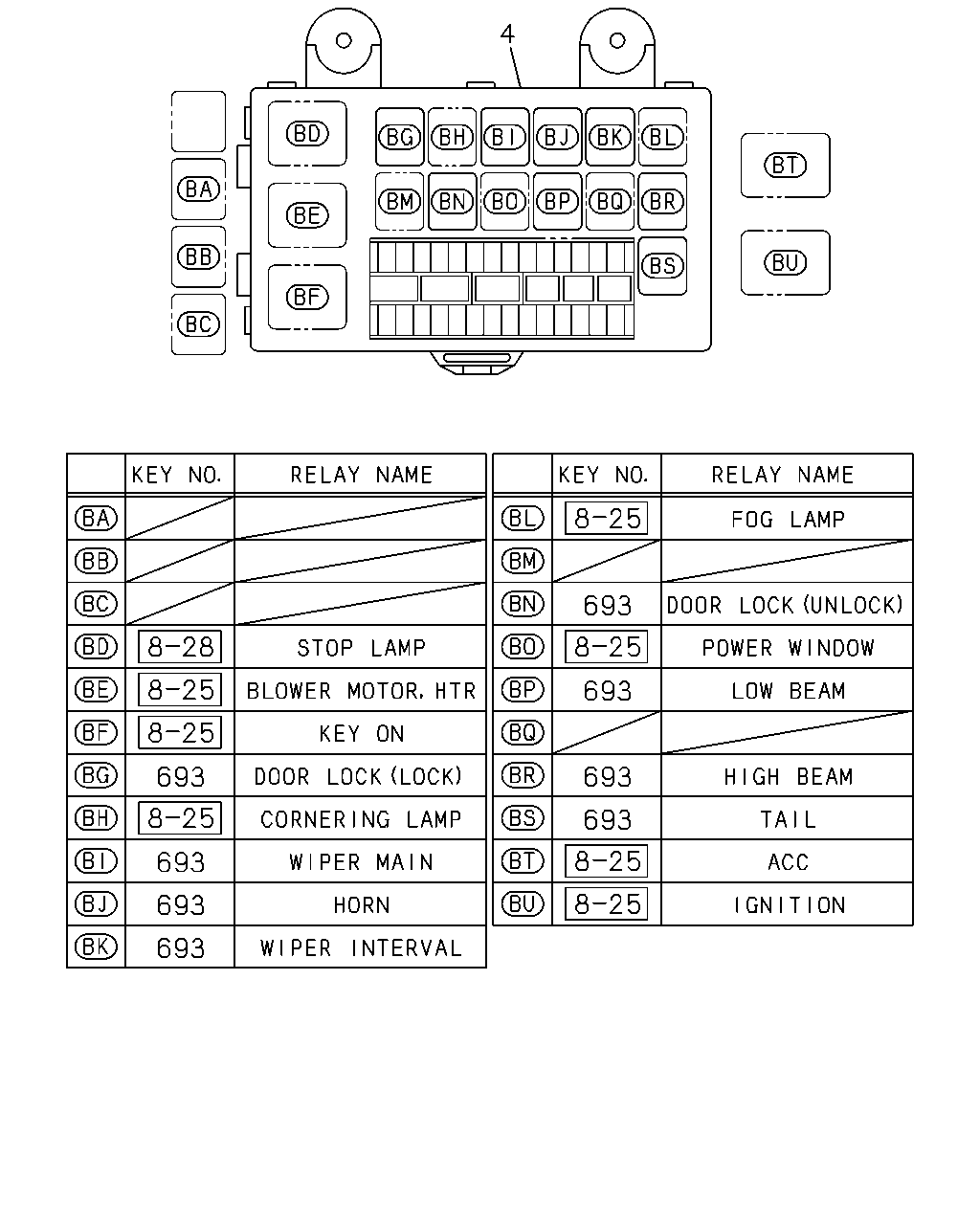

çizim 480502
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1506- ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1506- ● ●

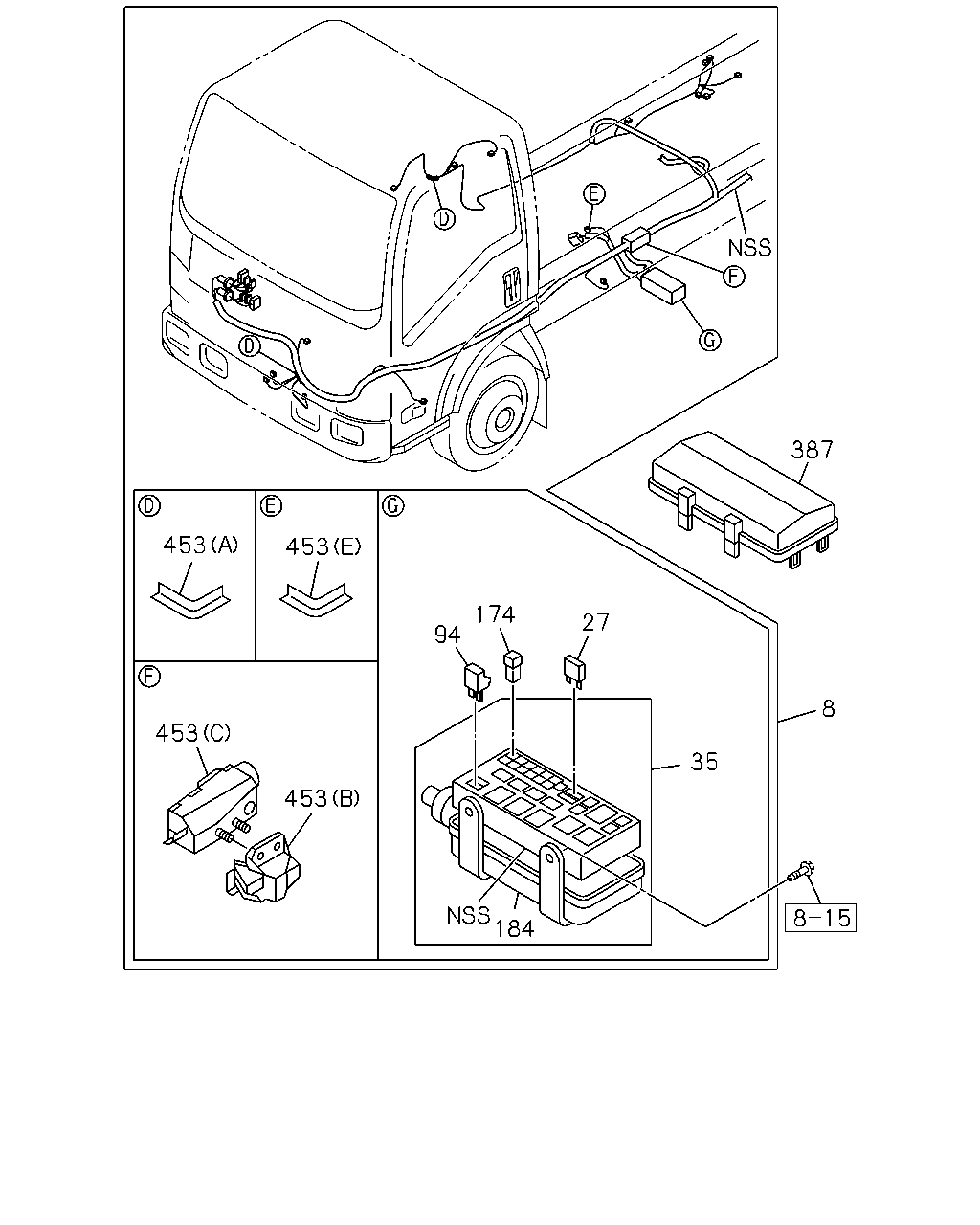

çizim 480564
387 453 453 174 27 94 35 8 184 453 453
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98295-901-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98295-898-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98295-898-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
H.S.A SYSTEM<6EP> NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98295-900-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
H.S.A SYSTEM<6EP> NEW ZEALAND COUNTRY(CX6) 		8-98295-900-0 01 1 1506- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98295-899-0 01 1 1506- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 04 1 1506- ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1506- ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 03 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 02 1 1506- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 04 1 1506- ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1506- ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(E) 		8-94452-553-0 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-850-1 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98031-851-2 01 1 1506- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-98034-039-1 01 1 1506- ● ●
