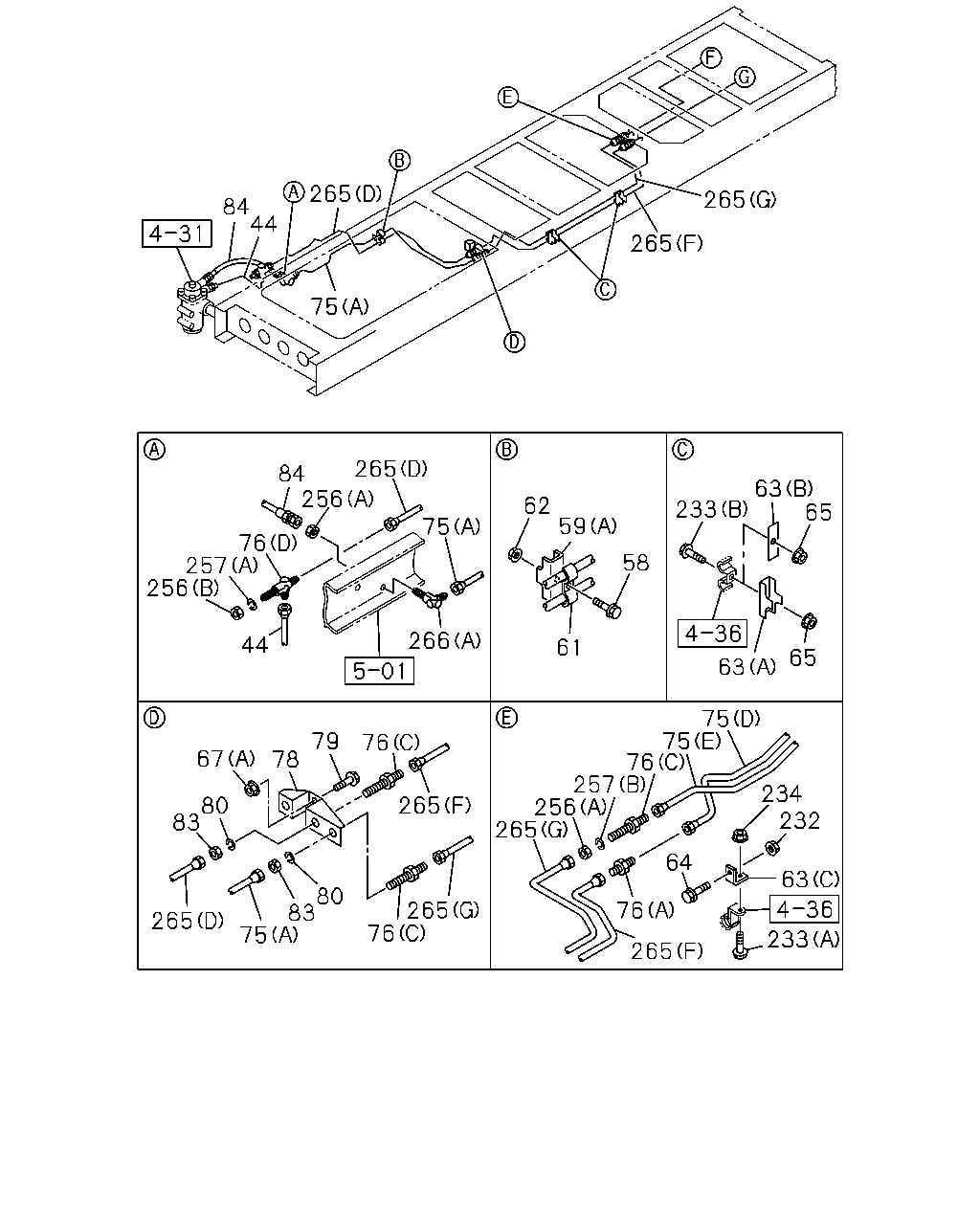

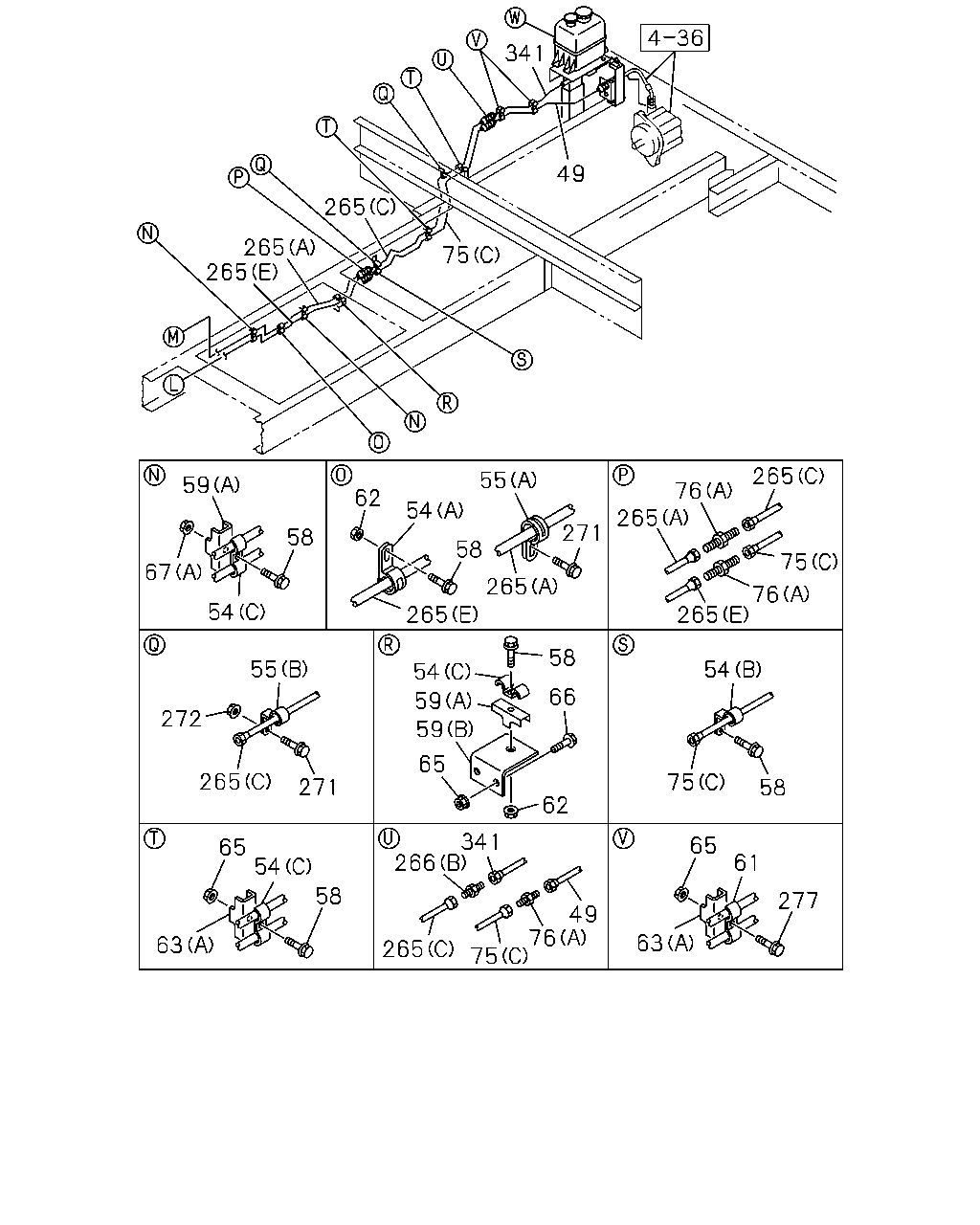

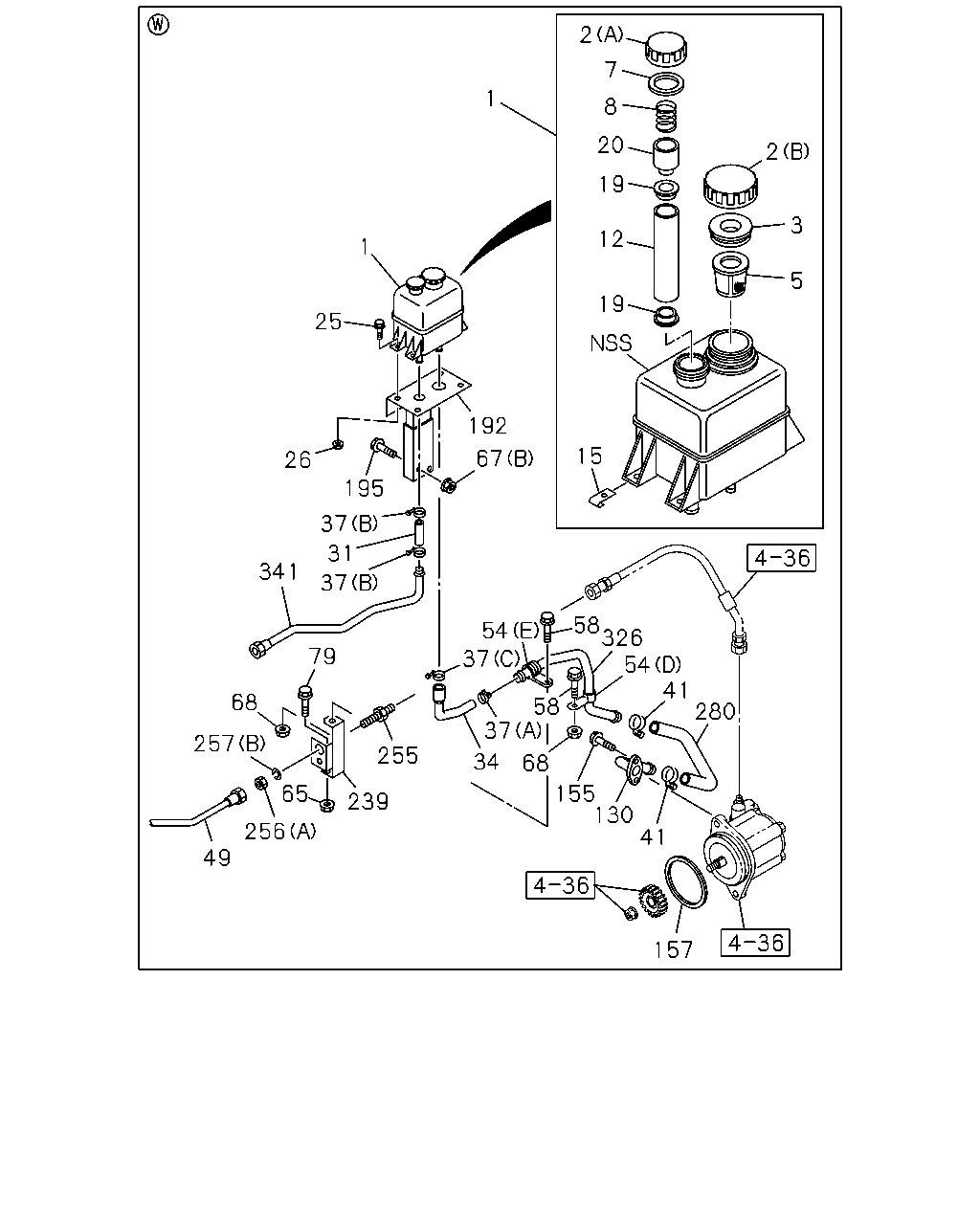

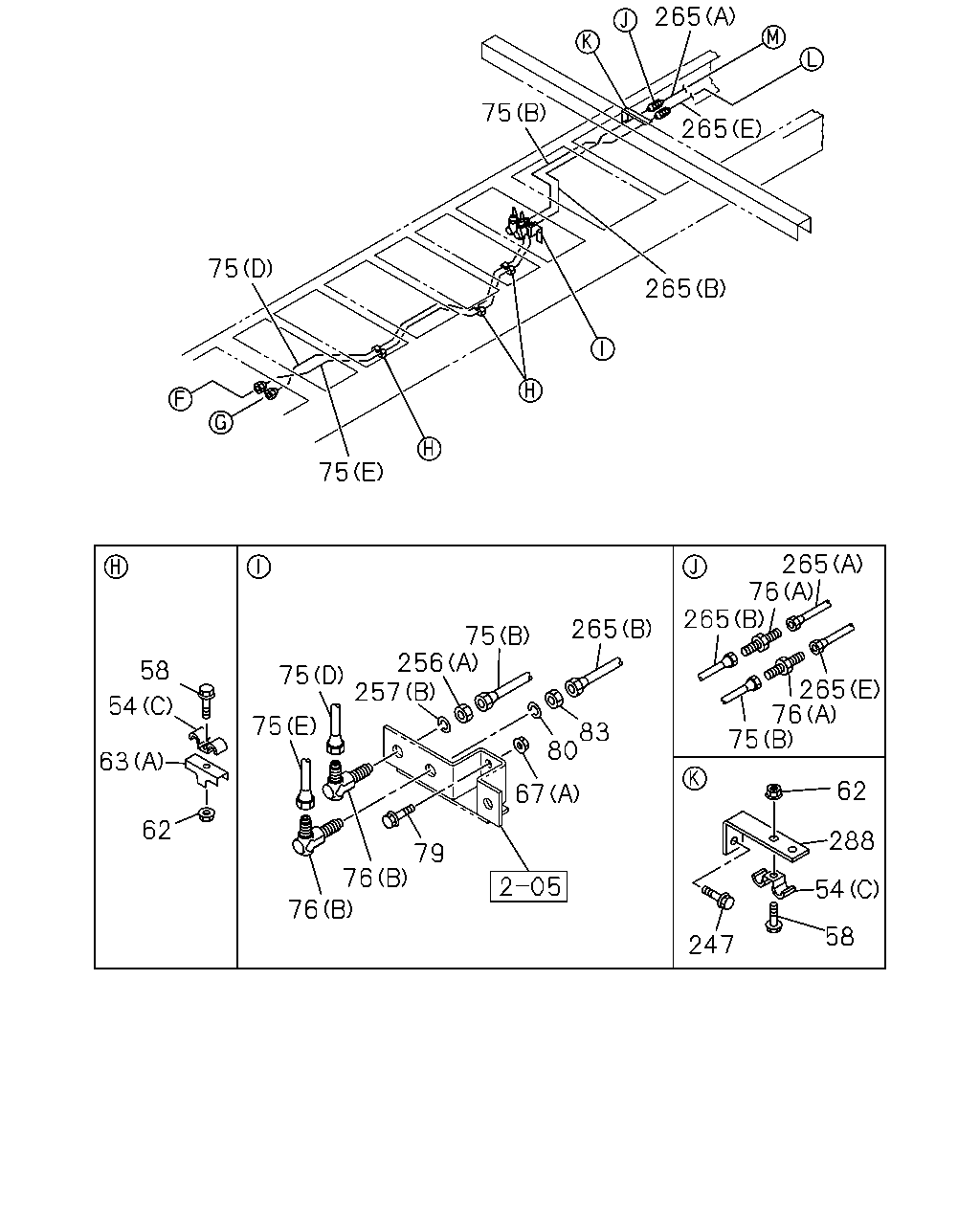

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#16258) — 177 parça

265 75 265 75 265 75 265 76 265 265 75 256 75 257 58 265 76 75 54 75 83 80 63 62 67 62 288 79 76 76 54 58 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0907-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0907-
54	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	08	1	0907-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0907-
54	CLIP; OIL PIPE (B) D=15 L=45	5-09700-076-0	01	1	0907-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0907-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0907-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0907-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0907-
63	BRACKET; CLIP,P/S (C) 25X37	1-34656-004-0	01	1	0907-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0907-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0907-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1374	1-21117-097-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1508	8-98109-684-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=744	8-98109-694-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1678	8-98146-715-0	01	1	0907-
76	UNION; OIL PIPE (A) M22 L=51	0-92123-015-0	06	1	0907-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0907-
76	UNION; OIL PIPE (B) M22X2 ELBOW	0-92135-215-0	02	1	0907-
76	UNION; OIL PIPE (D) M22X2 & M14 3WAY	1-09650-172-1	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0907-
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	03	1	0907-
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	03	1	0907-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0907-
256	NUT; UNION (B) M14	0-91111-514-0	01	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	04	1	0907-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	03	1	0907-
257	WASHER; LK,UNION (A) ID=14.2	0-91510-814-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (B) L=838	8-98109-428-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (A) L=1273	8-98109-427-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (C) L=1445	8-98109-438-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (E) L=1404	8-98109-690-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (D) L=1561	8-98136-639-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (G) L=1574	8-98137-157-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (F) L=1529	8-98146-714-0	01	1	0907-
288	BRACKET; CLIP,P/S	1-47478-918-0	01	1	0907-

265 265 84 44 265 75 265 84 256 63 233 65 62 59 75 76 257 256 58 266 44 61 65 63 75 75 76 257 256 265 79 76 67 78 234 232 265 80 83 64 63 80 83 265 76 76 265 75 233 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98136-641-0	01	1	0907-0908
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98153-325-0	01	1	0909-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0907-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0907-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0907-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	04	1	0907-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0907-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0907-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0907-
63	BRACKET; CLIP,P/S (C) 25X37	1-34656-004-0	01	1	0907-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0907-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0907-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0907-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1374	1-21117-097-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1508	8-98109-684-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=744	8-98109-694-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1678	8-98146-715-0	01	1	0907-
76	UNION; OIL PIPE (A) M22 L=51	0-92123-015-0	06	1	0907-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0907-
76	UNION; OIL PIPE (B) M22X2 ELBOW	0-92135-215-0	02	1	0907-
76	UNION; OIL PIPE (D) M22X2 & M14 3WAY	1-09650-172-1	01	1	0907-
78	BRACKET; UNION	8-98109-425-0	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0907-
80	WASHER; LK,UNION,OIL PIPE ID=22.5	0-91510-622-0	03	1	0907-
83	NUT; UNION,OIL PIPE M22	0-91111-522-0	03	1	0907-
84	HOSE; FLEX,P/S L=520	8-98072-097-0	01	1	0907-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0907-
233	BOLT; PIPE CLIP,P/S (A) M8X20 FLANGE	0-28650-820-0	01	1	0907-
233	BOLT; PIPE CLIP,P/S (B) M8X40 FLANGE	0-28650-840-0	02	1	0907-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0907-
256	NUT; UNION (B) M14	0-91111-514-0	01	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	04	1	0907-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	03	1	0907-
257	WASHER; LK,UNION (A) ID=14.2	0-91510-814-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (B) L=838	8-98109-428-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (A) L=1273	8-98109-427-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (C) L=1445	8-98109-438-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (E) L=1404	8-98109-690-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (D) L=1561	8-98136-639-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (G) L=1574	8-98137-157-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (F) L=1529	8-98146-714-0	01	1	0907-
266	UNION; OIL PIPE,P/S (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0907-
266	UNION; OIL PIPE,P/S (B) M22	1-09654-409-0	01	1	0907-

2 7 1 8 20 2 19 3 12 1 5 19 25 192 15 67 26 195 37 31 341 37 58 326 54 41 280 54 79 37 68 58 37 257 255 34 68 155 130 41 65 239 256 49 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0907-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0907-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0907-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0907-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0907-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0907-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0907-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0907-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0907-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0907-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0907-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0907-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0907-
31	HOSE; P/S OIL TANK,INL	0-09814-080-0	01	1	0907-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-094-0	01	1	0907-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0907-
37	CLIP; HOSE,P/S (A) ID=36	1-09704-094-0	01	1	0907-
37	CLIP; HOSE,P/S (C) ID=38	9-09915-041-1	01	1	0907-
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	0907-
49	PIPE; OIL,FLEX HOSE TO UNION L=680	8-98109-677-0	01	1	0907-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0907-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0907-
54	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	08	1	0907-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0907-
54	CLIP; OIL PIPE (B) D=15 L=45	5-09700-076-0	01	1	0907-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0907-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0907-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0907-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0907-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0907-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	0907-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0907-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0907-
192	BRACKET; P/S OIL TANK	8-98068-128-0	01	1	0907-
195	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0907-
239	BRACKET; FLEX HOSE	8-98109-424-0	01	1	0907-
255	UNION; FLEX HOSE	1-09654-261-1	01	1	0907-
256	NUT; UNION (B) M14	0-91111-514-0	01	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	04	1	0907-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	03	1	0907-
257	WASHER; LK,UNION (A) ID=14.2	0-91510-814-0	01	1	0907-
280	HOSE; P/S OIL PUMP,INL	1-21117-899-0	01	1	0907-
326	PIPE; OIL,OIL TANK TO PUMP	8-98068-100-0	01	1	0907-
341	PIPE; OIL,UNION TO OIL TANK	8-98109-447-0	01	1	0907-

341 49 265 265 265 75 265 62 55 59 76 265 54 271 58 58 75 67 265 76 265 54 265 58 55 54 54 66 59 272 59 65 265 75 271 58 62 341 266 65 65 54 61 58 277 49 76 75 63 63 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=680	8-98109-677-0	01	1	0907-
54	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	01	1	0907-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0907-
54	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	08	1	0907-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0907-
54	CLIP; OIL PIPE (B) D=15 L=45	5-09700-076-0	01	1	0907-
55	CLIP; P/S RUBBER HOSE (A) ID=16 L=20	0-95235-535-0	01	1	0907-
55	CLIP; P/S RUBBER HOSE (B) ID=15 H=30 L=30	1-09700-832-0	02	1	0907-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0907-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0907-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0907-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	04	1	0907-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0907-
61	CLIP; OIL PIPE ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0907-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0907-
63	BRACKET; CLIP,P/S (C) 25X37	1-34656-004-0	01	1	0907-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0907-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0907-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0907-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1374	1-21117-097-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1508	8-98109-684-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=744	8-98109-694-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1678	8-98146-715-0	01	1	0907-
76	UNION; OIL PIPE (A) M22 L=51	0-92123-015-0	06	1	0907-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	03	1	0907-
76	UNION; OIL PIPE (B) M22X2 ELBOW	0-92135-215-0	02	1	0907-
76	UNION; OIL PIPE (D) M22X2 & M14 3WAY	1-09650-172-1	01	1	0907-
265	PIPE; OIL,UNION TO UNION (B) L=838	8-98109-428-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (A) L=1273	8-98109-427-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (C) L=1445	8-98109-438-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (E) L=1404	8-98109-690-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (D) L=1561	8-98136-639-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (G) L=1574	8-98137-157-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (F) L=1529	8-98146-714-0	01	1	0907-
266	UNION; OIL PIPE,P/S (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0907-
266	UNION; OIL PIPE,P/S (B) M22	1-09654-409-0	01	1	0907-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	03	1	0907-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0907-
277	BOLT; HOSE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0907-
341	PIPE; OIL,UNION TO OIL TANK	8-98109-447-0	01	1	0907-
