7-50 — FRONT SEAT (#162578) — 105 parça

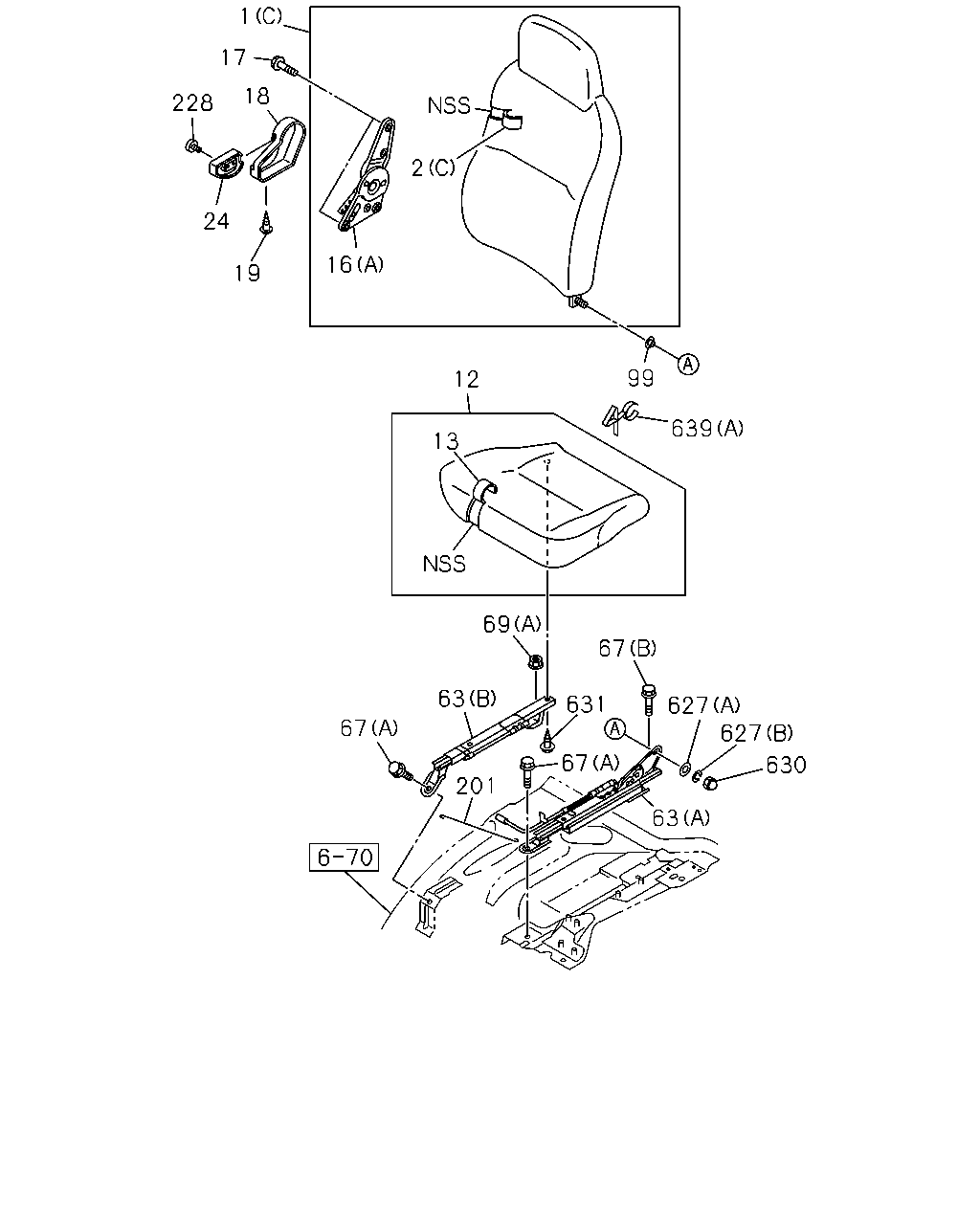

2 16 19 24 228 18 17 1 12 13 99 639 69 63 67 201 67 631 67 627 627 630 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97465-593-0	01	1	1506-	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97465-595-1	01	1	1506-	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (C) DARK GRAY	8-97465-003-0	01	1	1506-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97466-505-0	01	1	1506-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97466-506-0	01	1	1506-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (C) DARK GRAY	8-97465-005-0	01	1	1506-	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-596-1	01	1	1506-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> DARK GRAY	8-97465-010-1	01	1	1506-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-007-1	01	1	1506-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> DARK GRAY	8-97465-016-1	01	1	1506-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-013-1	01	1	1506-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1506-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1506-	●	●
18	16.682 COVER; RECLINING SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-598-0	01	1	1506-	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> GRAY	8-97409-332-0	01	1	1506-	●	●
19	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98315-974-0	01	1	1506-	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> M5	8-98062-663-0	01	1	1506-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1506-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	1506-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98306-527-0	01	1	1506-	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (A) INNER	8-97382-800-2	01	1	1506-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1506-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1506-	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-362-0	06	1	1506-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1506-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1506-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1506-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1506-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1506-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1506-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	03	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	01	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1506-	●	●
639	16.679 CLIP; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-960-0	02	1	1506-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (A)	8-98097-693-0	01	1	1506-	●	●

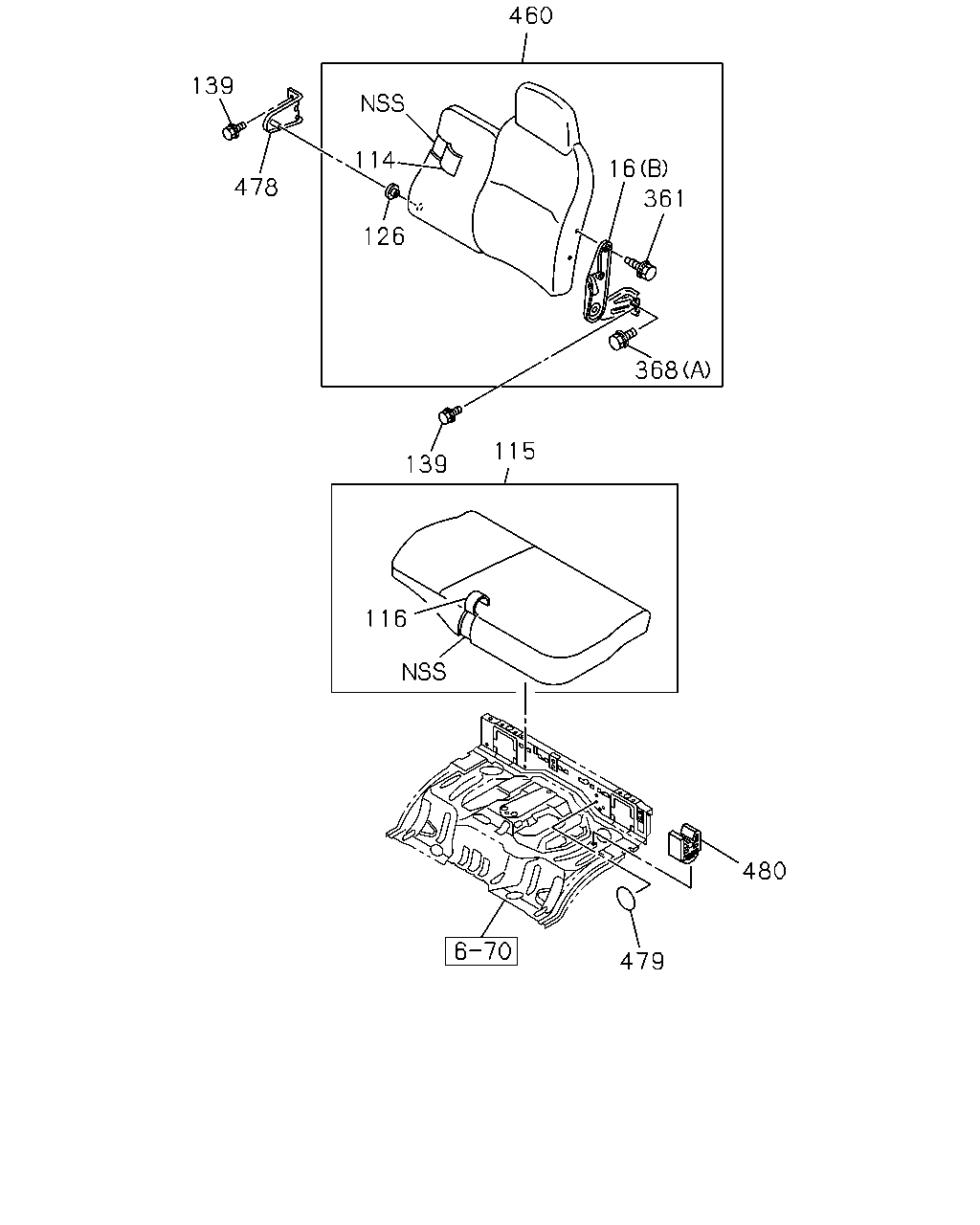

460 16 114 126 139 478 361 368 115 139 116 480 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1506-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97427-885-0	01	1	1506-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-897-1	01	1	1506-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-896-1	01	1	1506-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-906-1	01	1	1506-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97427-905-1	01	1	1506-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	1506-	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	1506-	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	1506-	●	●
368	16.682 BOLT; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-986-0	06	1	1506-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1506-	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97427-881-0	01	1	1506-	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-186-0	01	1	1506-	●	●
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	1506-	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1506-	●	●

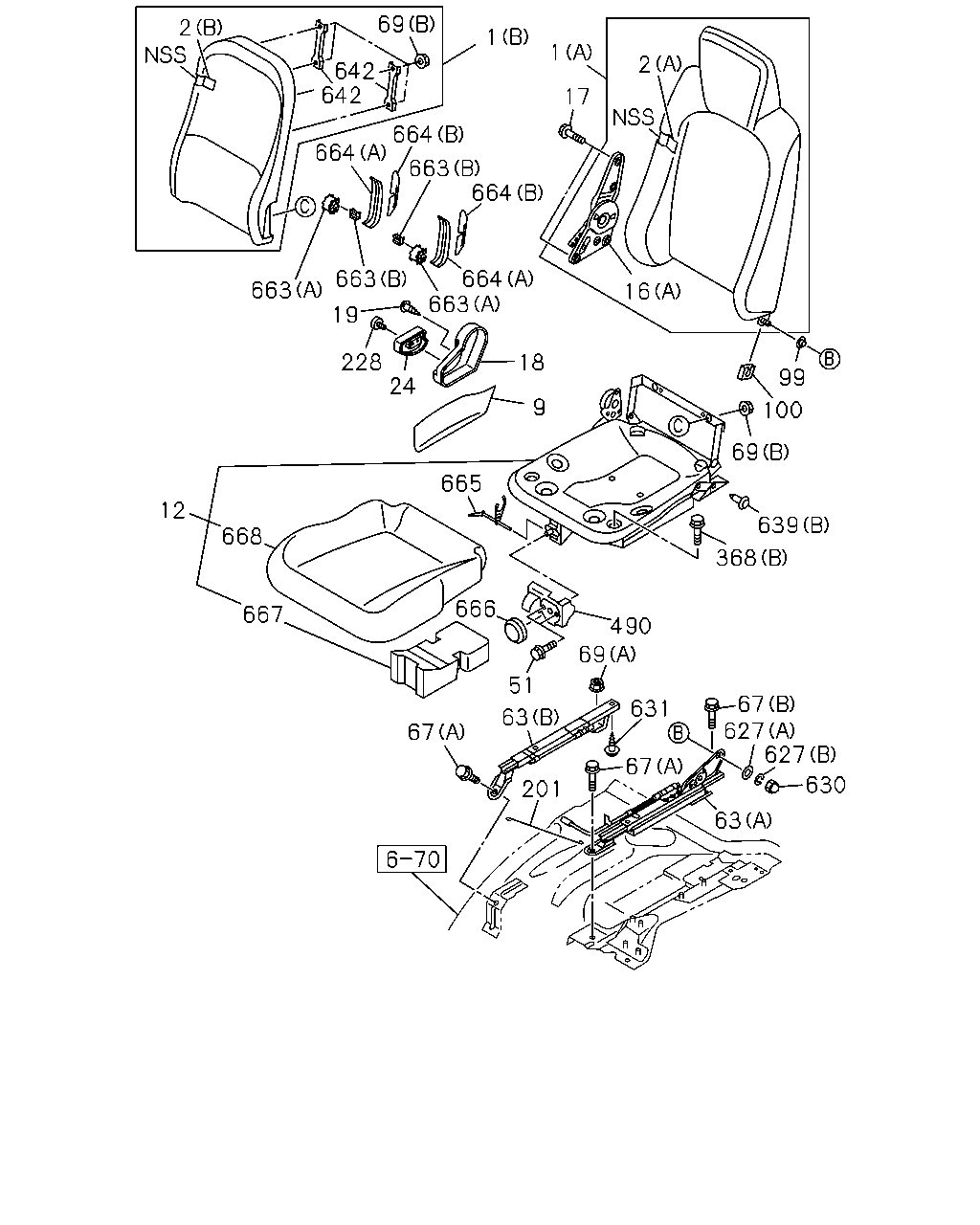

1 17 2 16 664 663 664 642 642 69 664 2 663 663 228 19 24 9 18 663 664 99 100 69 639 368 490 69 51 666 665 668 667 12 67 63 201 67 631 67 627 627 630 63 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97465-593-0	01	1	1506-	●	●
1	16.720 BACK ASM; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97465-595-1	01	1	1506-	●	●
1	16.720 BACK ASM; SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (C) DARK GRAY	8-97465-003-0	01	1	1506-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) DARK GRAY	8-97466-505-0	01	1	1506-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) DARK GRAY	8-97466-506-0	01	1	1506-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (C) DARK GRAY	8-97465-005-0	01	1	1506-	●	●
9	16.682 COVER; SIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-600-0	01	1	1506-	●	●
12	16.670 CUSHION; SEAT,FRT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY	8-97465-596-1	01	1	1506-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> DARK GRAY	8-97465-010-1	01	1	1506-	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-007-1	01	1	1506-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	1506-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK W/KNOB	8-97859-273-3	01	1	1506-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	1506-	●	●
18	16.682 COVER; RECLINING SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-598-0	01	1	1506-	●	●
18	16.682 COVER; RECLINING EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> GRAY	8-97409-332-0	01	1	1506-	●	●
19	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98315-974-0	01	1	1506-	●	●
19	16.686 SCREW; COVER EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> M5	8-98062-663-0	01	1	1506-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1506-	●	●
51	16.686 SCREW; COVER SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98315-974-0	02	1	1506-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	1506-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) INNER	8-98306-527-0	01	1	1506-	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (A) INNER	8-97382-800-2	01	1	1506-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1506-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1506-	●	●
69	16.682 NUT; FRT SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-362-0	06	1	1506-	●	●
69	16.682 NUT; FRT SEAT (A) M10 FLANGE	8-98055-961-0	01	1	1506-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	1506-	●	●
100	16.686 COVER; HINGE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98315-969-0	01	1	1506-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	1506-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	1506-	●	●
368	16.682 BOLT; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-986-0	06	1	1506-	●	●
368	16.682 BOLT; SEAT 16.320 (A) M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	1506-	●	●
490	16.682 COVER; FRONT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY	8-97465-602-0	01	1	1506-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1506-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1506-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X18	8-94279-109-1	03	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER	8-98062-658-0	01	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> M8X25 W/LK WASHER	8-98062-658-0	02	1	1506-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> M8X32 W/LK WASHER	8-98062-659-0	02	1	1506-	●	●
639	16.679 CLIP; SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98315-960-0	02	1	1506-	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> (A)	8-98097-693-0	01	1	1506-	●	●
642	16.716 SLIDER; CUSHION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98315-971-0	02	1	1506-	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98286-369-0	02	1	1506-	●	●
663	16.724 GEAR; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-370-0	02	1	1506-	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A)	8-98286-363-0	02	1	1506-	●	●
664	16.724 COVER; SLIDE, SEATBACK SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B)	8-98286-364-0	02	1	1506-	●	●
665	16.716 GAGE; WEIGHT,SEAT SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98286-371-0	01	1	1506-	●	●
666	16.716 DIAL; WEIGHT GAGE SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98286-375-0	01	1	1506-	●	●
667	16.716 PAD; SEAT SUSPENSION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98315-951-0	01	1	1506-	●	●
668	16.716 TRIM COVER & PAD; SEAT CUSHION SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-97466-589-0	01	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
