7-20 — MIRROR AND MIRROR STAY (#162573) — 75 parça

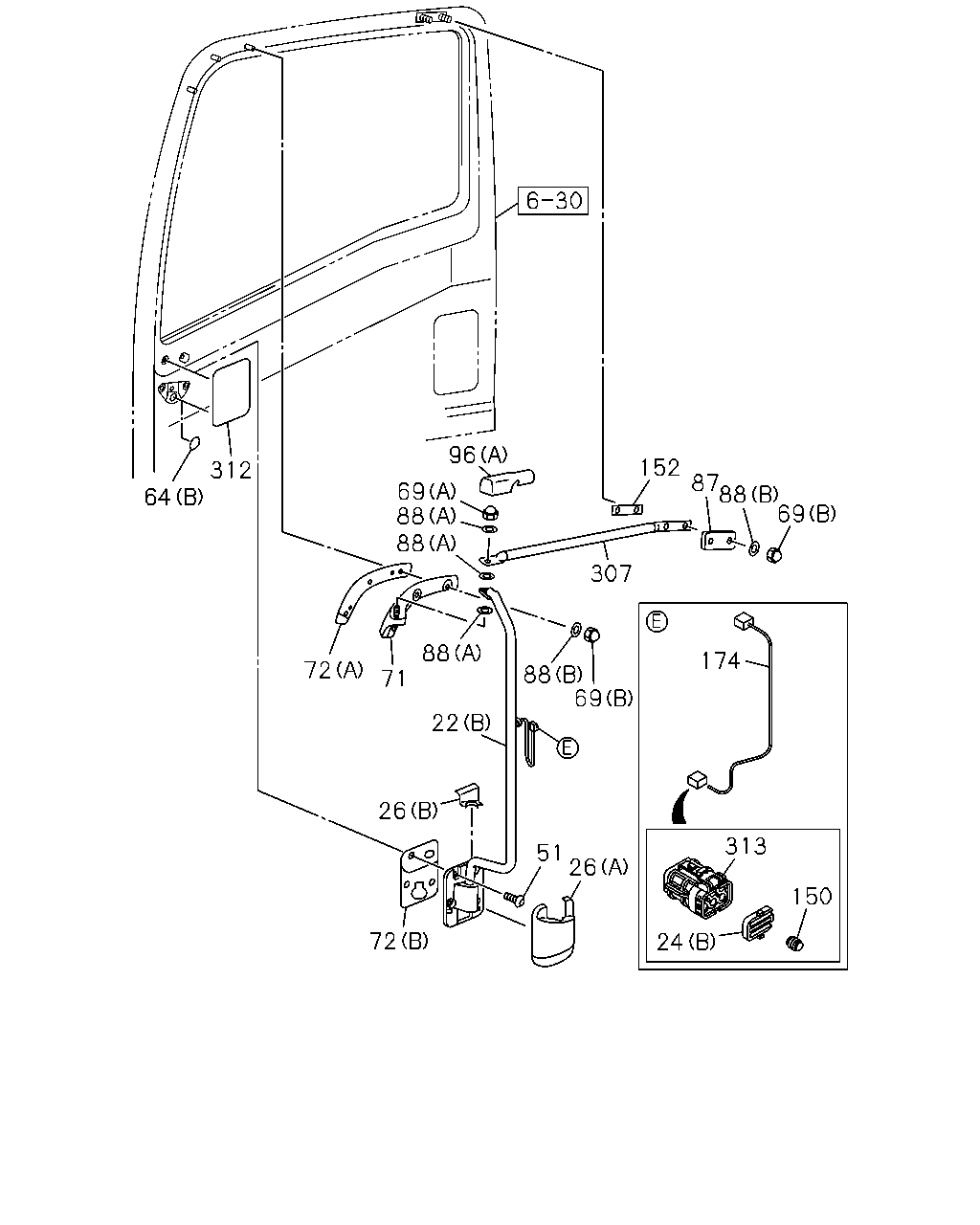

152 87 88 69 307 174 69 88 88 88 69 96 312 64 72 71 22 26 72 51 26 24 313 150 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98038-224-1	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-509-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-846-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-847-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-848-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-849-0	01	1	1506-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-94447-536-0	02	1	1506-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) T=1.6	8-94262-546-1	01	1	1506-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) T=1.6	8-94262-546-1	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1506-	●	●
51	16.069 SCREW; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 16.323 M8X23	8-97310-216-1	08	1	1506-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (B) OD=52 BLACK	1-76798-041-0	02	1	1506-	●	●
64	16.069 SEAL; MIRROR EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1506-	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) M10 CAP NUT	1-09984-134-0	02	1	1506-	●	●
69	16.069 NUT; CAP DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) M8 CAP NUT	8-98059-914-0	10	1	1506-	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-793-2	01	1	1506-	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98031-794-2	01	1	1506-	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-796-0	01	1	1506-	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-797-0	01	1	1506-	●	●
72	16.069 SHEET DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98080-418-0	02	1	1506-	●	●
87	16.069 SPACER DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-789-0	02	1	1506-	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1506-	●	●
88	16.069 WASHER; PL,SUPPORT STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1506-	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98027-552-2	02	1	1506-	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1506-	●	●
150	08.155 PLUG; MIRROR HOLE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	1-82691-026-0	02	1	1506-	●	●
152	16.069 SHEET; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-786-0	02	1	1506-	●	●
174	16.068 HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98137-208-0	02	1	1506-	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-784-2	01	1	1506-	●	●
307	16.069 STAY; MIRROR SUPPORT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98063-785-2	01	1	1506-	●	●
312	16.081 TAPE EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF>	8-98164-812-0	02	1	1506-	●	●
313	02.195 CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94447-532-0	02	1	1506-	●	●

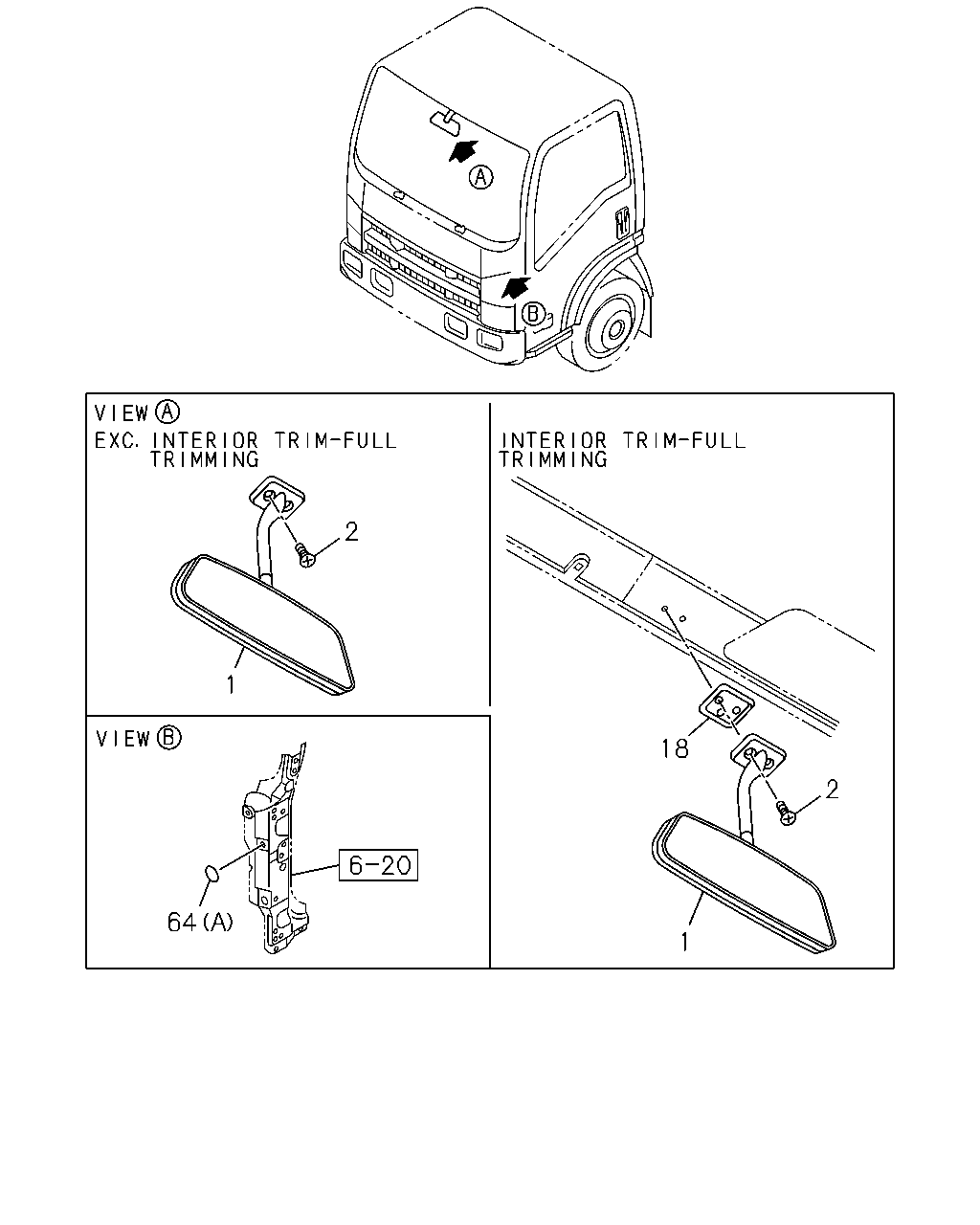

2 1 64 1 2 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.068 MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1506-	●	●
2	16.069 SCREW; MIRROR TO BODY 16.070 M6X26	8-98033-674-0	02	1	1506-	●	●
18	16.069 CLIP; MIRROR INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-241-0	01	1	1506-	●	●
64	16.069 SEAL; MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 16.332 (B) OD=52 BLACK	1-76798-041-0	02	1	1506-	●	●
64	16.069 SEAL; MIRROR EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LON G STAY<6TF> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1506-	●	●

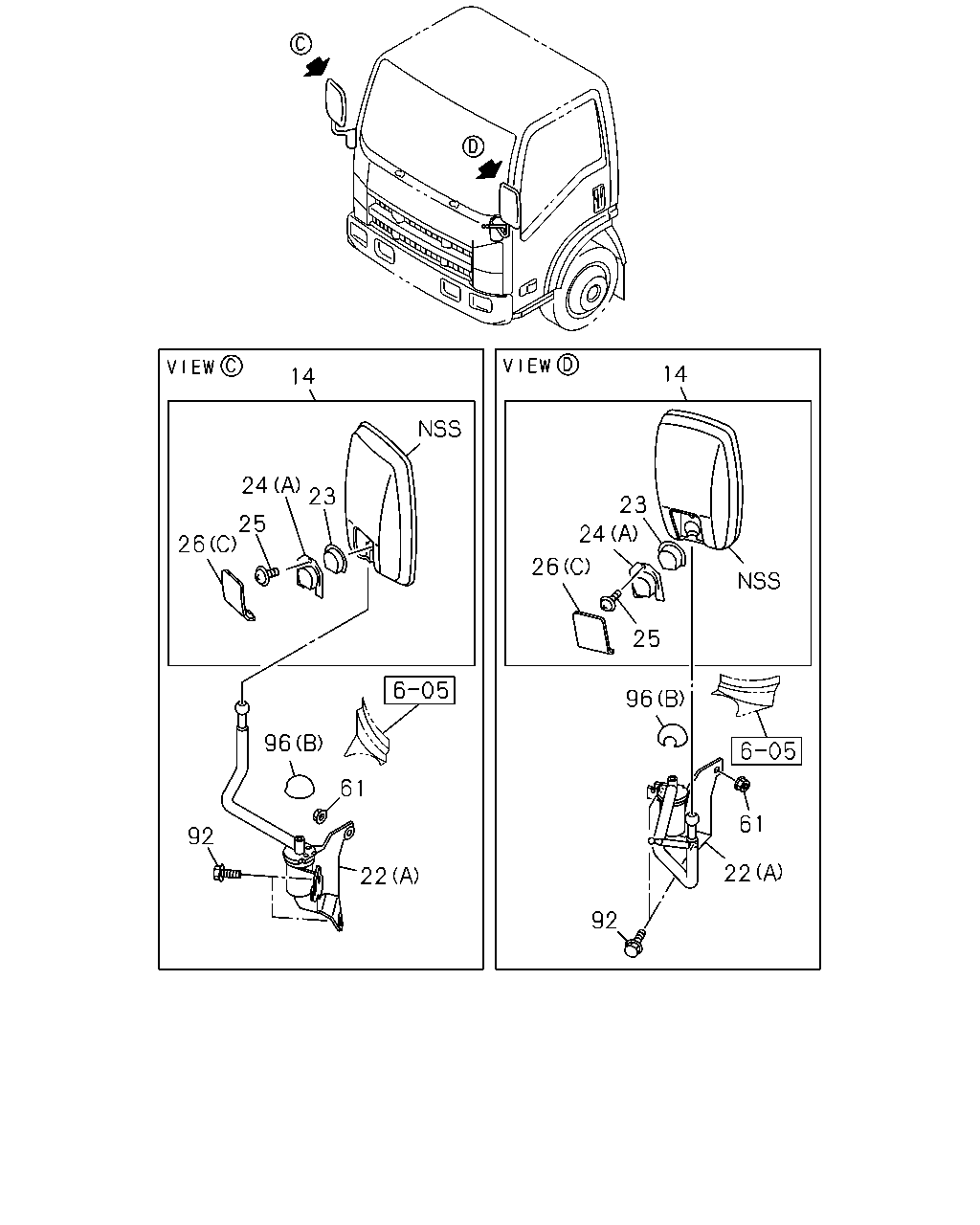

14 14 23 24 26 25 96 61 22 92 22 61 96 92 26 25 24 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-542-3	01	1	1506-	●	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF>	8-94262-542-3	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98038-224-1	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A)	8-98070-509-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-846-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-847-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-848-0	01	1	1506-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98158-849-0	01	1	1506-	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> T=2.0	8-94262-545-0	01	1	1506-	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> T=2.0	8-94262-545-0	01	1	1506-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-94447-536-0	02	1	1506-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) T=1.6	8-94262-546-1	01	1	1506-	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (A) T=1.6	8-94262-546-1	01	1	1506-	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M6X30	8-94279-365-0	01	1	1506-	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> M6X30	8-94279-365-0	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (C) T=2.3	8-94262-547-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1506-	●	●
26	16.069 COVER; OUTSIDE MIRROR DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1506-	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1506-	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STA Y<6TF> (B)	8-98027-552-2	02	1	1506-	●	●
96	16.069 CAP; MIRROR STAY DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1506-	●	●
