◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#162564) — 9 parça

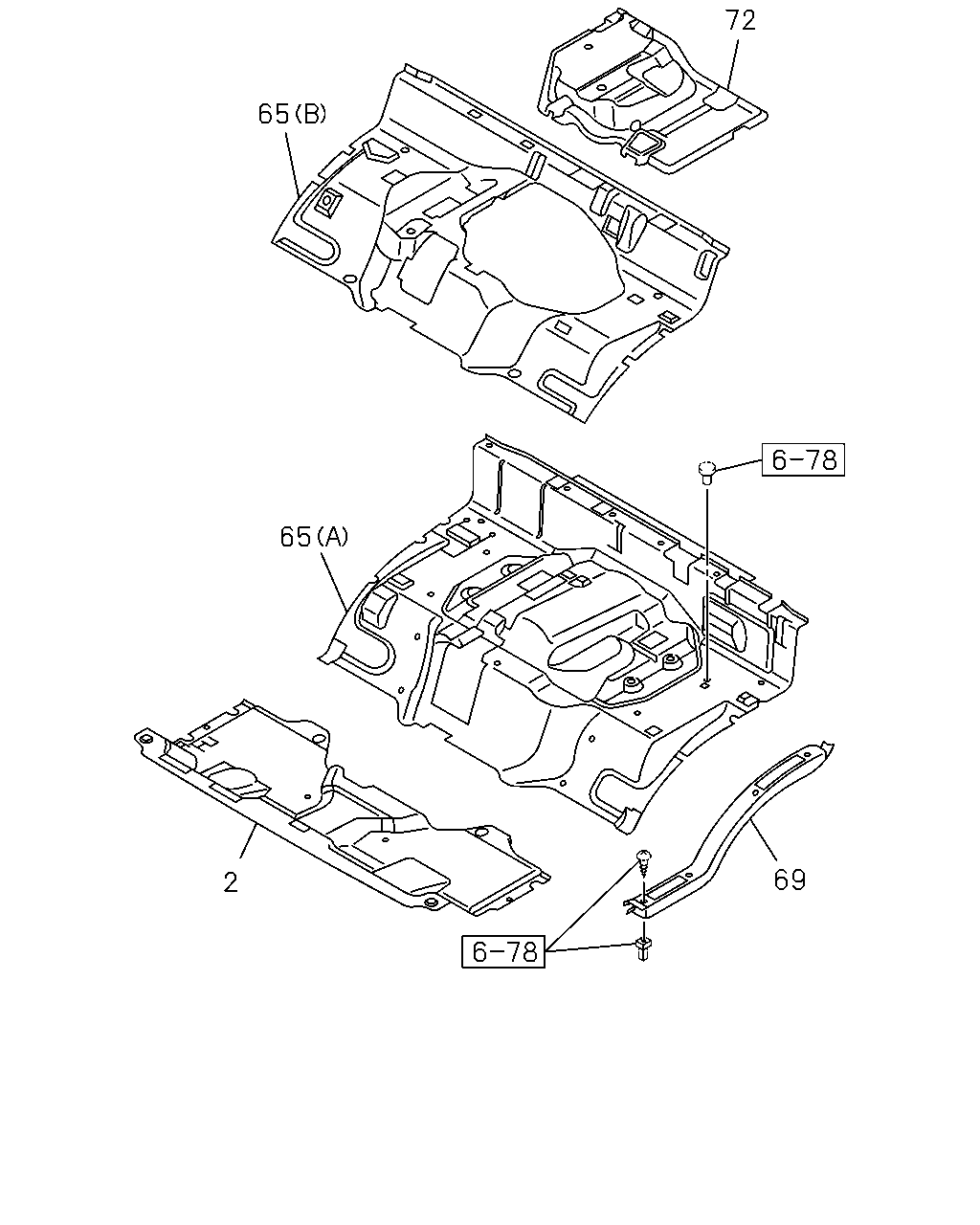

çizim 480680
69 2 72 65 65
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97406-155-6 01 1 1506- ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97406-154-6 01 1 1506- ●
2 16.800 MAT; FLOOR
GRAY 		8-97406-154-6 01 1 1506- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
NEW ZEALAND COUNTRY(CX6) INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97406-229-9 01 1 1506- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
NEW ZEALAND COUNTRY(CX6) EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97406-227-7 01 1 1506- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. NEW ZEALAND COUNTRY(CX6),INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97423-533-1 01 1 1506- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1506- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1506- ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1506- ● ●
