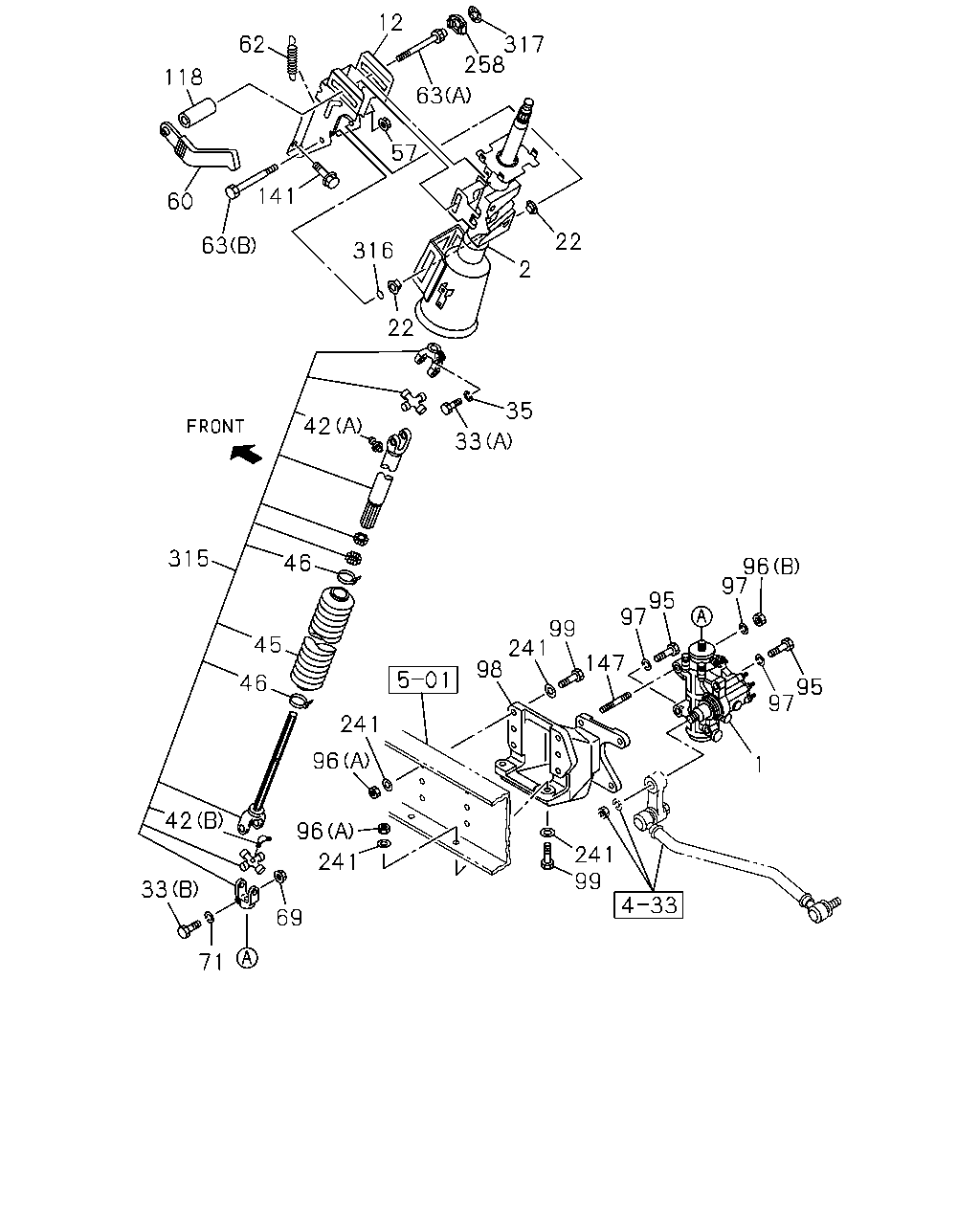

4-31 — STEERING COLUMN AND SHAFT
(#16256) — 33 parça
12
62
317
258
118
63
57
141
60
22
63
316
2
22
35
42
33
315
46
96
97
95
97
99
241
98
45
147
46
95
97
241
96
1
42
96
241
99
241
33
69
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98136-962-2
01
1
0907-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
0907-
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0907-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0907-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0907-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0907-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0907-
42
NIPPLE; GREASE,SLEEVE YOKE
(A)
1-44135-375-0
01
1
0907-
42
NIPPLE; GREASE,SLEEVE YOKE
(B)
1-44135-376-0
01
1
0907-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0907-
46
CLIP; BOOT
1-44139-156-0
02
1
0907-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0907-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0907-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0907-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0907-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0907-
69
NUT; TILT CENTER
M10 FLANGE
0-91180-210-0
01
1
0907-1006
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
1007-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0907-
95
BOLT; STRG UNIT
M18X65
1-09000-789-0
03
1
0907-
96
NUT; STRG UNIT
(A) M16
0-91110-516-0
08
1
0907-
96
NUT; STRG UNIT
(B) M18
0-91110-518-0
01
1
0907-
97
WASHER; PL,STRG UNIT
ID=18
9-09851-862-0
04
1
0907-
98
BRACKET; STRG GEAR BOX
1-44226-171-1
01
1
0907-
99
BOLT; BRKT TO FRAME
M16X55
1-09000-480-0
08
1
0907-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0907-
141
BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE
0-28050-816-0
04
1
0907-
147
STUD; STRG UNIT
M18X49 L=76
1-09300-107-0
01
1
0907-
241
WASHER; PL
ID=16.2
1-09503-316-0
16
1
0907-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0907-
315
JOINT; SPLINE
1-44135-377-0
01
1
0907-
316
RING
1-44227-152-0
01
1
0907-
317
NUT; PUSH
1-44227-148-0
01
1
0907-
