◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#162546) — 52 parça

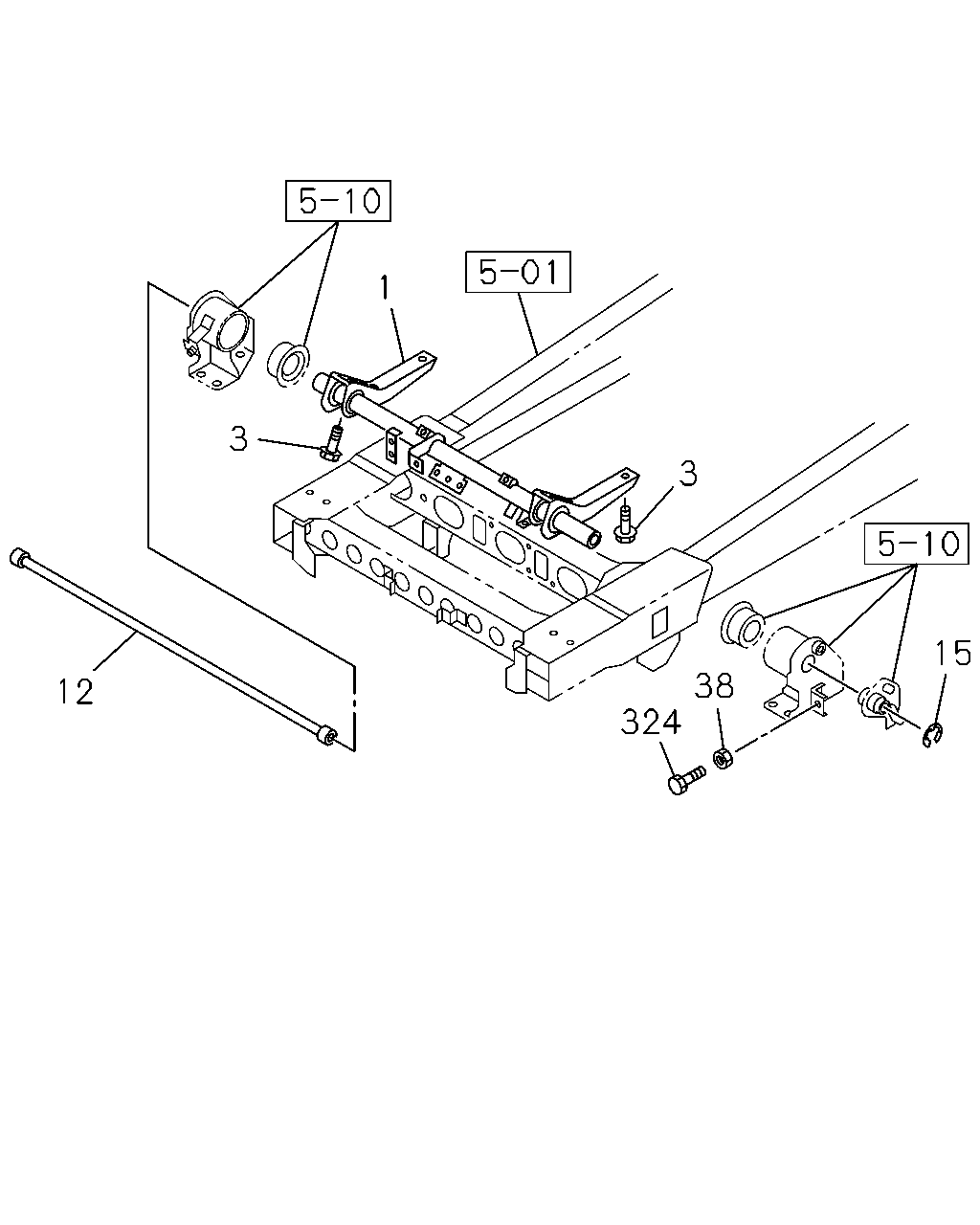

çizim 479763
1 3 3 324 38 15 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-98001-433-2 01 1 1506- ● ●
3 09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97359-033-0 06 1 1506- ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98312-775-0 01 1 1506- ● ●
12 09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> EXC. SUSP SEAT 130KG W/SEAT BELT ANCHORAG E<WN5> 		8-98001-520-0 01 1 1506- ● ●
15 09.003 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97359-034-0 01 1 1506- ● ●
38 09.005 NUT; LK
MANUAL TILT CAB<RWZ> M14 		8-98039-988-0 01 1 1506- ● ●
324 09.003 BOLT; ADJUST
MANUAL TILT CAB<RWZ> M14X55 		8-98004-319-1 01 1 1506- ● ●

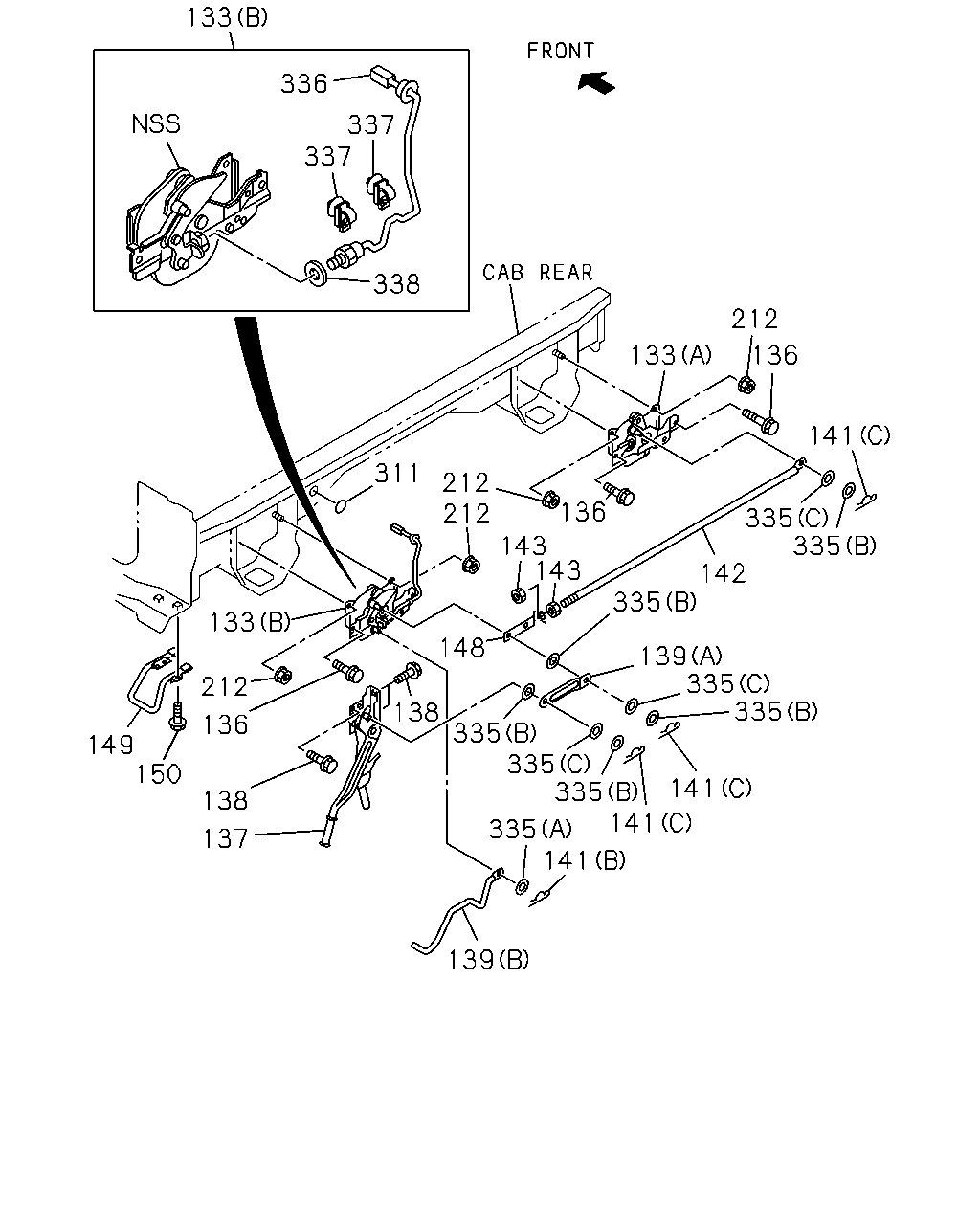

çizim 479774
133 336 337 337 338 133 212 141 335 335 335 142 212 311 212 136 143 143 139 335 335 141 141 335 335 335 148 138 139 335 141 133 212 136 138 137 150 149
BalonParca AdiParca NoAdetTipApplied Date A B
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> (A) 		8-98182-353-0 01 1 1506- ● ●
133 09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> (B) 		8-98182-354-0 01 1 1506- ● ●
136 09.005 BOLT; CAB LK
MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1506- ● ●
137 09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97411-004-3 01 1 1506- ● ●
138 09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 1506- ● ●
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> (A) 		8-97584-483-2 01 1 1506- ● ●
139 09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> (B) 		8-98128-201-0 01 1 1506- ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (A) L=32.6 		1-09987-142-0 01 1 1506- ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (B) L=25.3 		8-98039-045-1 01 1 1506- ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (C) L=34 		8-98039-426-1 03 1 1506- ● ●
142 09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97410-272-0 01 1 1506- ● ●
143 09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 00.833 M10 		0-91110-510-0 02 1 1506- ● ●
148 09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97410-736-0 01 1 1506- ● ●
149 16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ> 		8-98067-938-0 01 1 1506- ● ●
150 16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
212 09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE 		0-91180-108-0 04 1 1506- ● ●
311 09.005 SEAL; CAB LOCK
EXC. MANUAL TILT CAB<RWZ> 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1506- ● ●
335 09.005 WASHER; CAB LOCK ROD
MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22 		0-91610-512-0 05 1 1506- ● ●
335 09.005 WASHER; CAB LOCK ROD
MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14 		5-09550-002-0 01 1 1506- ● ●
335 09.005 WASHER; CAB LOCK ROD
MANUAL TILT CAB<RWZ> (C) ID=13 OD=22 		8-98060-839-0 03 1 1506- ● ●
336 03.001 SWITCH; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-98032-665-2 01 1 1506- ● ●
337 09.001 CLIP; CAB LOCK
MANUAL TILT CAB<RWZ> 02.559 L=155 		8-97173-307-0 02 1 1506- ● ●
338 09.005 WASHER; CAB LOCK
MANUAL TILT CAB<RWZ> 04.429 ID=17 OD=30 		0-91610-516-0 01 1 1506- ● ●

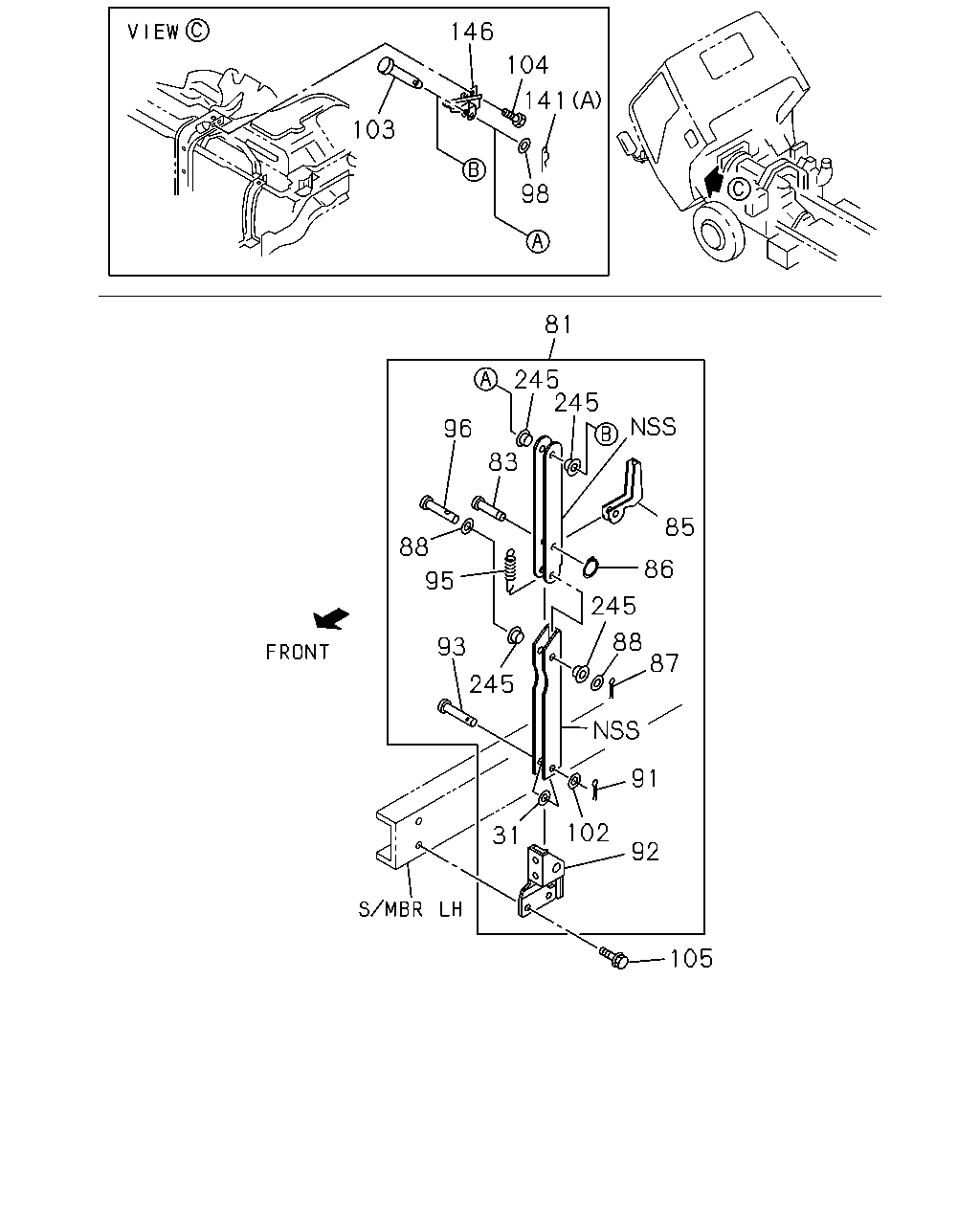

çizim 480424
103 146 104 141 98 81 245 245 85 86 245 88 87 91 92 102 31 245 93 95 88 96 83 105
BalonParca AdiParca NoAdetTipApplied Date A B
31 09.003 WASHER; WAVE
MANUAL TILT CAB<RWZ> 09.005 ID=13 OD=22 		8-98060-839-0 01 1 1506- ● ●
81 09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> 		8-98123-308-0 01 1 1506- ● ●
83 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> 		8-98122-493-0 01 1 1506- ● ●
85 09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 1506- ● ●
86 09.003 RING; SNAP,LOCK LEVER,CAB STAY
MANUAL TILT CAB<RWZ> 16.585 ID=6 		0-91805-506-0 01 1 1506- ● ●
87 09.003 PIN; SPLIT,CAB STAY PIN
MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20 		0-81123-020-0 01 1 1506- ● ●
88 09.003 WASHER; PL,CAB STAY PIN
MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6 		0-91610-610-0 02 1 1506- ● ●
91 09.003 PIN; SPLIT,CAB STAY
MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20 		0-81124-020-0 01 1 1506- ● ●
92 09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> 		8-97385-586-1 01 1 1506- ● ●
93 09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> 		8-98122-498-0 01 1 1506- ● ●
95 09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 1506- ● ●
96 09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> 		8-98123-513-0 01 1 1506- ● ●
98 09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0 		1-09985-183-0 01 1 1506- ● ●
102 09.003 WASHER; PL,CAB STAY
MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26 		0-91610-612-0 01 1 1506- ● ●
103 09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=10 L=48 		1-09744-107-0 01 1 1506- ● ●
104 09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE 		0-28660-820-0 03 1 1506- ● ●
105 09.003 BOLT; CAB STAY
MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506- ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (A) L=32.6 		1-09987-142-0 01 1 1506- ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (B) L=25.3 		8-98039-045-1 01 1 1506- ● ●
141 09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> (C) L=34 		8-98039-426-1 03 1 1506- ● ●
146 09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> 		8-98035-848-1 01 1 1506- ● ●
245 09.003 BUSHING; CAB STAY
MANUAL TILT CAB<RWZ> 		1-62500-587-0 04 1 1506- ● ●
