4-80 — ROAD WHEEL (#162543) — 14 parça

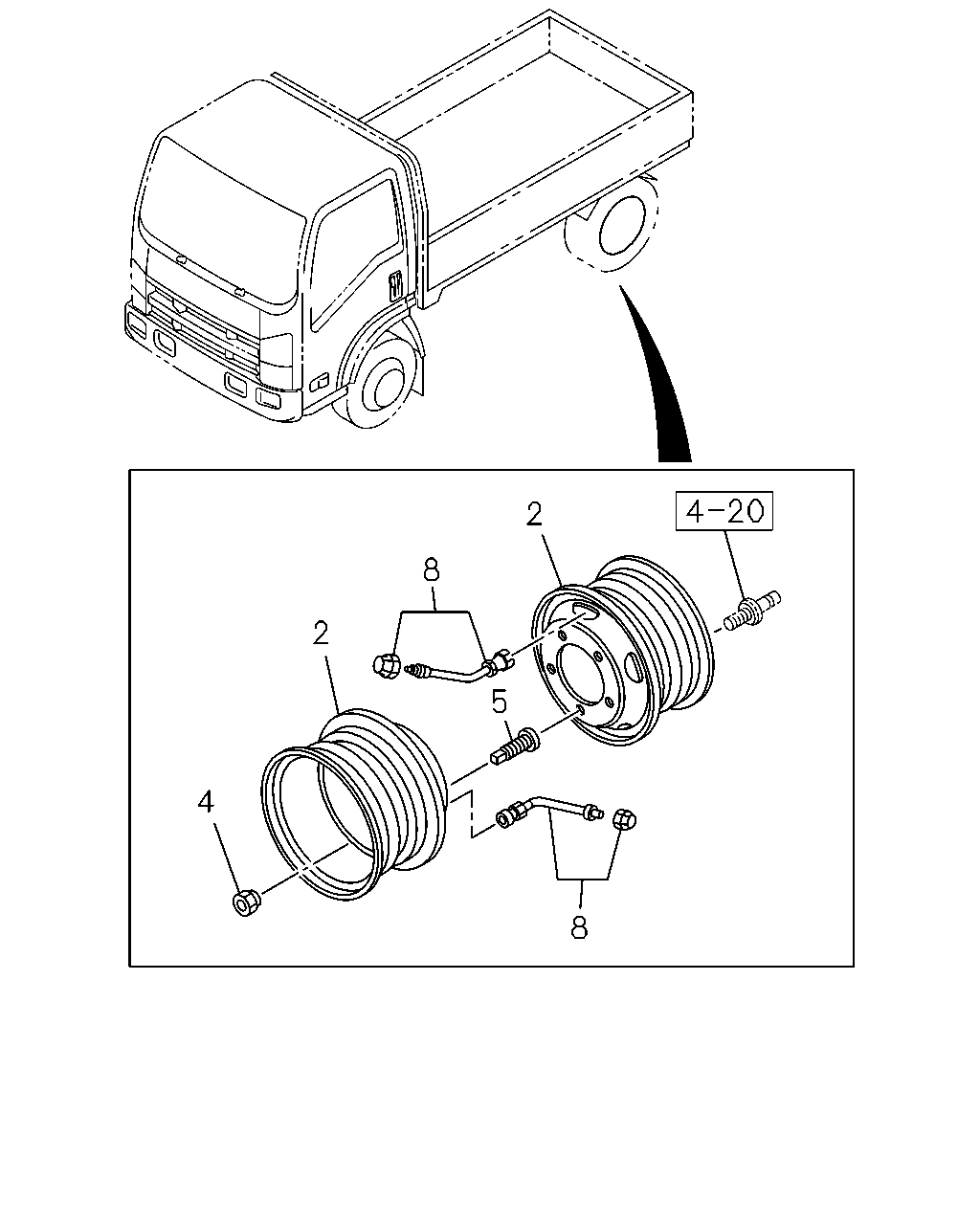

çizim 479684

4 2 2 8 8 5

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	05.803 WHEEL; DISC SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-	●	●
	2	05.803 WHEEL; DISC FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-	●	●
	4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1506-	●	●
	4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1506-	●	●
	5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1506-	●	●
	5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1506-	●	●
	8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-	●	●
	8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-	●	●

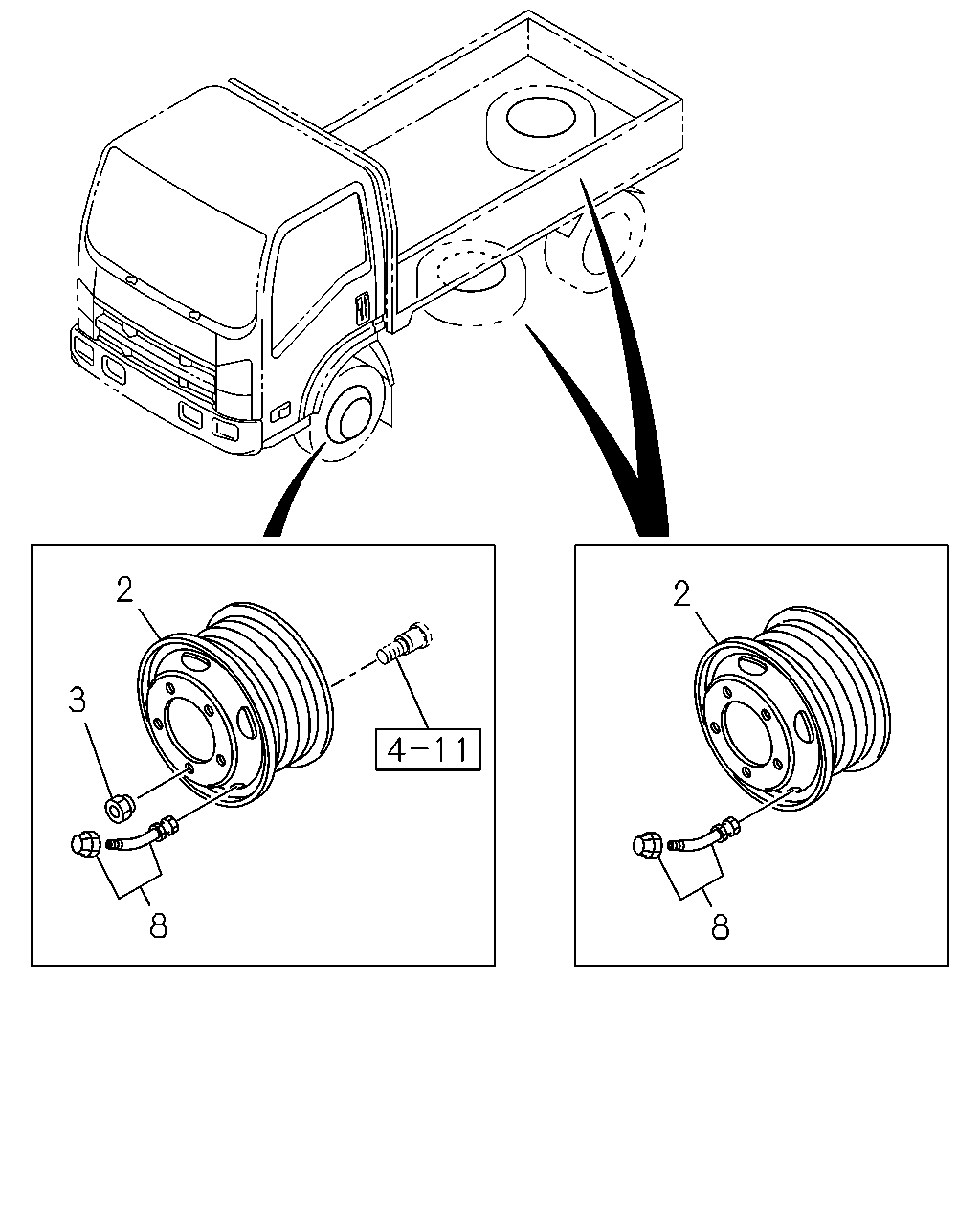

çizim 480345

2 3 8 8 2

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	05.803 WHEEL; DISC SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-	●	●
	2	05.803 WHEEL; DISC FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-	●	●
	3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1506-	●	●
	3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1506-	●	●
	8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-	●	●
	8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
