◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65D - REAR LEAF SPRING ▶
4-65D — REAR LEAF SPRING (#162542) — 16 parça

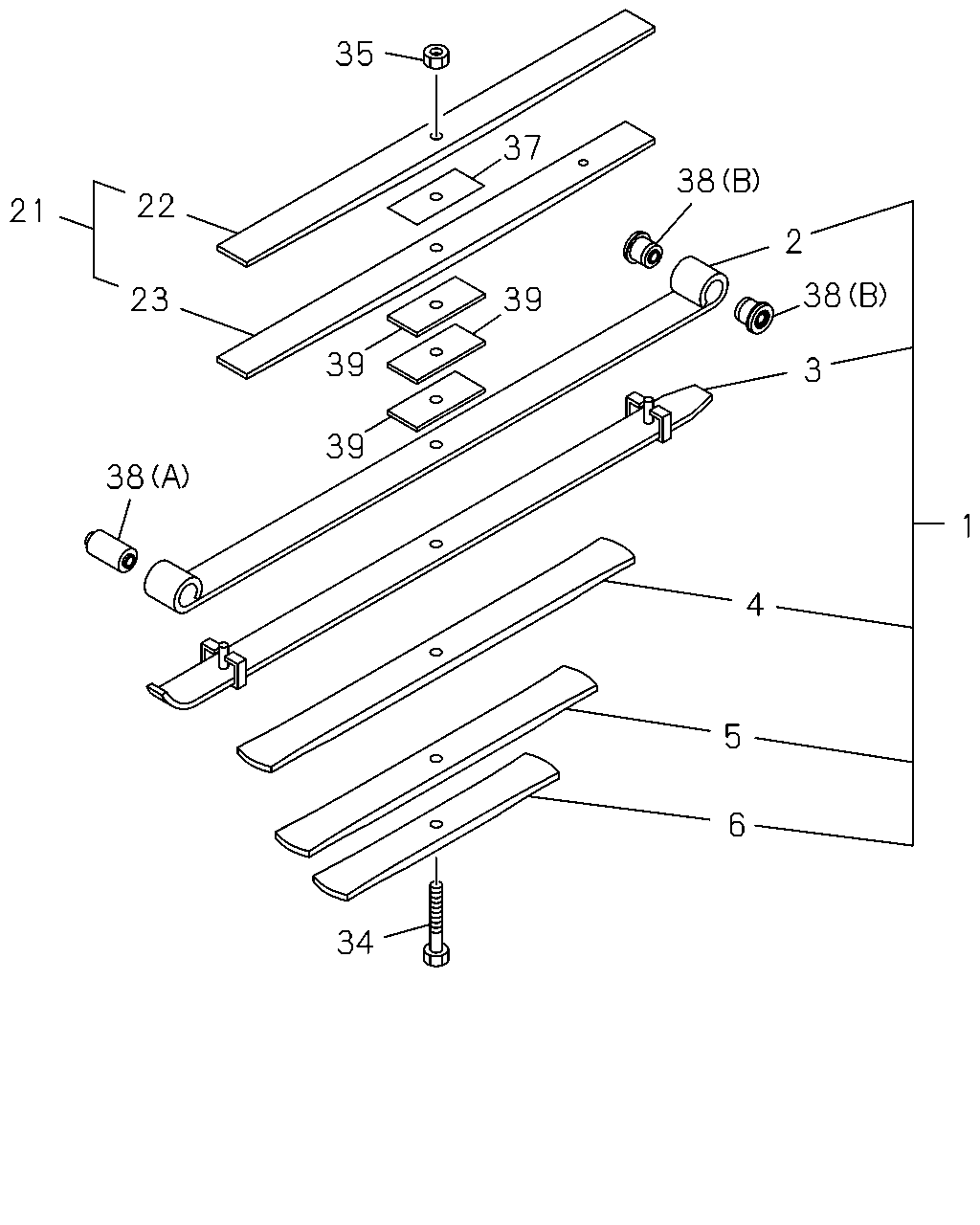

çizim 480263
21 22 23 38 39 39 39 37 35 38 2 34 6 5 4 3 38 1
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-193-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-194-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-195-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-196-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-197-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-198-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-199-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-200-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98258-484-0, 98258484 		8-98259-201-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=130 ASM PART: A = 8-98258-484-0, 98258484 		8-98041-355-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98258-484-0, 98258484 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98258-484-0, 98258484 		8-97084-102-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98258-484-0, 98258484 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98258-484-0, 98258484 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98258-484-0, 98258484 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
07.513, T=9 ASM PART: A = 8-98258-484-0, 98258484 		8-98040-314-0 03 1 -
