4-65C — REAR LEAF SPRING (#162541) — 14 parça

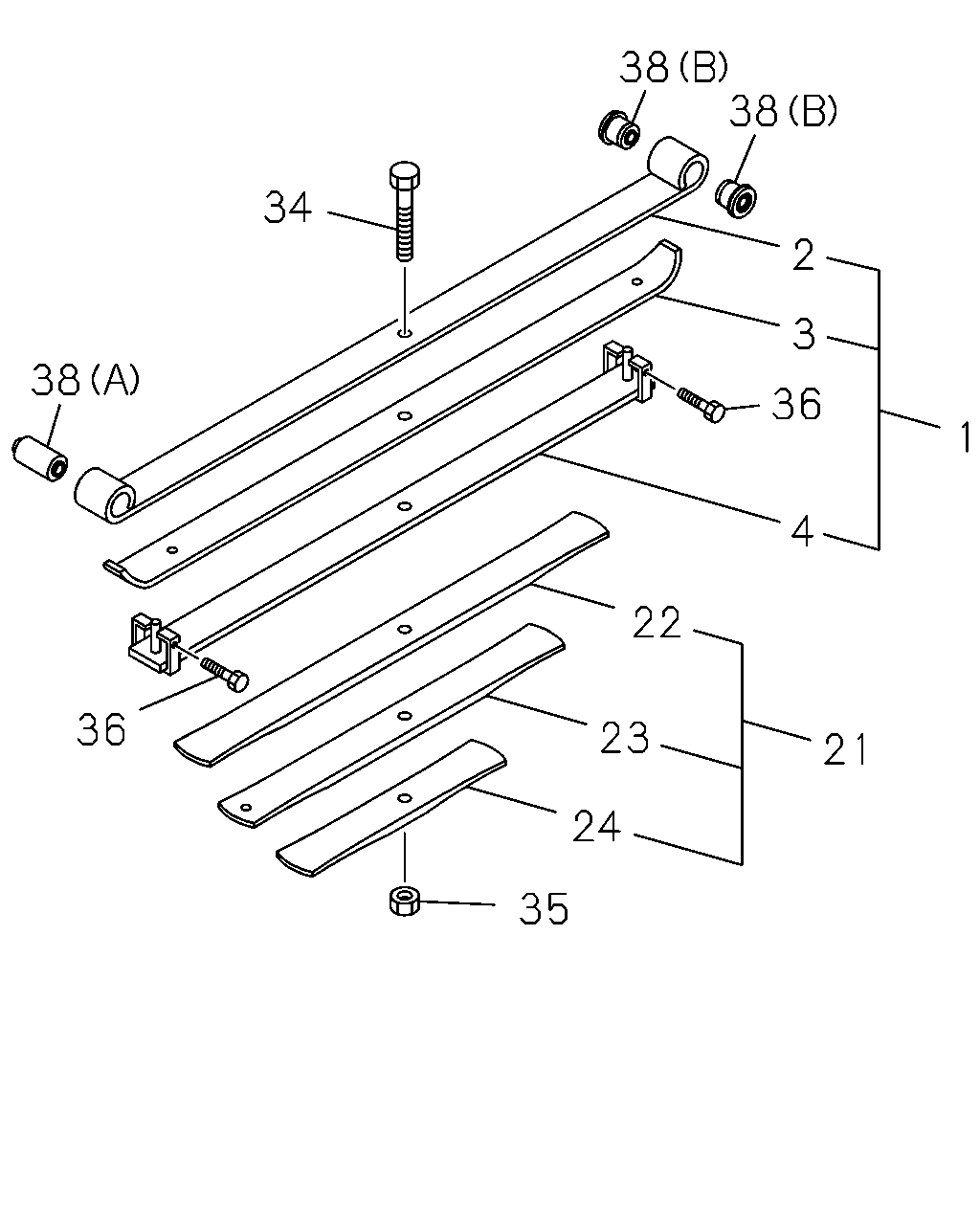

çizim 480243
35 36 24 23 22 21 4 36 3 2 38 38 38 34 1
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-044-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-045-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-046-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-047-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-048-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-049-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-050-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98253-318-0, 98253318 		8-98254-051-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=110 ASM PART: A = 8-98253-318-0, 98253318 		8-98040-312-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98253-318-0, 98253318 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98253-318-0, 98253318 		8-98040-331-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98253-318-0, 98253318 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98253-318-0, 98253318 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98253-318-0, 98253318 		8-97374-410-0 02 1 -
