◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#162540) — 13 parça

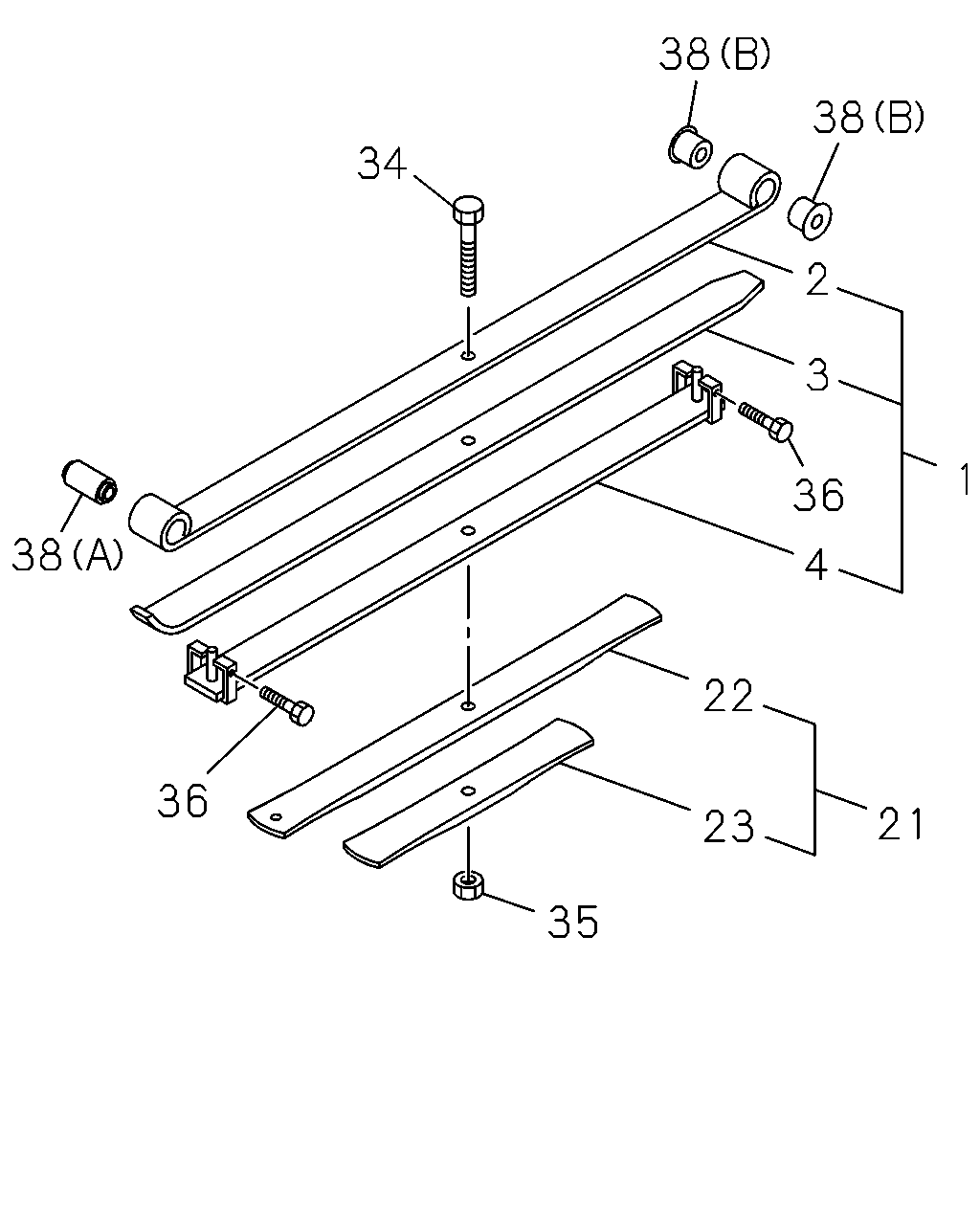

çizim 480367
38 34 38 3 36 22 23 21 4 38 2 36 35 1
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-510-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-511-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-512-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-513-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-514-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-515-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98048-271-0, 98048271 		8-98055-516-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-98048-271-0, 98048271 		8-98037-590-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98048-271-0, 98048271 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98048-271-0, 98048271 		8-98040-331-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98048-271-0, 98048271 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98048-271-0, 98048271 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98048-271-0, 98048271 		8-97374-410-0 02 1 -
