◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#162537) — 34 parça
çizim 480253
180 153 182 15 15 180 182 227 230 182 225 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 5-LEAF 		8-98048-271-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 3-LEAF 		8-98252-082-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 3-LEAF 		8-98022-372-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> 6-LEAF 		8-98253-318-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 7-LEAF 		8-98258-484-0 02 1 1506- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1506- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1506- ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=19 		8-97360-119-0 02 1 1506- ● ●
180 07.529 PIN; RR SPR
07.427 (B) M16X122 FLANGE 		8-97360-110-0 02 1 1506- ● ●
180 07.529 PIN; RR SPR
(A) M18X130 FLANGE 		8-97360-112-0 02 1 1506- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1506- ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1506- ● ●
225 07.535 RUBBER; CUSHION,RR SPR
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 		8-98187-342-0 02 1 1506- ●
225 07.535 RUBBER; CUSHION,RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98187-342-0 02 1 1506- ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-554-0 02 1 1506- ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1506- ● ●
230 07.518 SPACER; CUSHION RUBBER
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-97136-852-0 02 1 1506- ● ●

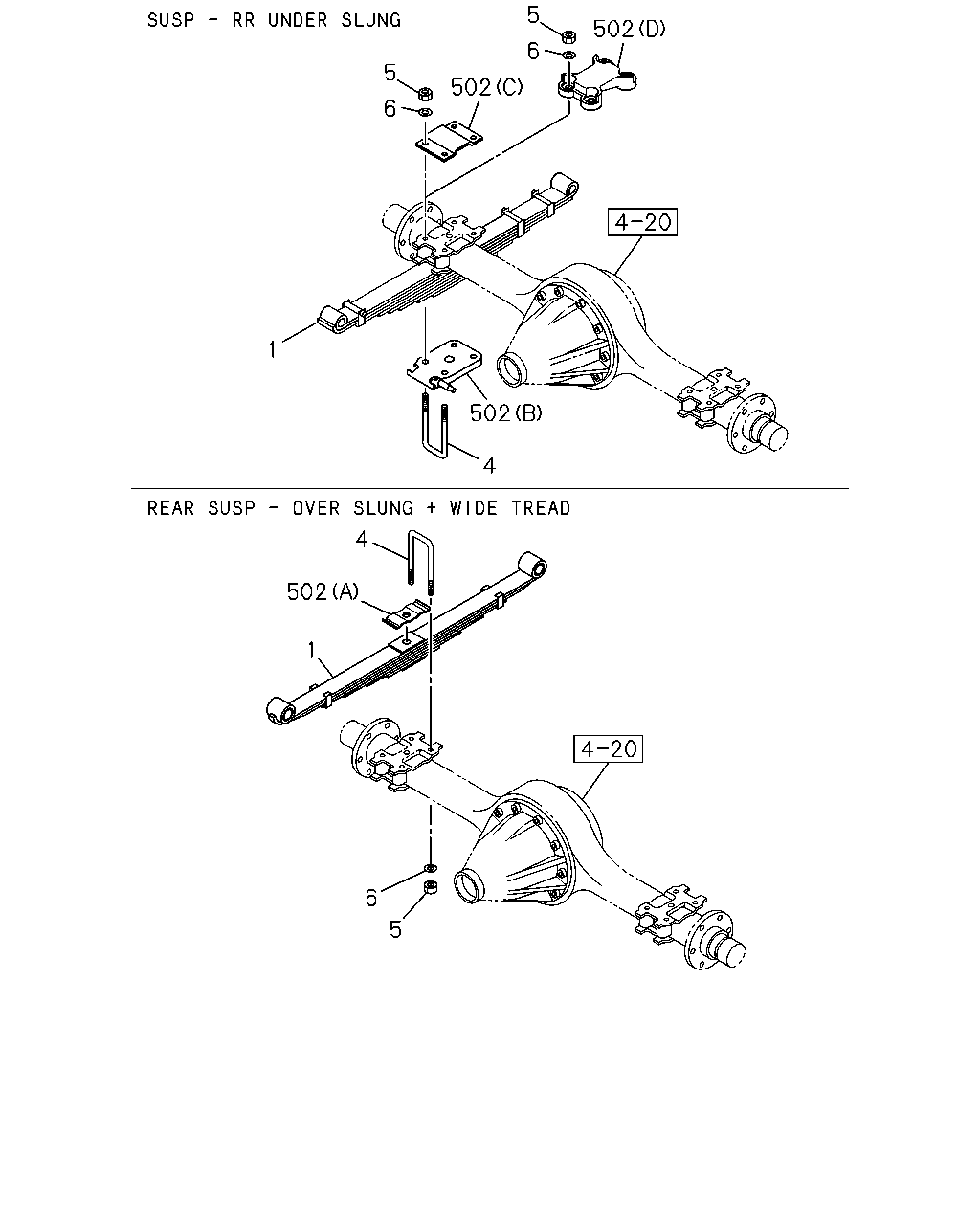

çizim 480390
5 6 502 5 502 4 1 502 4 1 502 6 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 5-LEAF 		8-98048-271-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 3-LEAF 		8-98252-082-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 3-LEAF 		8-98022-372-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> 6-LEAF 		8-98253-318-0 02 1 1506- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 7-LEAF 		8-98258-484-0 02 1 1506- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> L=235 		8-97262-039-0 04 1 1506- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> L=245 		8-94127-921-3 04 1 1506- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> L=255 		8-94127-922-3 04 1 1506- ●
4 07.516 U-BOLT; RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> L=260 		8-94157-016-1 04 1 1506- ●
4 07.516 U-BOLT; RR SPR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> L=265 		8-94127-923-3 04 1 1506- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1506- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1506- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (C) L=176 T=8 		8-97136-907-0 02 1 1506- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-325-2 01 1 1506- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-326-2 01 1 1506- ● ●
502 07.506 CLAMP; RR LEAF SPR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1506- ● ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (D) 		8-97383-975-0 02 1 1506- ●
