◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#162521) — 39 parça

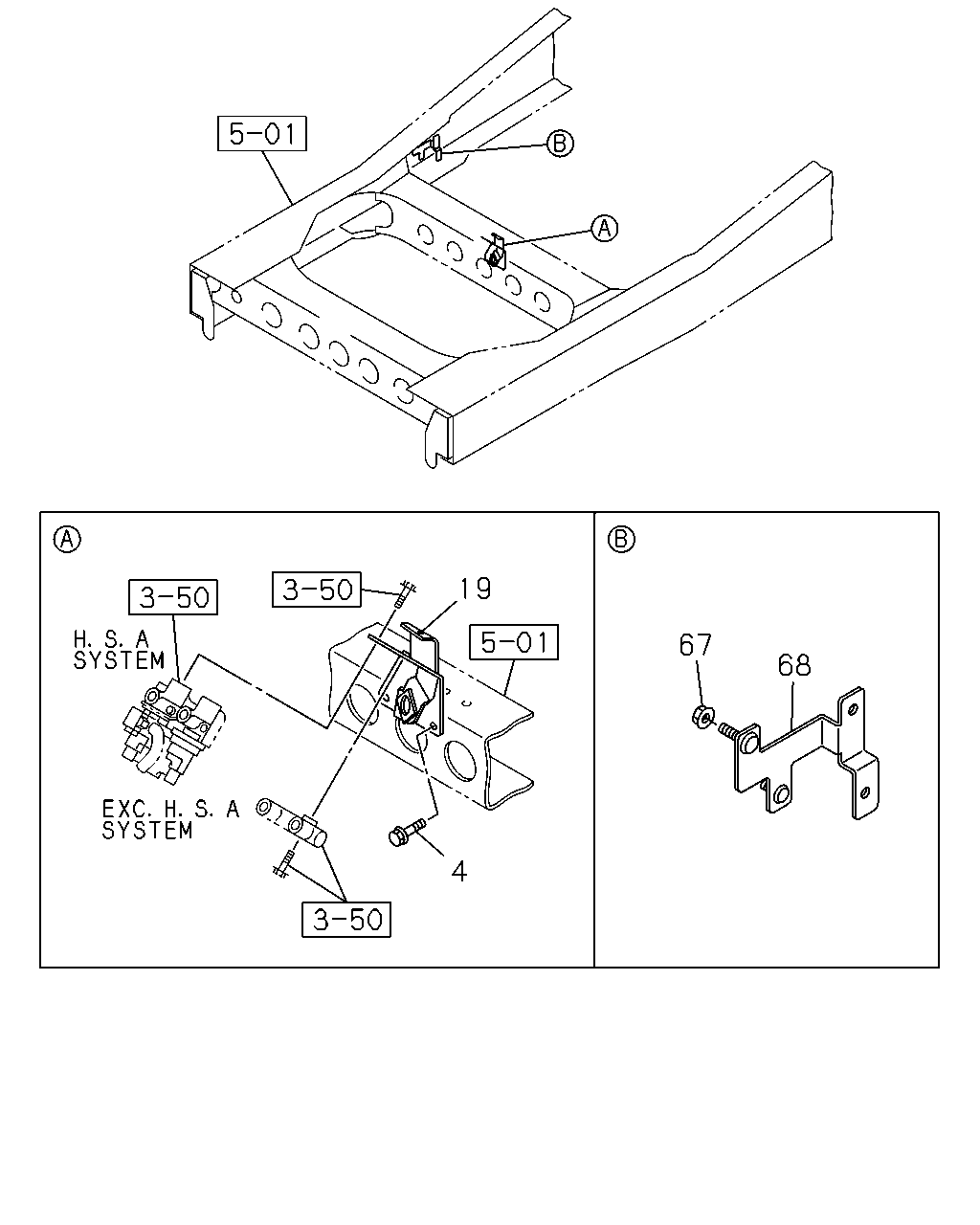

çizim 479401
4 19 67 68
BalonParca AdiParca NoAdetTipApplied Date A B
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
19 04.686 BRACKET; OIL PIPE 8-98162-759-0 01 1 1506- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
68 04.686 BRACKET; CLIP 8-98039-558-2 01 1 1506- ● ●

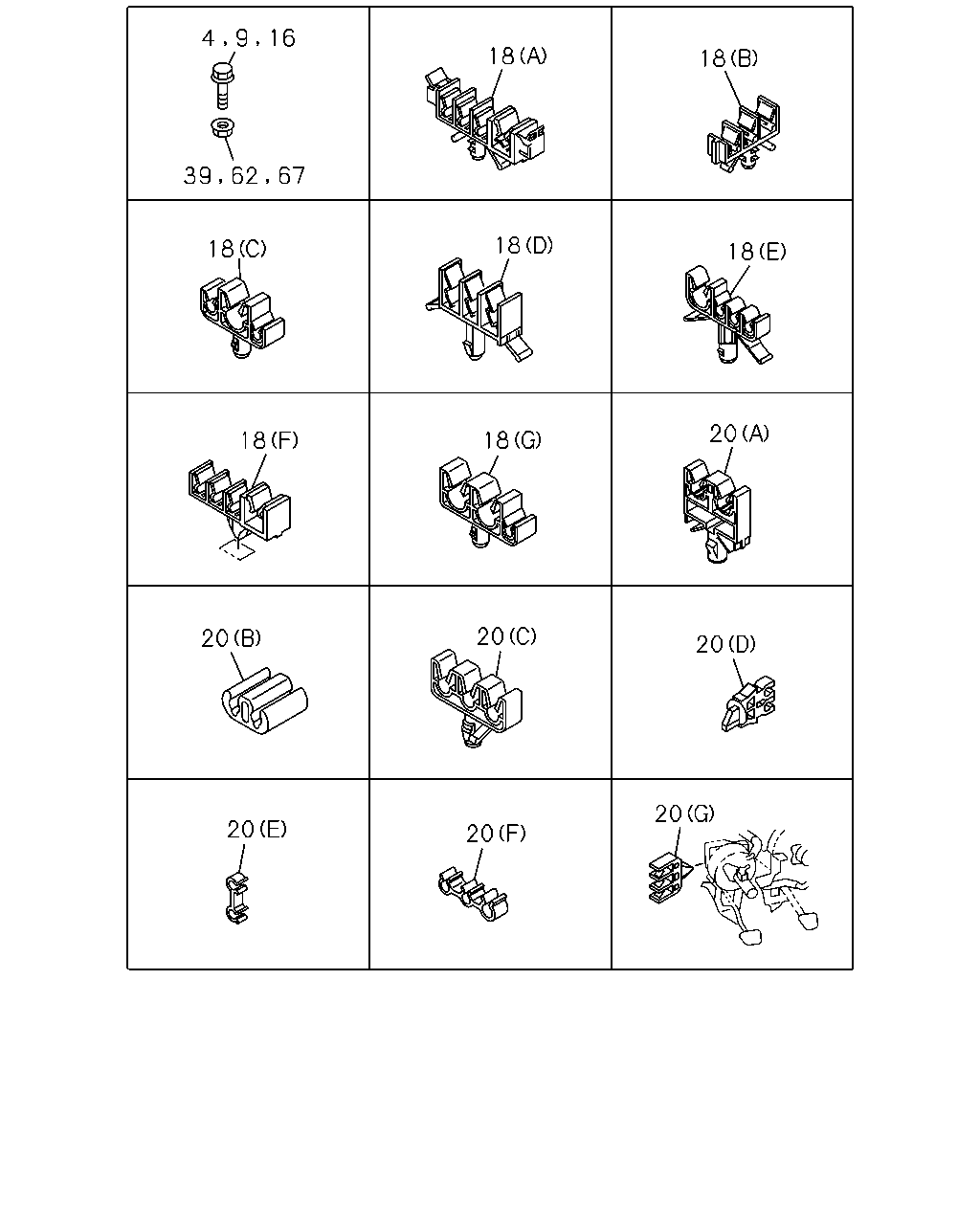

çizim 480317
4 9 16 39 18 18 18 18 18 18 20 20 18 20 20 20 20 20 62 67
BalonParca AdiParca NoAdetTipApplied Date A B
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ● ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1506- ● ●
16 04.686 BOLT; BRKT TO FRAME
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
H.S.A SYSTEM<6EP> NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
HILL HOLD ASSIST<SLD> (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1506-1507 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1508- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2400MM(24W) (A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1508- ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 01 1 1508- ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 06 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
H.S.A SYSTEM<6EP> NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
H.S.A SYSTEM<6EP> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1508- ● ●
18 04.686 CLIP; BRK PIPE
HILL HOLD ASSIST<SLD> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1508- ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 1508- ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> 04.128 (G) ID=10 OR 12X2 & 4.76 		8-98058-323-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (A) ID=10 & 4.76X3 		8-97326-158-1 04 1 1506- ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 02 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 03 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
NEW ZEALAND COUNTRY(CX6) 04.685 (D) 		8-94128-307-0 01 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
NEW ZEALAND COUNTRY(CX6) (F) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
NEW ZEALAND COUNTRY(CX6) (G) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
NEW ZEALAND COUNTRY(CX6) (E) 		8-94338-104-0 01 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
EXC. NEW ZEALAND COUNTRY(CX6) 03.162 (B) ID=6.35 & 6.35 		8-94474-113-0 01 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
EXC. NEW ZEALAND COUNTRY(CX6) (C) ID=4.76X3 		8-98196-265-0 02 1 1506- ● ●
20 04.686 CLIP; BRK PIPE
EXC. NEW ZEALAND COUNTRY(CX6) (A) 		8-98204-480-0 01 1 1506- ● ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE 		0-91180-110-0 02 1 1506- ● ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
