3-55 — BRAKE PIPING; OIL,REAR (#162520) — 24 parça

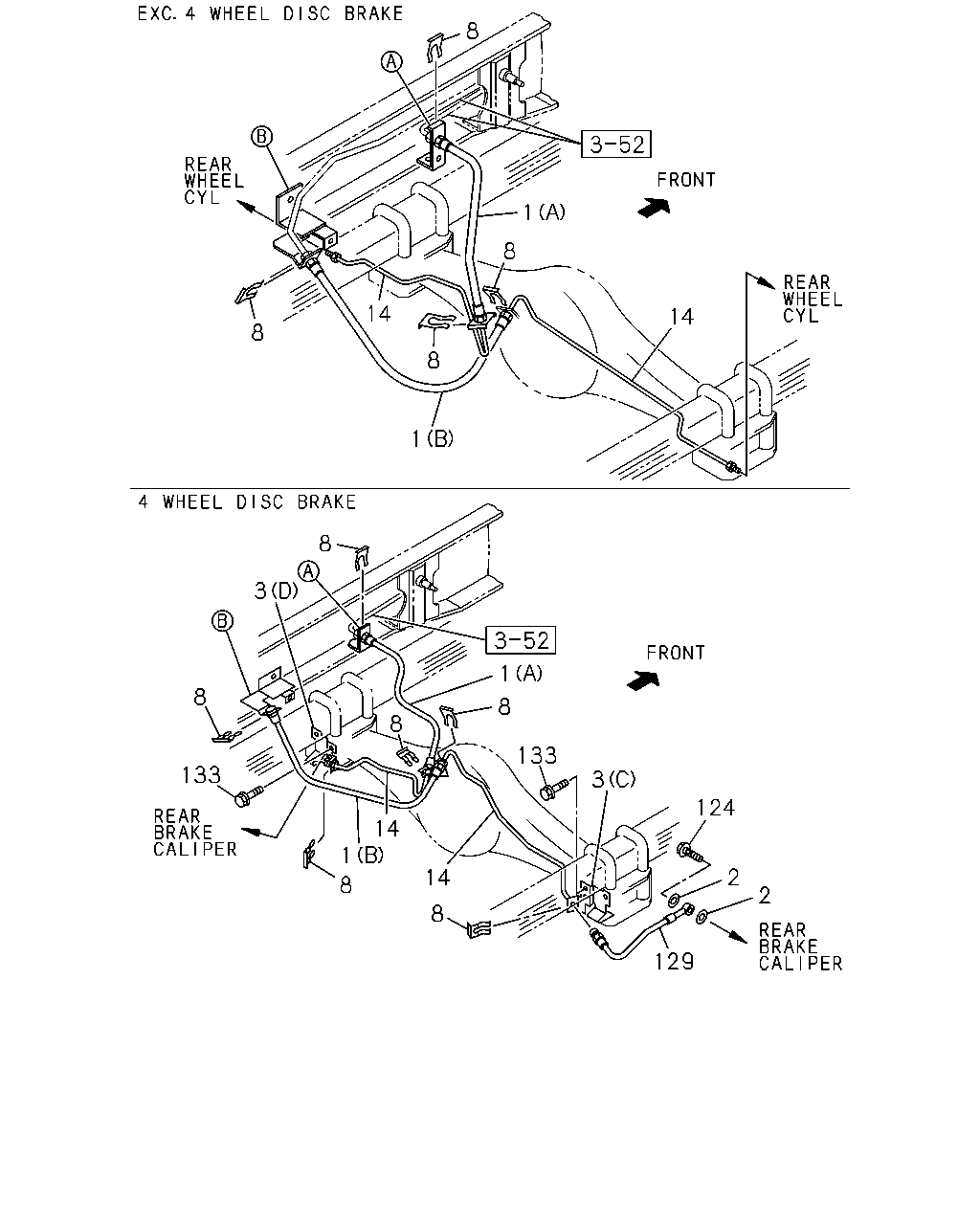

çizim 479625
8 8 14 8 1 1 8 14 8 3 8 133 1 8 8 1 8 133 14 8 3 124 2 2 129 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1506- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1506- ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-625-3 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98153-296-0 01 1 1506- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1506- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-876-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL DISC BRAKE<JF9> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 		8-98021-880-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98021-871-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98021-879-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-193-0 01 1 1506- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 		8-98034-196-0 01 1 1506- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1506- ● ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1506- ● ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1506- ● ●
çizim 480096
3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-625-3 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (D) 		8-98037-626-3 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1506- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98153-296-0 01 1 1506- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 04 1 1506- ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1506- ●
