◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#162518) — 59 parça

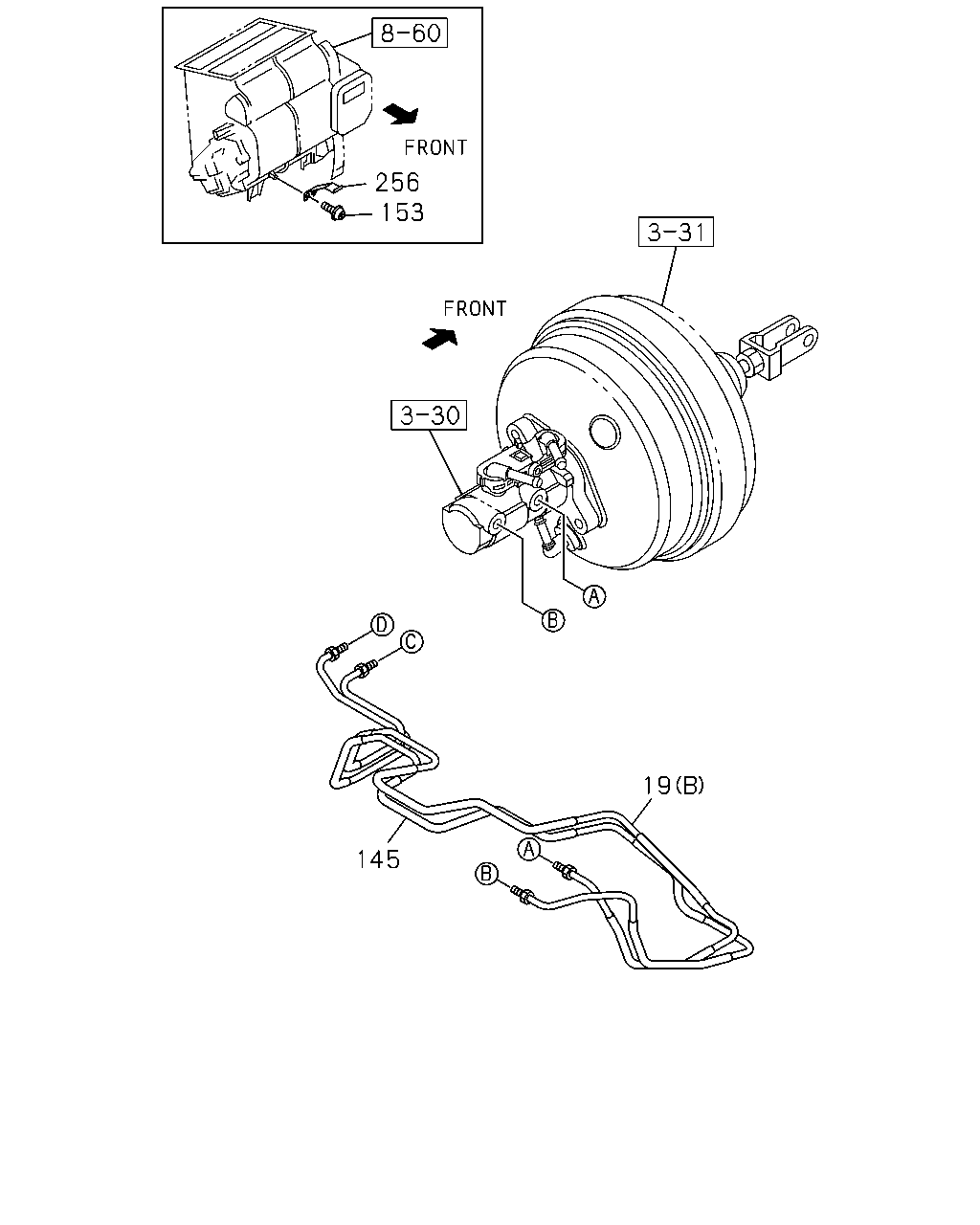

çizim 479448
256 153 19 145
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
NEW ZEALAND COUNTRY(CX6) (B) L=1274 		8-98115-279-1 01 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
NEW ZEALAND COUNTRY(CX6) EXC. HILL HOLD ASSIST<SLD> (A) 		8-98012-095-1 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD> (A) 		8-98206-894-0 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HILL HOLD ASSIST<SLD> (A) 		8-98206-894-0 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. NEW ZEALAND COUNTRY(CX6) (B) 		8-98220-478-1 01 1 1506- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
NEW ZEALAND COUNTRY(CX6) L=1371 		8-98115-269-1 01 1 1506- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98220-477-1 01 1 1506- ● ●
153 04.730 SCREW; BRKT FIX
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1506- ● ●
256 04.840 BRACKET; BRK PIPE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 		8-98163-521-0 01 1 1506- ● ●

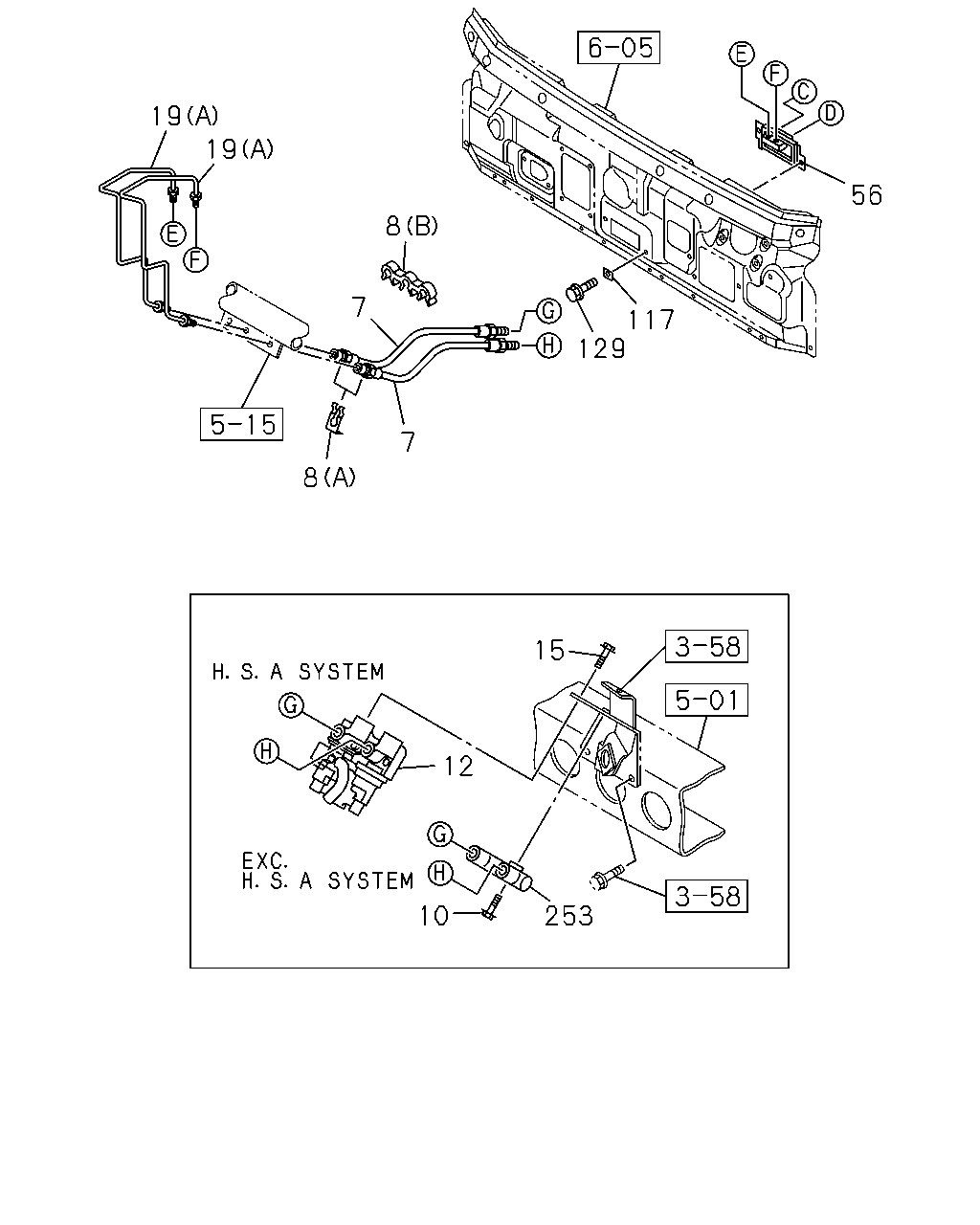

çizim 479489
19 19 8 56 117 129 7 8 7 15 253 10 12
BalonParca AdiParca NoAdetTipApplied Date A B
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
NEW ZEALAND COUNTRY(CX6) 		8-98033-732-0 02 1 1506- ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98206-868-0 02 1 1506- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1506- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1506- ● ●
10 04.686 BOLT; JOINT
EXC. H.S.A SYSTEM<6EP> 00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1506- ● ●
12 04.690 VALVE ASM; HSA
H.S.A SYSTEM<6EP> 		8-98159-364-1 01 1 1506- ● ●
15 04.730 BOLT; HSA VALVE
H.S.A SYSTEM<6EP> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
NEW ZEALAND COUNTRY(CX6) (B) L=1274 		8-98115-279-1 01 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
NEW ZEALAND COUNTRY(CX6) EXC. HILL HOLD ASSIST<SLD> (A) 		8-98012-095-1 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD> (A) 		8-98206-894-0 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HILL HOLD ASSIST<SLD> (A) 		8-98206-894-0 02 1 1506- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. NEW ZEALAND COUNTRY(CX6) (B) 		8-98220-478-1 01 1 1506- ● ●
56 04.686 BRACKET; UNION,BRK
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98154-265-1 01 1 1506-1507 ●
56 04.686 BRACKET; UNION,BRK
NEW ZEALAND COUNTRY(CX6) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 		8-98154-265-1 01 1 1508- ●
56 04.686 BRACKET; UNION,BRK
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98154-264-1 01 1 1506- ●
56 04.686 BRACKET; UNION,BRK
NEW ZEALAND COUNTRY(CX6) 		8-98154-264-1 01 1 1506- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98207-245-0 01 1 1506- ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. NEW ZEALAND COUNTRY(CX6) 		8-98207-244-0 01 1 1506- ●
56 04.686 BRACKET; UNION,BRK
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98207-244-0 01 1 1506- ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1506- ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1506- ● ●
253 04.840 JOINT
NEW ZEALAND COUNTRY(CX6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-97038-940-1 01 1 1506- ● ●
253 04.840 JOINT
HILL HOLD ASSIST<SLD> 		8-98192-436-0 01 1 1506- ● ●
253 04.840 JOINT
EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98192-436-0 01 1 1506- ● ●

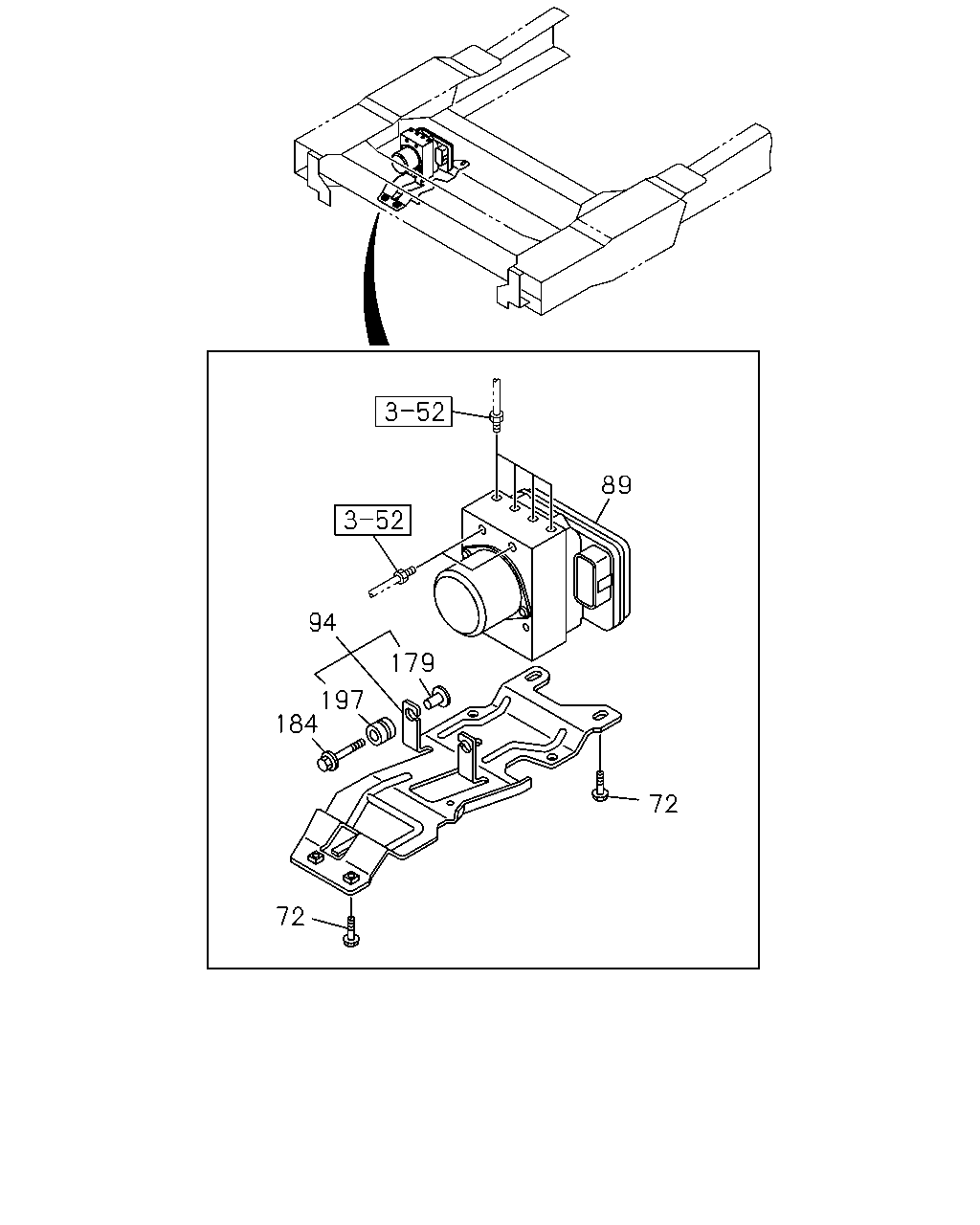

çizim 479536
89 179 94 72 197 184 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
NEW ZEALAND COUNTRY(CX6) DISC BRAKE FRT<J52> 		8-98277-171-0 01 1 1506- ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 2400MM(24W) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98305-798-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 2400MM(24W) 4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-799-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98305-796-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
WHEEL BASE 3300MM(33W) 4 WHEEL DISC BRAKE<JF9> EXC. NEW ZEALAND COUNTRY(CX6),HILL HOLD ASSIST<SLD>,H.S.A SYSTEM<6EP> 		8-98305-797-0 01 1 1506- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL DISC BRAKE<JF9> HILL HOLD ASSIST<SLD> EXC. NEW ZEALAND COUNTRY(CX6) 		8-98305-804-0 01 1 1506- ●
94 04.730 BRACKET; ABS CONT UNIT 8-98131-871-2 01 1 1506- ● ●
179 04.685 SPACER; BRKT 8-98130-134-0 03 1 1506- ● ●
184 04.681 BOLT; CLIP
M6X27 W/PL WASHER 		8-98131-461-0 03 1 1506- ● ●
197 04.730 RUBBER; DAMPER 8-98130-133-0 03 1 1506- ● ●

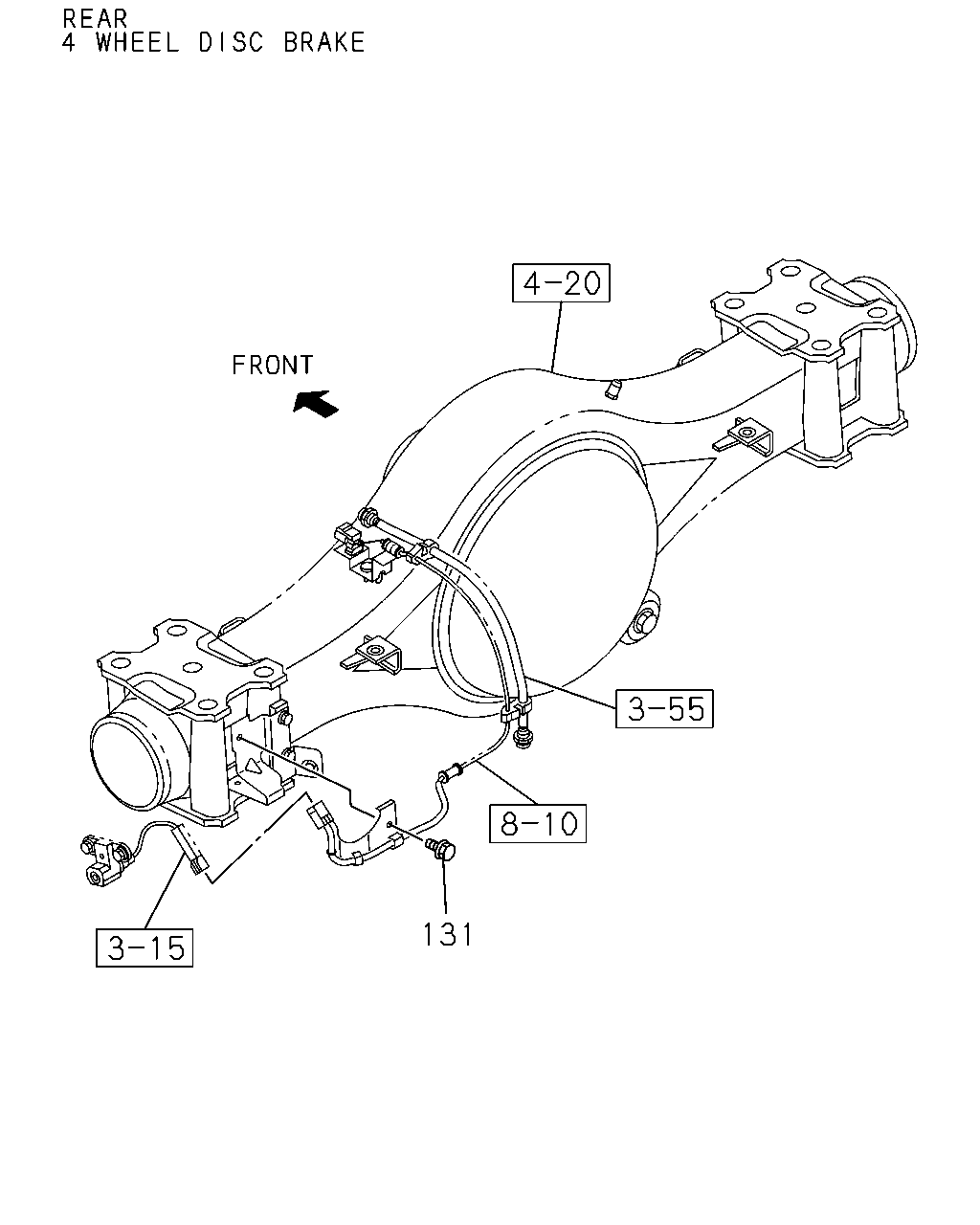

çizim 479802
131
BalonParca AdiParca NoAdetTipApplied Date A B
131 04.710 BOLT; BRKT
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ● ●
131 04.710 BOLT; BRKT
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ●
131 04.710 BOLT; BRKT
SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1508- ● ●
çizim 480035
130 131 130 131
BalonParca AdiParca NoAdetTipApplied Date A B
130 04.686 BRACKET; SPEED SENSOR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97080-060-2 02 1 1506-1507 ●
130 04.686 BRACKET; SPEED SENSOR
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97080-060-2 02 1 1506-1507 ●
130 04.686 BRACKET; SPEED SENSOR
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97080-060-2 02 1 1506-1507 ●
130 04.686 BRACKET; SPEED SENSOR
EXC. REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (B) 		8-97080-060-2 02 1 1508- ● ●
130 04.686 BRACKET; SPEED SENSOR
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97080-060-2 02 1 1508- ● ●
130 04.686 BRACKET; SPEED SENSOR
(A) 		8-98035-633-0 01 1 1506- ● ●
130 04.686 BRACKET; SPEED SENSOR
(A) 		8-98035-634-0 01 1 1506- ● ●
131 04.710 BOLT; BRKT
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ● ●
131 04.710 BOLT; BRKT
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ●
131 04.710 BOLT; BRKT
SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1506-1507 ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1508- ● ●
