3-11 — PARKING BRAKE CONTROL (#162513) — 101 parça

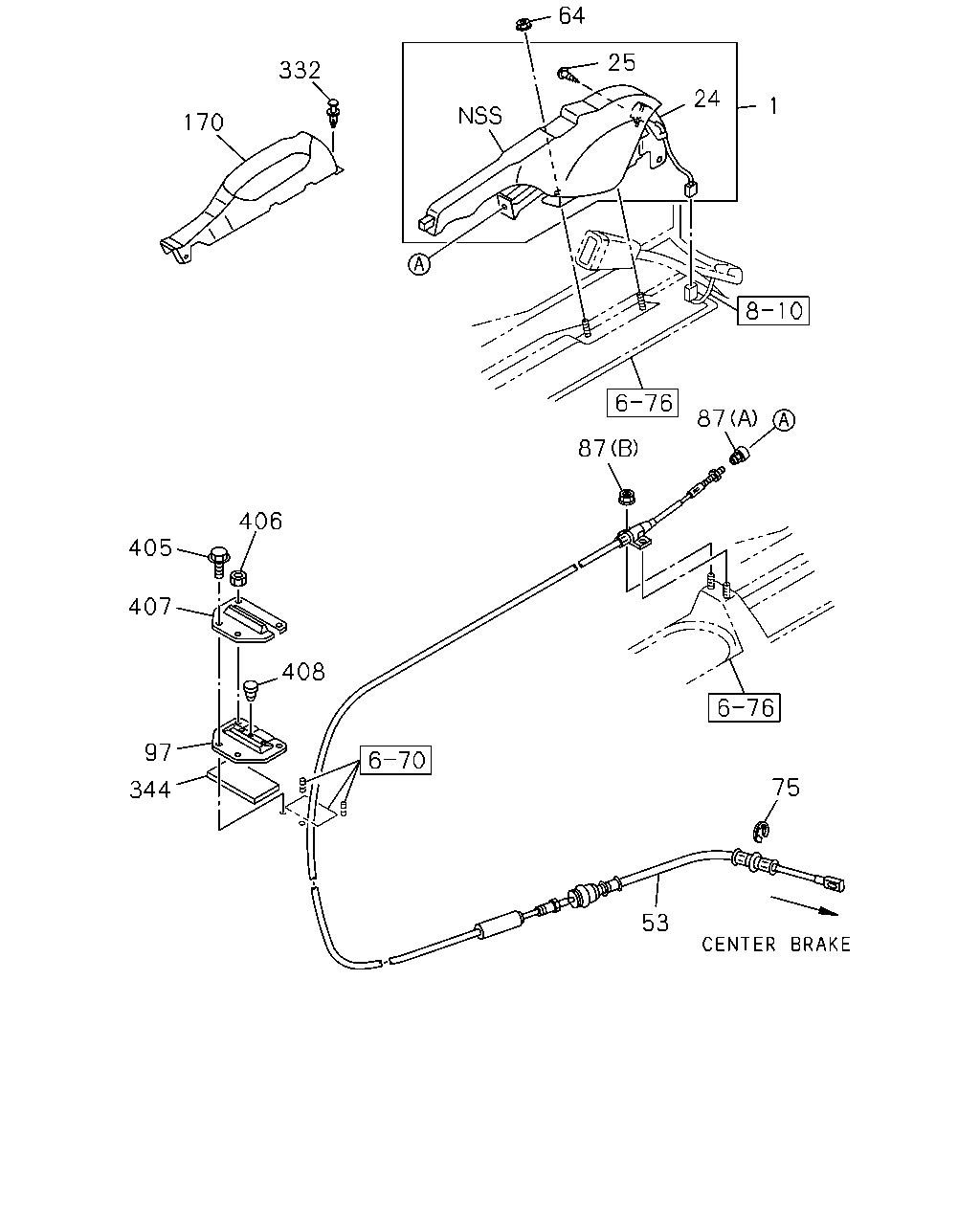

170 332 64 25 24 1 87 87 406 405 407 408 97 344 75 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.592 STEM ASM; PARKING BRK GRAY	8-97426-513-0	01	1	1506-	●	●
24	04.589 SWITCH ASM; PARK BRK	8-98238-611-0	01	1	1506-	●	●
25	04.589 SCREW; SW,PARKING BRK	8-98152-463-0	01	1	1506-	●	●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98102-912-0	01	1	1506-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98102-912-0	01	1	1506-		●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-834-3	01	1	1506-	●
64	04.595 NUT; PARKING BRK 16.682 M8 LOCK NUT FLANGE	0-91380-008-0	02	1	1506-	●	●
75	04.790 RING; SNAP,HAND BRK CABLE ID=12	0-91805-512-0	01	1	1506-	●	●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	1506-	●	●
87	04.785 NUT M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
87	04.785 NUT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●
97	04.785 GROMMET; PARKING BRK CABLE 04.010	8-97065-212-1	01	1	1506-	●	●
170	04.595 COVER; PARKING BRK LEVER GRAY	8-97406-170-1	01	1	1506-	●	●
332	04.785 CLIP; COVER GRAY	8-97406-171-0	01	1	1506-	●	●
344	04.595 GASKET; DASH LWR MANUAL TILT CAB<RWZ> 04.047	8-97096-753-0	01	1	1506-	●	●
405	04.785 BOLT; GROMMET 00.785 M6X20 FLANGE	0-28450-620-0	02	1	1506-	●	●
406	04.785 NUT; GROMMET 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
407	04.785 RETAINER; GROMMET 04.047	1-33657-674-0	01	1	1506-	●	●
408	04.785 CAP; GROMMET M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010	8-97371-108-0	02	1	1506-1507	●
408	04.785 CAP; GROMMET EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 04.010	8-97371-108-0	02	1	1508-	●

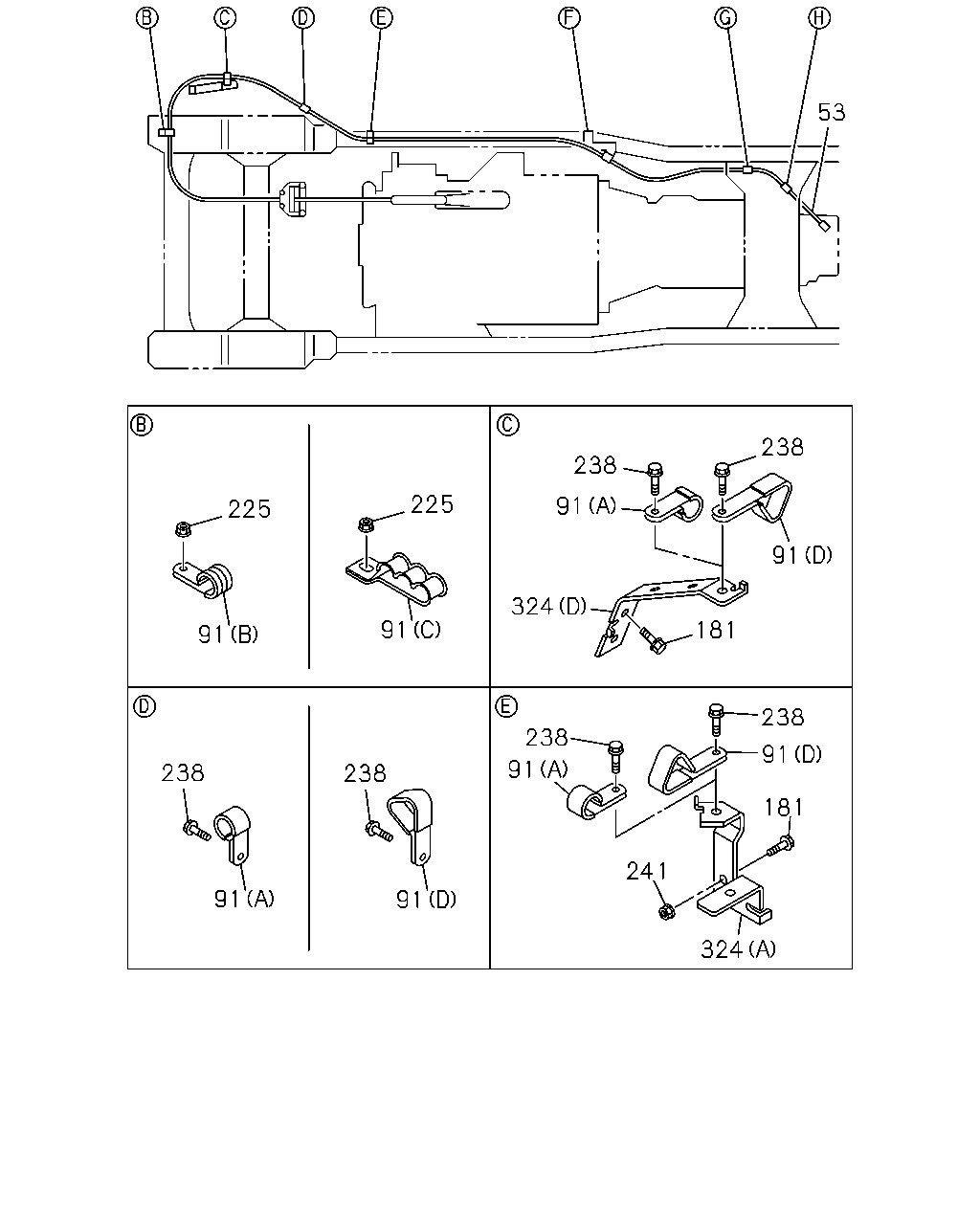

53 225 91 238 91 225 91 238 91 238 91 324 238 91 181 238 91 241 238 91 181 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98102-912-0	01	1	1506-	●
53	04.779 CABLE; PARK BRK,FRT LWR	8-98102-912-0	01	1	1506-		●
53	04.779 CABLE; PARK BRK,FRT LWR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-834-3	01	1	1506-	●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (D)	8-97036-333-1	01	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY5T(RSM) 04.047 (D)	8-97036-333-1	01	1	1506-1507		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	01	1	1508-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	01	1	1508-		●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.047 (D)	8-97036-333-1	02	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY5T(RSM) 04.047 (D)	8-97036-333-1	02	1	1506-1507		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (D)	8-97036-333-1	02	1	1508-	●
91	04.785 CLIP; PARKING BRK CABLE 04.047 (D)	8-97036-333-1	02	1	1508-		●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-622-0	01	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY5T(RSM) (C)	8-98023-622-0	01	1	1506-1507		●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-622-0	01	1	1508-	●
91	04.785 CLIP; PARKING BRK CABLE (C)	8-98023-622-0	01	1	1508-		●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.540 (A) ID=13 L=28	0-95235-255-0	01	1	1508-	●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (A) ID=13 L=28	0-95235-255-0	02	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.540 (A) ID=13 L=28	0-95235-255-0	02	1	1508-	●
91	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	1506-1507	●
91	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 04.128 (B) ID=19 L=32	1-09701-235-0	01	1	1508-	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
181	04.785 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
225	04.785 NUT; CABLE CLIP M/T MYY5T(RSM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
238	04.785 BOLT; CLIP TO BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
241	04.785 NUT; BRKT M/T MYY6S(RST),M/T MYY6E(Y5X) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
241	04.785 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
324	04.785 BRACKET (A)	8-98003-642-1	01	1	1506-	●	●
324	04.785 BRACKET (D)	8-98185-361-2	01	1	1506-	●	●
324	04.785 BRACKET M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98026-099-2	01	1	1506-1507	●
324	04.785 BRACKET M/T MYY5T(RSM) (C)	8-98026-099-2	01	1	1506-1507		●
324	04.785 BRACKET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98026-099-2	01	1	1508-	●
324	04.785 BRACKET (C)	8-98026-099-2	01	1	1508-		●
324	04.785 BRACKET M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98038-563-0	01	1	1506-1507	●
324	04.785 BRACKET EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (B)	8-98038-563-0	01	1	1508-	●

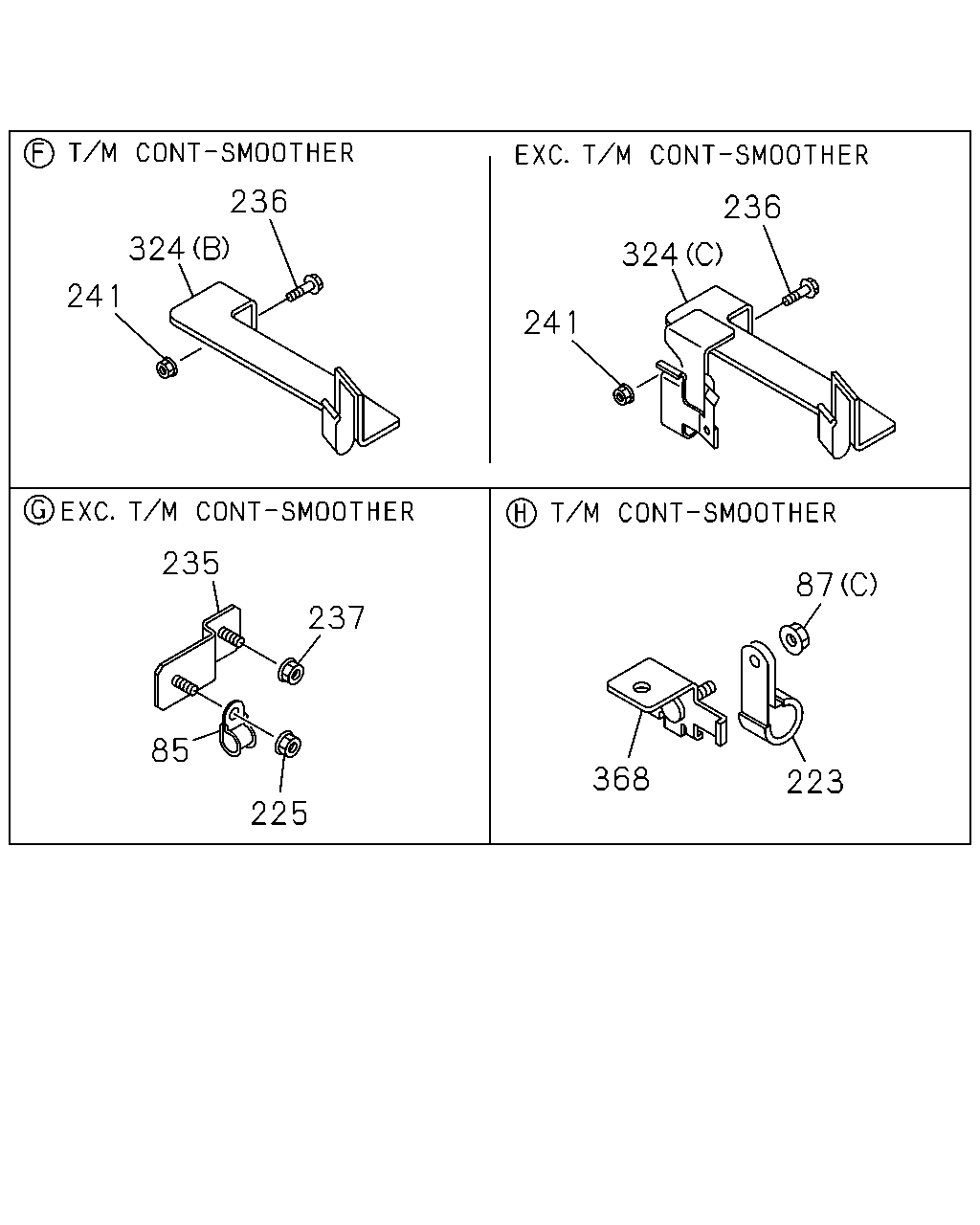

236 324 241 235 237 85 225 368 223 87 236 324 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	04.785 CLIP; BRKT M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=14.5 L=20	1-09701-012-0	01	1	1506-1507	●
85	04.785 CLIP; BRKT M/T MYY5T(RSM) ID=14.5 L=20	1-09701-012-0	01	1	1506-1507		●
85	04.785 CLIP; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.5 L=20	1-09701-012-0	01	1	1508-	●
85	04.785 CLIP; BRKT ID=14.5 L=20	1-09701-012-0	01	1	1508-		●
87	04.785 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1506-	●	●
87	04.785 NUT (A) M6	8-98034-313-1	01	1	1506-	●	●
87	04.785 NUT M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1506-1507	●
87	04.785 NUT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1508-	●
223	04.785 CLIP; PARKING BRK CABLE M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20	1-09701-138-1	01	1	1506-1507	●
223	04.785 CLIP; PARKING BRK CABLE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 00.799 ID=13 L=20	1-09701-138-1	01	1	1508-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
225	04.785 NUT; CABLE CLIP M/T MYY5T(RSM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
225	04.785 NUT; CABLE CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
225	04.785 NUT; CABLE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98034-352-0	01	1	1506-1507	●
235	04.785 BRACKET; CONT CABLE TO FRAME M/T MYY5T(RSM)	8-98034-352-0	01	1	1506-1507		●
235	04.785 BRACKET; CONT CABLE TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-352-0	01	1	1508-	●
235	04.785 BRACKET; CONT CABLE TO FRAME	8-98034-352-0	01	1	1508-		●
236	04.785 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●	●
237	04.785 NUT; BRKT TO FRAME M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
237	04.785 NUT; BRKT TO FRAME M/T MYY5T(RSM) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507		●
237	04.785 NUT; BRKT TO FRAME EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
237	04.785 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-		●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
241	04.785 NUT; BRKT M/T MYY6S(RST),M/T MYY6E(Y5X) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●
241	04.785 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●
241	04.785 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●
324	04.785 BRACKET (A)	8-98003-642-1	01	1	1506-	●	●
324	04.785 BRACKET (D)	8-98185-361-2	01	1	1506-	●	●
324	04.785 BRACKET M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98026-099-2	01	1	1506-1507	●
324	04.785 BRACKET M/T MYY5T(RSM) (C)	8-98026-099-2	01	1	1506-1507		●
324	04.785 BRACKET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98026-099-2	01	1	1508-	●
324	04.785 BRACKET (C)	8-98026-099-2	01	1	1508-		●
324	04.785 BRACKET M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98038-563-0	01	1	1506-1507	●
324	04.785 BRACKET EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ) (B)	8-98038-563-0	01	1	1508-	●
368	04.785 BRACKET; T/M SIDE M/T MYY6S(RST),M/T MYY6E(Y5X) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97372-863-1	01	1	1506-1507	●
368	04.785 BRACKET; T/M SIDE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE (8GJ)	8-97372-863-1	01	1	1508-	●
