◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#162508) — 45 parça

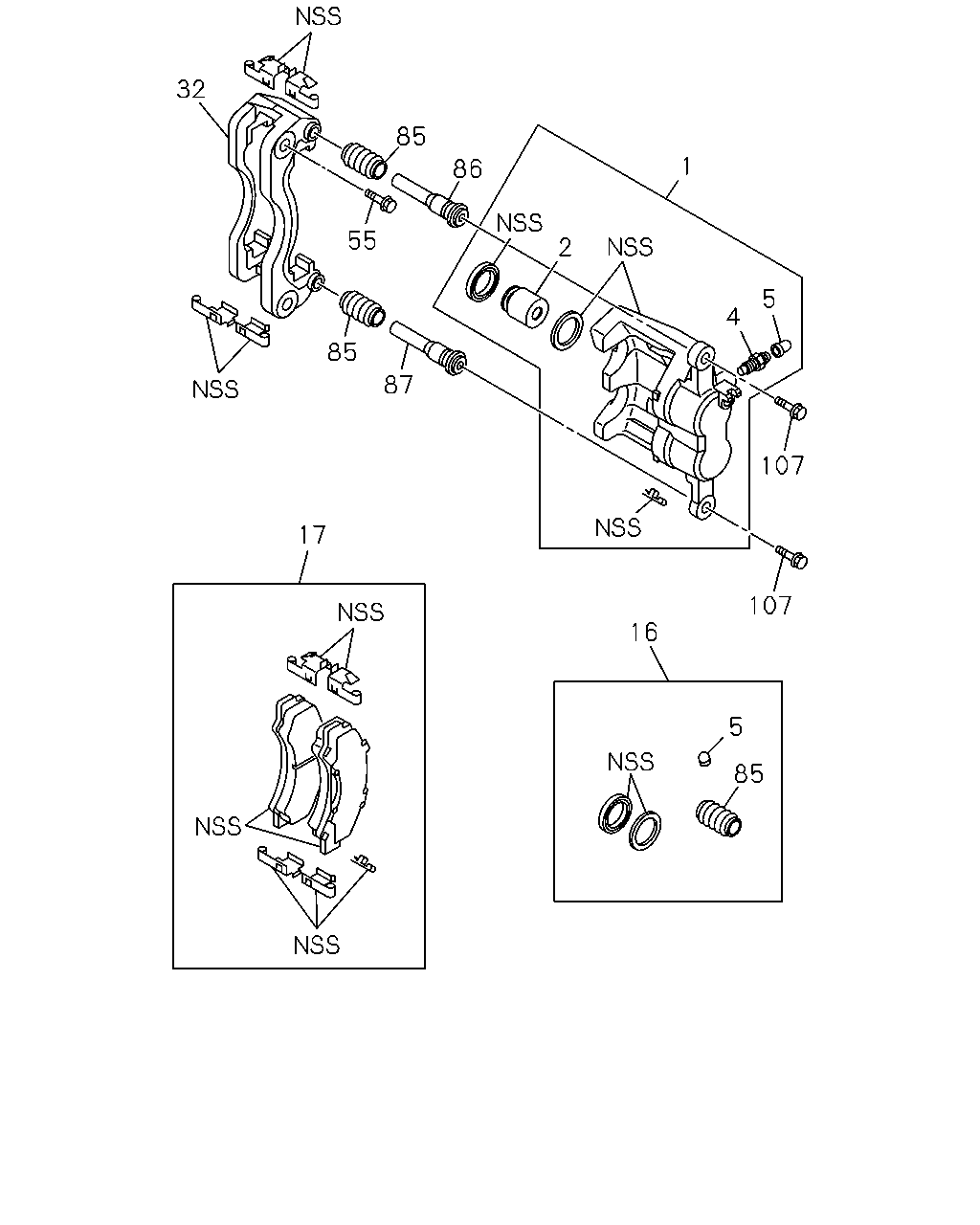

çizim 479380
32 85 86 2 55 85 87 4 5 1 107 107 16 5 85 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98303-461-0 01 1 1506-1507 ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1506-1507 ●
1 04.665 CALIPER; FRT DISC BRK
EXC. DISC BRAKE FRT<J52> 		8-98303-461-0 01 1 1508- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1508- ●
1 04.665 CALIPER; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-98303-462-0 01 1 1506-1507 ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1506-1507 ●
1 04.665 CALIPER; FRT DISC BRK
EXC. DISC BRAKE FRT<J52> 		8-98303-462-0 01 1 1508- ●
1 04.665 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1508- ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-459-0 01 1 1506- ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-98303-460-0 01 1 1506- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9> 		8-97365-269-0 04 1 1506-1507 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1506-1507 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 1508- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1508- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-97365-256-0 04 1 1506- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1506- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1506- ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9> W/GREASE 		8-98302-531-0 01 1 1506-1507 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1506-1507 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. DISC BRAKE FRT<J52> W/GREASE 		8-98302-531-0 01 1 1508- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1508- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98302-529-0 01 1 1506- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4 WHEEL DISC BRAKE<JF9> 		8-98216-922-0 01 1 1506-1507 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1506-1507 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1508- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1508- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		8-98216-921-0 01 1 1506- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL DISC BRAKE<JF9> 		8-97365-271-0 02 1 1506-1507 ●
32 04.665 SUPPORT; FRT DISC BRK 8-97365-271-0 02 1 1506-1507 ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. DISC BRAKE FRT<J52> 		8-97365-271-0 02 1 1508- ●
32 04.665 SUPPORT; FRT DISC BRK 8-97365-271-0 02 1 1508- ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> 		8-97365-258-0 02 1 1506- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X48 FLANGE 		8-98033-656-0 04 1 1506- ● ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 1506- ● ●
86 04.665 PIN; GUIDE
4 WHEEL DISC BRAKE<JF9> 		8-98047-529-0 02 1 1506-1507 ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1506-1507 ●
86 04.665 PIN; GUIDE
EXC. DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 1508- ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 1508- ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-530-0 02 1 1506- ●
87 04.665 PIN; LOCK
4 WHEEL DISC BRAKE<JF9> 		8-98248-005-0 02 1 1506-1507 ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1506-1507 ●
87 04.665 PIN; LOCK
EXC. DISC BRAKE FRT<J52> 		8-98248-005-0 02 1 1508- ●
87 04.665 PIN; LOCK 8-98248-005-0 02 1 1508- ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-532-0 02 1 1506- ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 1506- ● ●
