2-85 — POWER TAKE OFF CONTROL (#162507) — 106 parça

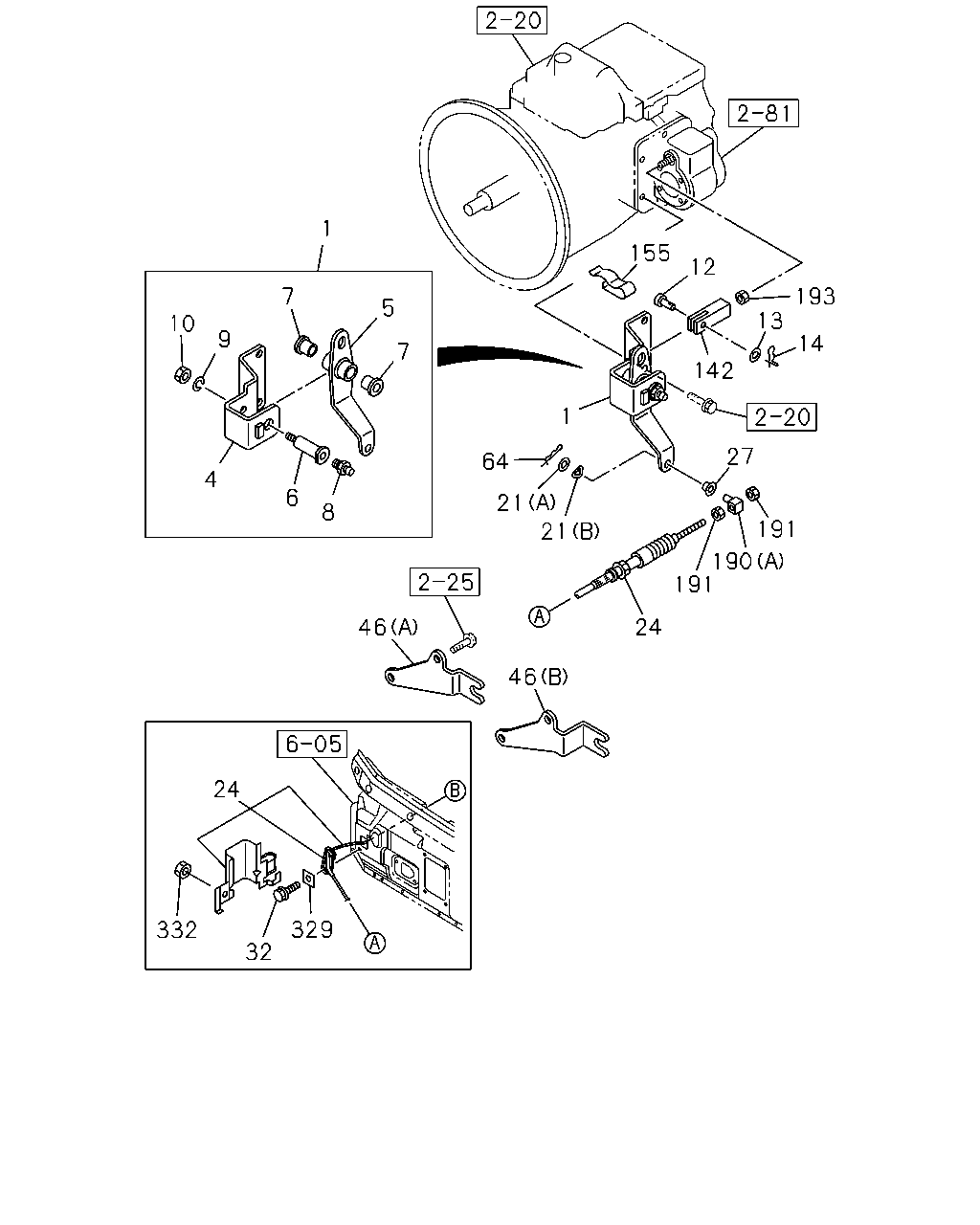

1 7 5 10 7 6 4 8 46 46 64 21 21 24 190 191 142 13 12 193 14 27 191 155 24 329 32 332 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1506-	●	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1506-	●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1506-	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1506-	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1506-	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1506-	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1506-	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8	0-91110-508-0	01	1	1506-	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1506-	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1506-	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1506-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1506-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3524	8-98245-123-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) L=3524	8-98245-123-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3412	8-98287-597-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) L=3412	8-98328-262-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3446	8-98245-122-0	01	1	1506-	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.042	8-94367-367-0	01	1	1506-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	1506-1507	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) M6X16 FLANGE	0-28060-616-0	02	1	1508-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) M6X16 FLANGE	0-28060-616-0	02	1	1508-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) (B)	8-98081-815-0	01	1	1506-1507		●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (B)	8-98081-815-0	01	1	1508-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	1506-	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	1506-	●	●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1506-	●	●	●
155	04.439 CLIP; CABLE PTO MANUAL CONTROL(6WC) 01.240 T=5.5	5-09709-047-0	01	1	1506-		●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-	●	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	1506-	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1506-	●	●	●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	1506-1507	●	●	●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 08.845	8-97856-616-0	02	1	1508-	●	●	●
329	16.520 SEAL PTO T/M SIDE DIRECT PUMP(8KZ) 08.845	8-97856-616-0	02	1	1508-	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1507	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M6 FLANGE	0-91180-106-0	01	1	1508-	●	●	●

15 24 16 222 225 222 287 121 287 190 330 96 258 260 259 262 74 219 80 300 261 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1506-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1506-1507	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ)	8-98050-126-0	01	1	1508-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-98050-126-0	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3524	8-98245-123-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) L=3524	8-98245-123-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3412	8-98287-597-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) L=3412	8-98328-262-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3446	8-98245-122-0	01	1	1506-	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1506-	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1506-	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	1506-1507	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	01	1	1508-	●	●	●
96	04.439 NUT PTO T/M SIDE DIRECT PUMP(8KZ) 03.330 M6	0-91110-506-0	01	1	1508-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1506-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1506-	●	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1506-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1506-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1506-	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98152-960-1	01	1	1506-	●	●	●
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	1506-	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1506-	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	1506-	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	1506-	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1506-	●	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1506-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	1506-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	1506-	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1506-	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1506-	●	●	●

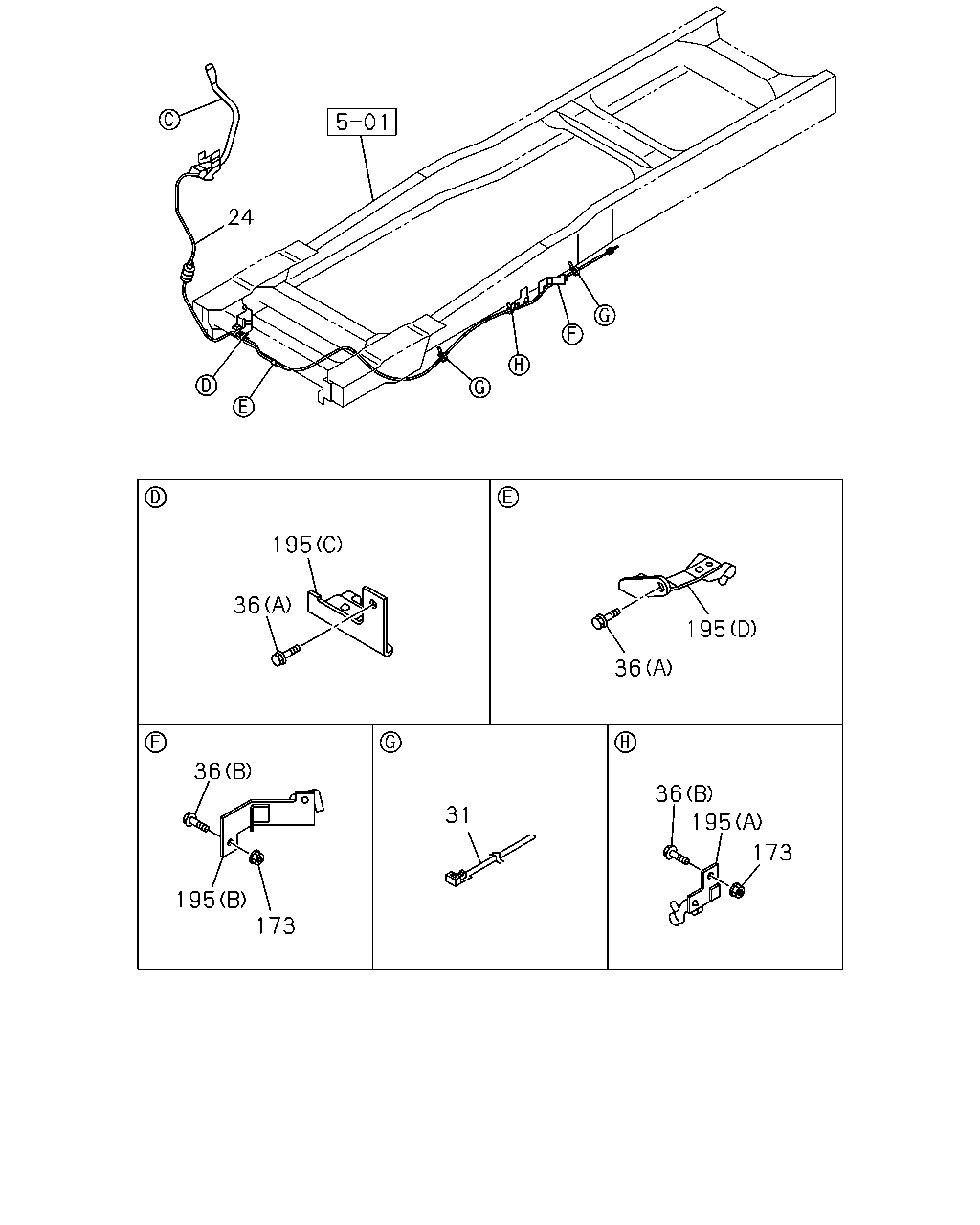

24 195 36 36 195 173 31 36 195 173 36 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3524	8-98245-123-0	01	1	1506-1507		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) L=3524	8-98245-123-0	01	1	1508-		●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=3412	8-98287-597-0	01	1	1506-1507	●
24	04.439 CABLE; PTO CONT . PTO T/M SIDE DIRECT PUMP(8KZ) L=3412	8-98328-262-1	01	1	1508-	●	●	●
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) L=3446	8-98245-122-0	01	1	1506-	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	1506-1507	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 L=250	5-09707-030-1	01	1	1508-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 L=250	5-09707-030-1	01	1	1508-	●	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 L=300	1-09707-001-1	01	1	1506-1507	●
31	04.439 CLIP; BAND,CABLE PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 L=300	1-09707-001-1	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-1507	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (A) M10X20 FLANGE	0-28651-020-0	02	1	1506-1507	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (A) M10X20 FLANGE	0-28651-020-0	02	1	1508-	●	●	●
36	04.439 BOLT; PTO BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (A) M10X20 FLANGE	0-28651-020-0	02	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
173	04.439 NUT; BRKT PTO T/M SIDE DIRECT PUMP(8KZ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98052-321-1	01	1	1506-1507	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98052-321-1	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98052-321-1	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (B)	8-98146-462-0	01	1	1506-1507	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98146-462-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-98146-462-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98152-321-0	01	1	1506-1507	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98152-321-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98152-321-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98233-770-0	01	1	1506-1507	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98233-770-0	01	1	1508-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98233-770-0	01	1	1508-	●	●	●
