2-30 — GEAR SHIFTER AND QUADRANT BOX (#162500) — 183 parça

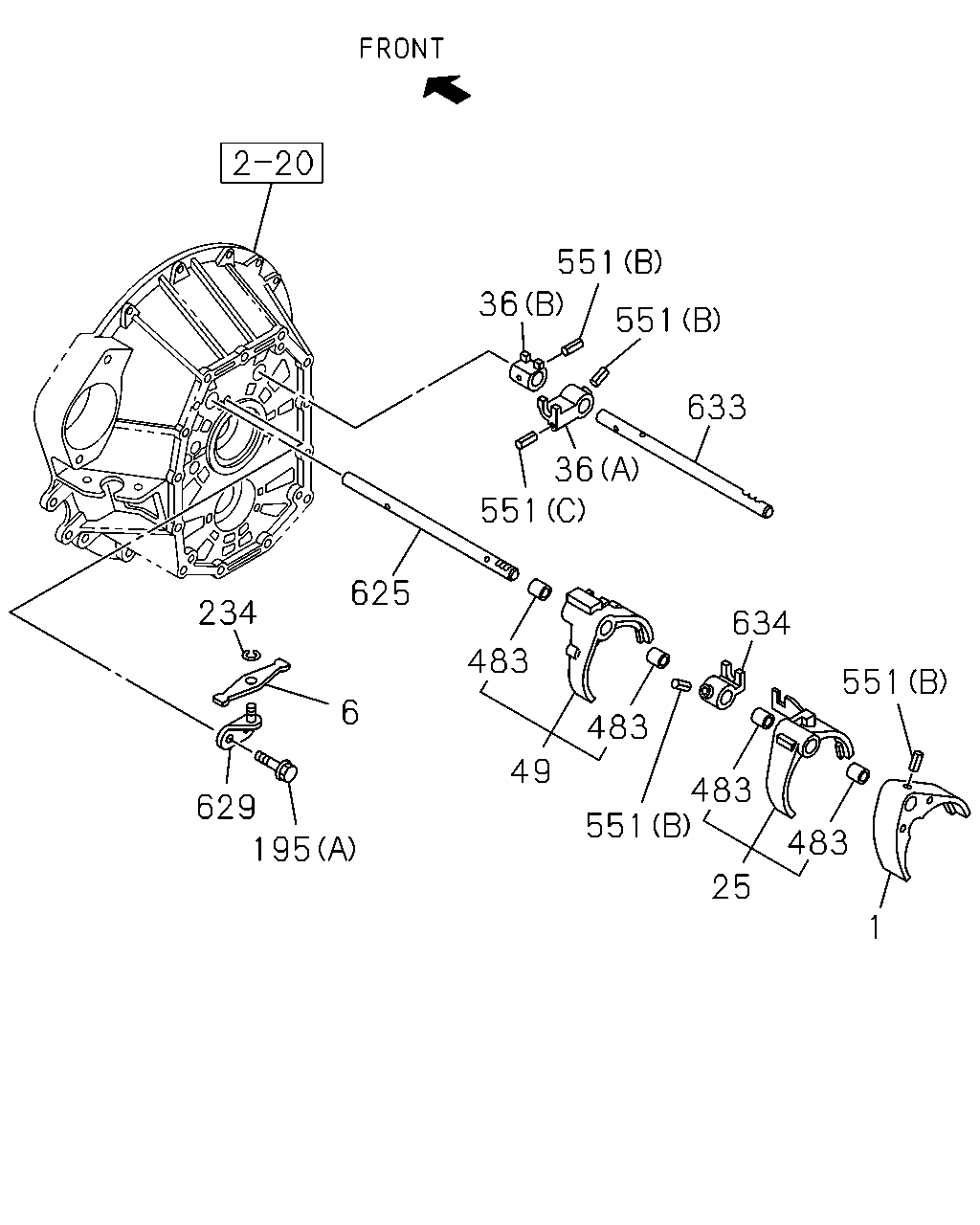

çizim 479439
195 629 6 234 25 551 49 483 625 551 634 551 483 483 483 36 633 551 551 36 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1506- ● ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1506- ●
6 04.302 LEVER; RELAY 8-97379-995-0 01 1 1506- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1506- ● ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1506- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1506- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1506- ● ● ●
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1506- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1506- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ● ●
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1506- ● ●
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 1506- ● ●
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 1506- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1506- ● ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1506- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1506- ● ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1506- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1506- ●

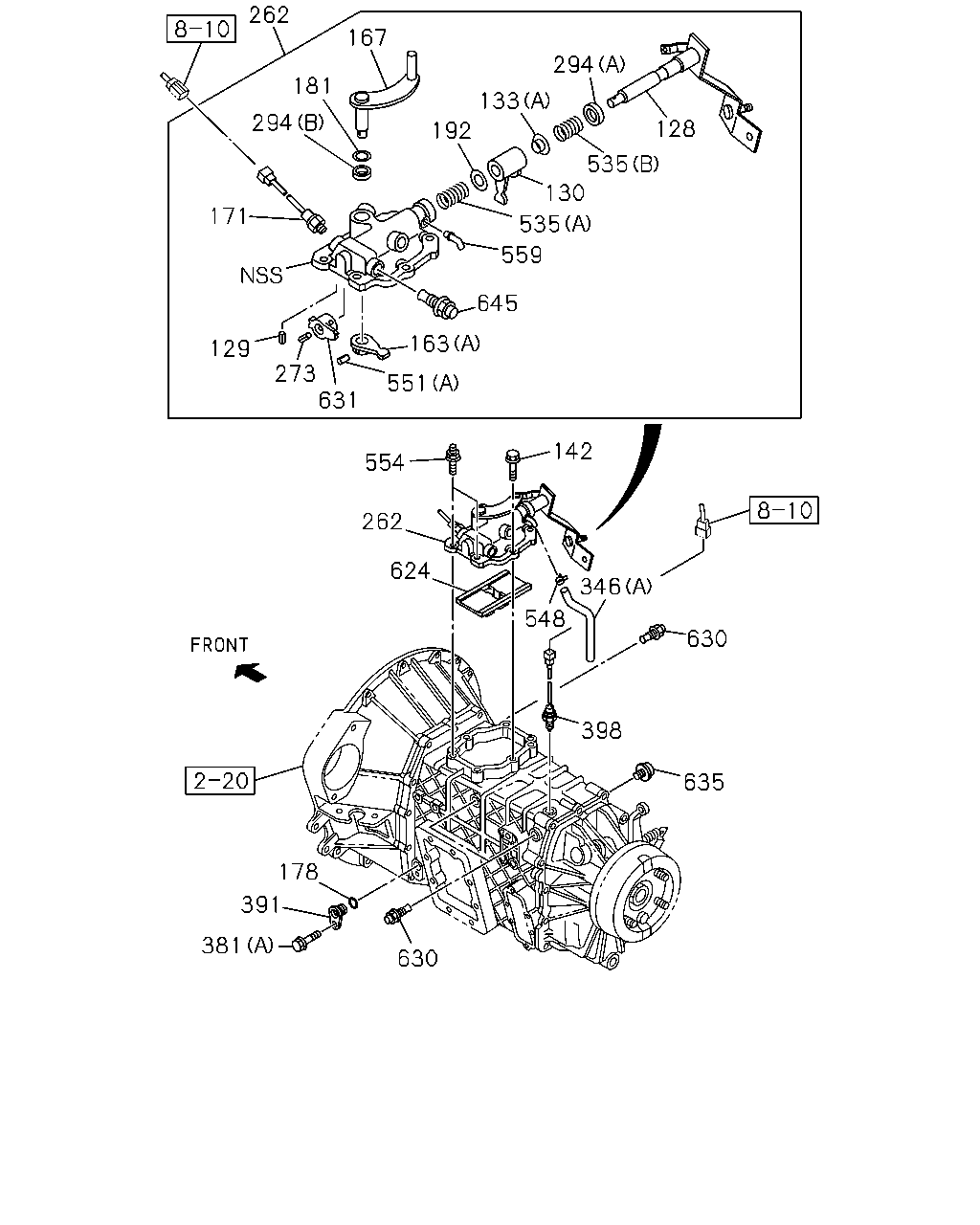

çizim 479499
262 181 294 171 129 631 273 551 163 645 559 535 130 535 128 294 133 192 167 554 262 624 548 398 635 630 346 142 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B C
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1506- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1506- ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1506- ●
133 04.027 SEAT; SPR
(A) 		8-97305-667-0 01 1 1506- ●
133 04.027 SEAT; SPR
(B) 		8-97379-988-0 01 1 1506- ● ●
133 04.027 SEAT; SPR
(C) 		8-97379-989-0 01 1 1506- ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1506- ●
142 04.012 BOLT; QUAD BOX
M8X35 FLANGE 		8-98020-384-0 03 1 1506- ● ●
142 04.012 BOLT; QUAD BOX
M8X75 FLANGE 		8-98020-385-0 03 1 1506- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1506- ●
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-97379-979-0 01 1 1506- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(C) 		8-97379-990-0 01 1 1506- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1506- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97379-994-0 01 1 1506- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1506-1509 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1506- ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1506- ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1506- ●
192 04.309 WASHER; PL
04.302 		1-09503-280-0 01 1 1506- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1506- ●
262 04.105 BOX ASM; SHIFT CONT 8-98296-529-0 01 1 1506-1509 ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98331-685-0 01 1 1510- ● ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1506- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1506- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1506- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-09625-600-0 01 1 1506- ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1506- ● ● ●
346 04.545 HOSE; AIR
(B) 		8-97373-381-0 01 1 1506- ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ●
381 04.105 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1506- ● ●
381 04.105 BOLT
04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1506- ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1506- ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1506- ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1506- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1506- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1506- ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ● ●
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1506- ● ●
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 1506- ● ●
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 1506- ● ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1506- ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1506- ●
559 04.302 PIPE; BREATHER 8-98020-710-0 01 1 1506- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1506- ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1506- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1506- ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1506- ●
631 04.105 STOPPER; SPRING 8-97379-984-0 01 1 1506- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1506- ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1506- ●

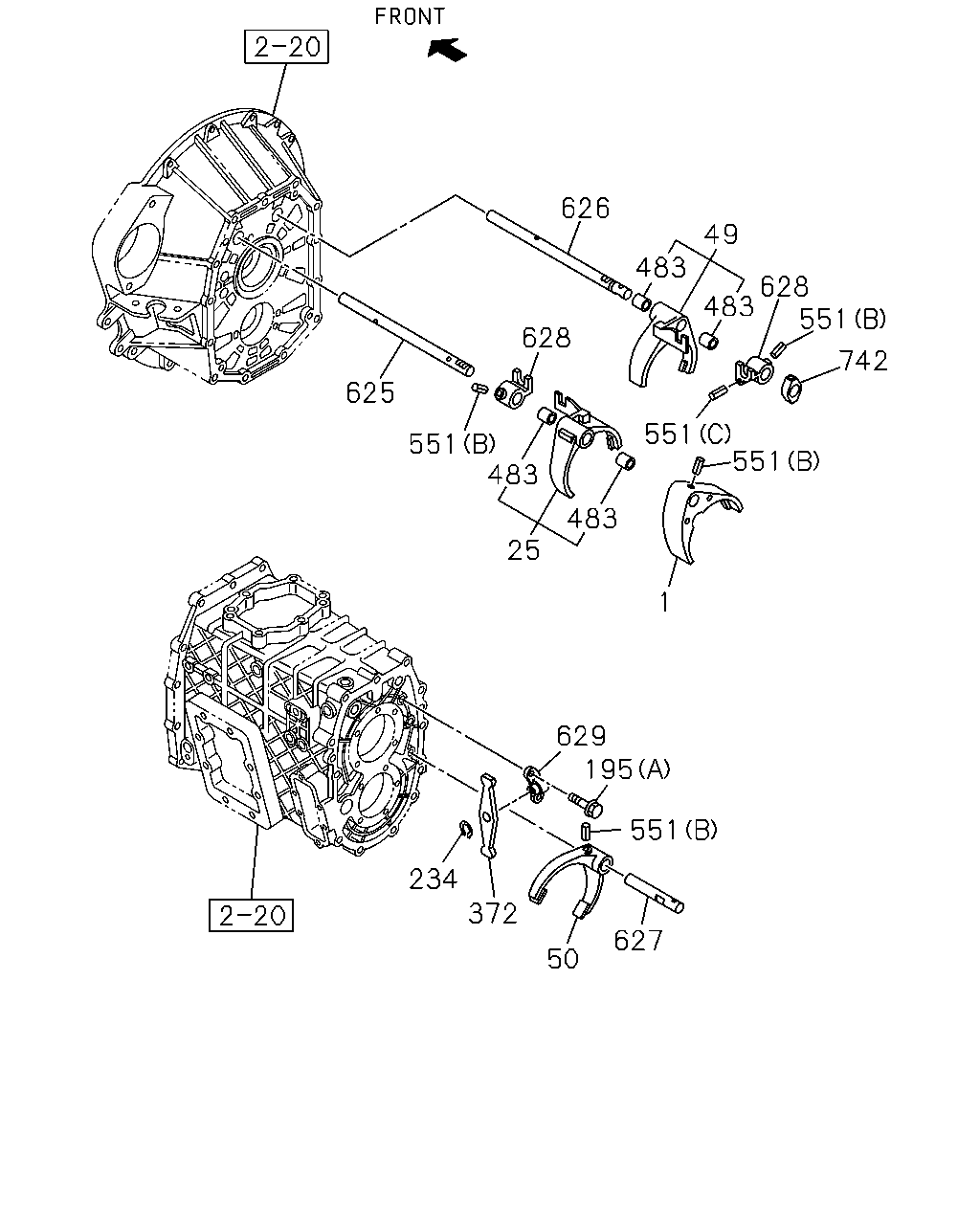

çizim 479545
625 551 25 483 628 626 49 483 628 483 551 742 551 551 483 629 195 551 234 372 50 627 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1506- ● ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1506- ● ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1506- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1506- ● ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1506- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1506- ● ● ●
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1506- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1506- ● ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1506- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1506- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ● ●
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1506- ● ●
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 1506- ● ●
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 1506- ● ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1506- ● ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1506-1509 ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-98331-689-0 01 1 1510- ● ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1506- ● ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1506- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1506- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1506- ● ●
742 04.162 COLLAR; ROD 8-98331-722-0 01 1 1510- ● ●

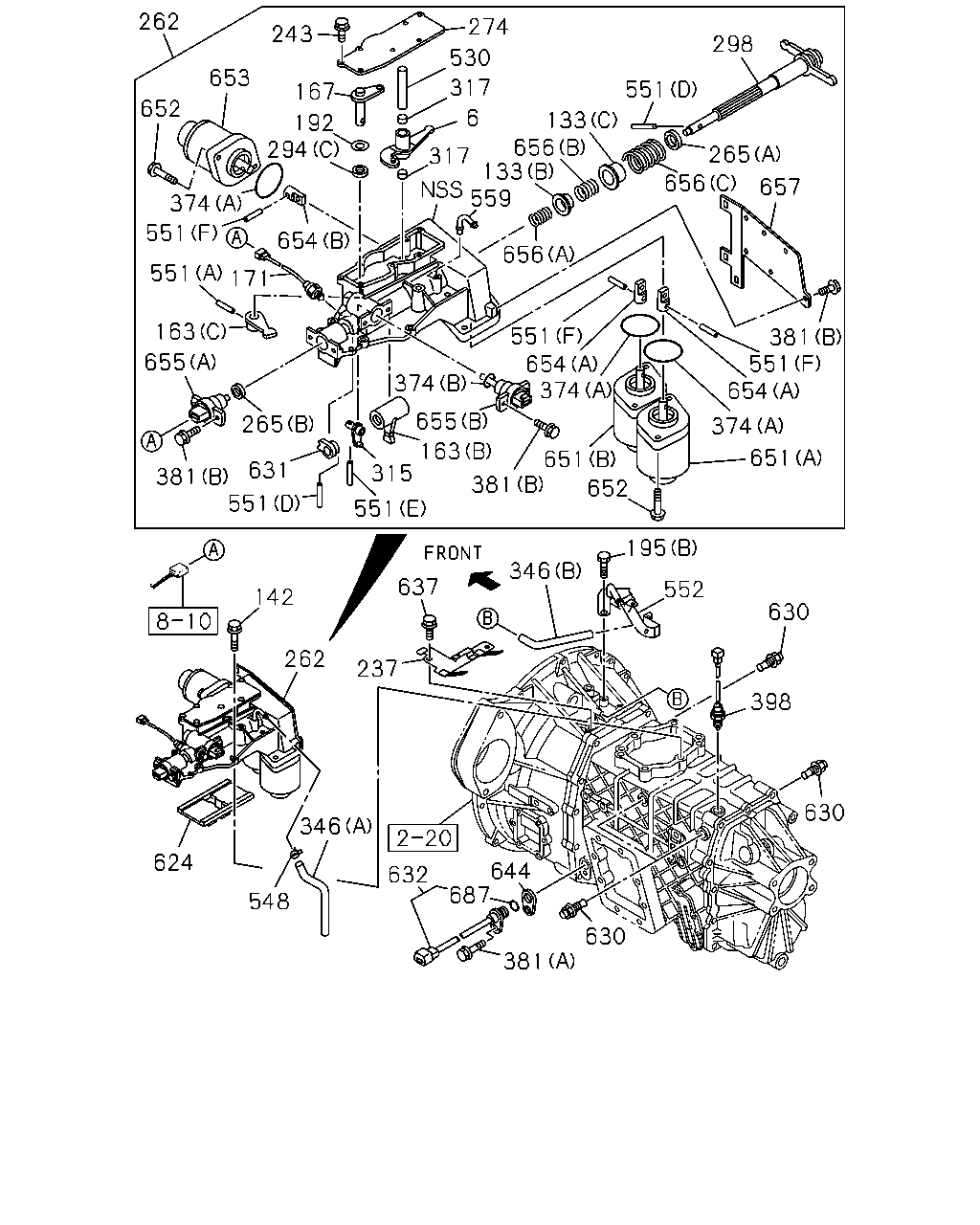

çizim 480169
262 652 653 243 167 294 192 317 317 530 274 559 133 656 133 551 656 265 298 657 381 551 654 651 374 652 651 381 163 655 374 315 551 551 381 265 631 655 163 551 551 654 374 656 551 374 171 6 654 142 262 237 637 346 195 552 630 398 630 644 346 624 548 632 687 630 381
BalonParca AdiParca NoAdetTipApplied Date A B C
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1506- ●
6 04.302 LEVER; RELAY 8-97379-995-0 01 1 1506- ● ●
133 04.027 SEAT; SPR
(A) 		8-97305-667-0 01 1 1506- ●
133 04.027 SEAT; SPR
(B) 		8-97379-988-0 01 1 1506- ● ●
133 04.027 SEAT; SPR
(C) 		8-97379-989-0 01 1 1506- ● ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-97365-376-0 04 1 1506- ●
142 04.012 BOLT; QUAD BOX
M8X35 FLANGE 		8-98020-384-0 03 1 1506- ● ●
142 04.012 BOLT; QUAD BOX
M8X75 FLANGE 		8-98020-385-0 03 1 1506- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1506- ●
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-97379-979-0 01 1 1506- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(C) 		8-97379-990-0 01 1 1506- ● ●
167 04.302 LEVER; SELECT,EXTERNAL 8-98039-436-0 01 1 1506- ●
167 04.302 LEVER; SELECT,EXTERNAL 8-97379-994-0 01 1 1506- ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1506-1509 ● ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1506- ●
192 04.309 WASHER; PL
04.302 		1-09503-280-0 01 1 1506- ● ●
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1506- ● ● ●
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1506- ● ●
237 04.057 BRACKET; CABLE,TRANS 8-98018-905-1 01 1 1506- ● ●
243 04.105 BOLT; COVER
04.010 M6X12 FLANGE 		1-33739-842-0 11 1 1506- ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98241-002-2 01 1 1506- ●
262 04.105 BOX ASM; SHIFT CONT 8-98296-529-0 01 1 1506-1509 ● ●
262 04.105 BOX ASM; SHIFT CONT 8-98331-685-0 01 1 1510- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1506- ● ●
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97379-981-0 01 1 1506- ● ●
274 04.105 COVER; SHAFT,QUAD BOX 8-98020-711-0 01 1 1506- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1506- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1506- ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-09625-600-0 01 1 1506- ● ●
298 04.309 SHAFT; SHIFT LEVER 8-97379-978-0 01 1 1506- ● ●
315 04.302 LEVER; SELECT 8-98296-526-0 01 1 1506- ● ●
317 04.302 BUSHING; LEVER 8-97379-997-0 02 1 1506- ● ●
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 1506- ● ● ●
346 04.545 HOSE; AIR
(B) 		8-97373-381-0 01 1 1506- ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97349-571-0 03 1 1506- ● ●
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97349-573-0 01 1 1506- ● ●
381 04.105 BOLT
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 1506- ●
381 04.105 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1506- ● ●
381 04.105 BOLT
04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 1506- ● ●
398 02.698 SWITCH; REV LAMP 8-98256-418-0 01 1 1506- ●
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1506- ● ●
530 04.302 SHAFT; SELECT 8-97379-996-0 01 1 1506- ● ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1506- ● ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1506- ● ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1506- ● ●
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 1506- ● ●
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 1506- ● ●
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 1506- ● ●
552 04.105 BRACKET 8-97349-914-1 01 1 1506- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1506- ●
559 04.302 PIPE; BREATHER 8-98020-710-0 01 1 1506- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1506- ● ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1506- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1506- ● ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1506- ●
631 04.105 STOPPER; SPRING 8-97379-984-0 01 1 1506- ● ●
632 04.054 SENSOR; TRANS,REV 8-97315-604-1 01 1 1506- ● ●
637 04.105 BOLT; BRACKET
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1506- ● ●
644 04.302 SPACER; SENSOR 8-97255-489-1 01 1 1506- ● ●
651 04.309 SOLENOID ASM; SHIFT
(A) 		8-98002-759-0 01 1 1506- ● ●
651 04.309 SOLENOID ASM; SHIFT
(B) 		8-98002-760-0 01 1 1506- ● ●
652 04.309 BOLT; SORENOID
02.042 M10X25 FLANGE 		0-28151-025-0 06 1 1506- ● ●
653 04.309 SOLENOID ASM; SELECT 8-98002-761-0 01 1 1506- ● ●
654 04.309 JOINT; SOLENOID,CASE
(A) 		8-97349-473-0 02 1 1506- ● ●
654 04.309 JOINT; SOLENOID,CASE
(B) 		8-97380-419-0 01 1 1506- ● ●
655 04.309 SENSOR; STROKE
(A) 		8-98107-823-0 01 1 1506- ● ●
655 04.309 SENSOR; STROKE
(B) 		8-98107-824-0 01 1 1506- ● ●
656 04.307 SPRING; SHAFT
(A) 		8-97379-985-0 01 1 1506- ● ●
656 04.307 SPRING; SHAFT
(B) 		8-97379-986-0 01 1 1506- ● ●
656 04.307 SPRING; SHAFT
(C) 		8-97379-987-0 01 1 1506- ● ●
657 04.105 PLATE; SIDE 8-98020-712-0 01 1 1506- ● ●
687 04.075 GASKET; SENSOR
04.307 		9-09567-113-0 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
