2-26 — MANUAL TRANSMISSION GEAR (#162499) — 175 parça

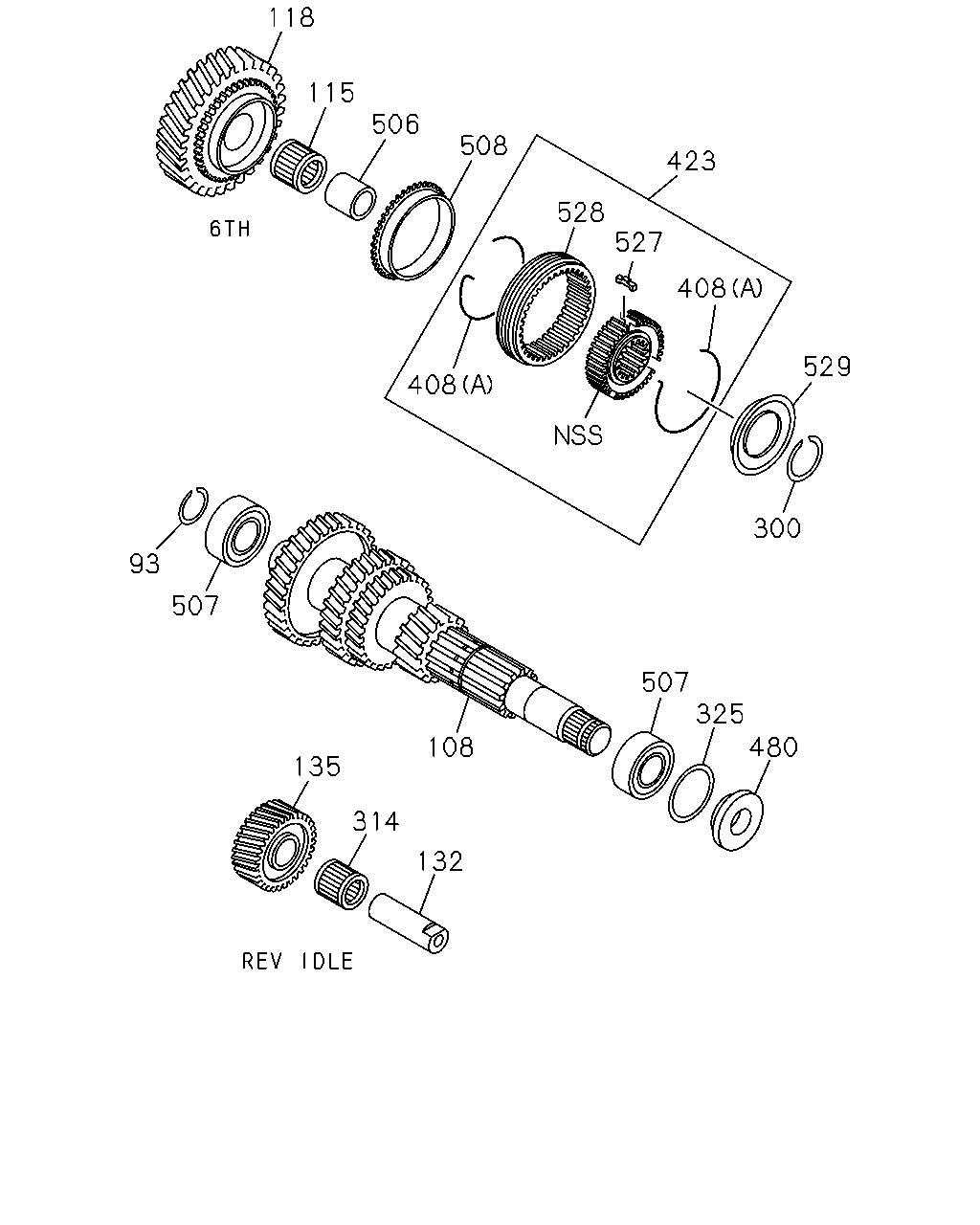

çizim 479407
132 314 135 108 507 93 480 325 507 300 529 408 527 528 408 423 508 506 115 118
BalonParca AdiParca NoAdetTipApplied Date A B C
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1506- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1506- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1506- ● ● ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1506- ●
108 04.428 SHAFT; COUNTER
Z=47-39-33-20 		8-97252-639-1 01 1 1506- ●
108 04.428 SHAFT; COUNTER
Z=47-38-31-20 		8-98256-126-0 01 1 1506- ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1506- ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1506- ● ●
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 1506- ● ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1506- ● ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1506- ● ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 1506- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 1506- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 1506- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 1506- ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1506- ●
423 04.384 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 1506- ● ●
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 1506- ● ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 1506- ● ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1506- ● ● ●
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 1506- ● ●
527 04.384 INSERT; 6TH 8-94448-202-2 03 1 1506- ● ●
528 04.384 SLEEVE; 6TH
04.535 Z=45 		8-94421-871-1 01 1 1506- ● ●
529 04.384 PLATE; STOPPER,6TH 8-97248-952-0 01 1 1506- ● ●

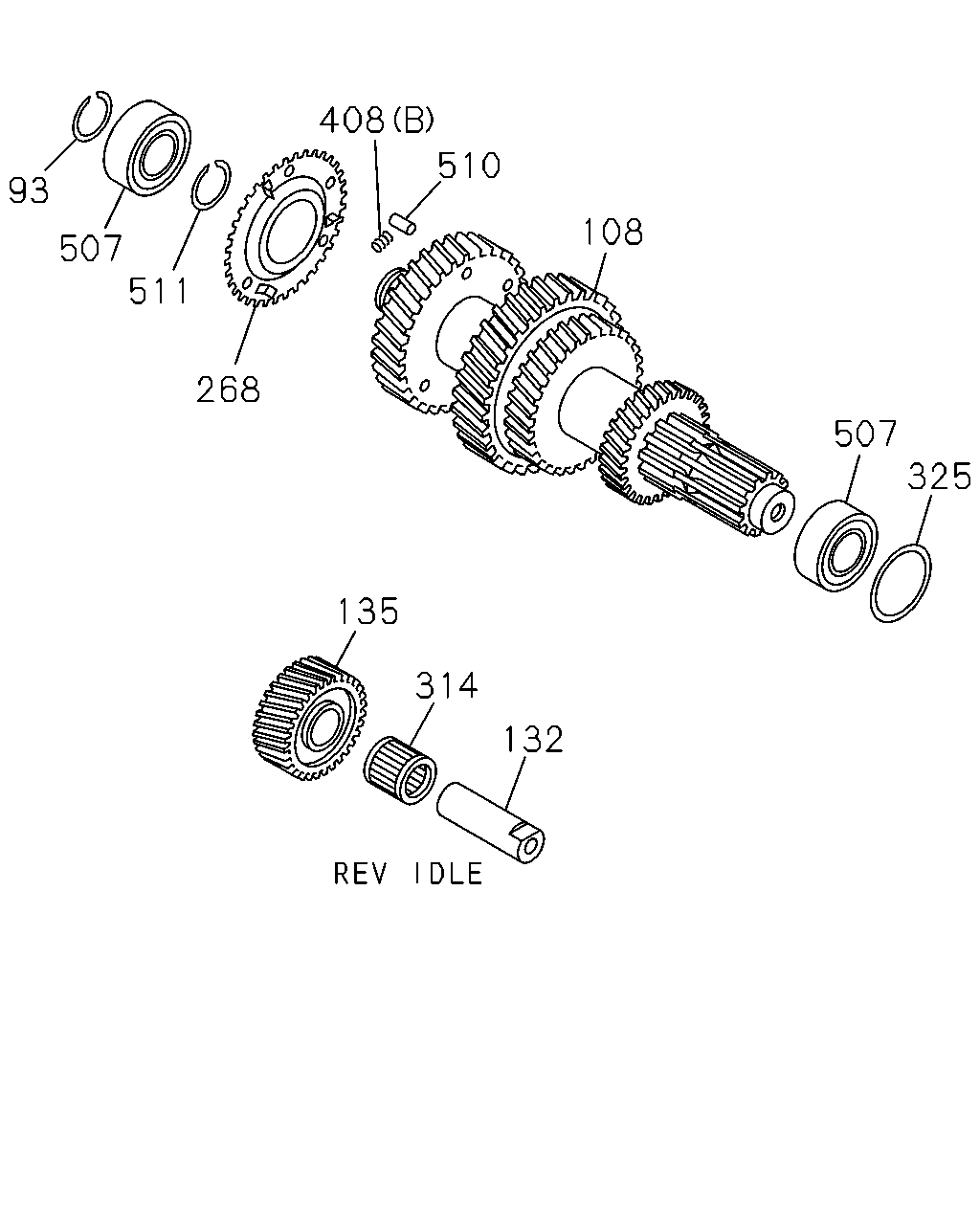

çizim 479648
132 314 135 268 511 507 93 325 507 108 510 408
BalonParca AdiParca NoAdetTipApplied Date A B C
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1506- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1506- ● ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1506- ● ● ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1506- ●
108 04.428 SHAFT; COUNTER
Z=47-39-33-20 		8-97252-639-1 01 1 1506- ●
108 04.428 SHAFT; COUNTER
Z=47-38-31-20 		8-98256-126-0 01 1 1506- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1506- ● ● ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1506- ● ● ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 1506- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1506- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1506- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1506- ● ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1506- ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1506- ●

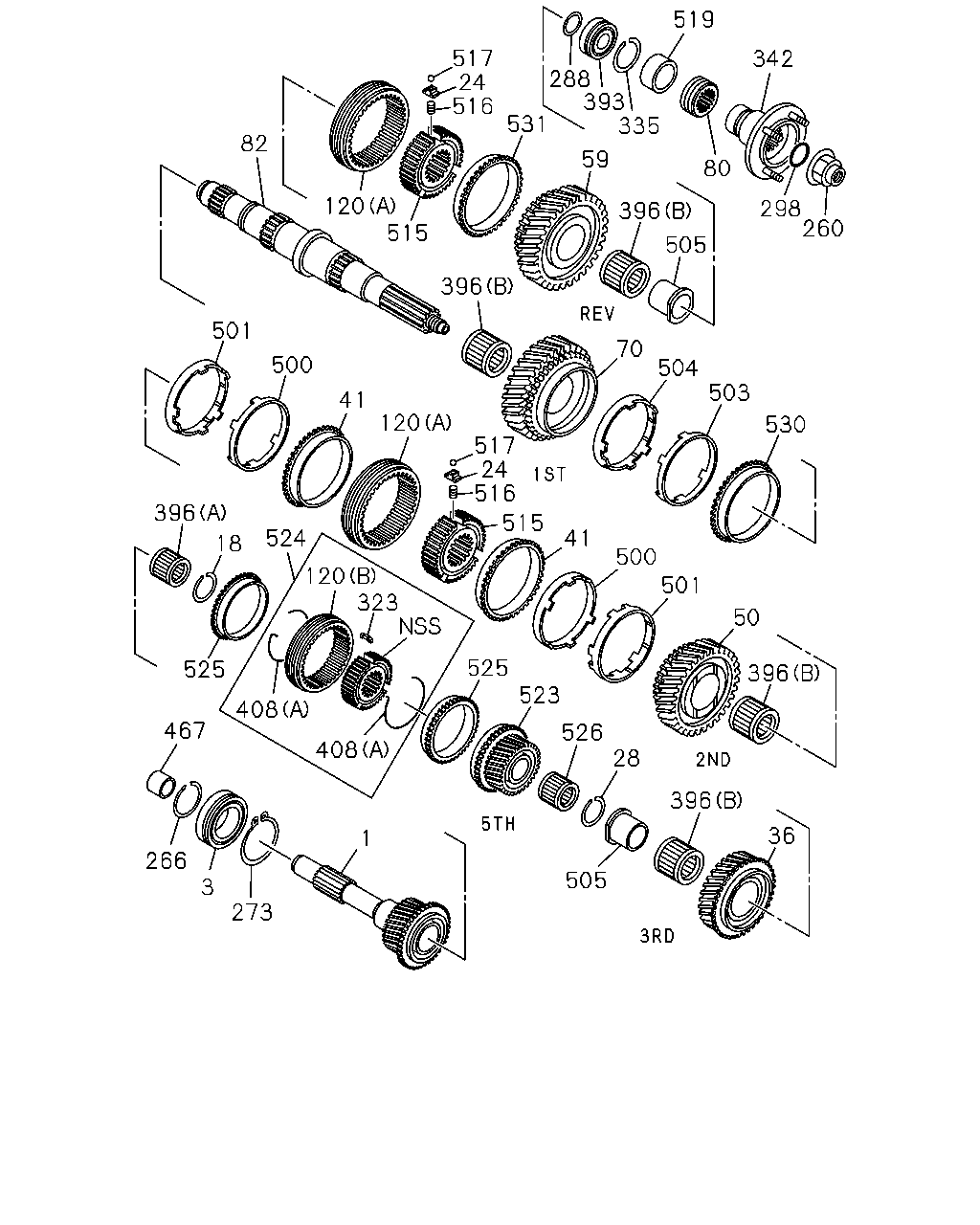

çizim 479898
517 519 288 393 335 80 342 298 260 24 516 531 59 396 505 82 120 515 396 70 504 503 530 501 500 120 517 24 516 515 41 500 501 50 396 396 28 36 505 523 526 525 323 120 524 18 396 525 467 266 3 273 408 408 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.351 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 1506- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=26 		8-98021-267-0 01 1 1506- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1506- ● ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1506- ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1506- ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1506- ● ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1506- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1506- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=35 		8-98256-123-0 01 1 1506- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1506- ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1506- ● ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1506- ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1506- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97352-815-0 01 1 1506- ● ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1506- ● ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1506- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 1506- ● ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1506- ● ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1506- ● ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1506- ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1506- ● ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1506- ● ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1506- ● ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1506- ● ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1506- ● ● ●
323 04.384 INSERT 8-94448-202-2 03 1 1506- ● ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1506- ● ● ●
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 1506- ● ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1506- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1506- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1506- ●
467 04.317 COLLAR; SHAFT 8-97255-183-1 01 1 1506- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1506- ● ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1506- ● ● ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1506- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1506- ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1506- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1506- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1506- ● ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1506- ● ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1506- ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1506- ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1506- ● ● ●
519 04.419 COLLAR; MAINSHAFT END,5TH
04.415 		8-97252-940-0 01 1 1506- ●
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 1506- ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1506- ● ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1506- ● ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1506- ● ● ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1506- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1506- ●

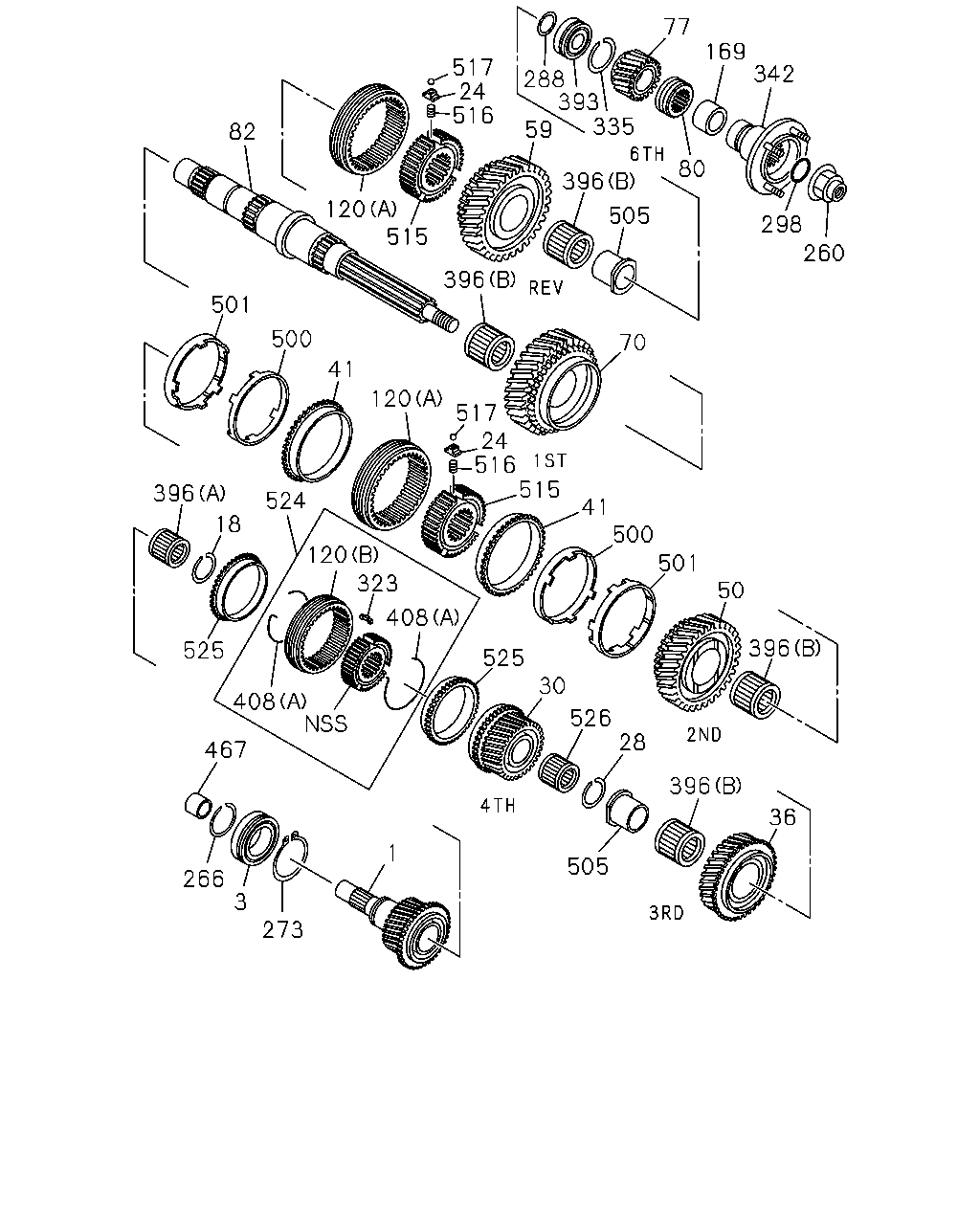

çizim 480050
273 3 266 467 505 36 396 28 526 30 525 408 408 323 120 524 18 396 525 396 50 501 500 41 515 516 24 517 120 41 500 501 70 396 515 120 82 517 516 24 396 59 260 298 80 335 393 288 77 342 169 1 505
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.351 SHAFT; TOP GEAR,TRANS
Z=28 		8-98031-848-0 01 1 1506- ●
1 04.351 SHAFT; TOP GEAR,TRANS
Z=26 		8-98021-267-0 01 1 1506- ● ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1506- ● ● ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1506- ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1506- ● ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1506- ● ● ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1506- ● ● ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 1506- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=29 		8-98256-122-0 01 1 1506- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1506- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=35 		8-98256-123-0 01 1 1506- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1506- ● ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1506- ● ● ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1506- ● ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1506- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97352-815-0 01 1 1506- ● ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 1506- ● ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1506- ● ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1506- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 1506- ● ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1506- ● ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1506- ● ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1506- ● ● ●
169 04.419 COLLAR; MAINSHAFT 8-97252-937-1 01 1 1506- ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1506- ● ● ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1506- ● ● ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1506- ● ● ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1506- ● ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1506- ● ● ●
323 04.384 INSERT 8-94448-202-2 03 1 1506- ● ● ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1506- ● ● ●
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 1506- ● ● ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1506- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1506- ● ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1506- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1506- ●
467 04.317 COLLAR; SHAFT 8-97255-183-1 01 1 1506- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1506- ● ● ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1506- ● ● ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1506- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1506- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1506- ● ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1506- ● ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1506- ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1506- ● ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1506- ● ● ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1506- ● ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1506- ● ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1506- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
