◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#162490) — 28 parça

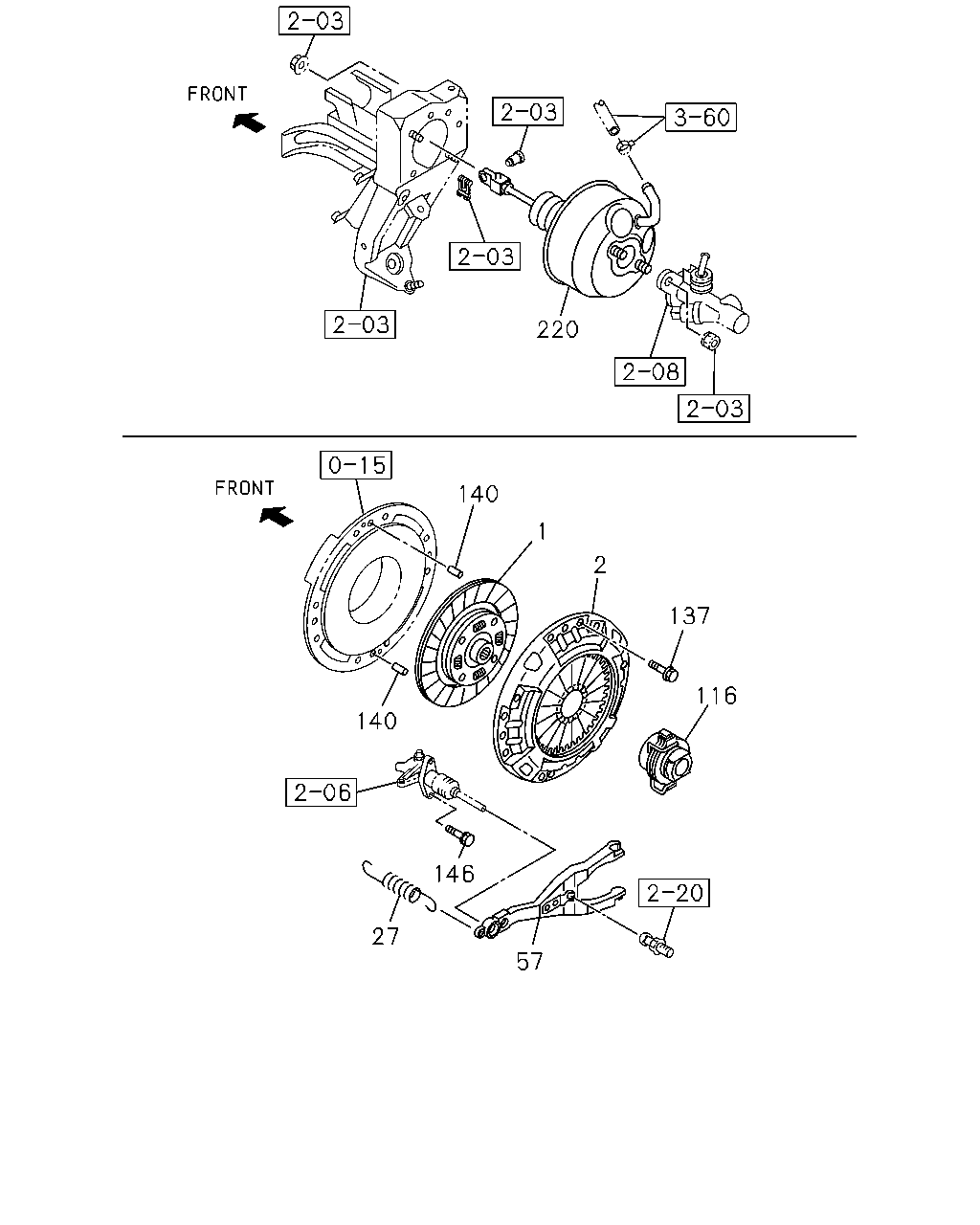

çizim 479522
220 140 2 1 137 116 140 146 57 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-98255-139-1 01 1 1506- ●
1 00.886 DISC; CLUTCH
BEST VALUE PARTS 		5-87610-077-1 01 1 1506- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98040-093-0 01 1 1506- ●
2 00.859 PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS 		5-87610-091-0 01 1 1506- ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-98025-313-0 01 1 1506- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1506- ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1506- ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1506- ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1506- ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1506- ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1506- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		8-98043-208-0 01 1 1506- ●
çizim 479562
296 209 297 296 299 292 299 300 291 298 295 294 293 302 298 306 301 303
BalonParca AdiParca NoAdetTipApplied Date A B C
209 00.885 CLUTCH ASM 8-98275-320-0 01 1 1506- ● ●
291 00.863 COUPLING; FLUID 8-98087-659-2 01 1 1506- ● ●
292 00.862 RING; SEAL 8-97255-329-0 01 1 1506- ● ●
293 00.799 BAND; BRAKE 8-97254-651-0 01 1 1506- ● ●
294 00.846 PIN; ANCHOR 8-97255-703-0 01 1 1506- ● ●
295 00.864 BOLT; ANCHOR PIN
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 1506- ● ●
296 00.862 BEARING; THRUST
(A) 		8-97255-688-0 01 1 1506- ● ●
296 00.862 BEARING; THRUST
(B) 		8-97255-689-0 01 1 1506- ● ●
297 00.862 WASHER; THRUST 8-97300-070-0 01 1 1506- ● ●
298 04.020 PUMP ASM; OIL 8-98107-924-1 01 1 1506- ● ●
299 04.105 RING; SEAL 8-97255-330-0 02 1 1506- ● ●
300 04.226 BOLT; OIL PUMP
09.173 M8X45 FLANGE 		0-28050-845-0 11 1 1506- ● ●
301 04.166 SEAL; OIL PUMP 8-97289-811-0 01 1 1506- ● ●
302 04.226 RING; OIL PUMP 8-97255-188-0 01 1 1506- ● ●
303 02.480 HARNESS ASM; OIL PUMP 8-98000-265-2 01 1 1506- ● ●
306 00.785 CLIP; BAND
02.559 L=100 		8-94279-939-0 03 1 1506- ● ●
