◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51604 - NLR/NMR(85) AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#162489) — 31 parça

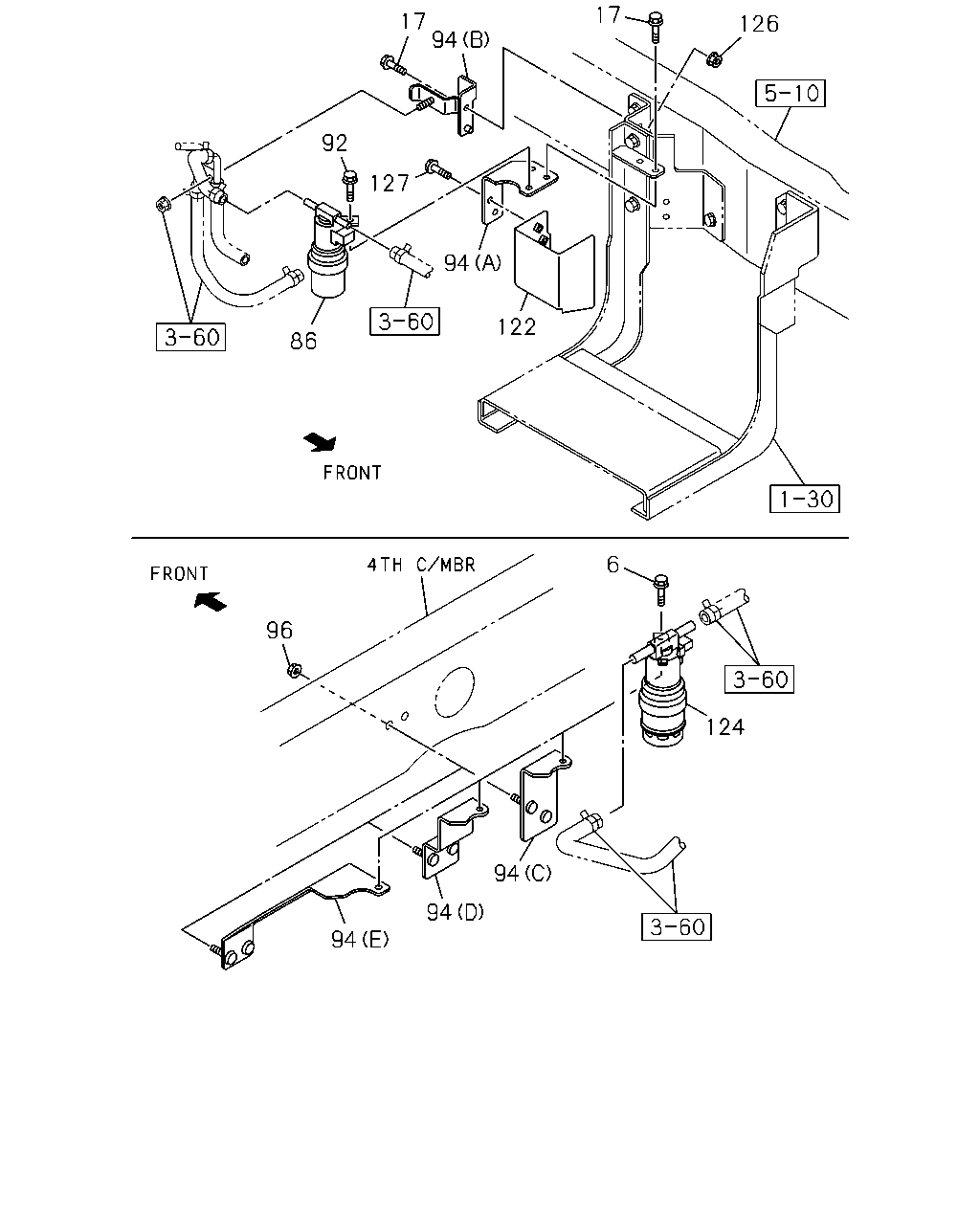

çizim 479475
126 17 94 17 127 92 94 122 86 124 6 94 94 94 96
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.632 BOLT; EXH BRAKE UNIT FIX
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ●
17 03.634 BOLT; BRKT
WHEEL BASE 2400MM(24W) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ●
17 03.634 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506- ●
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1506- ●
86 03.636 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 1506- ● ●
92 08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1506-1507 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1506-1507 ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
SUSPENSION - RR UNDER SLUNG<V4U> (E) 		8-98039-761-2 01 1 1508- ● ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (D) 		8-98039-762-1 01 1 1506- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (D) 		8-98039-762-1 01 1 1506- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1506- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (C) 		8-98039-764-1 01 1 1506- ●
94 03.634 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98211-757-1 01 1 1506- ● ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1507 ●
96 03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1508- ● ●
122 03.640 PROTECTOR; MAG VLV 8-98098-564-0 01 1 1506- ● ●
124 03.636 VALVE; MAG,DPD EXH THROTTLE 8-98043-344-0 01 1 1506- ● ●
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ●
127 04.902 BOLT; PROTECTOR
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1506- ● ●
çizim 479792
1 8 5 5 1 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.632 BRAKE UNIT; EXH
(A) 		8-98227-170-0 01 1 1506- ● ●
1 03.632 BRAKE UNIT; EXH
(B) 		8-98258-268-0 01 1 1506- ● ●
5 03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64 		8-97373-108-0 02 1 1506- ● ●
8 03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1506- ● ●
10 03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 1506- ● ●

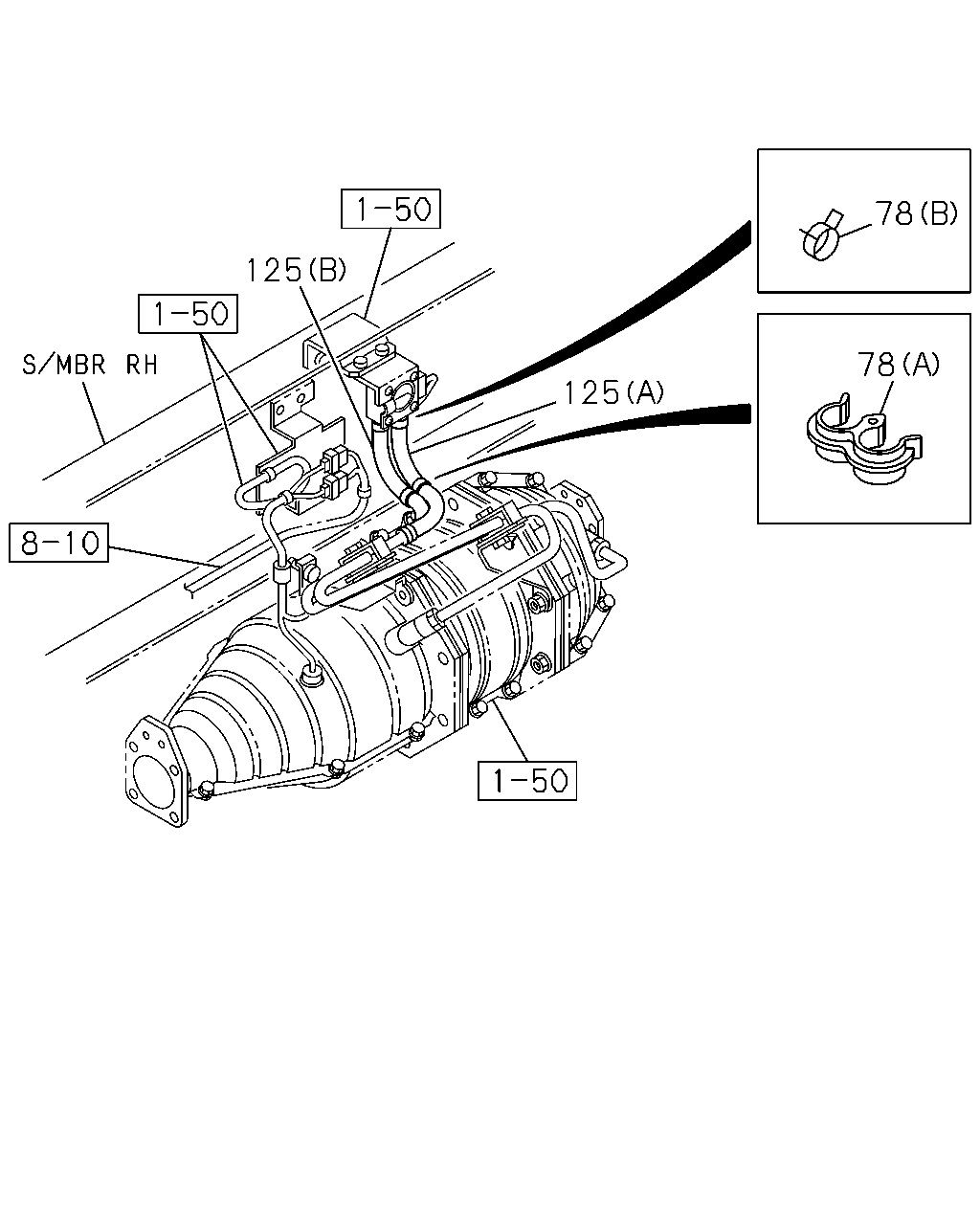

çizim 480022
125 125 78 78
BalonParca AdiParca NoAdetTipApplied Date A B
78 03.636 CLIP; HOSE
03.162 (A) 		8-97173-119-0 01 1 1506- ● ●
78 03.636 CLIP; HOSE
03.162 (B) ID=13 		8-97329-627-0 04 1 1506- ● ●
125 03.630 HOSE; DPD
(A) L=90 		8-98029-399-0 01 1 1506- ● ●
125 03.630 HOSE; DPD
(B) L=110 		8-98029-400-0 01 1 1506- ● ●
