Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#162487) — 258 parça

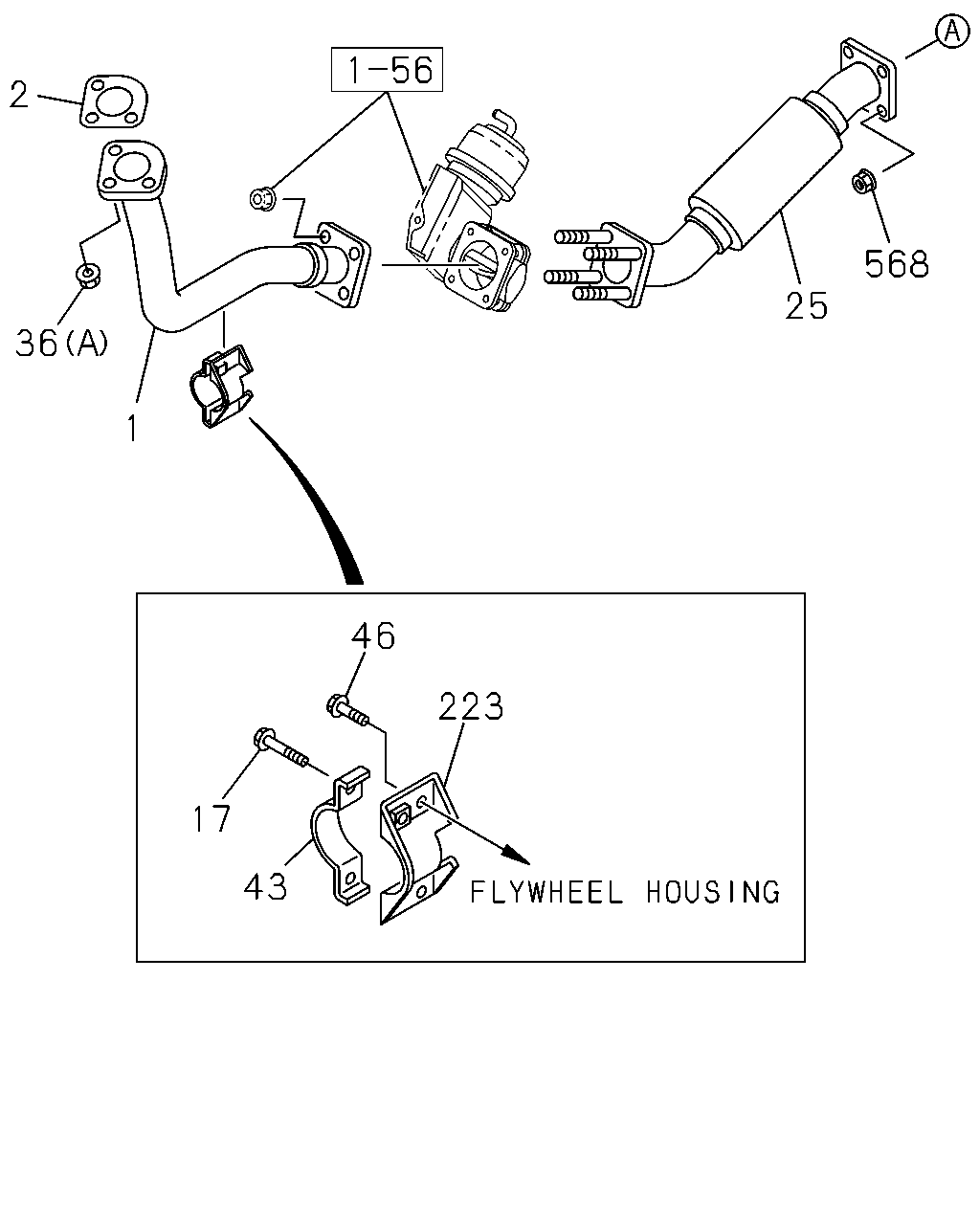

2 1 36 25 568 223 46 17 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH	8-98026-060-0	01	1	1506-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	1506-	●	●
17	03.613 BOLT; EXH PIPE 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98026-061-2	01	1	1506-	●	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1506-	●	●
46	03.704 BOLT; BRKT,EXH PIPE 02.042 M10X25 FLANGE	0-28151-025-0	02	1	1506-	●	●
223	03.706 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1506-	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1506-	●	●

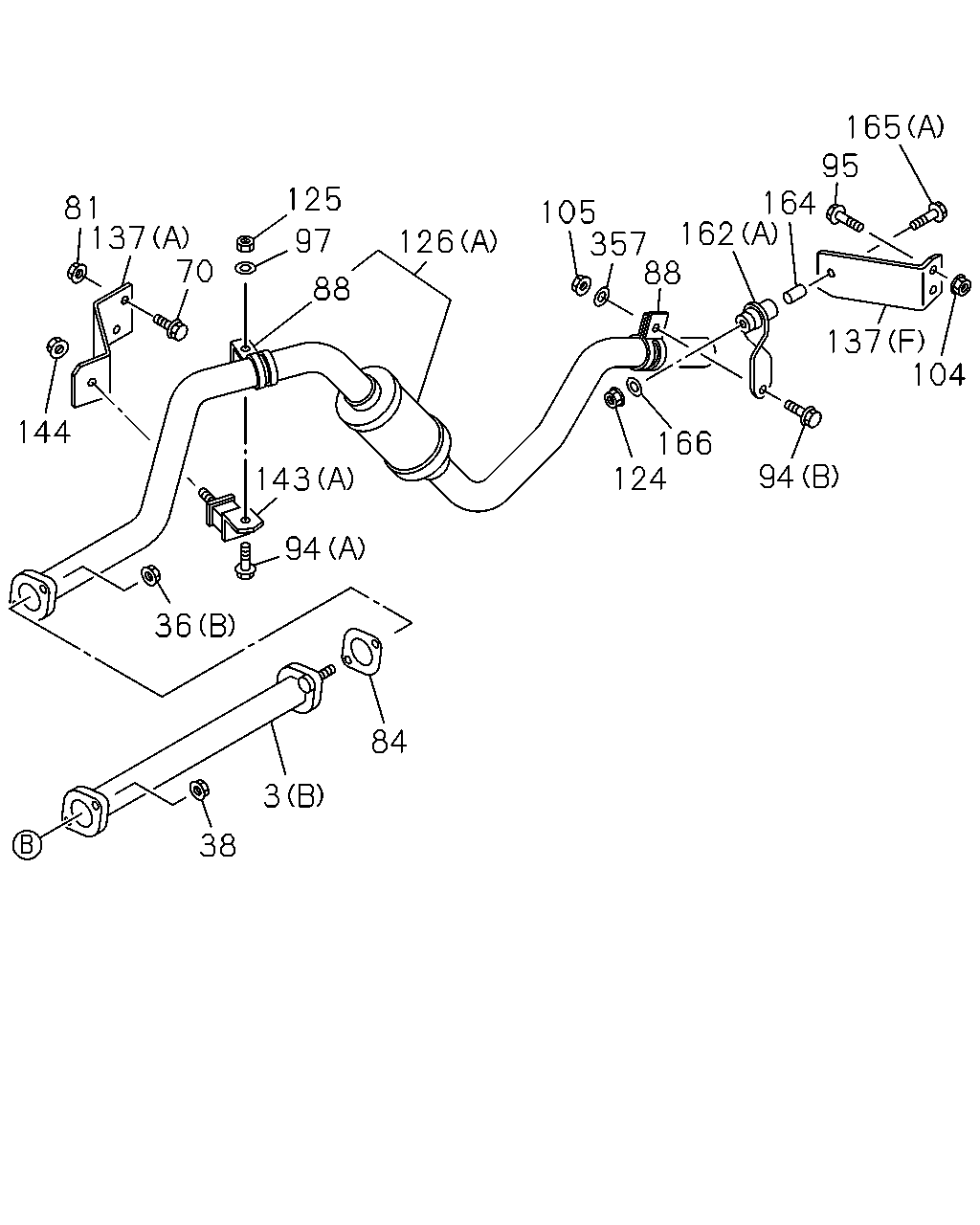

81 144 70 137 94 143 38 126 124 88 97 125 88 95 357 105 104 137 165 166 164 162 94 144 143 70 137 94 84 3 36 126 97 125 165 124 166 164 162 124 137 165 95 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98014-286-1	01	1	1506-	●
3	03.609 PIPE; EXH,CENTER SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98014-286-1	01	1	1506-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98005-237-0	01	1	1506-	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
70	03.706 BOLT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-		●
94	03.704 BOLT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-		●
94	03.704 BOLT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●	●
95	03.708 BOLT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
97	03.708 WASHER; PL,CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-		●
104	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
105	03.704 NUT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1506-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
125	03.708 NUT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75 LITTER<7GX> (C)	8-98254-812-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98254-812-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98072-128-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98072-128-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98072-129-0	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98001-896-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98001-896-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98001-908-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98001-908-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98001-895-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98001-895-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98038-762-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98038-762-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98001-897-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98001-913-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●
143	03.704 RUBBER; SUPPORT EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1506-	●	●
144	03.613 NUT; MTG RUBBER EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98032-150-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98032-150-0	01	1	1506-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=115	8-98032-151-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=115	8-98032-151-0	01	1	1506-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-765-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	1506-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=37.5	9-22151-217-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1506-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-		●
357	03.708 WASHER; PL,CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●

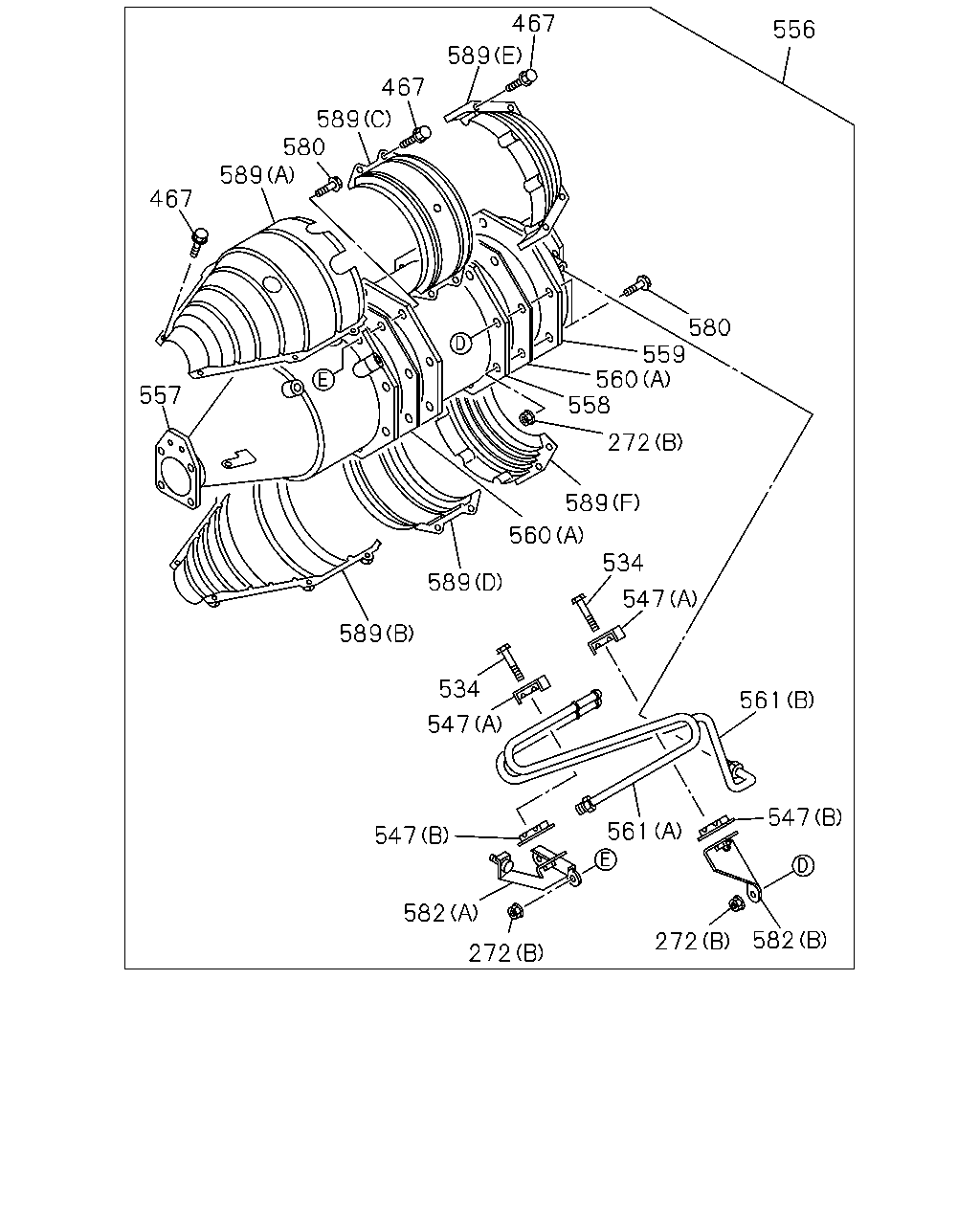

580 556 467 589 467 589 580 589 467 557 559 560 558 272 589 560 589 589 534 547 547 582 272 561 272 582 547 561 547 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1506-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1506-	●	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1506-	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1506-	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1506-	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1506-	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (A)	8-98084-600-0	01	1	1506-	●	●
561	03.609 PIPE; DPD (B)	8-98084-601-0	01	1	1506-	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1506-	●	●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	1506-	●	●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	1506-	●	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	1506-	●	●

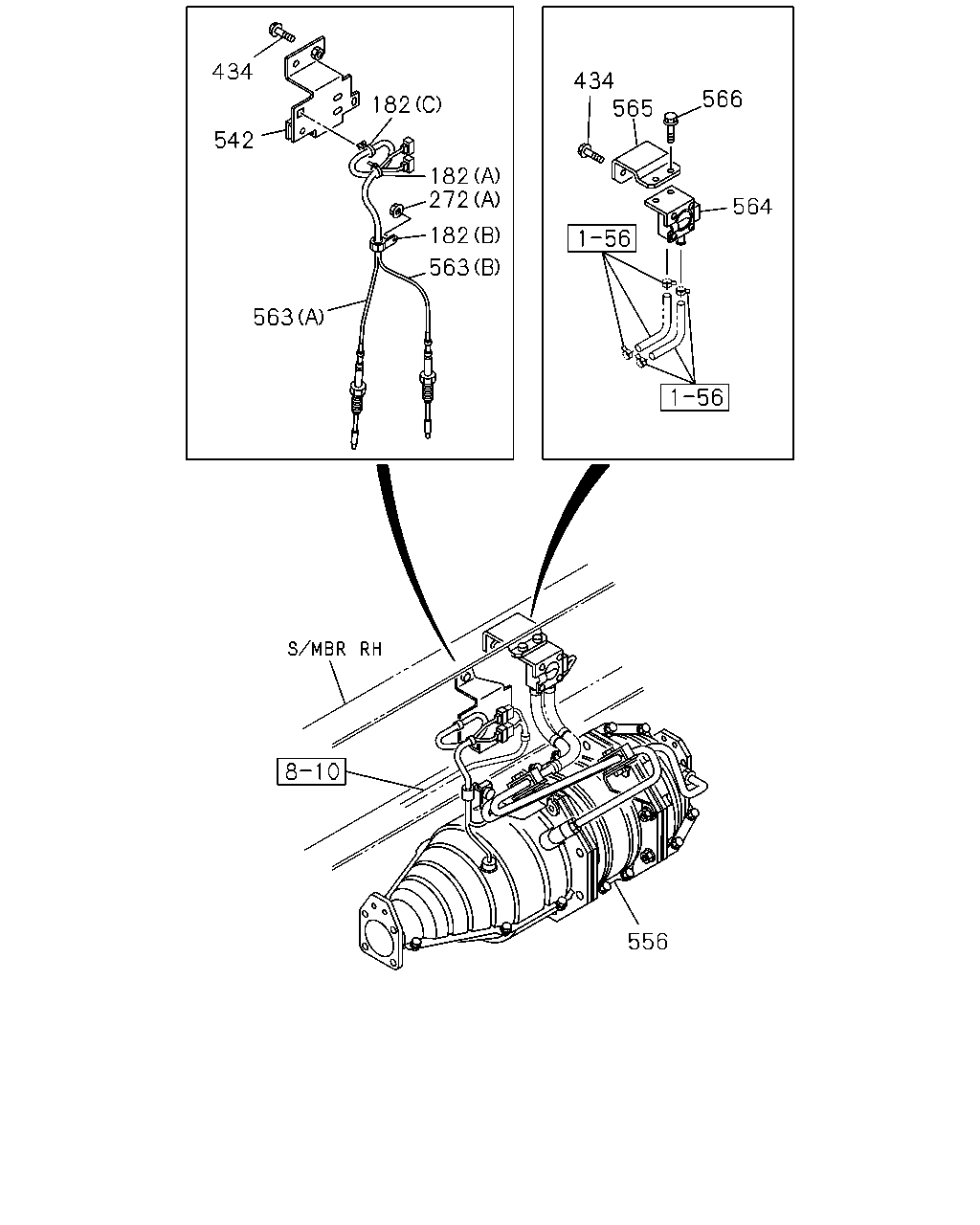

564 566 565 434 182 563 272 182 182 434 542 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	1506-	●	●
182	03.682 CLIP; HARNESS (C) ID=7 L=7.5	8-97369-561-0	01	1	1506-	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1506-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	1506-	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
434	03.613 BOLT; BRKT EXC. FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
434	03.613 BOLT; BRKT WHEEL BASE 2400MM(24W) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-		●
542	03.704 BRACKET	8-98047-896-0	01	1	1506-	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A) FRONT	8-98004-329-0	01	1	1506-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B) REAR	8-98004-330-0	01	1	1506-	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1506-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2400MM(24W) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98029-348-0	01	1	1506-	●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98029-348-0	01	1	1506-		●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	8-98029-347-0	01	1	1506-	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-	●	●

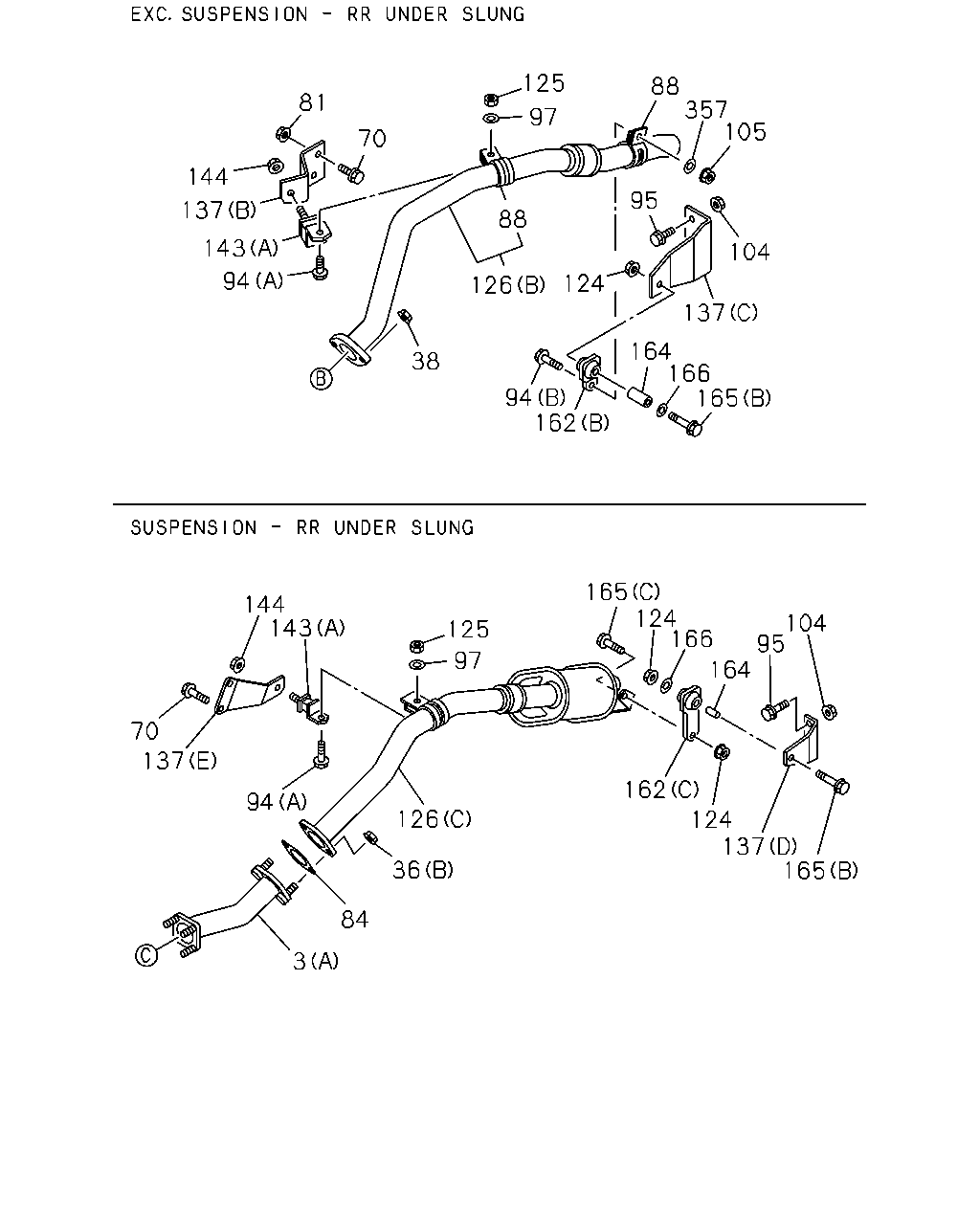

81 125 88 97 70 137 144 143 94 36 84 3 38 124 166 126 105 88 357 162 164 95 165 137 104 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98014-286-1	01	1	1506-	●
3	03.609 PIPE; EXH,CENTER SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98014-286-1	01	1	1506-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98005-237-0	01	1	1506-	●
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-	●
36	03.613 NUT; EXH PIPE SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1506-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1506-	●	●
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
38	00.002 NUT; SILENCER EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
70	03.706 BOLT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
81	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1506-	●
84	03.611 GASKET; EXH PIPE SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	1506-		●
88	03.708 CLAMP; EXH PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-	●	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-	●
88	03.708 CLAMP; EXH PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-97373-158-0	01	1	1506-		●
94	03.704 BOLT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1506-		●
94	03.704 BOLT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●	●
95	03.708 BOLT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
97	03.708 WASHER; PL,CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-		●
104	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
104	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
105	03.704 NUT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1506-	●	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-	●
124	03.704 NUT; SUPPORT RUBBER SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-		●
125	03.708 NUT; CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	1506-	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> FUEL TANK 75 LITTER<7GX> (C)	8-98254-812-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98254-812-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98072-128-0	01	1	1506-	●
126	03.705 PIPE; EXH,RR EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98072-128-0	01	1	1506-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98072-129-0	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98001-896-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE SUSPENSION - RR UNDER SLUNG<V4U> (E)	8-98001-896-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98001-908-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98001-908-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98001-895-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98001-895-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98038-762-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98038-762-1	01	1	1506-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98001-897-1	01	1	1506-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98001-913-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●
143	03.704 RUBBER; SUPPORT EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1506-	●	●
144	03.613 NUT; MTG RUBBER EXC. SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98032-150-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE SUSPENSION - RR UNDER SLUNG<V4U> (C)	8-98032-150-0	01	1	1506-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=115	8-98032-151-0	01	1	1506-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B) L=115	8-98032-151-0	01	1	1506-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-765-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	1506-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=23	8-98006-011-0	01	1	1506-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=37.5	9-22151-217-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1506-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1506-	●
165	03.706 BOLT; SUPPORT RUBBER SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (C) M10X30 FLANGE	0-28651-030-0	01	1	1506-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A) M10X70 FLANGE	0-28051-070-0	01	1	1506-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1506-		●
357	03.708 WASHER; PL,CLAMP EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1506-	●	●

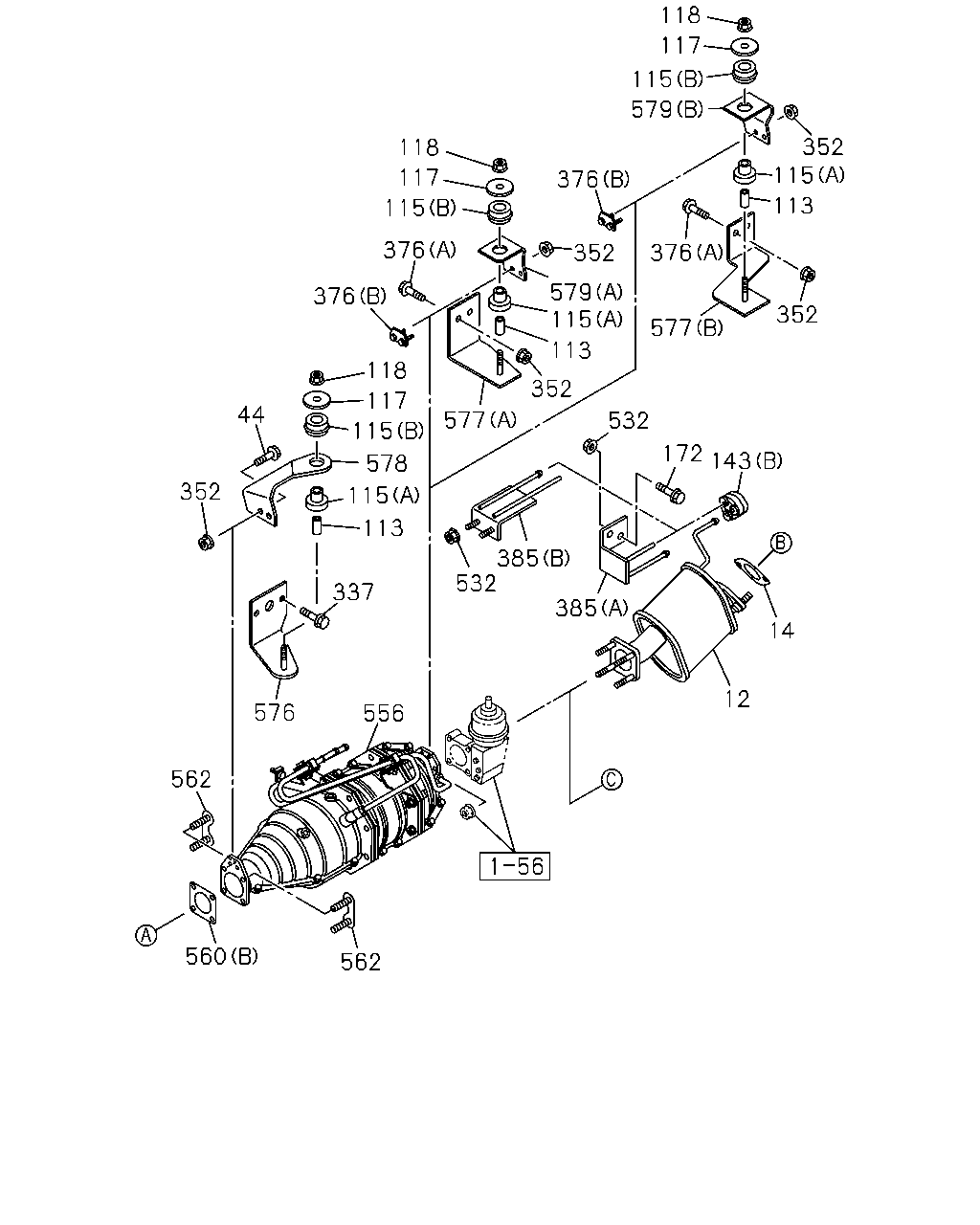

118 115 117 579 376 352 579 113 115 352 577 115 117 118 578 113 115 337 532 385 385 532 577 376 352 113 115 352 143 172 14 12 556 576 562 352 44 376 376 115 117 118 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-98254-781-0	01	1	1506-	●
12	03.701 SILENCER ASM; EXH EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-98254-781-0	01	1	1506-		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U>	8-98254-784-0	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 ID=65	8-97148-757-1	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 ID=65	8-97148-757-1	01	1	1506-	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 ID=65	8-97148-757-1	01	1	1506-		●
44	03.613 BOLT; BRKT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1506-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1506-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1506-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1506-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1506-	●	●
143	03.704 RUBBER; SUPPORT EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98034-767-0	01	1	1506-	●
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	1506-		●
143	03.704 RUBBER; SUPPORT EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	1506-	●	●
172	03.708 BOLT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
172	03.708 BOLT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-1508	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	1509-	●	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1506-	●	●
376	03.708 BOLT; BRKT 03.690 (B)	8-98005-985-0	01	1	1506-	●	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98051-655-0	01	1	1506-	●
385	03.704 BRACKET; SILENCER MTG EXC. SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98051-655-0	01	1	1506-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98001-889-1	01	1	1506-	●
532	03.704 NUT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●	●
556	03.701 DPD ASM	8-98084-595-4	01	1	1506-	●	●
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	1506-	●	●
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	1506-	●	●
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	1506-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98001-862-0	01	1	1506-	●	●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (A)	8-98001-880-0	01	1	1506-	●
577	03.706 BRACKET; DPD RR TO FRAME (A)	8-98001-880-0	01	1	1506-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	1506-	●
578	03.706 BRACKET; DPD FRT	8-98001-873-1	01	1	1506-	●	●
579	03.704 BRACKET; DPD RR WHEEL BASE 2400MM(24W) (A)	8-98001-883-1	01	1	1506-	●
579	03.704 BRACKET; DPD RR (A)	8-98001-883-1	01	1	1506-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W) (B)	8-98001-877-0	01	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
